Wheel lift toter


Truck Shop

Recommended Posts

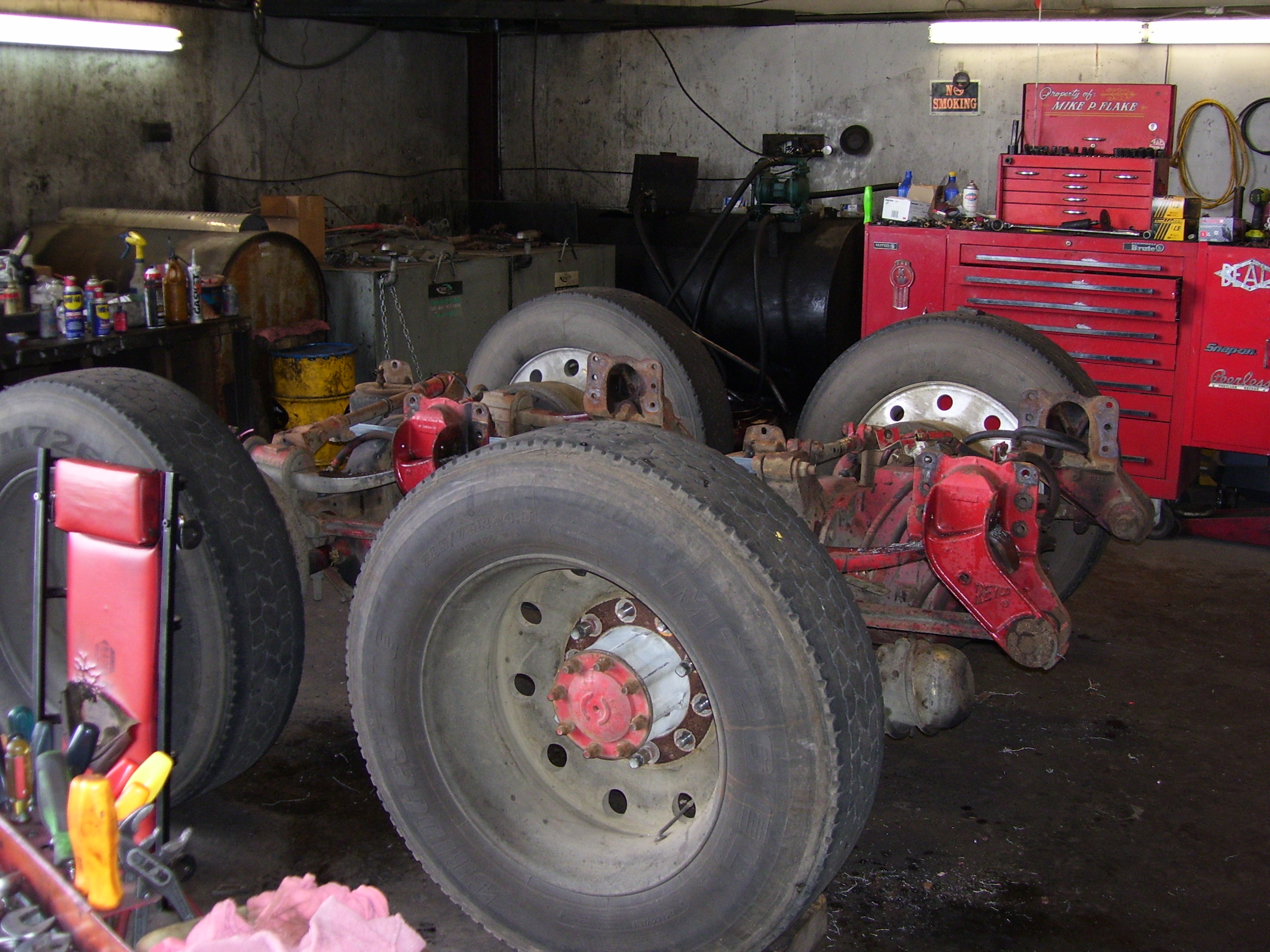

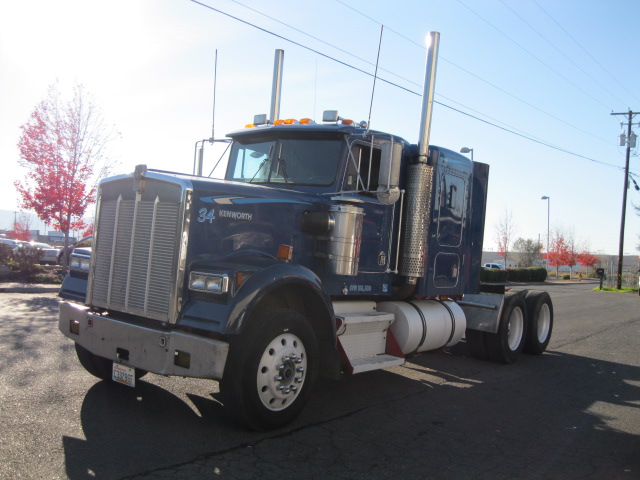

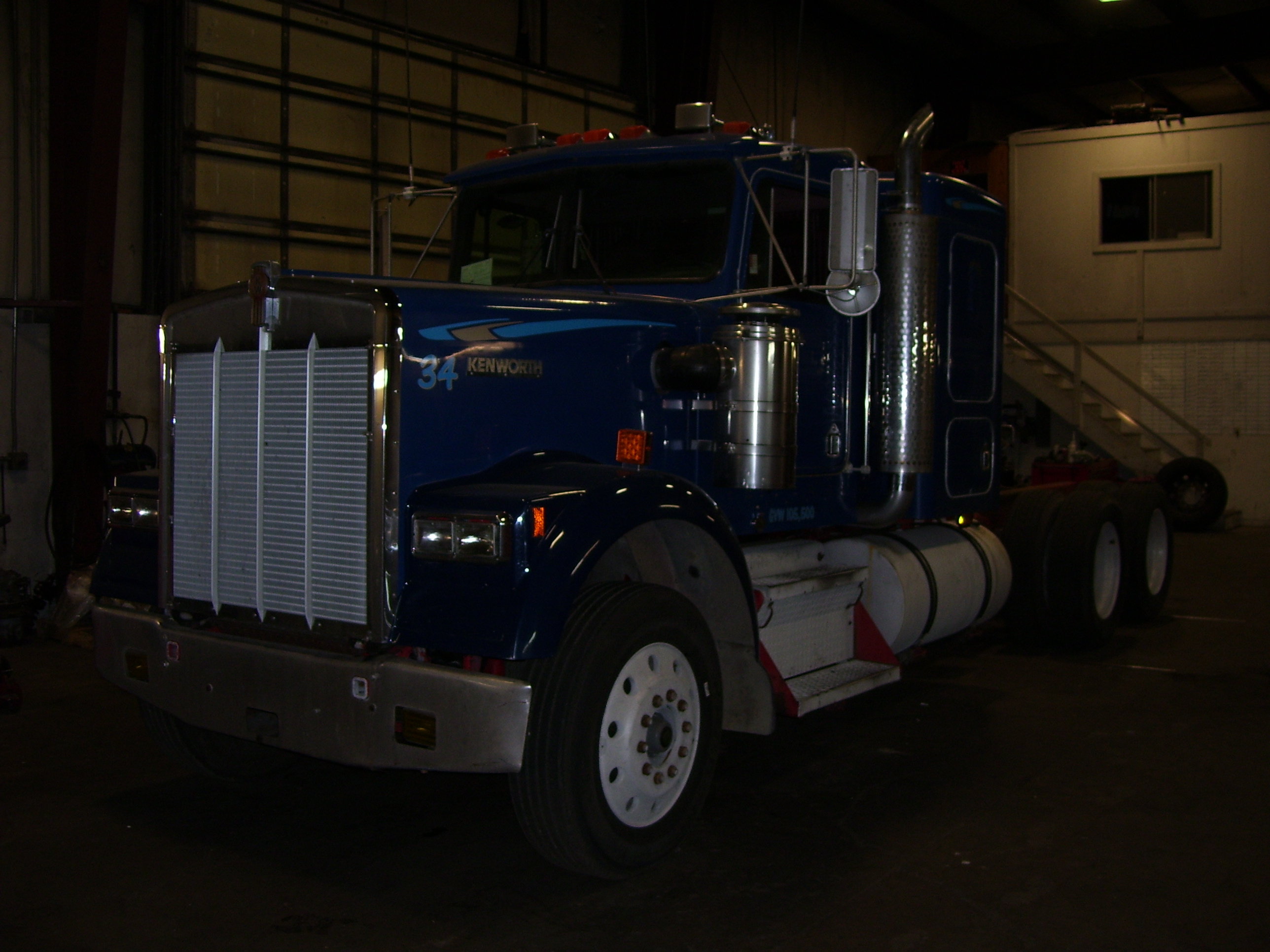

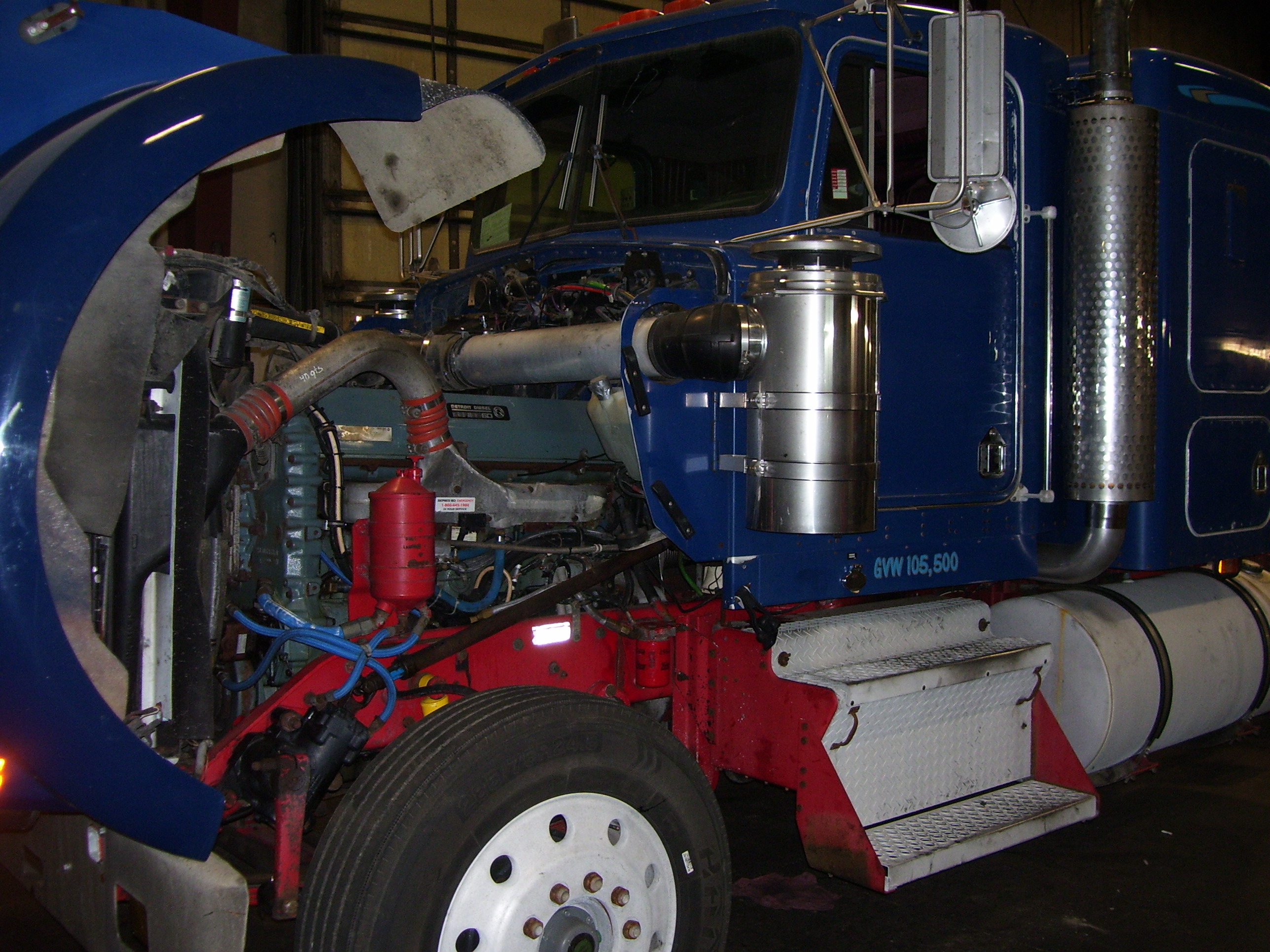

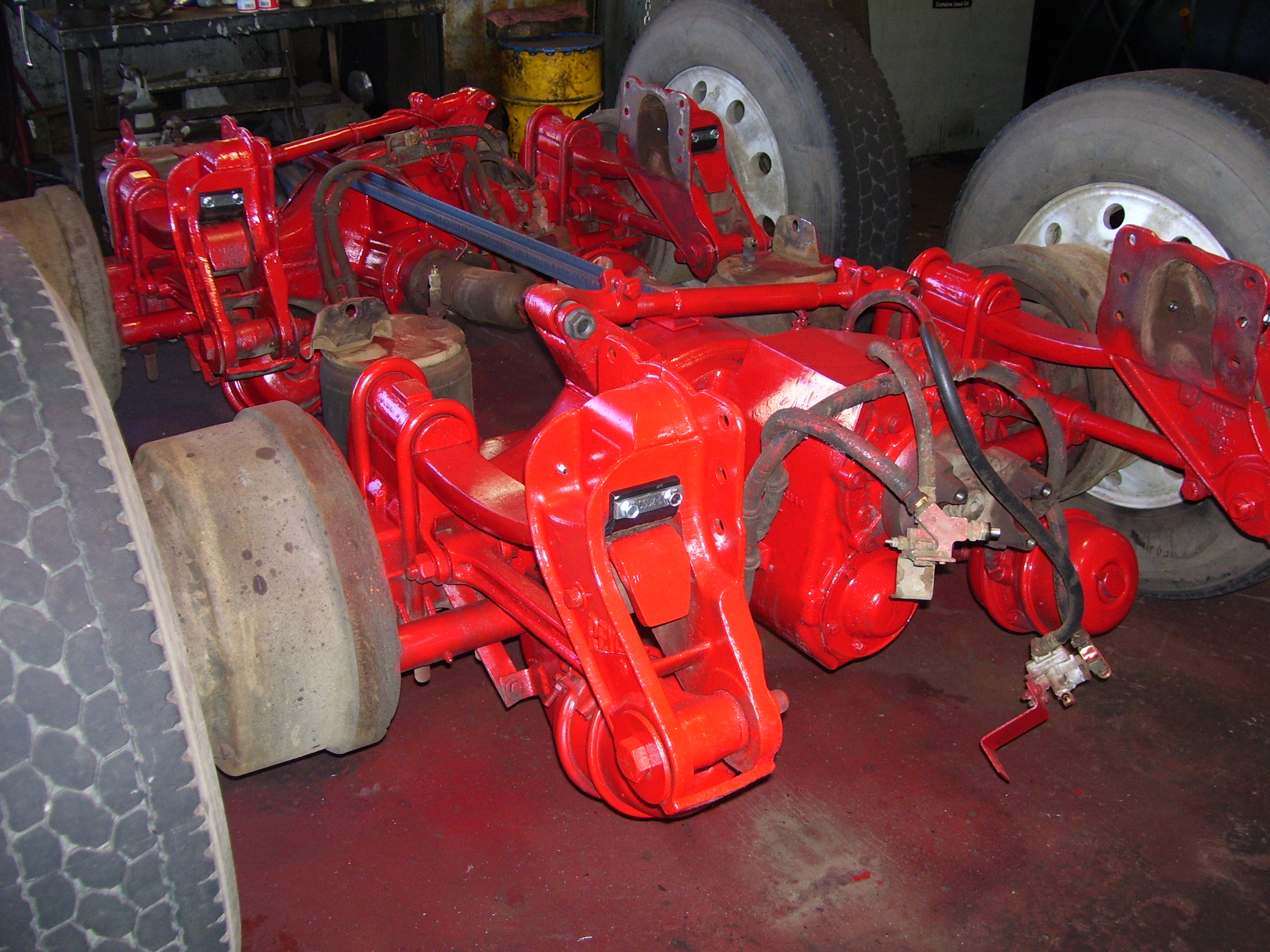

                                 Finished some repairs today, tomorrow we will remove the drive axles and strip the frame to lengthen from 230"WB to 300"WB



                                 Truck Shop







  • Like 1

One ping only

Link to comment
Share on other sites

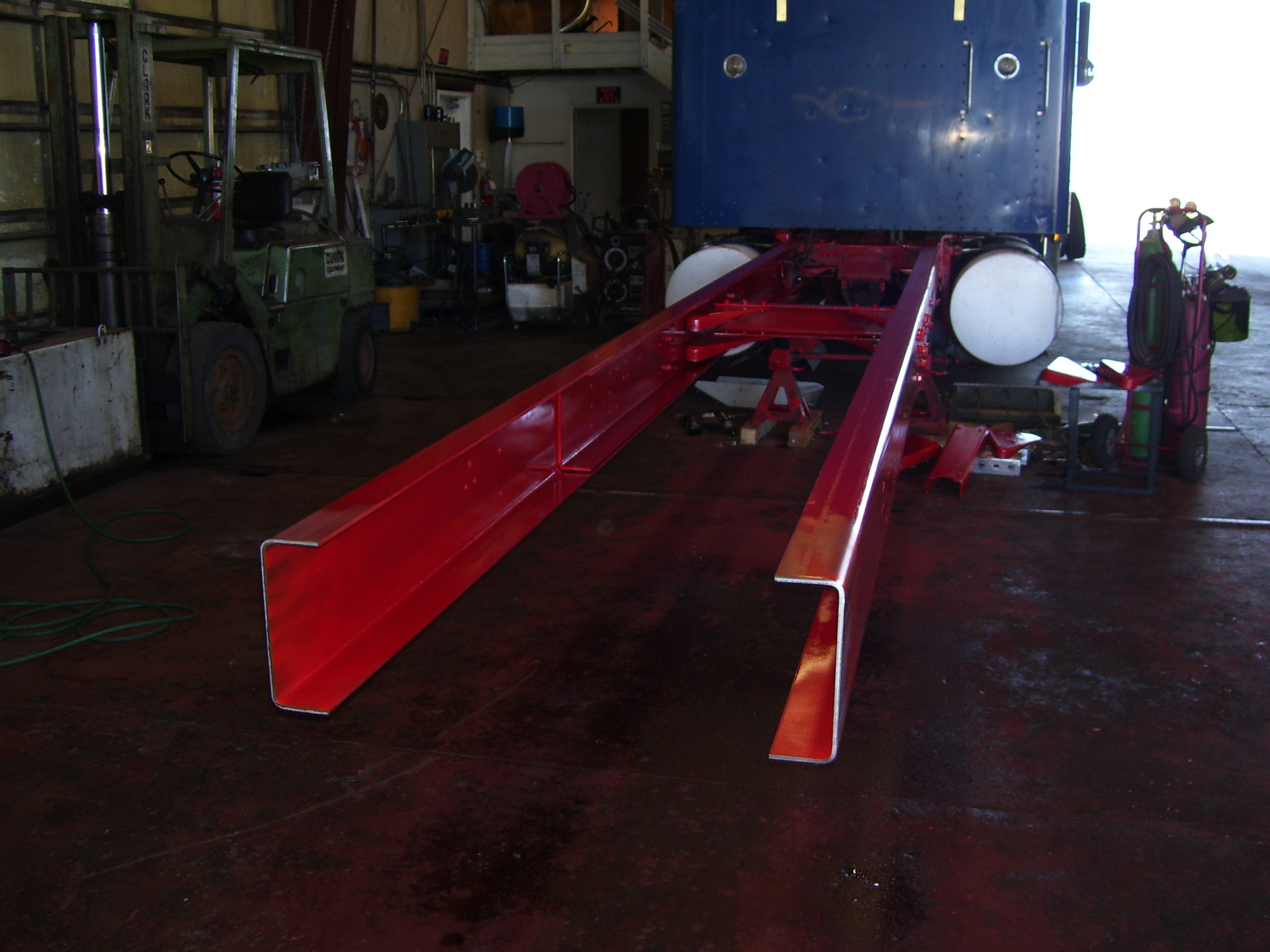

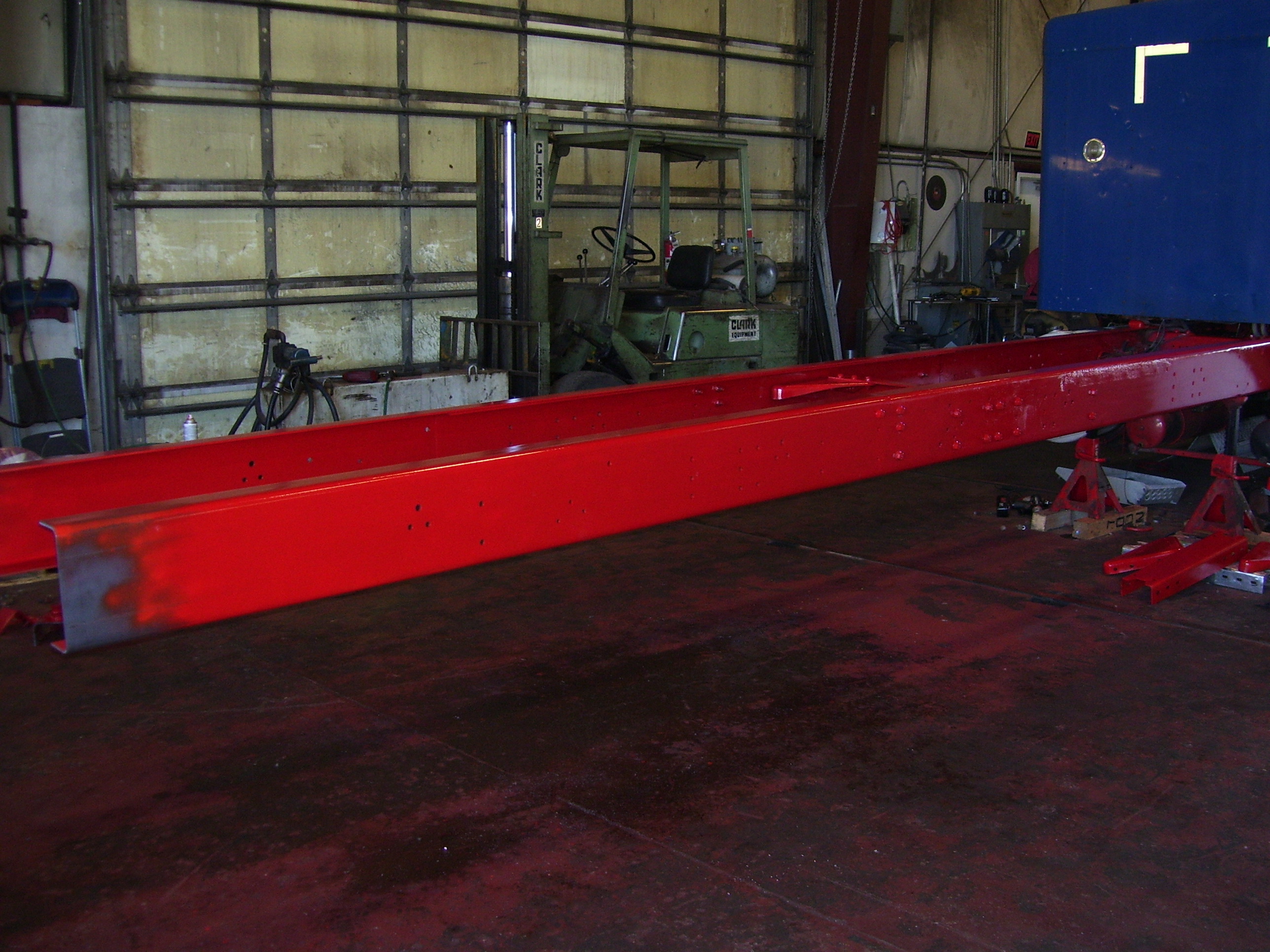

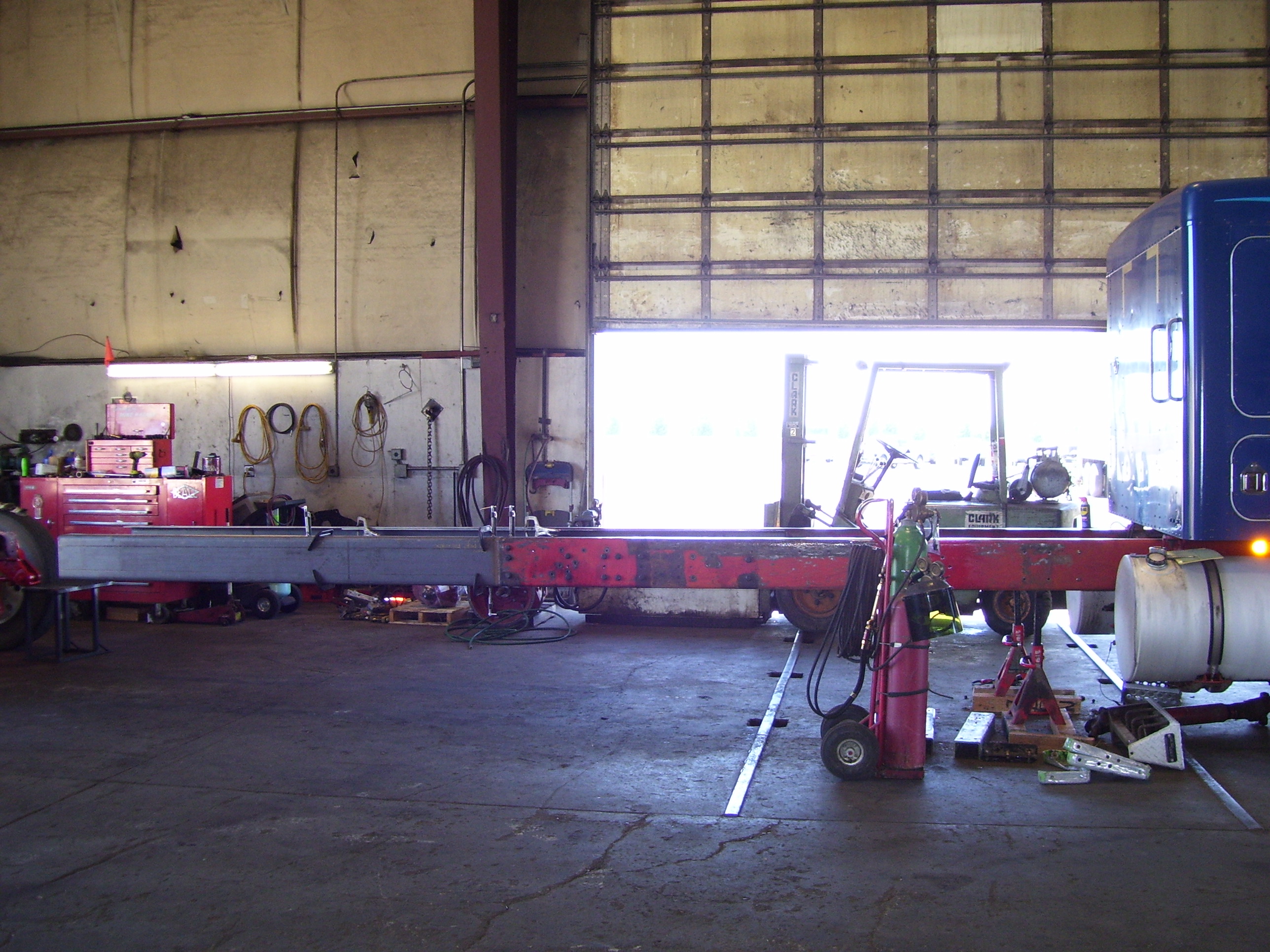

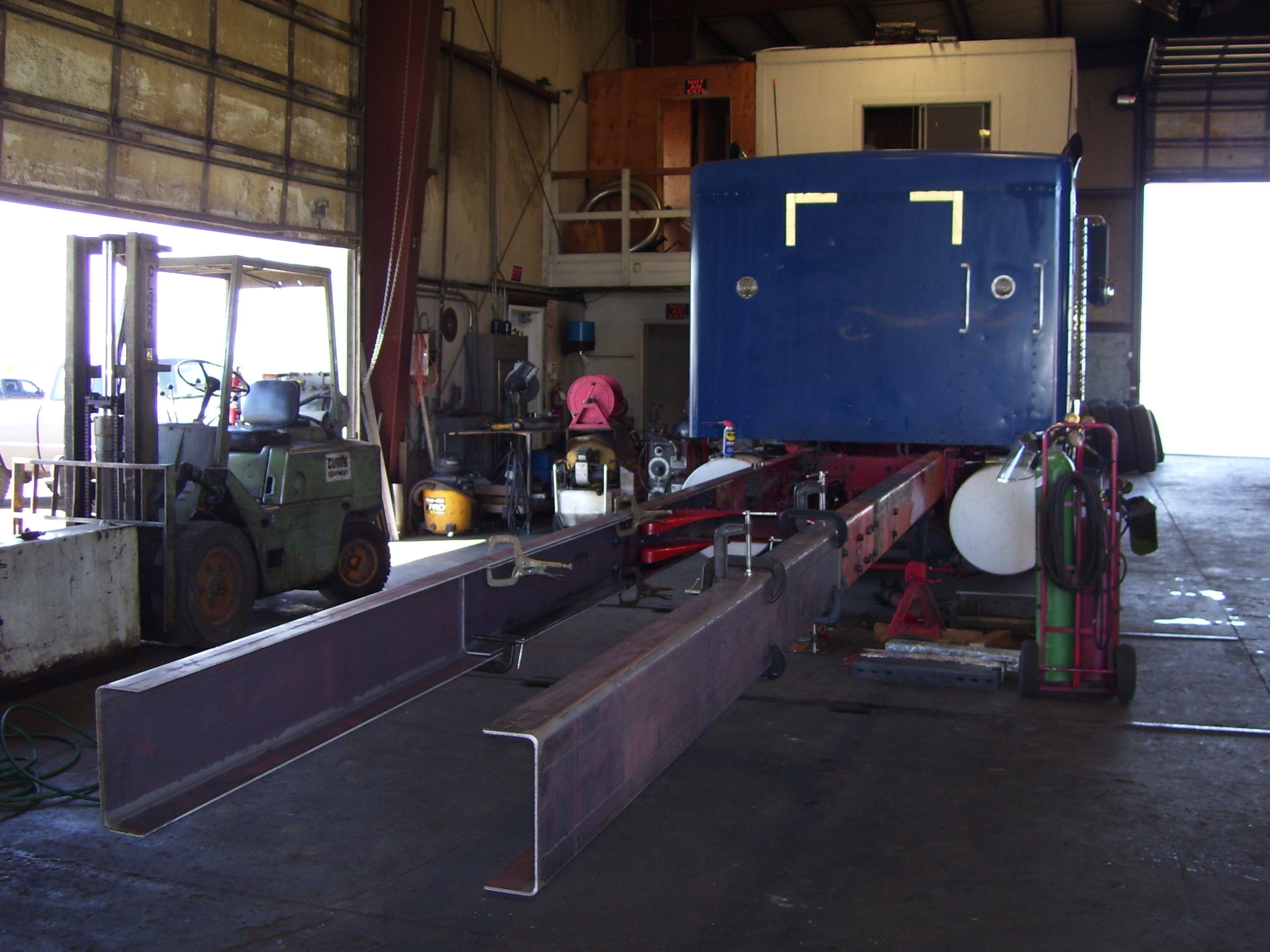

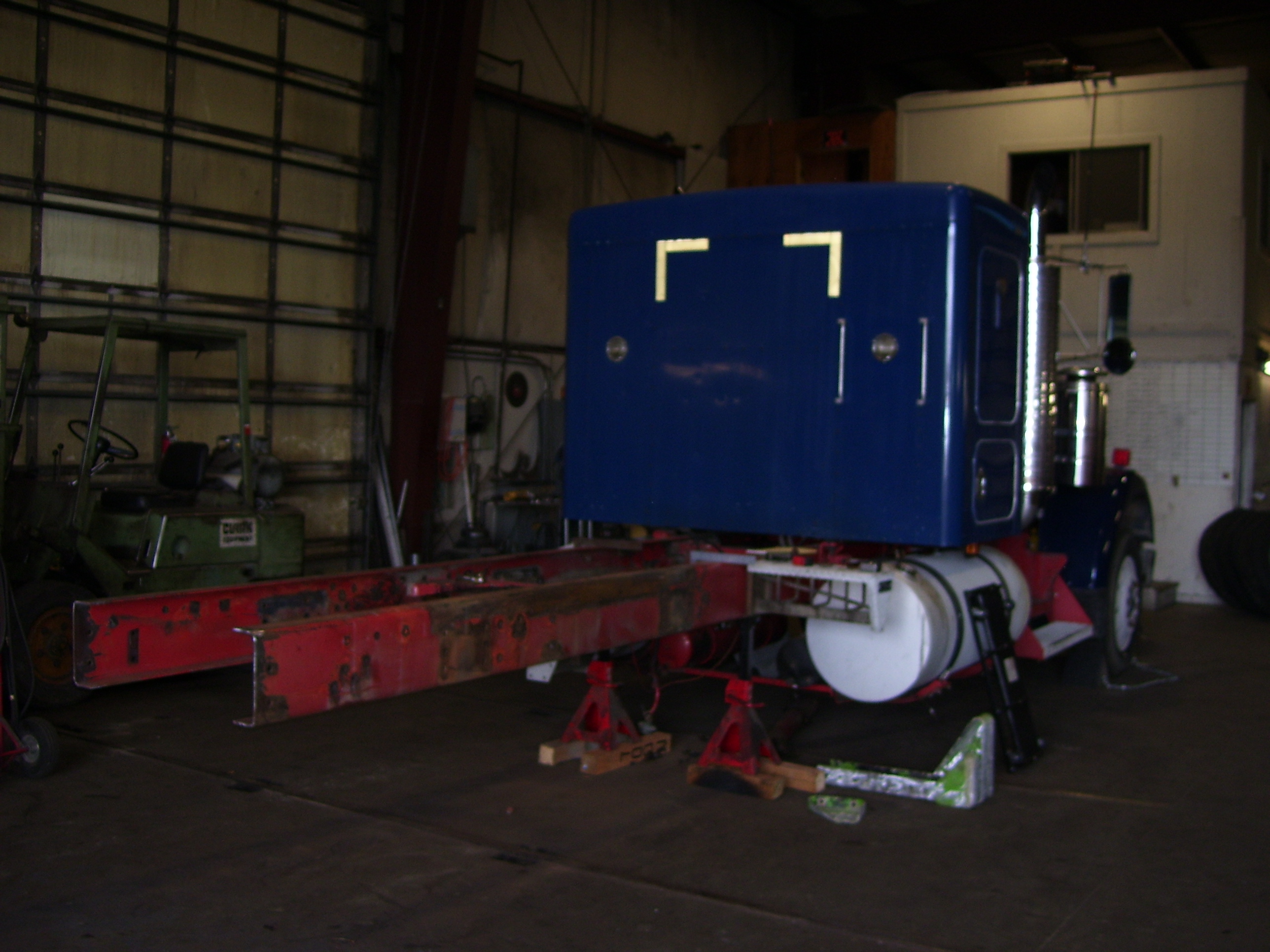

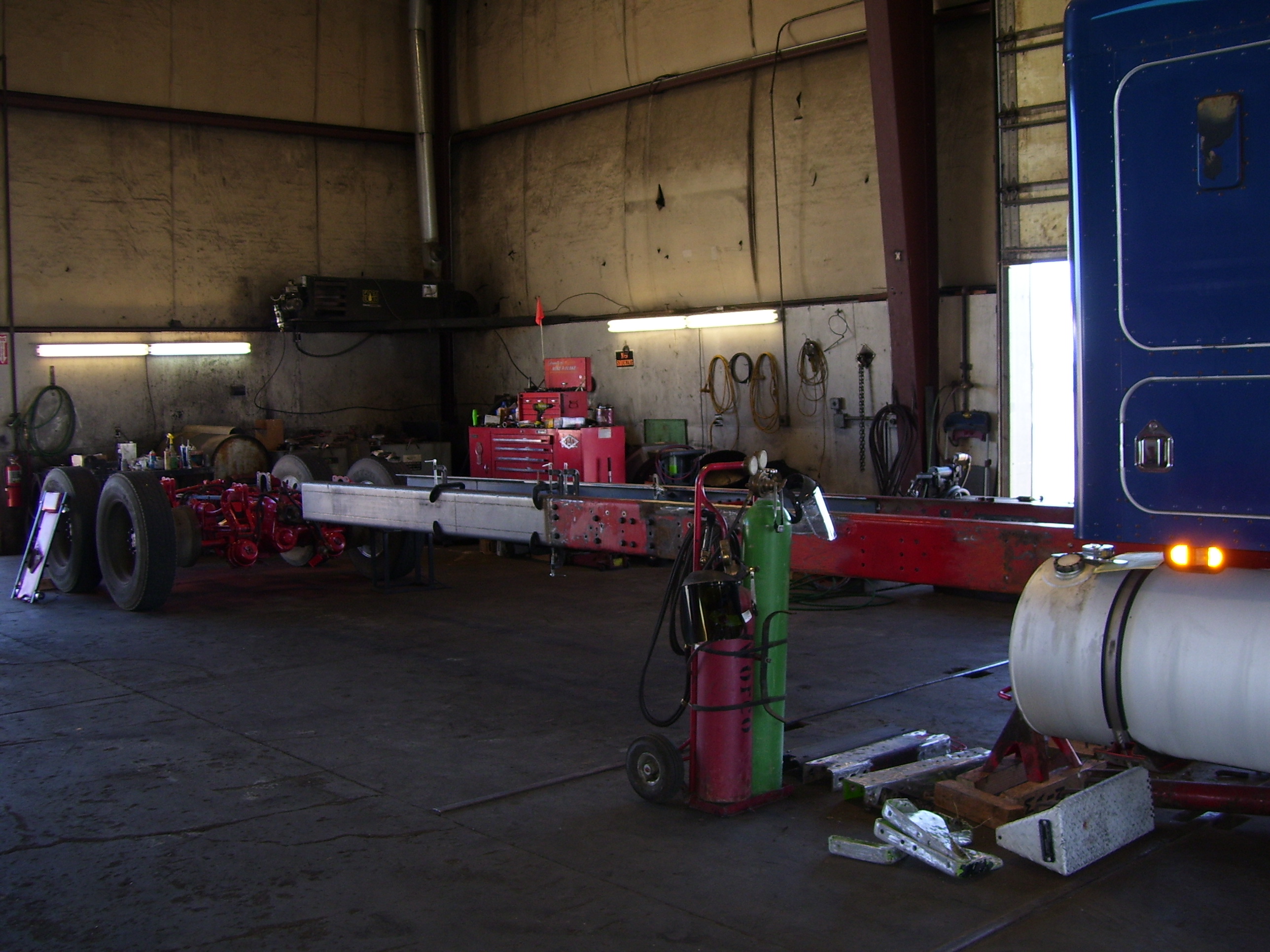

                                      Progress made today. Should have new rails and inserts in tomorrow and some of it drilled up.



                                      Truck Shop





002 (2).JPG


  • Like 1

One ping only

Link to comment
Share on other sites

55 minutes ago, carlotpilot said:

well you don`t mess around  how many working on the project?

This one is the 73rd stretch I've done and my last I hope. There are three in the shop but this job is mainly mine. I always have a plan and I work the plan. I turn down

3 to 4 of these frame jobs a year. Fifteen years ago the Freightliner dealer I Hermiston, Or. brought me seven day cab tractors to stretch all were the same.  I turned one

out every 3 1/2 days. I ordered all the rails, inserts and flange bolts before hand. I only have 4 hours in it today.



Truck Shop

  • Like 1

One ping only

Link to comment
Share on other sites

4 minutes ago, mrsmackpaul said:

Why do people in America stretch the chassis out real long ???
Not been a smart ass but just wondering



Paul

That's a good question in some cases. This truck will have a permanent mounted wheel lift for towing. With wheel lifts you need a long wheel base for leverage or

weight on your steer axle .

  • Like 2

One ping only

Link to comment
Share on other sites

2 minutes ago, TeamsterGrrrl said:

For a tow truck a long wheelbase gives a longer lever arm so the weight of the front of the truck can more effectively counteract the weight of the towed load behind the rear axle. But a 300" wheelbase is mostly a fashion statement...

Yes it's mainly a fashion statement but a 300" WB tow truck with wheel lift is the standard and even longer in some cases. Cement mixers and garbage trucks will tax

300" tow rig.

  • Like 2

One ping only

Link to comment
Share on other sites

29 minutes ago, Truck Shop said:

This one is the 73rd stretch I've done and my last I hope. There are three in the shop but this job is mainly mine. I always have a plan and I work the plan. I turn down

3 to 4 of these frame jobs a year. Fifteen years ago the Freightliner dealer I Hermiston, Or. brought me seven day cab tractors to stretch all were the same.  I turned one

out every 3 1/2 days. I ordered all the rails, inserts and flange bolts before hand. I only have 4 hours in it today.



Truck Shop

3 1/2 days is staying with it .  there was a time i could do an inframe on a cummins  in 24 hrs having as you said everything on hand at the start          those days are long gone

  • Like 2
Link to comment
Share on other sites

35 minutes ago, mrsmackpaul said:

Why do people in America stretch the chassis out real long ???
Not been a smart ass but just wondering



Paul

paul        same basic  reason you would add counterweight to the rear of a farm tractor      to keep the rear wheels on the ground when using the front loader

Link to comment
Share on other sites

4 hours ago, carlotpilot said:

paul        same basic  reason you would add counterweight to the rear of a farm tractor      to keep the rear wheels on the ground when using the front loader

but isnt the king pin on the grease plate far enough forward to put weight on steer

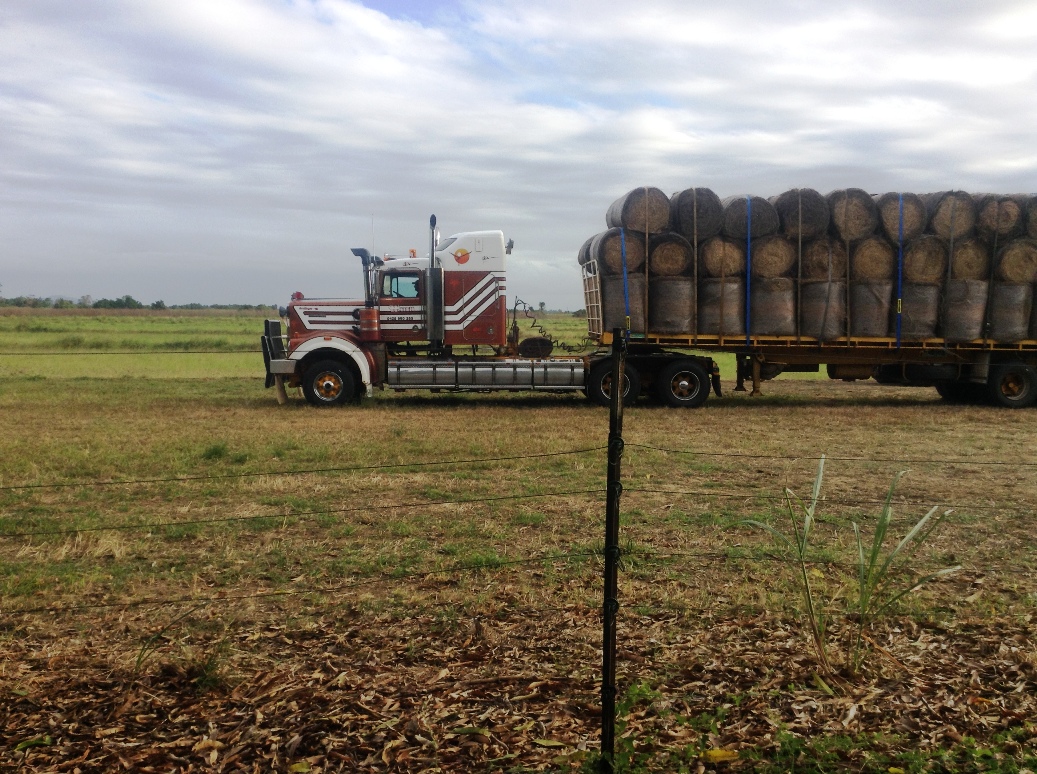

Had a fella here the other day in KW loaded hay for out west and he had a long chassis and asked him why and he said it rides a lot smoother as most of his work is off road pulling road trains
Not very long by US standards and even with this length it suits only up to 40 foot trailers when he runs as a single



Paul




  • Like 1
Link to comment
Share on other sites

7 hours ago, carlotpilot said:

3 1/2 days is staying with it .  there was a time i could do an inframe on a cummins  in 24 hrs having as you said everything on hand at the start          those days are long gone

Well my day's are about long gone too. That's why this will be my last one,  This job will have  lull time because of some extra fab work and drive lines.



Truck Shop

One ping only

Link to comment
Share on other sites

11 hours ago, mrsmackpaul said:

but isnt the king pin on the grease plate far enough forward to put weight on steer

Had a fella here the other day in KW loaded hay for out west and he had a long chassis and asked him why and he said it rides a lot smoother as most of his work is off road pulling road trains
Not very long by US standards and even with this length it suits only up to 40 foot trailers when he runs as a single



Paul

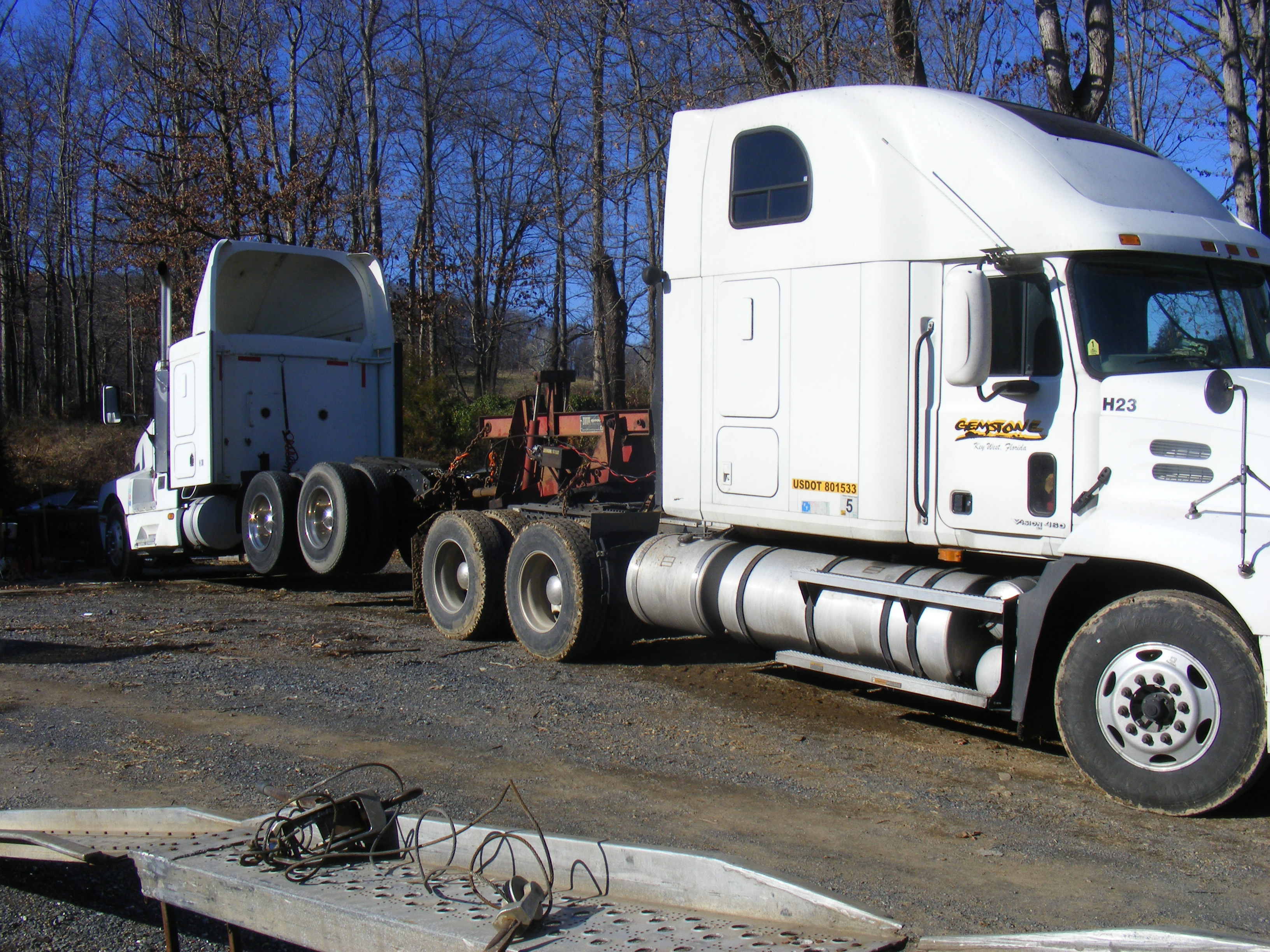

heres the idea                 even this set up is just a little skittish on a wet road


  • Like 2
Link to comment
Share on other sites

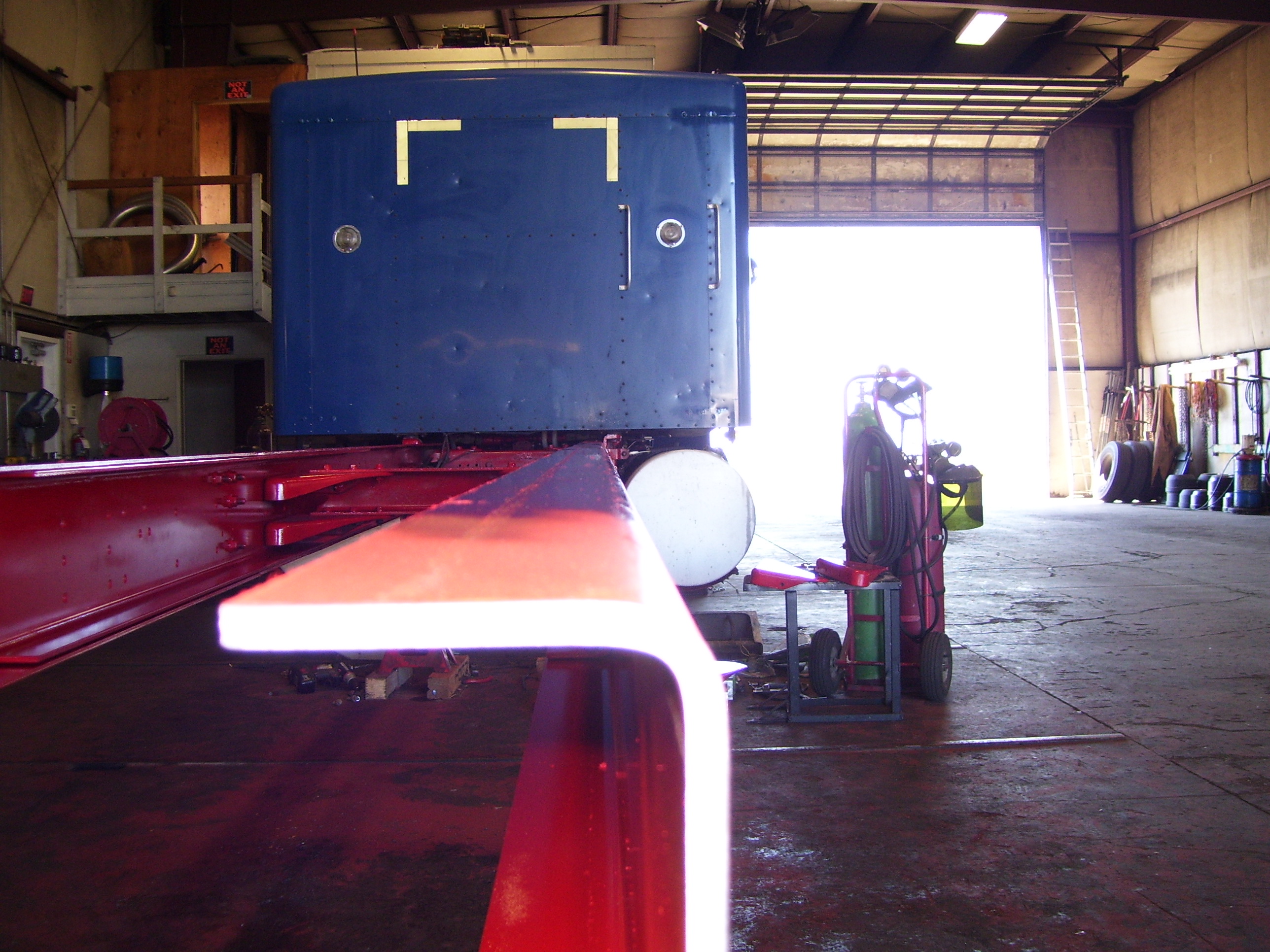

                                  Ran into a snag the outside rails were wrong. They didn't get the sheet square in the press brake and the lips came out tapered. Sent those back,new ones on the way.



                                  Truck Shop

One ping only

Link to comment
Share on other sites

2 minutes ago, Truck Shop said:

                                  Ran into a snag the outside rails were wrong. They didn't get the sheet square in the press brake and the lips came out tapered. Sent those back,new ones on the way.



                                  Truck Shop

all it takes is a computer to screw things up          cnc         :D

  • Like 1
