mack88 Posted March 26, 2019 Share Posted March 26, 2019 I have a 1987 Mack and the shutter cylinder is leaking Mack dosn't make them anymore is there other options like to keep original if possible it sits at the bottom of shutters cant see it cause of the fan shroud didn't want to take it apart just yet till i new what a person could do. Quote Link to comment Share on other sites More sharing options...
h67st Posted March 26, 2019 Share Posted March 26, 2019 Watts Mack used to have them...you could check with Barry. Quote Link to comment Share on other sites More sharing options...
j hancock Posted March 27, 2019 Share Posted March 27, 2019 You could check with a PAI dealer for a cylinder or a rebuild kit. 1 Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
Freightrain Posted March 27, 2019 Share Posted March 27, 2019 Is it like the old air shutter cylinder on my B? It basically has a rubber cup seal that is held onto a rod with a small nut/washer. I was able to find a matching new cup seal and rebuild mine. Works great, no leaks. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment Share on other sites More sharing options...
Rob Posted March 27, 2019 Share Posted March 27, 2019 17 hours ago, mack88 said: I have a 1987 Mack and the shutter cylinder is leaking Mack dosn't make them anymore is there other options like to keep original if possible it sits at the bottom of shutters cant see it cause of the fan shroud didn't want to take it apart just yet till i new what a person could do. If you run out of option you can send it to me as there is an older gent whom will repair it with pretty quick turn around. I've had him do a couple for B series and one R and they don't leak. In the meantime pull the rubber boot back and get some WD-40 into the area to saturate the seals. Older ones were leather and took to this well. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
Freightrain Posted March 27, 2019 Share Posted March 27, 2019 I found my post from working on my cylinder. Though I didn't post the part number for the cup seal. I found one without the hole, but that was easy enough to punch out. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment Share on other sites More sharing options...
Mike Posted March 27, 2019 Share Posted March 27, 2019 If you get it apart, take the rubber with you to match it at a Industrial Rubber Company. That is what I did. Quote Link to comment Share on other sites More sharing options...

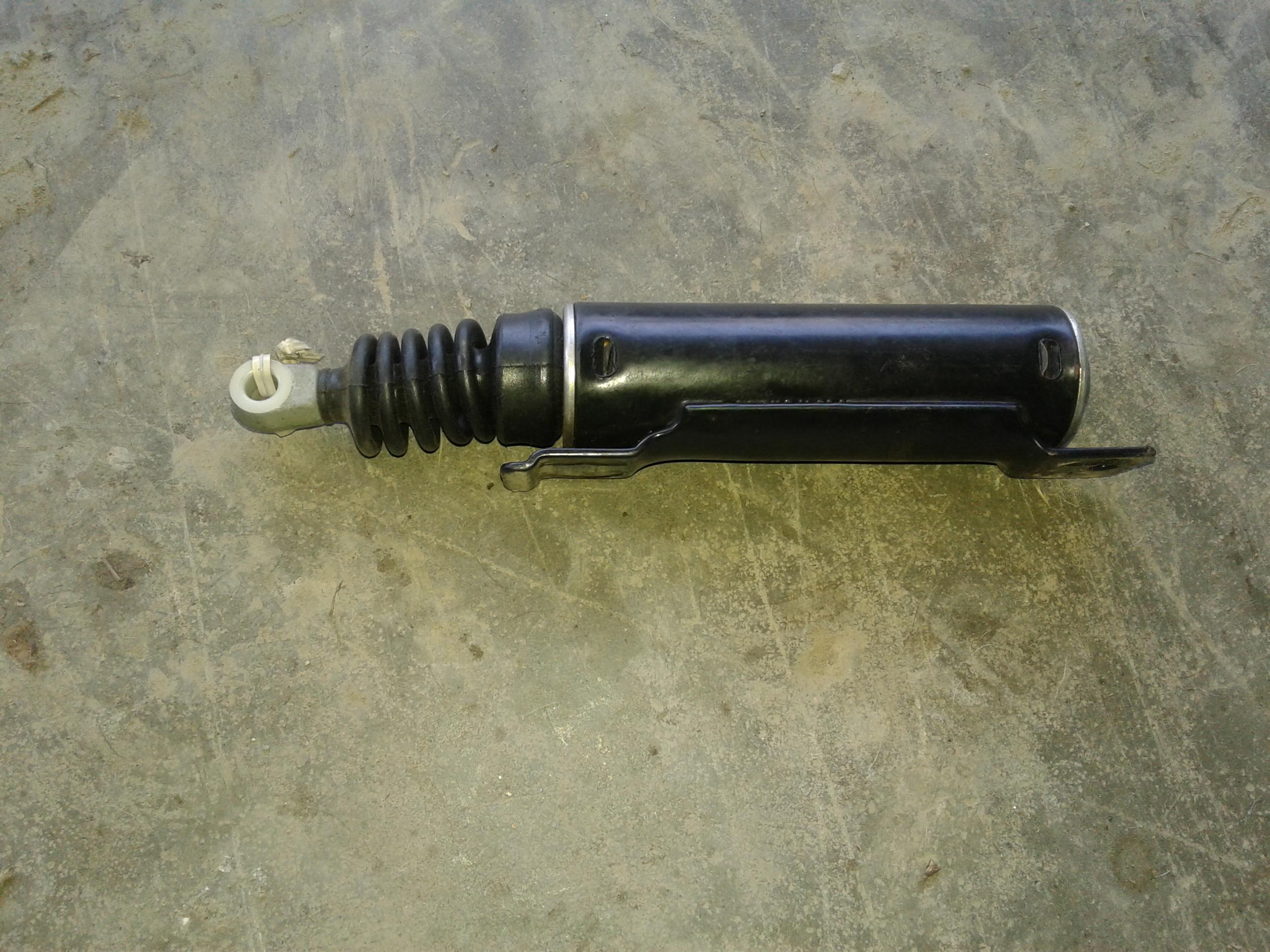

alex g Posted March 27, 2019 Share Posted March 27, 2019 On 3/26/2019 at 4:49 PM, mack88 said: I have a 1987 Mack and the shutter cylinder is leaking Mack dosn't make them anymore is there other options like to keep original if possible it sits at the bottom of shutters cant see it cause of the fan shroud didn't want to take it apart just yet till i new what a person could do. Is this the cylinder your looking for. I've got 3 in stock Quote Link to comment Share on other sites More sharing options...
Quickfarms Posted December 28, 2019 Share Posted December 28, 2019 How do you take the cylinder apart, mine looks like the ends are crimped on Quote Link to comment Share on other sites More sharing options...
KKERGALL Posted December 28, 2019 Share Posted December 28, 2019 P/N# 35MG231 Not available thru Mack ?? that's crazy. Pretty sure I can get one. Quote Link to comment Share on other sites More sharing options...
