PaLawman

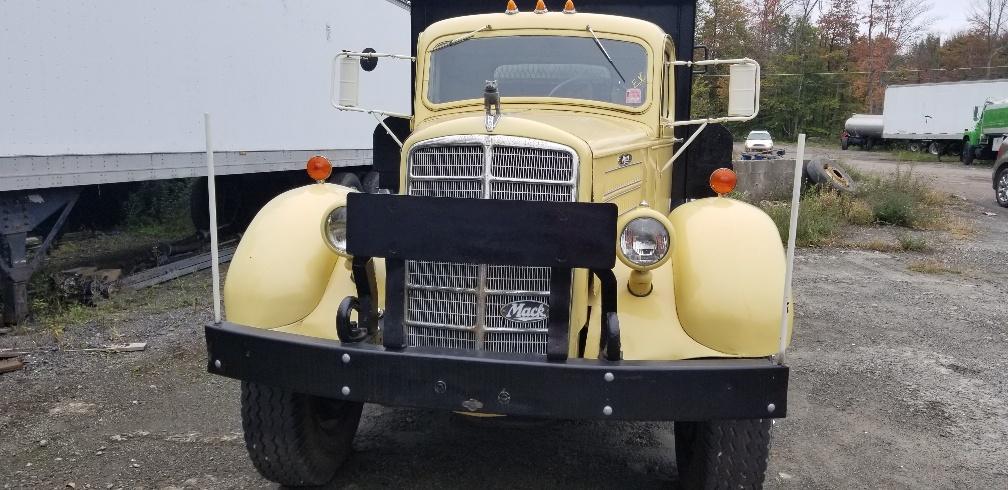

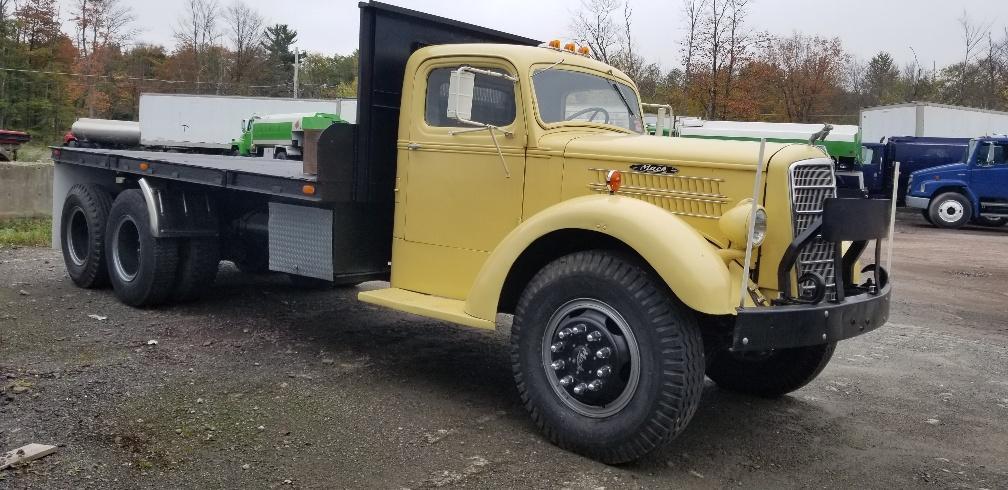

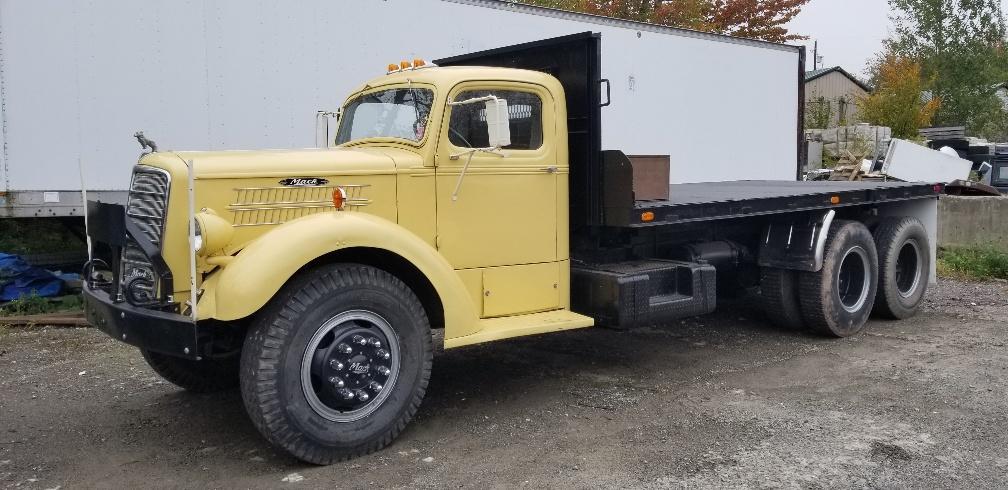

1941 Mack EQ tandem TK **Exceptional Condition**

Recommended Posts

I personally would love to have this truck and remove the flat bed and add a fifth wheel. Then, restore a period correct trailer to pull. Amazing piece of Mack history!!

Share this post


Link to post
Share on other sites

It looks like a rare animal.

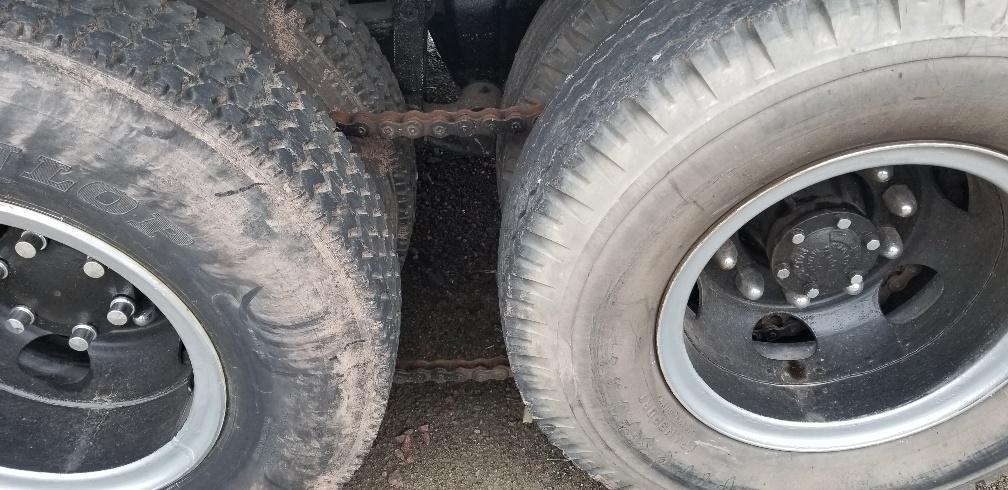

Wonder what is the tandems setup? I can see a chain between the rear wheels/ Did Mack ever used them in tandem E-models? I saw a picture with a transfer case and two prop shafts in a Mack book. Also I saw in person the driveline to the rears of the style B's and later Mack had. But this design seems as another story. BTW whhat does EQ 5D mean& Factory diesel?

Share this post


Link to post
Share on other sites
4 hours ago, Vladislav said:

It looks like a rare animal.

Wonder what is the tandems setup? I can see a chain between the rear wheels/ Did Mack ever used them in tandem E-models? I saw a picture with a transfer case and two prop shafts in a Mack book. Also I saw in person the driveline to the rears of the style B's and later Mack had. But this design seems as another story. BTW whhat does EQ 5D mean& Factory diesel?

EQ was tandem chain drive and was the direct replacement for the AB series.

1937-1950, 10661 pcs. produced, GVW is 11.3 tons, engine is EN454A

  • Like 1

Share this post


Link to post
Share on other sites

that chain looks stretched to me.

probably needs a link or two removed, it looks very close to the ground.

Share this post


Link to post
Share on other sites
10 hours ago, 41chevy said:

EQ was tandem chain drive and was the direct replacement for the AB series.

1937-1950, 10661 pcs. produced, GVW is 11.3 tons, engine is EN454A

Was the Lanova diesel used in the late E models? I know of a local one with that engine.     terry:MackLogo:

Share this post


Link to post
Share on other sites
5 hours ago, tjc transport said:

that chain looks stretched to me.

probably needs a link or two removed, it looks very close to the ground.

It appears to have the larger "Hi Speed" sprockets on it. Give it a max of either side of 50mph.

Share this post


Link to post
Share on other sites
10 hours ago, j hancock said:

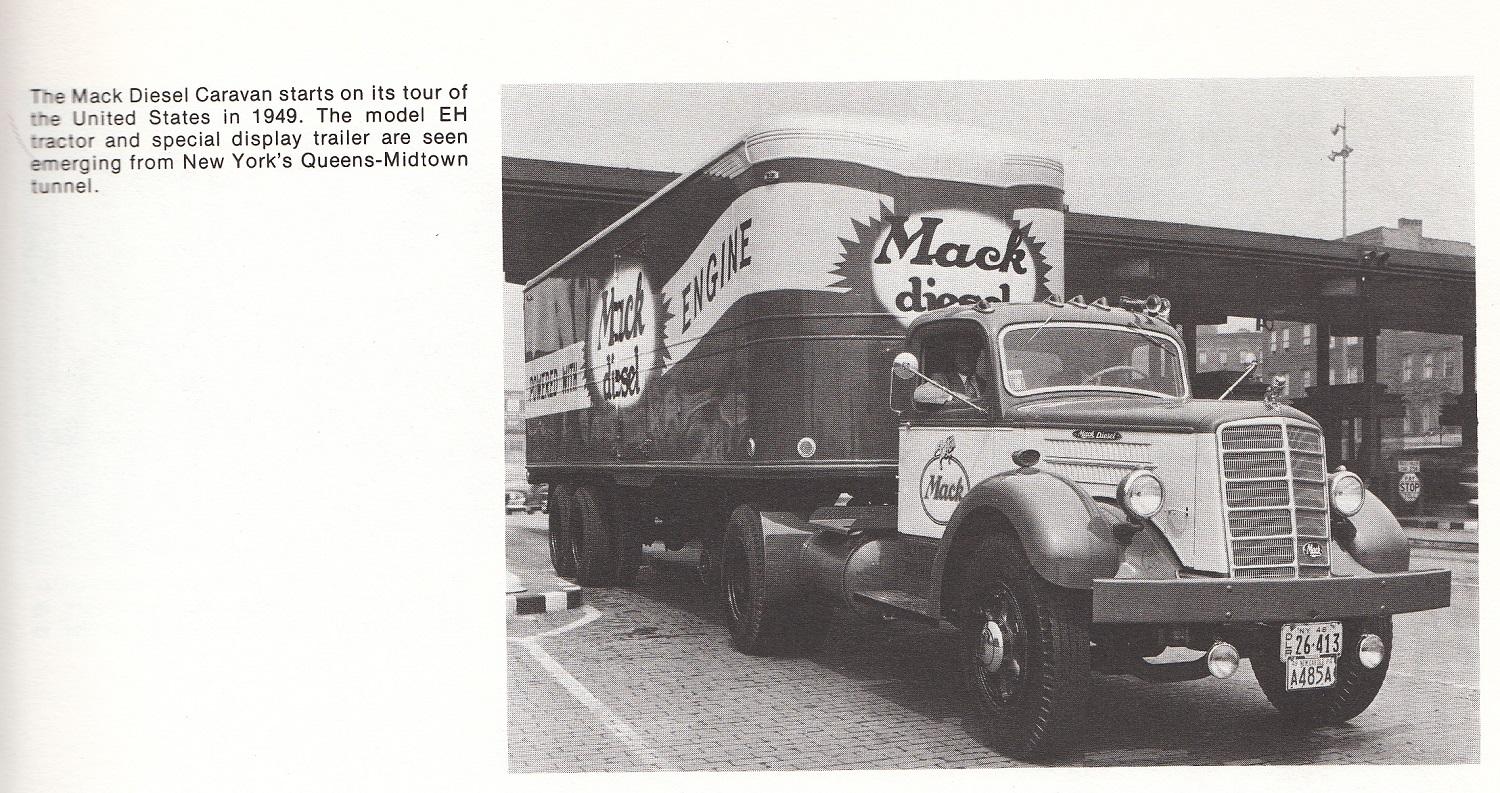

Yes it was.  Mack called it the END 672.  Starting in 1949, the Mack Diesel Caravan program traveled the country promoting the use of diesel engines in trucks.

I wouldn't be surprised that same gassers were converted to diesel as an upgrade by their owners.

I have a EQ factory desel that they had so many problems with,Mack sent them a new gas engine to repower it.,I don't think they ever used the 672 in the EQ wasn't it  510 ?

  • Like 1

Share this post


Link to post
Share on other sites
1 hour ago, Superdog said:

I have a EQ factory desel that they had so many problems with,Mack sent them a new gas engine to repower it.,I don't think they ever used the 672 in the EQ wasn't it  510 ?

Could be Mike.  Think that was a 519.

The END 672 started in Mack buses in 1948 and there was a push by Mack to advertise the use in trucks a year later with the EH and trailer.  Pretty much the end of the line for the E.

Share this post


Link to post
Share on other sites

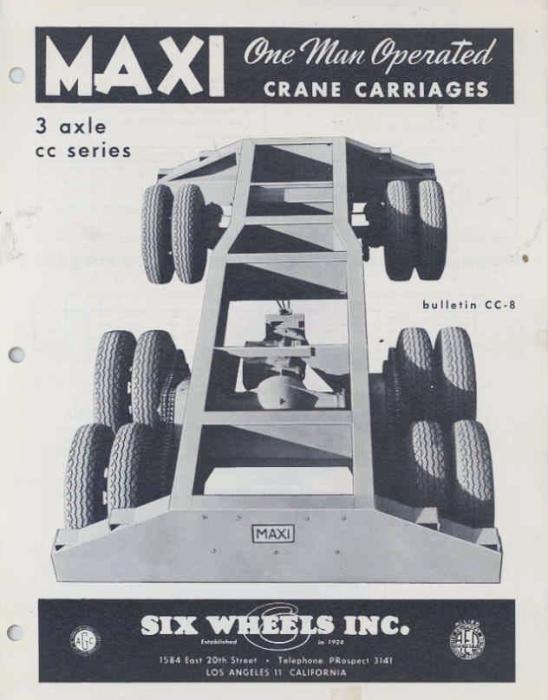

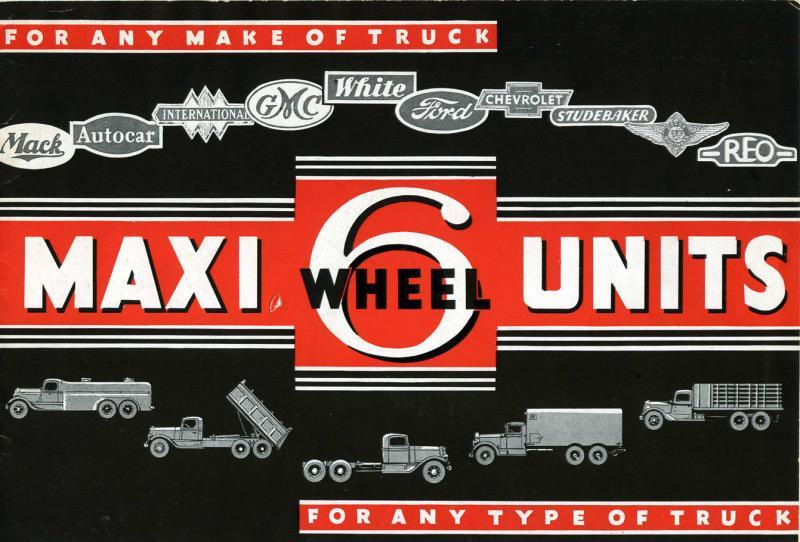

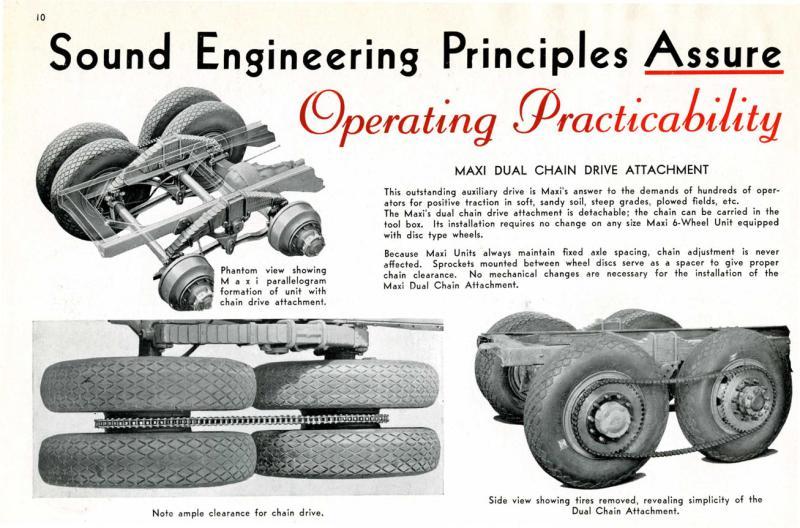

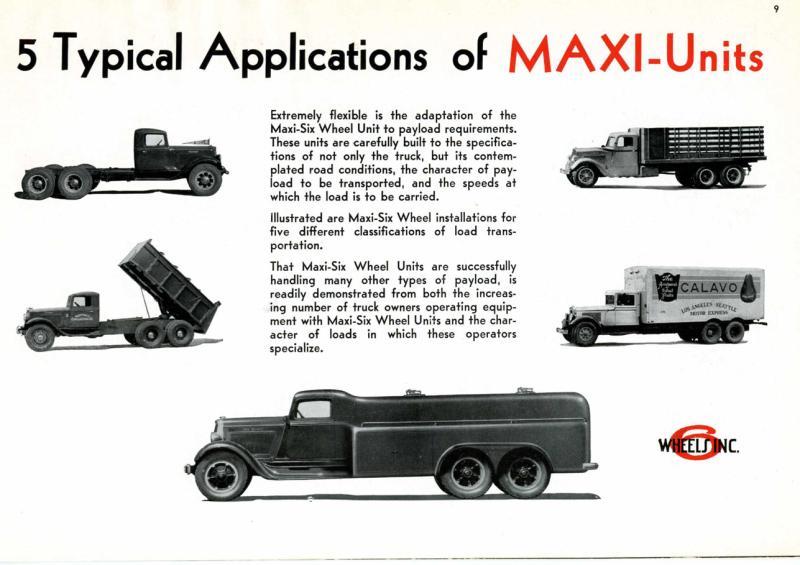

the chain drive set up looks like someone put a tag axle on and sprockets between duels to get drive to tag. was done here on west coast a lot espesialy on log trailers to stop back axle from sliding on steep loose roads.

Share this post


Link to post
Share on other sites

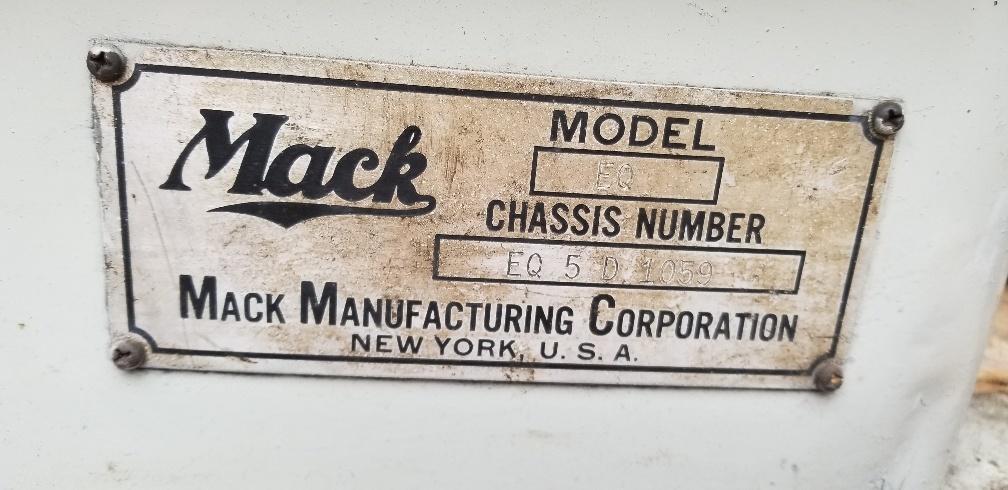

what does chassis stand 4 EQ5D 1059 cause I don't think they put diesels in EQ's in 41

Share this post


Link to post
Share on other sites
On 1/9/2019 at 8:13 PM, BOB DINGSDALE said:

the chain drive set up looks like someone put a tag axle on and sprockets between duels to get drive to tag. was done here on west coast a lot espesialy on log trailers to stop back axle from sliding on steep loose roads.

The EQ's were built chain drive  . Look in front of the first rear wheel, there is the OEM chain oiler. The tag is driven off the front axle but it was a MACK installed option.

Edited by 41chevy

Share this post


Link to post
Share on other sites
1 hour ago, j hancock said:

Could be Mike.  Think that was a 519.

The END 672 started in Mack buses in 1948 and there was a push by Mack to advertise the use in trucks a year later with the EH and trailer.  Pretty much the end of the line for the E.

   From the Mack Master Maintenance Manual 1940 to 1949. Complete service bulletins, special tools, repair procedures and literature by MACK, York Pennsylvania, Harrisburg Branch. Serial number DR 305-4. Mack Trucks and Bus. Includes Series E Trucks with engines-- EN 271, EN 290, EN 330, EN 354A, EN 431A, END 457 Engines;  Series L Truckengines EN 510A, EN 707A, ED, END 519, END 672, Cummins H, Cummins NH Engines; Series A Trucks with EN 291, EN 331, EN 377, EN 431, END 510 Engines.

Edited by 41chevy
  • Like 1

Share this post


Link to post
Share on other sites
17 hours ago, 41chevy said:

The EQ's were built chain drive or worm drive. Look in front of the first rear wheel, there is the OEM chain oiler. The tag is driven off the front axle but it was a MACK installed option.

Very interesting. Have never heard of that and don't remember anyone ever noted on here. Do you have any factory pics of the setup or description?

And I'm sure EQ was just the next heavier series E after EH being driven with common Mack axles, single or double reduction. And the chain driven E had its special model name of ER.

Share this post


Link to post
Share on other sites
16 hours ago, 41chevy said:

   From the Mack Master Maintenance Manual 1940 to 1949. Complete service bulletins, special tools, repair procedures and literature by MACK, York Pennsylvania, Harrisburg Branch. Serial number DR 305-4. Mack Trucks and Bus. Includes Series E Trucks with engines-- EN 271, EN 290, EN 330, EN 354A, EN 431A, END 457 Engines;  Series L Truckengines EN 510A, EN 707A, ED, END 519, END 672, Cummins H, Cummins NH Engines; Series A Trucks with EN 291, EN 331, EN 377, EN 431, END 510 Engines.

I think END-457,ED, END-519 (have never seen such mark), END-672 and END-510 all were Lanovas. But the only engine I'm known of having Mack Lanova script on the exhaust manifold was Mack ED (519 c.i.).

Share this post


Link to post
Share on other sites
6 hours ago, Vladislav said:

Very interesting. Have never heard of that and don't remember anyone ever noted on here. Do you have any factory pics of the setup or description?

And I'm sure EQ was just the next heavier series E after EH being driven with common Mack axles, single or double reduction. And the chain driven E had its special model name of ER.

Your correct I miss read manual, ER is Chain drive  and EQ is worm frive.

Most all of the 10 wheel EQ's are tag axled either dead drives  or chain driven tag.

EH - 1936-1950, the, 31539 pcs. produced, GVW is 11 tons, engine is EN454A rated at 121 hp;

EJ - 1937-1938, 762 pcs. produced, GVW is 8 tons;

EM - 1937-1943, 1584 pcs., GVW is 9.5 tons;

ER - 1936-1941, 359 pcs., GVW is 9.5 tons, chain drive,

EQ - 1937-1950, 10661 pcs. produced, GVW is 11.3 tons, engine is EN454A;

ES - 1938-1940, 75 pcs. produced, the details are unknown.

In 1950, 50 pcs were made of the version ETX. It featured a larger-diameter wheels and slightly modified front fenders.

Share this post


Link to post
Share on other sites

Many thanks! A nice sample of classic ingenuity.

  • Like 1
