M1000 tank transporter

[m16ty 263]

Well, I picked up this trailer at auction this week. I just need to get it home, find a big 5th wheel, and get an auxiliary trans installed in my RD822sx to pull it.

[j hancock 11,333]

Could haul several rows of GEO Metro's on that rig.

[HeavyGunner 2,027]

What are you planning on hauling with that or is it just going to be for show?

[kscarbel2 4,018]

The ADF is selling off their M113s. That would round off the package.

[m16ty 263]

2 hours ago, HeavyGunner said:

What are you planning on hauling with that or is it just going to be for show?

It will be used to haul heavy oversized loads behind my RD822sx.

[david wild 1,261]

Had them Iraq, maintain he steering and they work fine, like I said maintain the steering.

[m16ty 263]

On 10/6/2018 at 3:06 PM, david wild said:

Had them Iraq, maintain he steering and they work fine, like I said maintain the steering.

David, Do you have any idea of what the real world capacity of these are? I talked to a guy, and he had the pictures to prove it, that said he's hauled 100 tons without problems. I know the military rates them at 70 tons, but they figure ratings very conservative, and are based on going over terrain that nobody would even think of attempting in the real world. I can permit it in TN at 280,000 lb, which would equal out to around 200,000 lbs payload.

[mrsmackpaul 1,921]

What size pin is the 5th wheel



A 2 inch pin is good for over a 100 tons on road train or low loader



Some blokes use a 3 inch pin but they arent as common



Paul

[Quickfarms 230]

What size pin is the 5th wheel

A 2 inch pin is good for over a 100 tons on road train or low loader

Some blokes use a 3 inch pin but they arent as common

Paul

The Military uses 3" for these if my memory is correct

[m16ty 263]

Yes, it has the big kingpin.

[kscarbel2 4,018]

17 minutes ago, m16ty said:

Yes, it has the big kingpin.

I've sold a lot of trucks with 90mm kingpin fifth wheels (versus 50mm).

[david wild 1,261]

 I would run 100 ton all day, you will never stress that trailer like they were in combat, those trailers were run hard and fast and still held up.

[m16ty 263]

Got the trailer home. Ran the apu and what hyd I could (some broken hoses). Needs a little tlc, a few hyd lines, some air lines, and a few tires, but I'm working on it.

Also have the RD822sx in the shop awaiting a big 5th wheel and a AT1202 auxiliary.

[gxbxc 171]

Can't you change the king pin on that trailer I though I had read someplace that they were interchangable .



[Hobert62 1,185]

Now that's a shop!

[mrsmackpaul 1,921]

4 hours ago, gxbxc said:

Can't you change the king pin on that trailer I though I had read someplace that they were interchangable .





I would have thought you could change it ok as you can get plenty of different brand 2 inch pins rated in excess of 100 ton



Paul

[m16ty 263]

7 hours ago, gxbxc said:

Can't you change the king pin on that trailer I though I had read someplace that they were interchangable .





Some military trailers have a interchangeable kingpin, but not that particular trailer. I’m sure it would be possible to permanently change the kingpin, but it’s a press fit and the kingpin shaft is also tied into the trailer steering mechanism.

I’ve got a 3 1/2” 5th wheel on the way for the Mack.

[m16ty 263]

4 hours ago, Hobert62 said:

Now that's a shop!

That is actually our warehouse the trailer is in, used to store customer’s machinery and goods.

The Mack picture is our shop, which is a sectioned off portion of the warehouse. The trailer would have filled up our whole shop, with no room to get anything else in there, which is why it’s in the warehouse portion.

[m16ty 263]

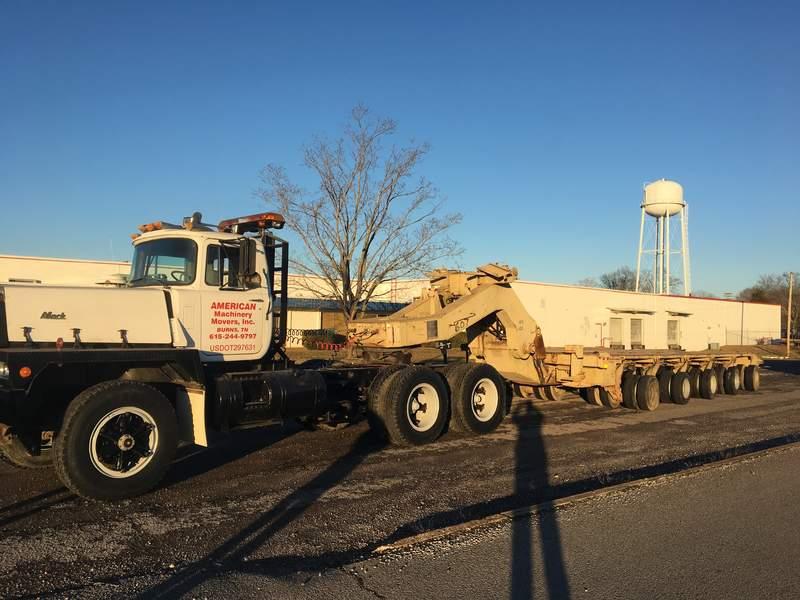

Finally got all the tires, hyd hoses, and air lines fixed. Got the big 5th wheel mounted and decided to take the trailer on it's maiden voyage around the block.

[mrsmackpaul 1,921]

And how did the maiden voyage go ??



Paul

[m16ty 263]

10 hours ago, mrsmackpaul said:

And how did the maiden voyage go ??



Paul

I just pulled it out of our warehouse and around the building.

There is a learning curve to pulling it. It doesn’t track like a regular trailer at all. If you swing wide for a turn, you’ll likely end up in the far side ditch.

To get it backed out of the building, it was kind of tight, so I had to put Dad to driving the truck, and I had to walk beside the trailer and manually steer it. Once in the clear, you put the trailer in automatic mode and it will steer with the truck.

[m16ty 263]

I’d like to load test it at around 200,000 lb, but I haven’t came up with enough weights to do that yet.

[gxbxc 171]

You don't have any crane cheek weights you  can  use or  borrow for a nice little ride.

[david wild 1,261]

Plenty fat girls in the south that like to go for rides in big trucks.

[Swishy 1,124]

Gr8 info

What is the:

Width?

tyre size?

Height of deck ?  max + min?

Empty tare weight?

Thanx in advance

cya
