General Ike Posted February 5, 2015 Share Posted February 5, 2015 Very very cool..... http://bringatrailer.com/2015/02/05/ex-air-force-1957-fwd-mm-terracruzer/ Quote Ed Smith1957 B85F 1242 "The General Ike" Link to comment Share on other sites More sharing options...
farmer52 Posted February 5, 2015 Share Posted February 5, 2015 Nice....it has Yardo's name on it.UPDATE: I just noticed it has a driptroit in it....never mind. Quote Ken PRR Country and Charter member of the "Mack Pack" Link to comment Share on other sites More sharing options...
41chevy Posted February 7, 2015 Share Posted February 7, 2015 Nice....it has Yardo's name on it.With the big floats it has a baby soft ride. Best for Small and Medium to cruise in Saw K.W 100's with wider tires and that set up for Oil Patch work on the Tundra Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...
mrsmackpaul Posted February 7, 2015 Share Posted February 7, 2015 what a beach buggy gotta love that Paul Quote Link to comment Share on other sites More sharing options...
gearhead204 Posted February 8, 2015 Share Posted February 8, 2015 if it don't dry out around here soon I will have to buy it just to feed cows!.....at least its on the left coast an in the right state. Quote Link to comment Share on other sites More sharing options...
j hancock Posted February 8, 2015 Share Posted February 8, 2015 I saw the weather for out your way and it does look like it is time to get the floaties out.Where was the rain last year for all the fires? 1 Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
j_martell Posted February 8, 2015 Share Posted February 8, 2015 i would love to find more info on that thing....specifically the running gear.....too damn cool....think my googles broke....just lots of em for sale, or the same one 2 dozen times...lol Quote Lack of planning on your part does not constitute an emergency on my part.... Link to comment Share on other sites More sharing options...
41chevy Posted February 10, 2015 Share Posted February 10, 2015 i would love to find more info on that thing....specifically the running gear.....too damn cool....think my googles broke....just lots of em for sale, or the same one 2 dozen times...lolThe final drive system is a planetary drive off a transfer case to a live axle with wide hard rubber drive wheels that contact the actual tires which are filled with air, and individually controlled from the operators console. The air pressure in the "floats" not only carries the load… it also controls drive tension on each tire. The planetary drive powers each boogie at the steering pivot points. Steering is by "Orbital Control using hydraulic rams. Transmission is an Allison 740. It can easily go through 22 inches of snow or 40 inches of water and on a smooth surface hit 30 m.p.h. 2 Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...
j_martell Posted February 11, 2015 Share Posted February 11, 2015 interesting.....friction drive 8X8.... Quote Lack of planning on your part does not constitute an emergency on my part.... Link to comment Share on other sites More sharing options...

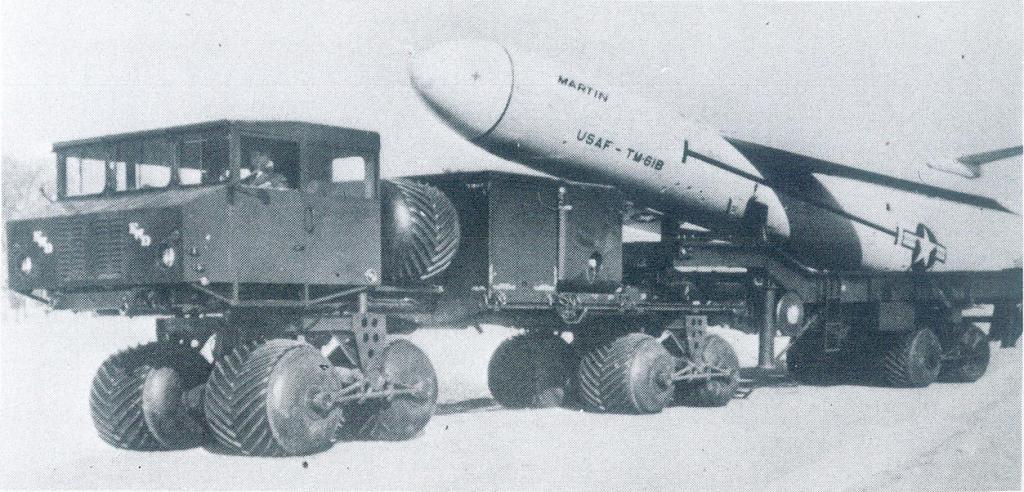

kscarbel2 Posted February 11, 2015 Share Posted February 11, 2015 FWD produced several different Teracruzers.This is a Model 8-320 B. It used a PE 200 "Continental Packett" 4-cycle 8-cylinder opposed piston air-cooled engine developing 250 horsepower at 2,800rpm.An Allison TX-340 semi-automatic 4-speed transmission drove the two bogies thru an FWD-built central differential.The air pressure of the 40x42 inch Goodyear Terra-Tires could be adjusted between 3 and 18 psi from within the cab.Cruise speed was 40mph, and it could climb a 60 percent slope at 2.5mph.It was designed to pull a missile trailer carrying a 40 foot long Martin TM-61 Matador land-based missile which operated at 35,000 feet and 650 mph, or the Martin TM-76 Mace. 2 Quote Link to comment Share on other sites More sharing options...
41chevy Posted February 11, 2015 Share Posted February 11, 2015 interesting.....friction drive 8X8....Open the link below. Look carefully above the "tires" you will see a roller driving each one. http://www.bigmacktrucks.com/index.php?/topic/38851-like-the-terra-cruiser-how-bout-these/ Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...

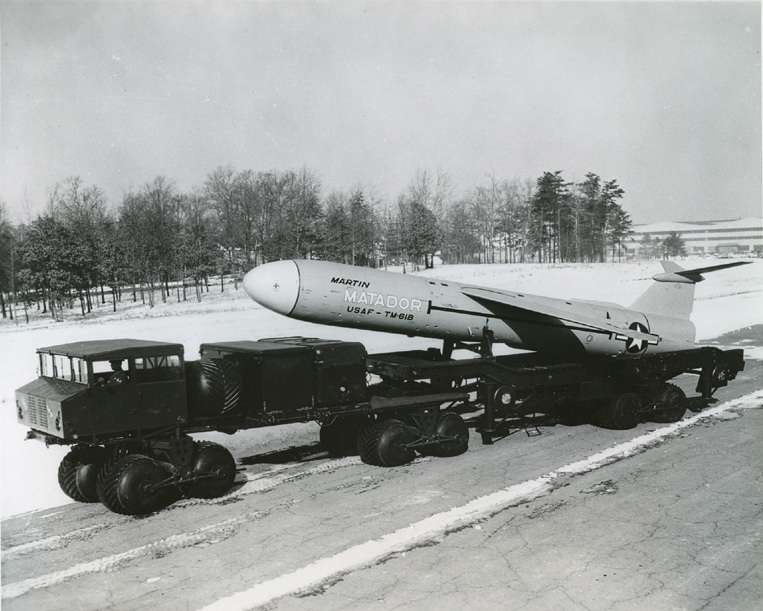

kscarbel2 Posted February 11, 2015 Share Posted February 11, 2015 FWD Model 8-320 B Teracruzer. 2 Quote Link to comment Share on other sites More sharing options...
mrsmackpaul Posted February 12, 2015 Share Posted February 12, 2015 This is looking cooler all the time to me its a must have itemPaul Quote Link to comment Share on other sites More sharing options...
1958 F.W.D. Posted February 12, 2015 Share Posted February 12, 2015 Unfortunately I have neither the money or space.And besides I keep swearing my next purchase will be a single screw Hayward F-Model. 1 Quote TWO STROKES ARE FOR GARDEN TOOLS Link to comment Share on other sites More sharing options...
Popular Post 41chevy Posted February 14, 2015 Popular Post Share Posted February 14, 2015 Unfortunately I have neither the money or space.And besides I keep swearing my next purchase will be a single screw Hayward F-Model. But imagine coming up next to someone on a little Polaris, John Deere or Honda “4 wheeler”, looking way down at them and doing that Crocodile Dundee thing….."that’s not an ATV ….THIS is a ATV ". 3 Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...
mrsmackpaul Posted February 14, 2015 Share Posted February 14, 2015 yeah pulling up beside the boys on cracker night thats not a sky rocket this is a sky rocket I dont care what anybody says that is cool in all the right waysPaul Quote Link to comment Share on other sites More sharing options...
1958 F.W.D. Posted February 15, 2015 Share Posted February 15, 2015 Nice....it has Yardo's name on it.UPDATE: I just noticed it has a driptroit in it....never mind. I wonder if I could get an E9 4V in there? Quote TWO STROKES ARE FOR GARDEN TOOLS Link to comment Share on other sites More sharing options...
j hancock Posted February 15, 2015 Share Posted February 15, 2015 No problem......Just got one of them newfangled adapter kits from ACME and you can make it fit. Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
41chevy Posted February 15, 2015 Share Posted February 15, 2015 I wonder if I could get an E9 4V in there?Got to make it air cooled. They ran a Continental Packette air cooled 6 cylinder opposed gassers. They were USAF ground power, light Air Craft engines (PIPER etc) and Heavy Air Craft tow tug power units. Paul Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...
rsb502 Posted March 1, 2015 Share Posted March 1, 2015 I wonder if I could get an E9 4V in there?Be hard to get an E9 2V in anything! Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment Share on other sites More sharing options...

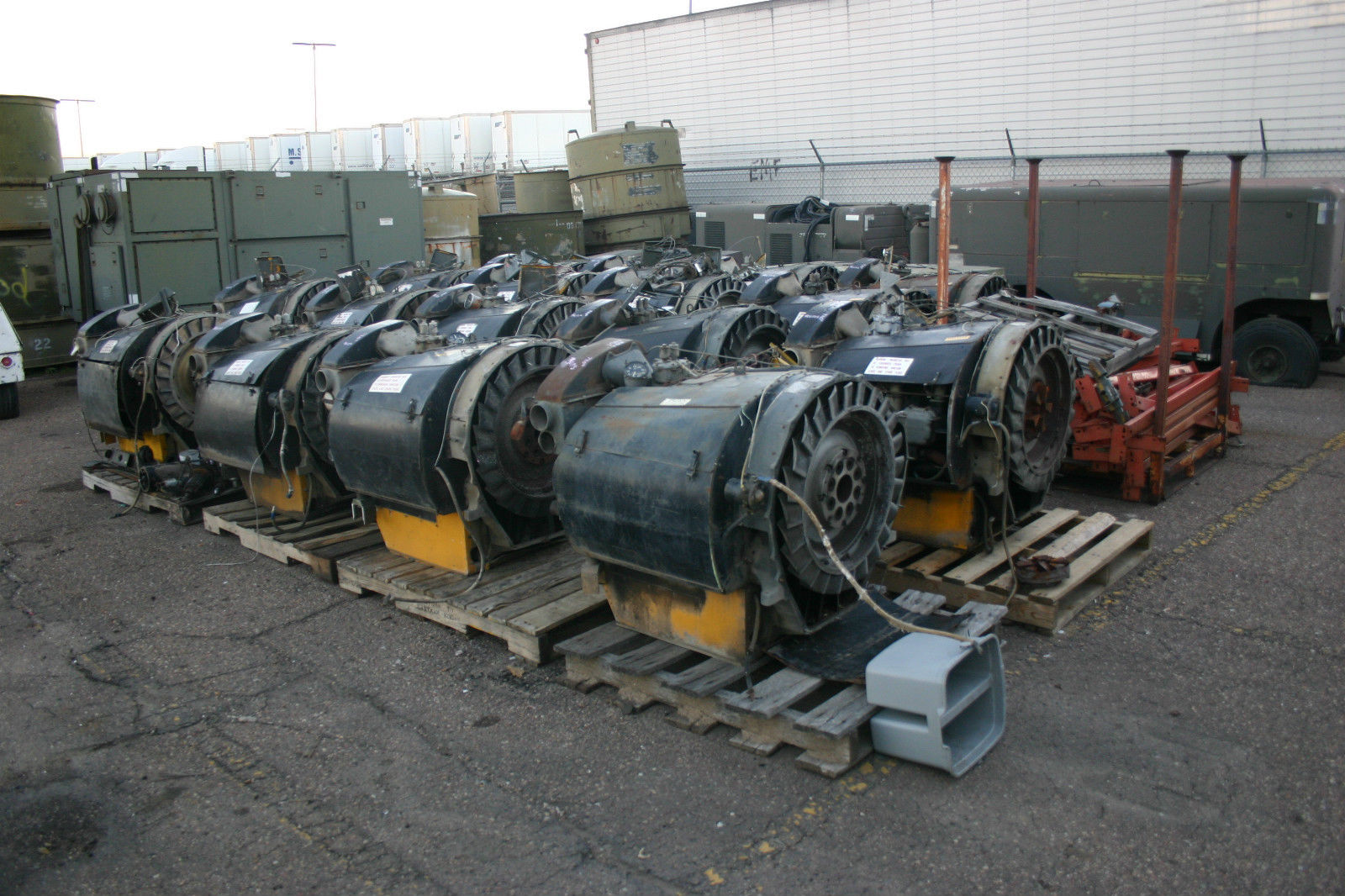

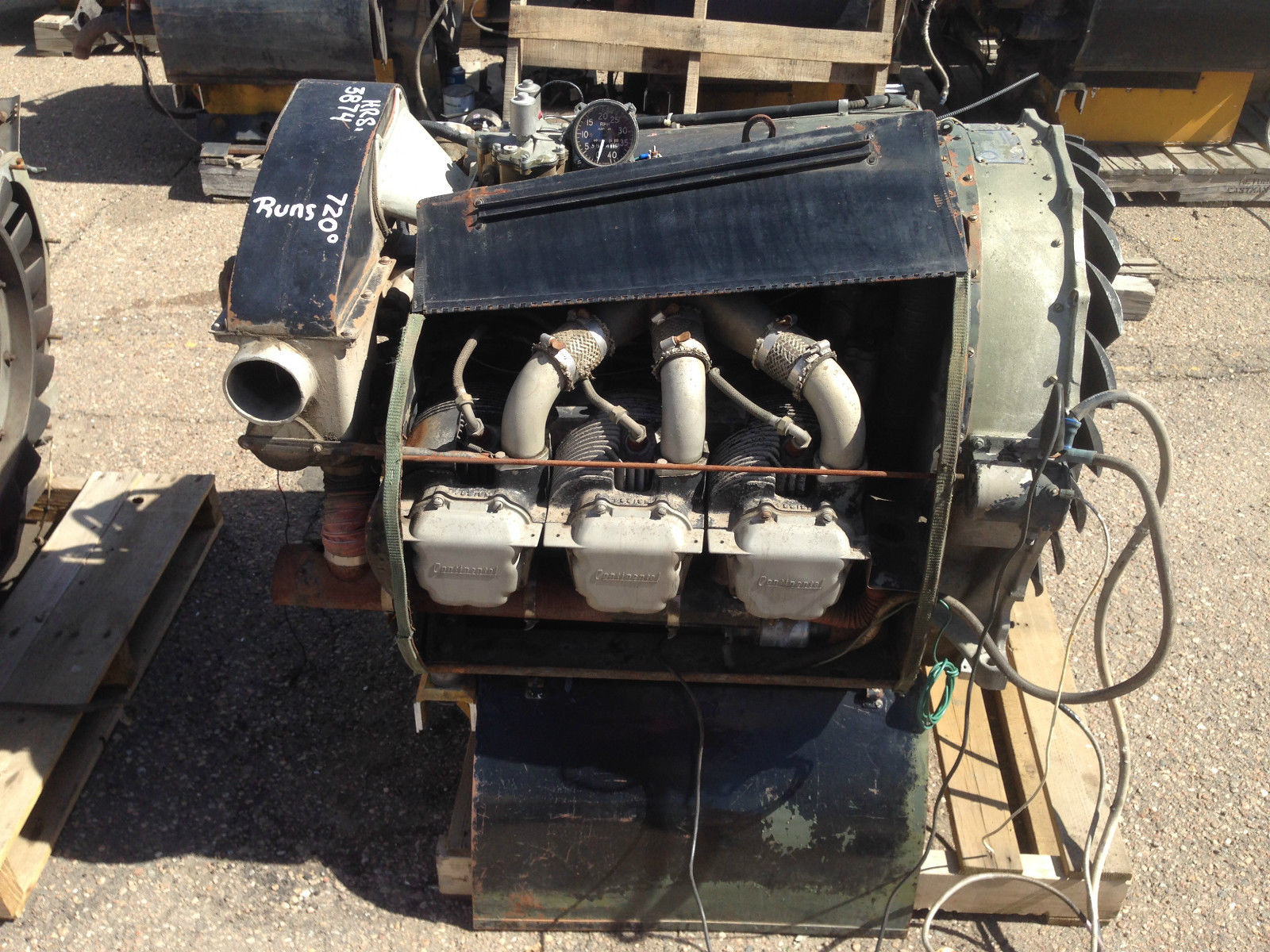

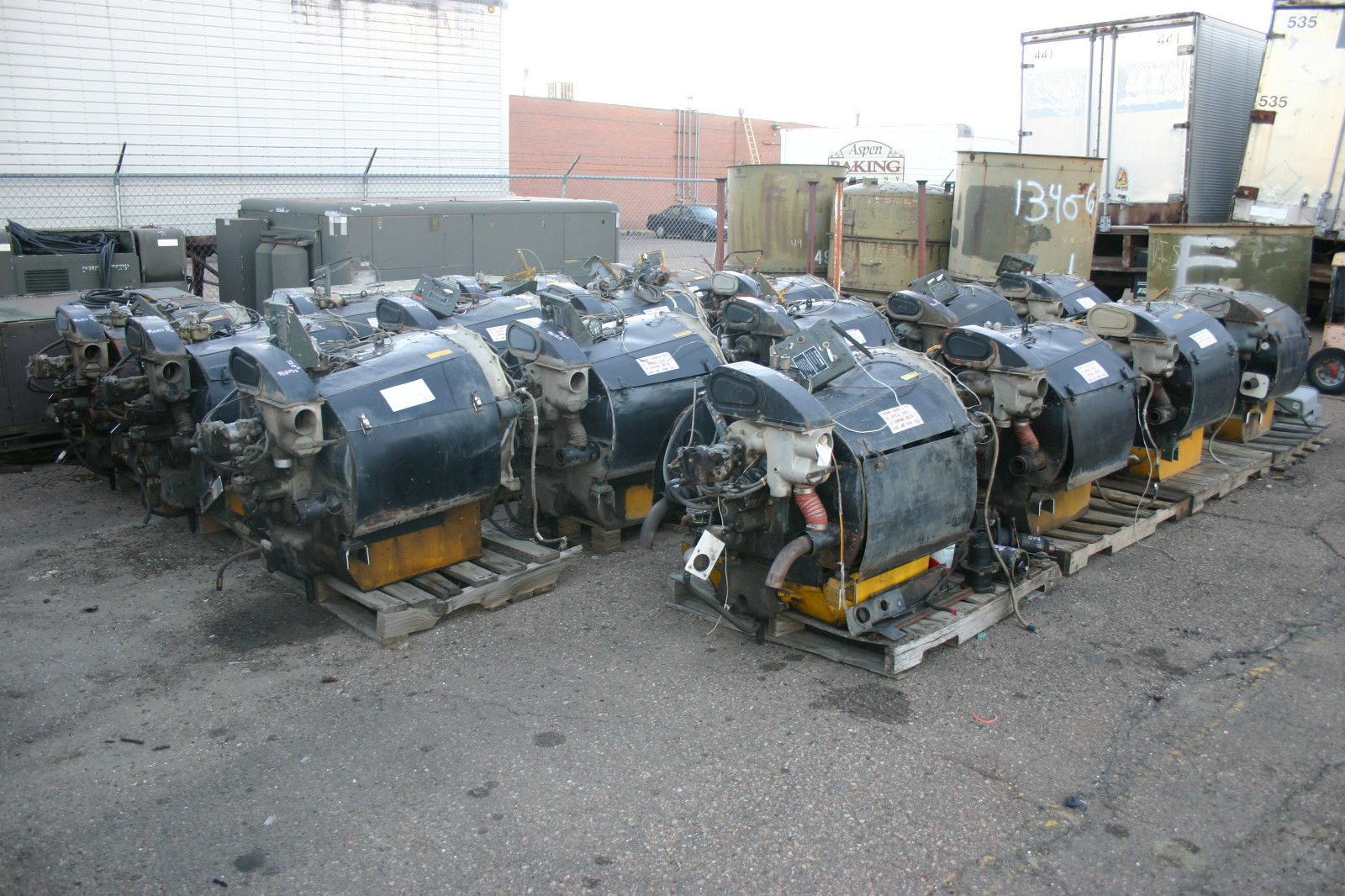

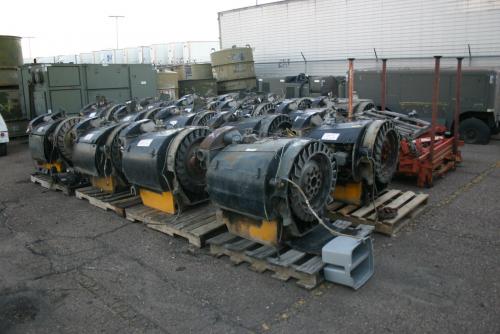

41chevy Posted March 16, 2015 Share Posted March 16, 2015 Picture one with a swapped in Deutz air cooleed V-8!! Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...
