mack4ever Posted June 14, 2015 Share Posted June 14, 2015 this is how i spend my sunday.but now i have a question for you.i want to put this engine in my r model.but now i have a little problem with the airfilter.is there a airfilter to fit this engine and my r model. Quote Link to comment Share on other sites More sharing options...
mack4ever Posted June 14, 2015 Author Share Posted June 14, 2015 i can try and find a picture of my r model where you can see the hood and the airfilter if that wil help.i don`d know if they ever build r models whit a tiptubine engine.if they did then there must be a airfilter that fits (i asume). Quote Link to comment Share on other sites More sharing options...
Macktech689 Posted June 14, 2015 Share Posted June 14, 2015 R models were built with tip turbine engines. Quote Link to comment Share on other sites More sharing options...
mack4ever Posted June 14, 2015 Author Share Posted June 14, 2015 thank you very much.but my r model has the short hood.don`d know if that is a problem. Quote Link to comment Share on other sites More sharing options...
j hancock Posted June 14, 2015 Share Posted June 14, 2015 R-600s had the tip turbines as well. Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
mack4ever Posted June 14, 2015 Author Share Posted June 14, 2015 i hope the airfilter of the donor dm wil fit then. Quote Link to comment Share on other sites More sharing options...

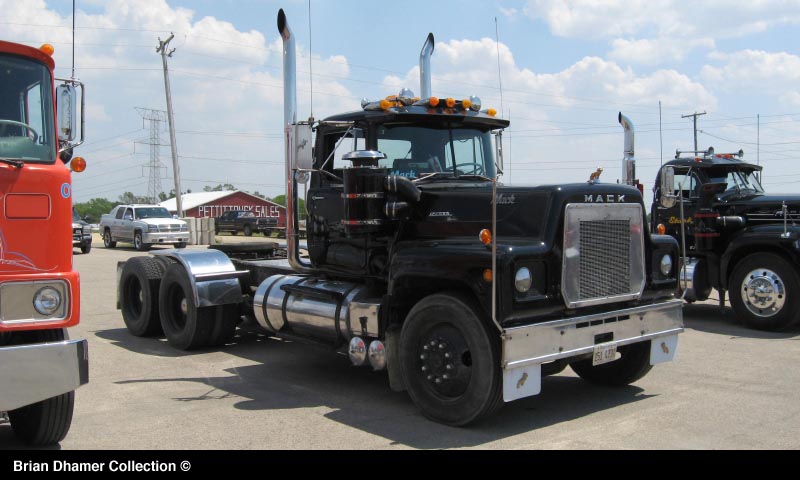

41chevy Posted June 15, 2015 Share Posted June 15, 2015 R-600s had the tip turbines as well.I posted the link to you pics of it. Paulhttp://www.bigmacktrucks.com/index.php?/gallery/image/14137-tip-tubine-turbo-on-a-r-model/ Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...
Timmyb Posted June 15, 2015 Share Posted June 15, 2015 I take it the original air filter for the tip turbine are getting hard to find? Quote Link to comment Share on other sites More sharing options...
j hancock Posted June 15, 2015 Share Posted June 15, 2015 Here is a picture and post showing the dual hose air filter on a R model.http://www.bigmacktrucks.com/index.php?/topic/38560-air-cleaner-hoses-for-r-and-dm-models/?hl=air+cleaner Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
Maddog13407 Posted June 15, 2015 Share Posted June 15, 2015 I put a Tip turbine 300+ in my 66 R600 with the short hood. I used the air cleaner off the 1980 R612 the engine came out of with the two air inlet tubes. you could use a hood scoop just have to make up brackets to mount the under hood filter to the radiator support I think. Quote Link to comment Share on other sites More sharing options...
Popular Post mack4ever Posted October 8, 2015 Author Popular Post Share Posted October 8, 2015 it all fits.had to manufacture some intake tubes myself.bought a new airfilter and cut it up to weld in the tubefittings from the old filter.had to adjust the waterpump poellie and the crancshaft poellie. 3 Quote Link to comment Share on other sites More sharing options...
Vladislav Posted October 8, 2015 Share Posted October 8, 2015 Looks like the problem is solved.Leon, did you have END711 naturally aspirated and swap it with 673 ci 300+ hp? Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment Share on other sites More sharing options...
mack4ever Posted October 8, 2015 Author Share Posted October 8, 2015 yes i did.try to make it to the mackday in amsterdam this weekend. Quote Link to comment Share on other sites More sharing options...
Vladislav Posted October 8, 2015 Share Posted October 8, 2015 Good deal!Unfortunately I miss this year.Too many current difficulties.Say hello to Rene. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment Share on other sites More sharing options...
j hancock Posted October 8, 2015 Share Posted October 8, 2015 it all fits.had to manufacture some intake tubes myself.bought a new airfilter and cut it up to weld in the tubefittings from the old filter.had to adjust the waterpump poellie and the crancshaft poellie.Looks like you did a fine job! Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
Freightrain Posted October 8, 2015 Share Posted October 8, 2015 Looks good. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment Share on other sites More sharing options...
41chevy Posted October 8, 2015 Share Posted October 8, 2015 Sweet. It looks factory! Paul Quote "OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK" Thomas Edison “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’” P.T.CHESHIRE Link to comment Share on other sites More sharing options...
mack4ever Posted October 8, 2015 Author Share Posted October 8, 2015 i wil say hello to rene from you vlad.thank you guys and i hope this engine wil hold a little longer than the 711.have to do some smal adjusments and take a 100 mile drive on saterday to our mackday in the middle of the country.trying to get there and back without any problems.leon. 1 Quote Link to comment Share on other sites More sharing options...
farmer52 Posted October 8, 2015 Share Posted October 8, 2015 Not to hijack this thread....Leon,When are you and Rene coming to the USA? Quote Ken PRR Country and Charter member of the "Mack Pack" Link to comment Share on other sites More sharing options...
mack4ever Posted October 8, 2015 Author Share Posted October 8, 2015 hello Ken.i will ask Rene this weekend.maybe next year.but we wil let you know if and when we come.leon 1 Quote Link to comment Share on other sites More sharing options...
mack4ever Posted October 11, 2015 Author Share Posted October 11, 2015 back home now.the truck did very well. Quote Link to comment Share on other sites More sharing options...
Vladislav Posted October 11, 2015 Share Posted October 11, 2015 Sounds great!How the event is turned out?I googled "MackDag 2015" a cople of hours back but haven't found fresh pictures excepting a few.Please post some when you have a bit of time. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment Share on other sites More sharing options...
mack4ever Posted October 12, 2015 Author Share Posted October 12, 2015 look on you tube by:mackdag 2015 1 Quote Link to comment Share on other sites More sharing options...
