gio400 Posted January 9, 2023 Share Posted January 9, 2023 I have a Detroit 12.7 when on the flat have no problems, but when I’m the hills n building rpm it sometimes making a blowing huffing sound n puff black smoke, when building rpm. Have this happen to anyone or do anyone knows what cause this Quote Link to comment Share on other sites More sharing options...
0 terry Posted January 9, 2023 Share Posted January 9, 2023 Boost leak somewhere. terry 1 Quote Link to comment Share on other sites More sharing options...
0 Joey Mack Posted January 9, 2023 Share Posted January 9, 2023 One common repair I have made on 12.7 series 60, was the air compressor supply hose that comes from the intake manifold to the air compressor intake.. 1 Quote Link to comment Share on other sites More sharing options...
0 The Rubber Duck 006 Posted January 9, 2023 Share Posted January 9, 2023 Had that happen to a 14.0L Detroit and it ended up being the EGR . Quote Link to comment Share on other sites More sharing options...
0 Joey Mack Posted January 9, 2023 Share Posted January 9, 2023 Yep, however, i dont recall seeing an EGR on a 12.7.. (of course I aint seen them all) I have also replaced intake gaskets, and C.A.C.'s, and on occasion, a turbo base gasket.. I like the 12.7.. I put it right up there with the E-7 Mechanical.. jojo Quote Link to comment Share on other sites More sharing options...
0 Onyx610 Posted January 9, 2023 Share Posted January 9, 2023 Late 03 until discontinued the 12.7 and 14 liter had egr. Pretty much like every other engine manufacture. 1 Quote Link to comment Share on other sites More sharing options...
0 Onyx610 Posted January 9, 2023 Share Posted January 9, 2023 So who knows what he has. Quote Link to comment Share on other sites More sharing options...
0 Joey Mack Posted January 9, 2023 Share Posted January 9, 2023 Thanks Onyx.. I have worked on a lot of 12.7's and 14.0's.. I just dont remember EGR on a 12.7.. The 14.0's I worked on were '05 and later.. They had EGR's.. The series 60 is one engine that I wish I had learned to build.. I would 'Tool-up' for that one... Lot's of them still in service here.. Hopefully gio400 will come back with all the truck info and a few pic's... jojo Quote Link to comment Share on other sites More sharing options...
0 theakerstwo Posted January 9, 2023 Share Posted January 9, 2023 Variable van turbo has to be calibrated to boost or not by ECM.There is no quick answer for this.)3 had this and even when its right some times it sounds like its loosing boost. 1 Quote glenn akers Link to comment Share on other sites More sharing options...
0 The Rubber Duck 006 Posted January 10, 2023 Share Posted January 10, 2023 I loved my 14.0L. 515 horse from the factory and mine would boost almost 50psi on the boost gauge. Truck would flat fly down the road even fully loaded. It was in a 2006 Freightliner Coronado. We timed it once on a 16mile stretch and covered it in less than ten minutes. Truck was named Can't Touch This. Another thing that caused her to run wonky was the Air compressor was going bad. Sure miss that ol'big wheel sports car. Quote Link to comment Share on other sites More sharing options...
0 Joey Mack Posted January 10, 2023 Share Posted January 10, 2023 How did the sleeper compare to a Century/Columbia 120? I has a '99 century and I loved it.. even though it was a plastic truck.. Quote Link to comment Share on other sites More sharing options...
0 The Rubber Duck 006 Posted January 10, 2023 Share Posted January 10, 2023 1 hour ago, Joey Mack said: How did the sleeper compare to a Century/Columbia 120? I has a '99 century and I loved it.. even though it was a plastic truck.. Was the same exact sleeper cab. Coronado just had the long hood. Its actually called a Century Coronado on the manufacturing plate Quote Link to comment Share on other sites More sharing options...
0 The Rubber Duck 006 Posted January 10, 2023 Share Posted January 10, 2023 The Sleeper just had The bigger bed in the bottom twin in the top bunk. Fridge ,work station desk with light ,space for a TV, and 3 closets. It was all really nice and nothing rattled like most plastic trucks lol. It was my home away from home. 1 Quote Link to comment Share on other sites More sharing options...
0 Hayseed Posted January 10, 2023 Share Posted January 10, 2023 14 hours ago, Onyx610 said: Late 03 until discontinued the 12.7 and 14 liter had egr. Pretty much like every other engine manufacture. There was a lot of non EGR 14 Litre Series 60's down here.. !! It's all we got from '03 up to '09. Then we got the EGR 14 Litre for a couple of Years then the DD13/16 rom about (I think) 2011-12 Quote "Be who you are and say what you feel...Because those that matter...don't mind...And those that mind....don't matter." - Link to comment Share on other sites More sharing options...
0 67RModel Posted January 10, 2023 Share Posted January 10, 2023 Series 60 was the engine that saved Detroit Diesel along with Roger Penske's money and John Deere Corporation. Not too many people know but in the in the mid 1980s John Deere and Detroit Diesel formed a joint venture to co-develop engines for on highway applications and off road machinery. Detroit's 2 cycle was all but dead and Deere was in a bad financial position from horrible farm economies of the late 70s and early 80s. Deere engineers had the knowledge to design and build reliable 4 stroke diesels. The joint venture was named Detroit Deere Corporation (DEDEC). Roger Penske swooped in at the last minute and bought Detroit Diesel and poured mountains of money into the prototype engine called the Tech 80, which would become the Series 60. John Deere's 12.5 liter Powertech engines have often been called Series 60 clones since they were introduced a few years after the 60 Series debuted. Attached are two pictures of corporate literature of the merger company that really never came to fruition. How much engineering and information exchange that took place between Detroit and Deere leading up to Penske buying Detroit and nixing the corporate merger deal is unknown. However, based on how similar the Series 60 and Deere 12.5 liter Powertechs are......a lot? 1 1 Quote Link to comment Share on other sites More sharing options...
0 67RModel Posted January 10, 2023 Share Posted January 10, 2023 I am way off topic on this thread but if we are reminiscing about the Series 60...... Quote Link to comment Share on other sites More sharing options...
0 Onyx610 Posted January 10, 2023 Share Posted January 10, 2023 Fitzgerald makes badass 60s…. Quote Link to comment Share on other sites More sharing options...
0 fjh Posted January 10, 2023 Share Posted January 10, 2023 These were a comparable decent engine in my mind to E7 ! They had it over the e7 in the engine brake Department! I heard rumor's that an in frame could be accomplished in an 8 hour shift in some applications! Quote Link to comment Share on other sites More sharing options...

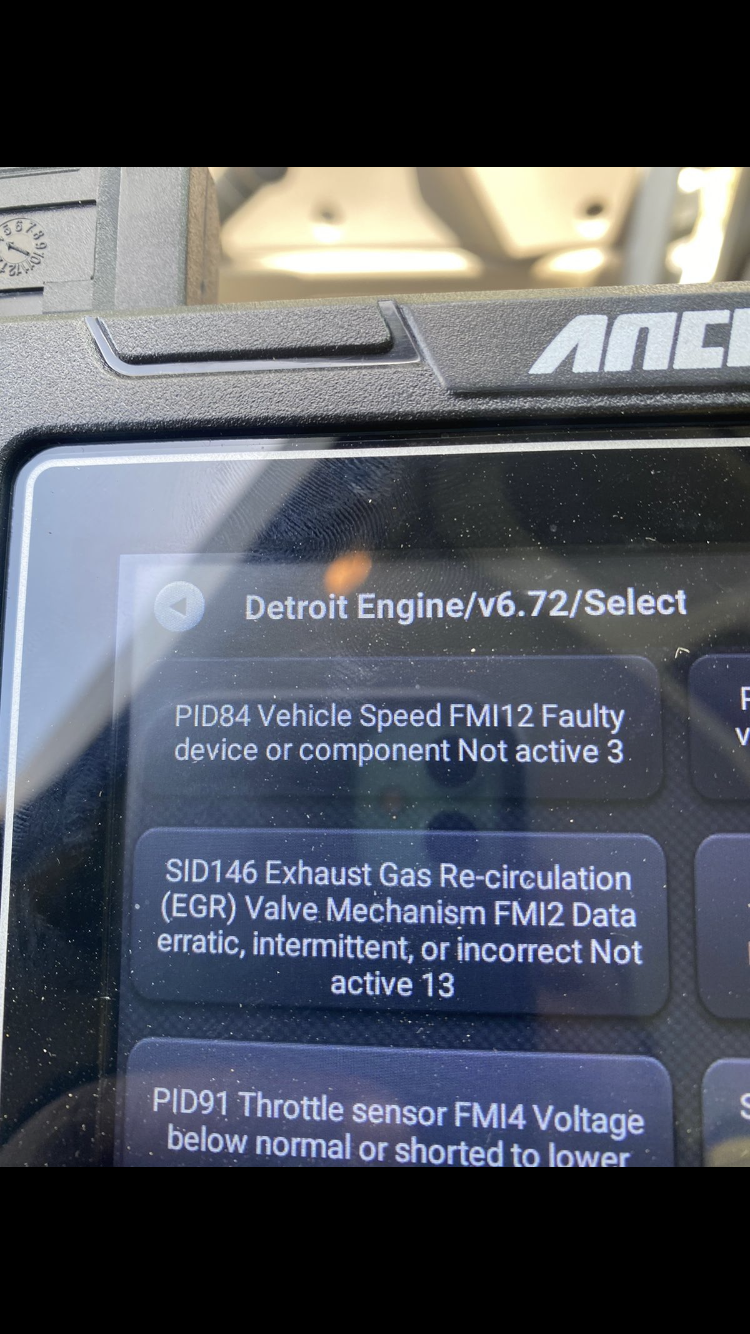

0 gio400 Posted January 10, 2023 Author Share Posted January 10, 2023 These are the codes that show up when I connect a scanner to the engine Quote Link to comment Share on other sites More sharing options...
0 67RModel Posted January 10, 2023 Share Posted January 10, 2023 What year engine and engine size are we talking here. Get the information from the tags and stickers on the sides of valve cover. Also the make and year of the truck could help if you know for certain the engine is original to the truck. It literally says there is some type of EGR fault on your scanner so there is a good chance its not a 12.7? The information seems contradictory but I'm no DD guru. Quote Link to comment Share on other sites More sharing options...
0 Joey Mack Posted January 10, 2023 Share Posted January 10, 2023 I was kinda thinking like you 67,,. Im no DD guru either, but I sure have worked on a lot of them from the 90's to 2007.. anyway, I will follow this one and hope to learn something.. 🍻 Quote Link to comment Share on other sites More sharing options...
0 Onyx610 Posted January 10, 2023 Share Posted January 10, 2023 Looks like those codes are not active Quote Link to comment Share on other sites More sharing options...
0 Joey Mack Posted January 10, 2023 Share Posted January 10, 2023 I just looked back.. Onyx said EGR on DD came in 2003.. heck, I would think I'd remember that... Quote Link to comment Share on other sites More sharing options...
0 Onyx610 Posted January 10, 2023 Share Posted January 10, 2023 Looks like maybe the TPS is active and should be looked into first Quote Link to comment Share on other sites More sharing options...

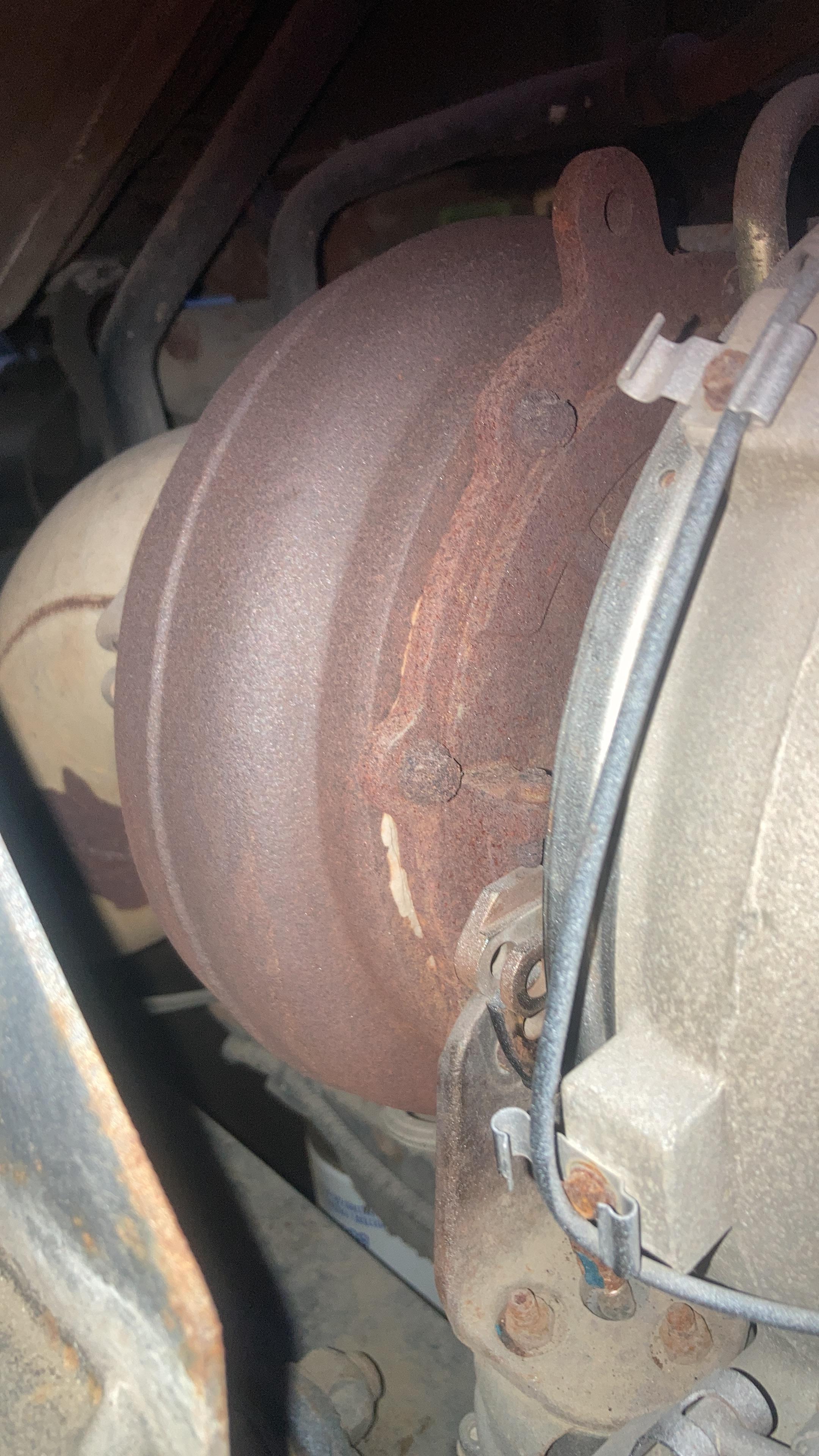

0 gio400 Posted August 12, 2023 Author Share Posted August 12, 2023 I just discovered that the actuator is not connected to the waste gate think this the problem Quote Link to comment Share on other sites More sharing options...
Question
gio400
I have a Detroit 12.7 when on the flat have no problems, but when I’m the hills n building rpm it sometimes making a blowing huffing sound n puff black smoke, when building rpm. Have this happen to anyone or do anyone knows what cause this
