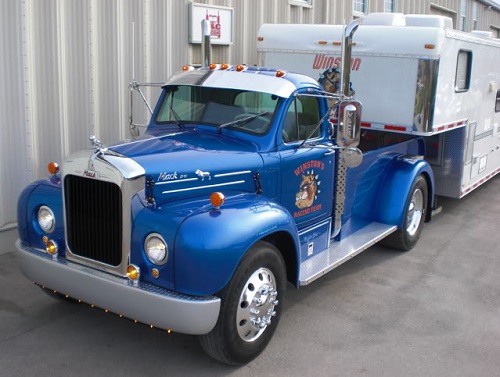

Popular Post Barry Posted April 17, 2018 Popular Post Share Posted April 17, 2018 Hey guys, I have a few customers looking for B-Model Exterior Sun Visors...we kicked around the Aussie style visors but they all want more of a fiberglass or stainless ball cap style. Does anyone have any leads on visors? I saw the photo below on line but no idea where it came from or who is making them?? I'd like to get a stainless visor made but I would need a working sample or pattern to get it started! If anyone has a sample we could borrow, post some pics up and lets check it out! 3 Quote Barry - Watt's Truck Center Parts Manager and BMT Webmaster...1-888-304-MACK Link to comment Share on other sites More sharing options...
davehummell Posted April 17, 2018 Share Posted April 17, 2018 who ever own's that b should be mighty proud. Nothing against anyone else's truck but i like this truck sadly it makes mine look like crap. 1 Quote Link to comment Share on other sites More sharing options...

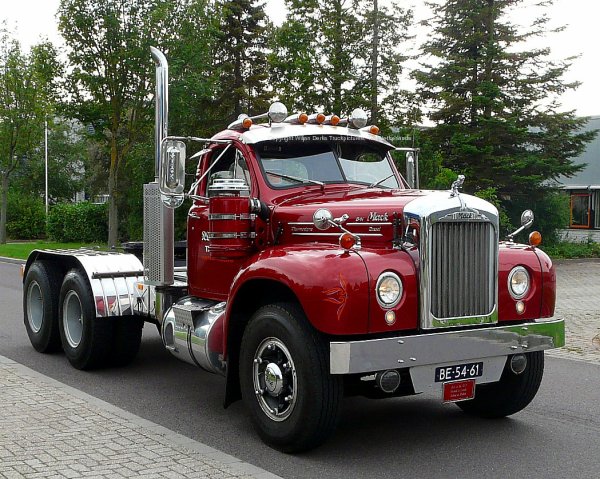

Vladislav Posted April 17, 2018 Share Posted April 17, 2018 The truck is in The Netherlands at the moment. And for no less than a decade to now. Was imported from Canada in the past. Looks really nice when up close too. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment Share on other sites More sharing options...
Freightrain Posted April 18, 2018 Share Posted April 18, 2018 I have connections to build whatever I want for a visor. Damned if I can ever get around to it. Hoped someone would come up with something I like and I would just buy one. 1 Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment Share on other sites More sharing options...
Plowboy Posted April 18, 2018 Share Posted April 18, 2018 I also would like someone to make them. Quote Link to comment Share on other sites More sharing options...

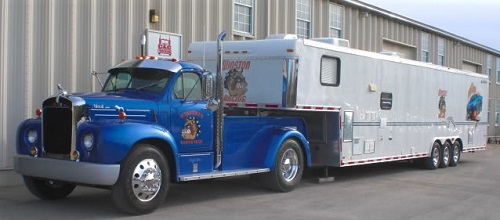

Barry Posted April 18, 2018 Author Share Posted April 18, 2018 I can get them made, I just need a sample or pattern for the fab shop to work from. I like the one the Phantom309 made but I can't seem to get a hold of him...hasn't been on BMT since 2016. Quote Barry - Watt's Truck Center Parts Manager and BMT Webmaster...1-888-304-MACK Link to comment Share on other sites More sharing options...
j hancock Posted April 18, 2018 Share Posted April 18, 2018 Maybe Larry will see Phantom at the track? Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
Freightrain Posted April 18, 2018 Share Posted April 18, 2018 Haven't seen Jim for a few years now. I met him at Milan Michigan a few years ago when we were both there for a race. Yes, I like how he built his and would like to mimic it. Quote Larry 1959 B61 Liv'n Large...................... Charter member of the "MACK PACK" Link to comment Share on other sites More sharing options...
Barry Posted April 18, 2018 Author Share Posted April 18, 2018 Phantom just replied to my PM but he said he no longer owns the truck and he didn't make any patterns. Quote Barry - Watt's Truck Center Parts Manager and BMT Webmaster...1-888-304-MACK Link to comment Share on other sites More sharing options...
Hobert62 Posted April 18, 2018 Share Posted April 18, 2018 The problem I ran into when I made mine was mounting the ends of the visor. The a pillars and visor ends don't match up due to diffrent angles. I ended up using a 3/4" hole saw and cut 2 holes in each pillar. Then welded 3/4 round stock in at the correct angle to bolt the visor to. The ends are very solid but I should still have some type of center brace. Quote Link to comment Share on other sites More sharing options...

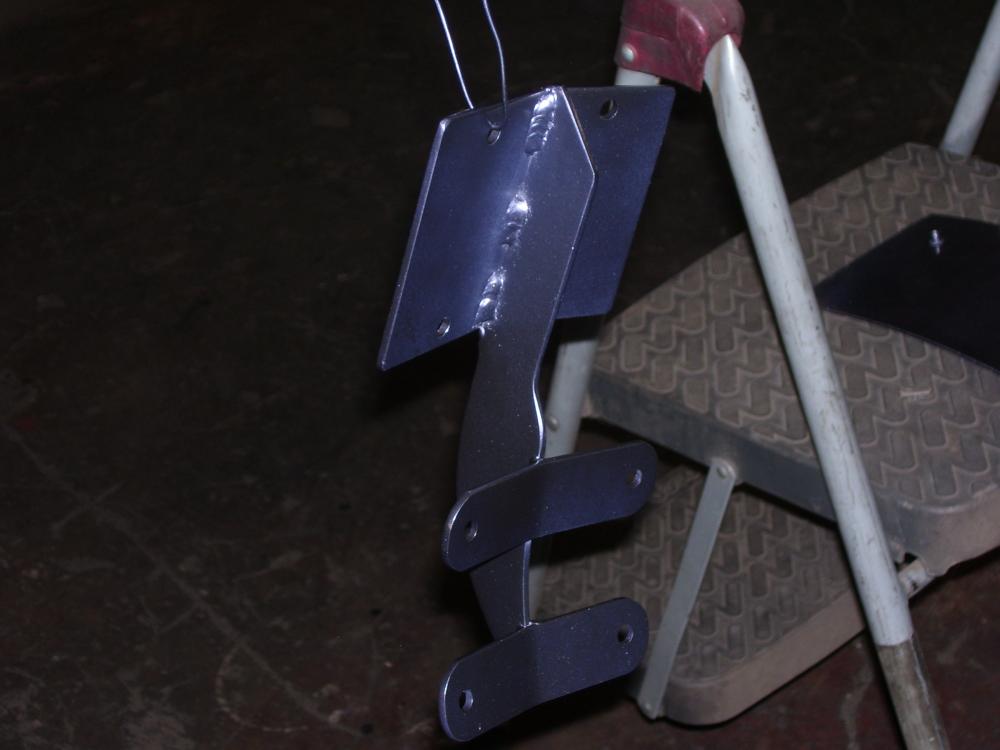

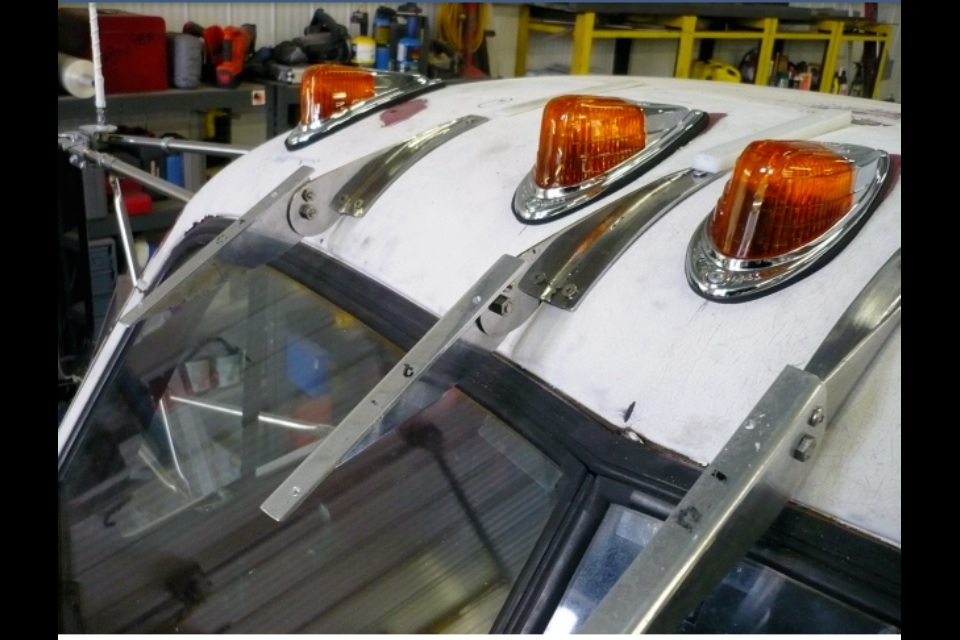

Hobert62 Posted April 18, 2018 Share Posted April 18, 2018 (edited) Phantom made very nice center brackets out of stainless, but the ends he just fastened with nutserts. Edited April 18, 2018 by Hobert62 2 Quote Link to comment Share on other sites More sharing options...
gxbxc Posted April 18, 2018 Share Posted April 18, 2018 (edited) Any one think about a 49/51 chevy visor could something like this be adapted for a B61 https://www.ebay.com/itm/FULTON-700-SUN-SHIELD-NOS-SUN-VISOR-ORIGINAL-COMPLETE-EXCEPTIONAL-CONDITION/192484227516?_trkparms=aid%3D222007%26algo%3DSIC.MBE%26ao%3D2%26asc%3D44040%26meid%3D630133d81a014a8a94db97849273637f%26pid%3D100011%26rk%3D1%26rkt%3D7%26sd%3D192155423288%26itm%3D192484227516&_trksid=p2047675.c100011.m1850 Edited April 18, 2018 by gxbxc Quote Link to comment Share on other sites More sharing options...
Showcars-Bodyparts Posted December 31, 2020 Share Posted December 31, 2020 We are Showcars-Bodyparts, we have fiberglass front fenders $475 USD and headlight panels $160 USD each, smoothie sun visor $160 USD similar to Ford one pictured below>>9058576345 showcars@idirect.com https://www.ebay.com/itm/48-52-Ford-Mercury-Pickup-SHOWCARS-Air-Flow-Custom-Smoothie-Sun-Visor-FM41-/113493596099?vxp=mtr&hash=item1a6cbed7c3 Quote Link to comment Share on other sites More sharing options...

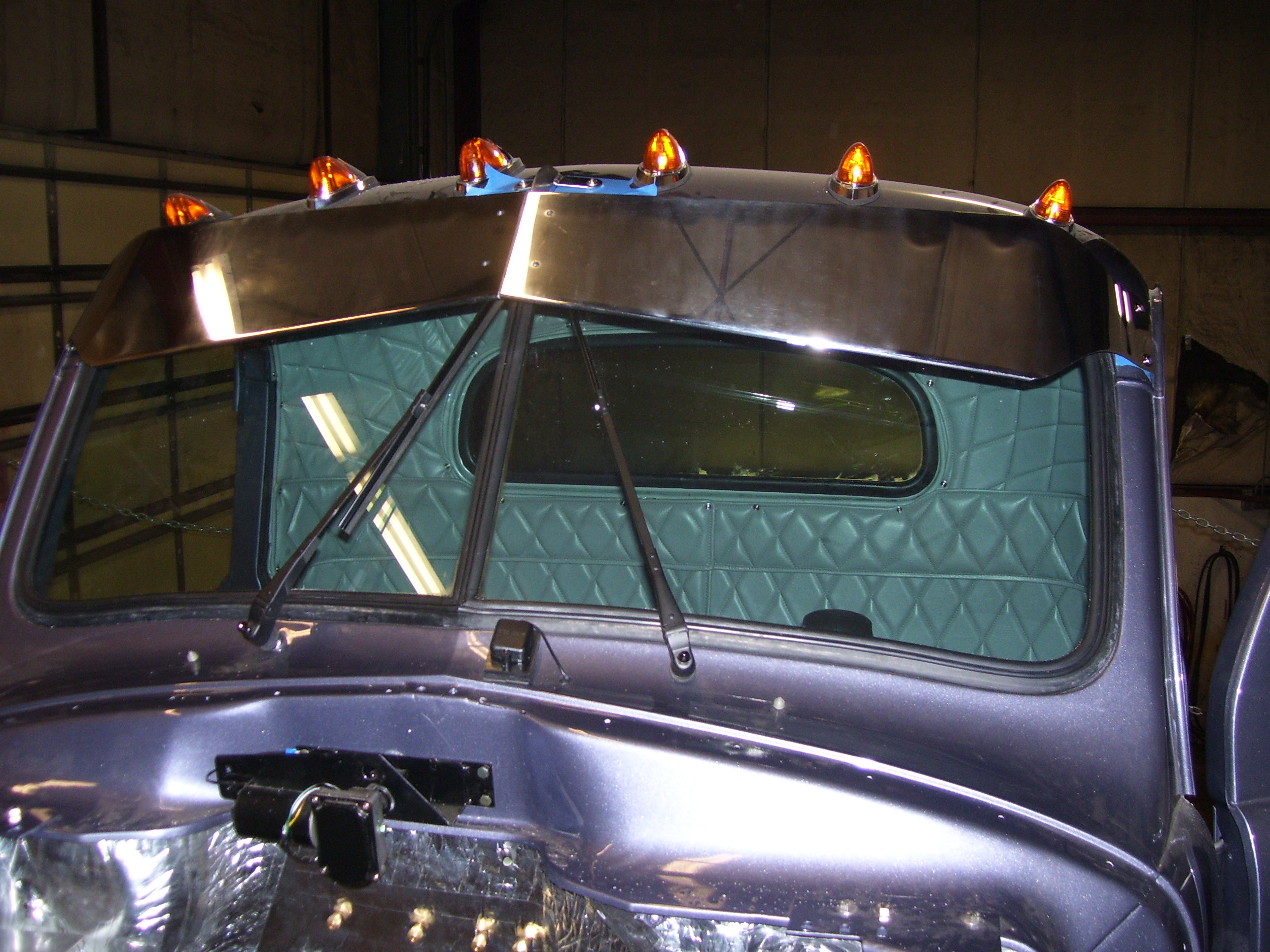

Truck Shop Posted December 31, 2020 Share Posted December 31, 2020 I narrowed this 379 Pete bowtie, had to reshape the ends slightly to fit cab sides and made a one piece center support using 1/4" button head screws to hold it in place. Very strong/sturdy, the visor is 16 gauge stainless and heavy. Quote One ping only Link to comment Share on other sites More sharing options...
DaveB6875 Posted February 28, 2021 Share Posted February 28, 2021 Hello, The visor looks ! If you don1t mind me asking, What did you use for the wiper motor in the pic ? Thanks Quote Link to comment Share on other sites More sharing options...
Truck Shop Posted February 28, 2021 Share Posted February 28, 2021 (edited) https://www.americanclassic.com/1947-53-Wiper-Motor-Electric-Conversion-12-volt/productinfo/67-064/?utm_source=bing&utm_medium=cpc&utm_campaign=Bing Shopping&utm_term=4579259771914807&utm_content=Ad group %231 With some modification. Edited February 28, 2021 by Truck Shop Quote One ping only Link to comment Share on other sites More sharing options...
DaveB6875 Posted March 2, 2021 Share Posted March 2, 2021 Thank You Quote Link to comment Share on other sites More sharing options...
