Camelback trunnion

[Triple D]

Good morning . Going to be replacing trunnion spindle on a camelback. I have 50ton press and pump but need the rest of the set up to remove and install new trunnion. Is there a place I can purchase this set up or does it need to be fabricated ? Any help would be greatly appreciated

[Joey Mack]

I don't remember what the book said, old timers showed me how to jack it up



[mrsmackpaul]

1 hour ago, Joey Mack said:

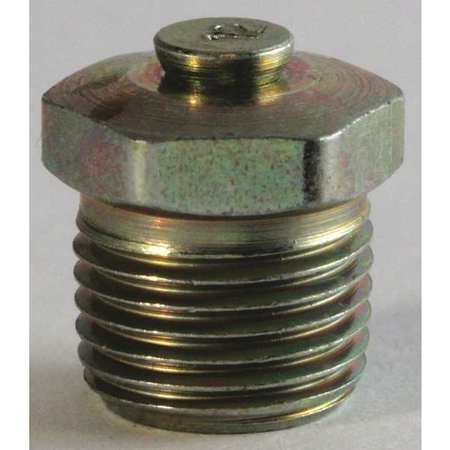

I quickly did some googling and found these came in different PSI levels

As in



O.25 - 1 psi

1 - 5 psi

15 - 25 psi

My question is, what are the ones on the trunions meant to be ?



Paul

[Joey Mack]

Dunno... 1-5,,, i guess. they pop of pretty easily..

[mrsmackpaul]

Thanks Joey



Paul

[Joey Mack]



🍻

[mrsmackpaul]

Ordered and on their way

Noticed I can get them up to 600 psi

I reckon the grease would be coming out all over the place at 600 psi

Paul

[Joey Mack]

yes it will... I would suggest 1-5 PSI,  but I have never looked into the pressure rating..  do you think a 20+ one, would force more grease to the inner thrust washer??  Dunno..  as far as I know, you put the grease in the top of the saddle, then it goes around the grooves to the bottom, then it fills the space behind the cap, then it pushes out the vent....    Ok, now I'm Dizzy....

Edited March 10, 2023 by Joey Mack
more content needed

[masterwelder]

The question is what will the seals hold?

That may be the weakest link.

[Joey Mack]

they are,  and they will purge some grease if the trunnion has been in service for a while..  Kinda why I thought the 1-5 PSI one would be a good choice.  I really dont know, because we always just jacked them up and greased them til it came out the vent, and yes,,,  grease has dropped off the rear of the saddle.  when jacking it up, you can tell which ones are going to leak a little, when you see the bottom of the saddle go from no gap, to having a gap when the weight is off of it..  jojo

[MACKS]

Never had one of those on any of my five Macks, all had 58 rears and all of them had a grease fitting there,just saying.🤷‍♂️.

[Joey Mack]

so you didnt have a grease fitting in the saddle, and a bleeder in the cap?????  Hmm..

[MACKS]

2 minutes ago, Joey Mack said:

so you didnt have a grease fitting in the saddle, and a bleeder in the cap?????  Hmm..

Grease fitting in both ..

[mrsmackpaul]

I have grease fittings both cap and saddle

I'm just poking along learning as I go still

There is quite a lot different in Australian Macks than US Macks and a lot of difference between West and East coast Macks

Australian and NewZealand Macks arevery different as well

But it makes sense that there be a relief and not just pressure in

Paul

[Joey Mack]

I have seen that, and was told (When I was New at this) to remove the one in the cap and put the bleeder in..  I guess the good thing is that we are all aware that they are there so that means we WERE greasing them..

[MACKS]

The toughest and in my opinion the best suspension ever invented for heavy trucks,there must be something from Mack as to how to service it..

[Mark T]

I thought that thing was to take out and replace with a pipe plug 🤔

[Mark T]

3 hours ago, 67RModel said:

I'm going to start lubing my camel's hump like everyone is saying to do by jacking it up first. I'm just curious does the Mack lubrication literature say to do it this way? Or is this one of those lessons learned through the school of hard knocks?

This  theory is primarily advised by the either the guy who gets to pay for, or actually do the repair on a prematurely worn trunion bar.   On a truck with a lift axel, even putting that down with the truck unloaded helps better than not jacking.

[MACKS]

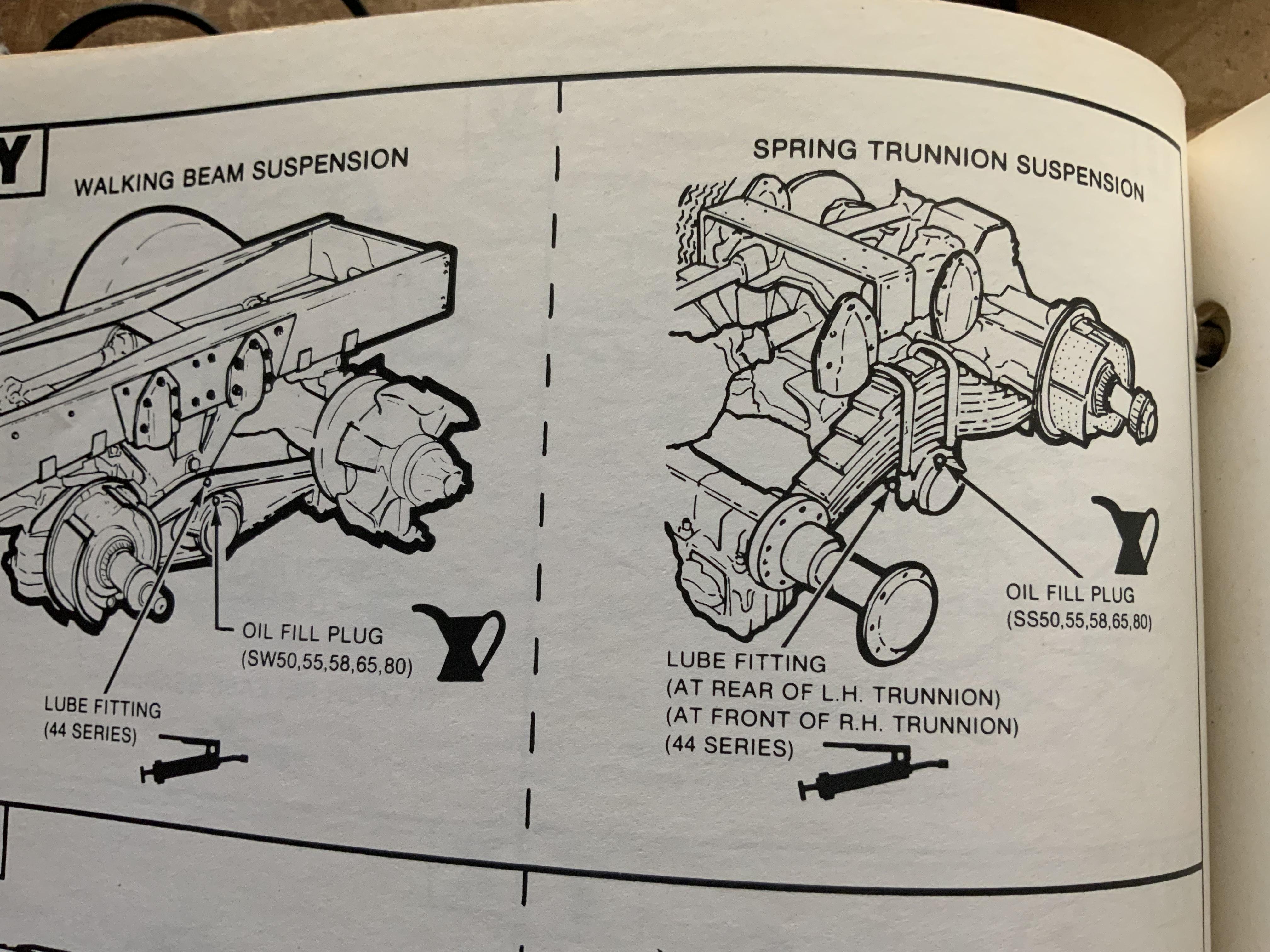

This is what the book shows..

[MACKS]

2 minutes ago, MACKS said:

This is what the book shows..

According to this we’re all wrong,suppose to use gear oil I guess in the end cap anyway,make any sense to anybody?

[mrsmackpaul]

Well we are all learning things today



Thanks for sharing that, Im guessing everyone just pulls the plug out and bunged what ever they thought was right in there



Paul

[MACKS]

6 minutes ago, mrsmackpaul said:

Well we are all learning things today



Thanks for sharing that, Im guessing everyone just pulls the plug out and bunged what ever they thought was right in there



Paul

It also says to jack up rear axle to remove the load on the bushing before servicing..

[Joey Mack]

What year is that book MACKS?  I like it, and hadnt seen that info before...   Thanks,, jojo

[MACKS]

18 minutes ago, Joey Mack said:

What year is that book MACKS?  I like it, and hadnt seen that info before...   Thanks,, jojo

1985,so what do u think about gear oil or some other liquid type lube in there,would it even stay in and obviously any grease u pump in there will mix with it right..

[Joey Mack]

Macks..  I would think in a perfect world, it woud be ok..  But, when I started to fix these Dogs 23 years ago,  We only put grease in them.. grease is nothing more than oil and a thickener..  Im sure you have seen the back side of a saddle when the truck is sitting, and the lower edge of the saddle is right up to the flange on the trunnion tube.  Which means the brass bushing is worn and the trunnion bar is flattened on the bottom.   My point here is...  how could oil stay in there?  the rubber seal is just pushed in by hand, so it's not a press fit..  anyway..  with all the postings on this...  to me ...  none of us is wrong or not knowing...  I'm just happy that there are this many guys that actually grease the trunnions..  and coversations like this will help someone get more life out of their camel back suspension..  jojo

[MACKS]

25 minutes ago, Joey Mack said:

Macks..  I would think in a perfect world, it woud be ok..  But, when I started to fix these Dogs 23 years ago,  We only put grease in them.. grease is nothing more than oil and a thickener..  Im sure you have seen the back side of a saddle when the truck is sitting, and the lower edge of the saddle is right up to the flange on the trunnion tube.  Which means the brass bushing is worn and the trunnion bar is flattened on the bottom.   My point here is...  how could oil stay in there?  the rubber seal is just pushed in by hand, so it's not a press fit..  anyway..  with all the postings on this...  to me ...  none of us is wrong or not knowing...  I'm just happy that there are this many guys that actually grease the trunnions..  and coversations like this will help someone get more life out of their camel back suspension..  jojo

My thoughts exactly,bran new ok but a little worn,no way,I’ll just keep on pumping grease but I will now jack up the back axel like the book says,well at least sometimes ..lol
