b422 Posted September 19, 2018 Share Posted September 19, 2018 Some one put on an aftermarket 12v fuel pump. Is there a company out there that sells rebuild kits for the original pump? Quote Link to comment Share on other sites More sharing options...
HarryS Posted September 19, 2018 Share Posted September 19, 2018 Daytona Carb should be able to help: https://daytonaparts.com/ Quote Link to comment Share on other sites More sharing options...
b422 Posted September 19, 2018 Author Share Posted September 19, 2018 I only found stuff for the carb not the fuel pump Quote Link to comment Share on other sites More sharing options...
Firemack Posted September 19, 2018 Share Posted September 19, 2018 I have a 464 also in a B75 Firetruck- I sent mine to Kanter Auto Restoration http://www.kanterrestoration.com/ They rebuilt mine like new in about 3 days cost $84 but that was a few years ago. They normally do AC Fuel Pumps for chevy's etc. Just call them and let them it is a regular type AC Fuel pump and you know another guy that had a few rebuilt by them and are still working. Firemack 1 Quote Link to comment Share on other sites More sharing options...
HarryS Posted September 19, 2018 Share Posted September 19, 2018 2 hours ago, b422 said: I only found stuff for the carb not the fuel pump Sorry I also meant to put info for fuel pump. TERRILL MACHINE INC. 1000 CR 454, DeLeon, TX 76444 PH: 254- 893- 2610. I've used them for automotive fuel pumps and always been satisfied. They don't have a website. Quote Link to comment Share on other sites More sharing options...
Maddog13407 Posted September 20, 2018 Share Posted September 20, 2018 sure its a 464? b422 should have a 438 Quote Link to comment Share on other sites More sharing options...

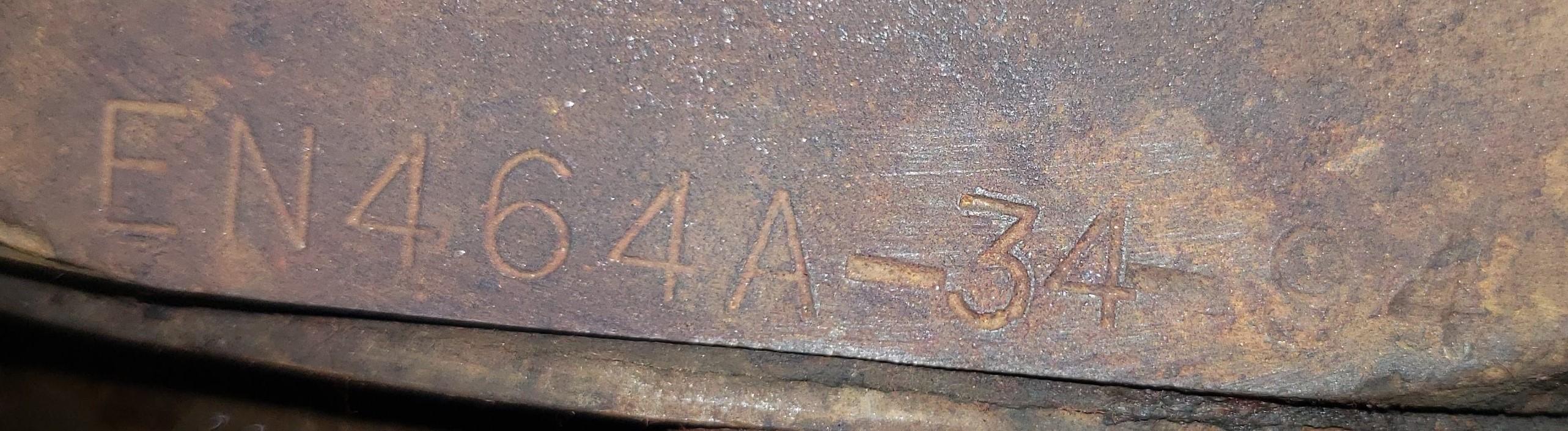

b422 Posted September 20, 2018 Author Share Posted September 20, 2018 the motor is stamped EN464A Quote Link to comment Share on other sites More sharing options...
Maddog13407 Posted September 21, 2018 Share Posted September 21, 2018 interesting. B422 would have a size 3 bellhousing originally and a baby quad or duplex 77 series. someone would have to change motor mounts and all to put a 464 in there. never amazes me how much wrenching went on with these old trucks Quote Link to comment Share on other sites More sharing options...

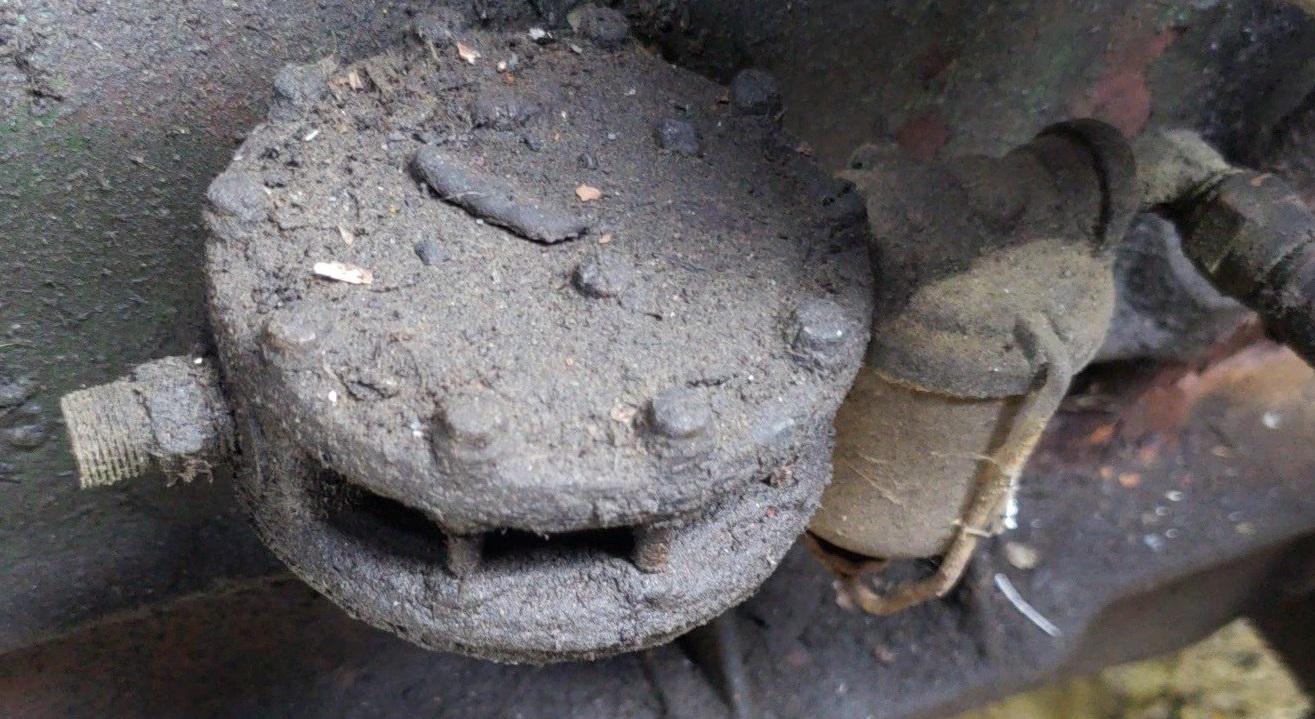

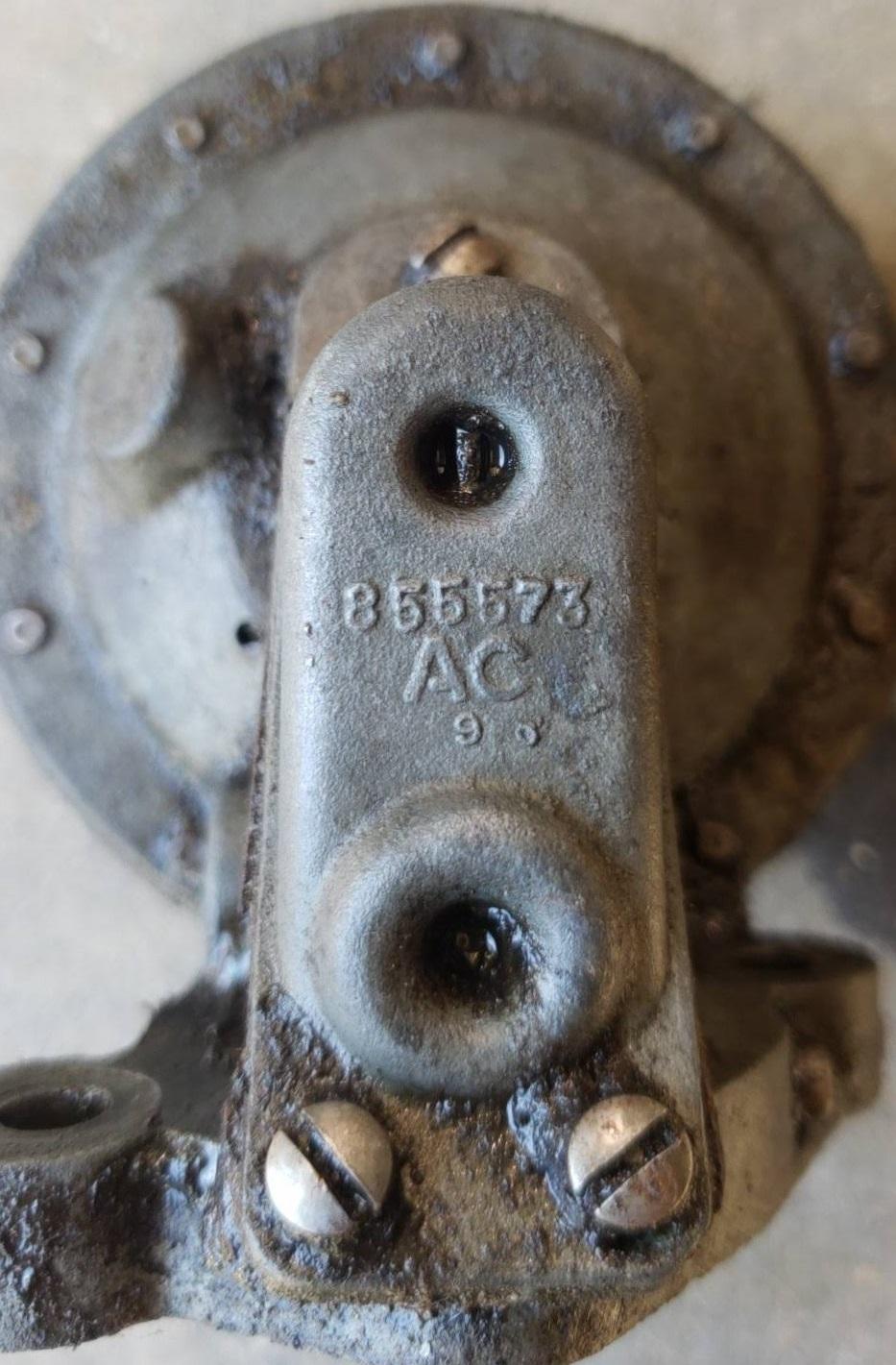

b422 Posted September 21, 2018 Author Share Posted September 21, 2018 yes according to the build sheet from mack museum it came with a en438. so you are correct some one had to put in some time to change the engine out. I took off the fuel pump and pulled a number from it. Its an AC 855573 Quote Link to comment Share on other sites More sharing options...
b422 Posted September 21, 2018 Author Share Posted September 21, 2018 Quote Link to comment Share on other sites More sharing options...
JasonGottschalk Posted March 16, 2020 Share Posted March 16, 2020 I’m looking for information on fuel pump system on my b42 with 401. The pump is pumping but doesn’t supply enough to the carb and loses prime. Quote Link to comment Share on other sites More sharing options...
j hancock Posted March 16, 2020 Share Posted March 16, 2020 Yup, needs to be rebuilt. You can contact Kanter or Daytona. The links are above. If they can't help, they will be able to suggest alternative shops. A google search for fuel pump rebuilders will get you a list of folks also. Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
Rob Posted March 16, 2020 Share Posted March 16, 2020 2 hours ago, JasonGottschalk said: I’m looking for information on fuel pump system on my b42 with 401. The pump is pumping but doesn’t supply enough to the carb and loses prime. Should be six check valves in there. Three on the up, three on the downstroke of the diaphragm. They like to stick when getting old. I just rebuilt both mine last year. Found everything online easily with the pump number for about $25.00 each kit. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
AJ34 Posted May 3, 2020 Share Posted May 3, 2020 I have ordered my rebuild kit for my fuel pump but can’t figure out how to get the old diaphragm apart to but the new one in. Has anyone ran into this and can point me in the right direction. Thanks Quote Link to comment Share on other sites More sharing options...
FireSKip17 Posted February 24 Share Posted February 24 where did you find a kit? Im about to reach out to daytona Quote Link to comment Share on other sites More sharing options...
yarnall Posted February 24 Share Posted February 24 I would check with Chicago corvette. I got. Rebuild kits from them. Don’t remember if I got one for an EN540 or not. We usually put electrics fuel pumps on. Mike Quote Link to comment Share on other sites More sharing options...
FireSKip17 Posted March 1 Share Posted March 1 Ultimately mines a EN707, but it has this AC fuel pump on it. I emailed Terrell Machine awhile. Quote Link to comment Share on other sites More sharing options...
yarnall Posted March 2 Share Posted March 2 I used the same electric fuel pump from Napa on a 707 too. Quote Link to comment Share on other sites More sharing options...
FireSKip17 Posted March 15 Share Posted March 15 I got to rebuild kit from then and now out of Massachusetts. I plan to do that next week Quote Link to comment Share on other sites More sharing options...
