fullfuel01 Posted March 9, 2017 Share Posted March 9, 2017 getting sick of the code in the dash and poor performance of my E7 with Vmac1. anyone ever made the change to convert it mechanical? I think just the back end of the fuel pump where the governor is can be swapped and linkage installed. I will lock the econovance and set the proper timing. Quote Link to comment Share on other sites More sharing options...
theakerstwo Posted March 10, 2017 Share Posted March 10, 2017 My mechanical E7 that i run has 427 vmac pistons injectors and turbo in it and the injection pump maxed out on the rack and have no problems. 1 Quote glenn akers Link to comment Share on other sites More sharing options...
luke andres Posted March 10, 2017 Share Posted March 10, 2017 hey theakerstwo was your engine originally a em7 300 horsepower engine did you do all the work yourself i would love to get a little more horsepower out of my em7 300 thats why im asking thanks Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted March 10, 2017 Share Posted March 10, 2017 Can someone list what needs to be done for the future when VMACIs are no longer serviced and considered obsolete. Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
fullfuel01 Posted March 10, 2017 Author Share Posted March 10, 2017 what i was thinking is taking the electronic governor off the pump and install a mecanic one. the solenoid between the fuel pump and block control the timing, but it can be locked. if you remove it and install the fuel pump direct you'll need all the injection tube. about 150$ a piece... Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted March 10, 2017 Share Posted March 10, 2017 How would you block off the timing? Then you would have to also install everything from the foot pedal to the pump. Maybe it would be better to wait until you have issues and replace the pump with a mechanical one. Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
MACKTRUCKS4 Posted March 10, 2017 Share Posted March 10, 2017 I did my 94 RD. Was a VMAC 350, but I changed my pump over to a mechanical pump, new lines, put a 427 turbo on, and replaced the injectors with superflow (90 plus hp) ones and got 490HP. I ran it for years and than sold it to a friend and he said it's the best running truck in his fleet. Also changed the wire harness under the hood and put all mechanical sending units in. 1 Quote Live every day like it's your last, because one of these days, it will be. Link to comment Share on other sites More sharing options...
fullfuel01 Posted March 10, 2017 Author Share Posted March 10, 2017 do you think just the back of the pump can be swapped? Quote Link to comment Share on other sites More sharing options...

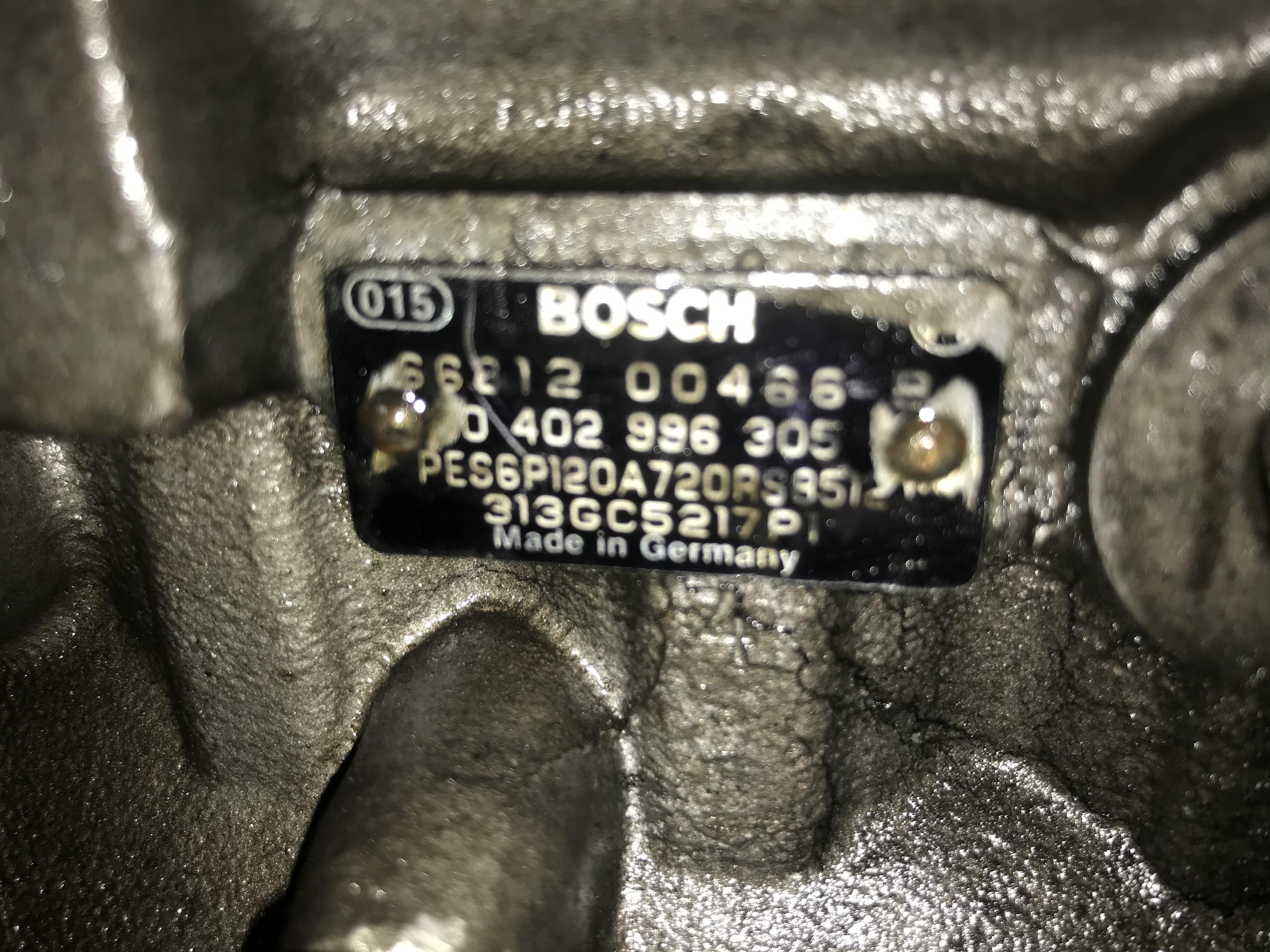

VQ2Fast4U Posted February 28, 2020 Share Posted February 28, 2020 I hate to drag up an old thread but i need to convert my 97 CH613 E7 vmac2 to mechanical due to an electrical fire. Im not getting anywhere asking the dealer or local bosch pump shop. Can I just remove the whole electronic governor assy and install an RQV style governor? Maybe lock the econovance to fixed timing, or run a boost reference switch to activate it. Ill post some pics of the pump and engine tags. Thanks! Adam Quote Link to comment Share on other sites More sharing options...
VQ2Fast4U Posted February 28, 2020 Share Posted February 28, 2020 Quote Link to comment Share on other sites More sharing options...
brettj3876 Posted March 1, 2020 Share Posted March 1, 2020 On 2/28/2020 at 1:59 PM, VQ2Fast4U said: I hate to drag up an old thread but i need to convert my 97 CH613 E7 vmac2 to mechanical due to an electrical fire. Im not getting anywhere asking the dealer or local bosch pump shop. Can I just remove the whole electronic governor assy and install an RQV style governor? Maybe lock the econovance to fixed timing, or run a boost reference switch to activate it. Ill post some pics of the pump and engine tags. Thanks! Adam Can't just change the gov. Housing has to be a full mech pump to convert properly. You can lock up the econovance and still use the same lines, etc. Today we just picked up the mech pump we had built. After we do the install I'll write up everything we had to do in order to convert. I know a few guys would love to do this conversion as well. We have everything but the linkages but not sure what way to go about it. We were even thinking about a cable set up over linkage. The guy that did our pump John Miller, we asked him if it would be ok to send some more guys his way and he said no problem. He knows the guys from antrim very well. Lives upstate ny. Pm me for his contact info or if it's ok I can post his # here 1 Quote Link to comment Share on other sites More sharing options...
laxfarmboy Posted March 20, 2020 Share Posted March 20, 2020 Can you take an e6 pump and put it in a e7 V Mac motor Quote Link to comment Share on other sites More sharing options...
theakerstwo Posted March 20, 2020 Share Posted March 20, 2020 If it is a robert Bosch pump then a E6 will work. 1 Quote glenn akers Link to comment Share on other sites More sharing options...
fjh Posted March 20, 2020 Share Posted March 20, 2020 3 hours ago, theakerstwo said: If it is a robert Bosch pump then a E6 will work. E6 Is is standard thread I believe! The e7 lines are metric! You pretty much need the fuel line set up from a donor engine! vmac lines are totally different guess you could disable the syncro vance and leave it in place! Don't know never tryed this! Quote Link to comment Share on other sites More sharing options...
Rob Posted March 20, 2020 Share Posted March 20, 2020 Scheid Diesel in Effingham, IL will make a set of lines for you with whatever ends you desire. I've found them much better than dealership pricing or "one off" replacements. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
theakerstwo Posted March 20, 2020 Share Posted March 20, 2020 (edited) 11 hours ago, fjh said: E6 Is is standard thread I believe! The e7 lines are metric! You pretty much need the fuel line set up from a donor engine! vmac lines are totally different guess you could disable the syncro vance and leave it in place! Don't know never tryed this! Now that i think about it what i did is i used E7 injector lines with the E7engine and they will work with a E6 pump.On my bobtail i have a E6 pump on it and the E7 pump is for a spare.And it has been on the engine at one time. Edited March 21, 2020 by theakerstwo Quote glenn akers Link to comment Share on other sites More sharing options...
JKuhl Posted March 24, 2020 Share Posted March 24, 2020 (edited) So an E6 pump may work on an E7? I picked up an E7 v-mac 1 over the weekend that is truly a wiring disaster. The worst part of it all is that upon further looking the FIC is missing. I can handle the wiring, but not having much luck so far with the missing module. Does anybody know if the FIC is vin specific to the v-mac control or is it a slave controller to it? Anybody have any leads on a FIC?? I’d like to try fixing the electrical side of it enough to see if it runs before going all in and doing the mechanical swap. Edited March 24, 2020 by JKuhl Quote Link to comment Share on other sites More sharing options...
