Front spring spacer


mackr1989
 Share

Recommended Posts

We have an 89 rd690sx 10 whlr dump truck that has an 18k front and 58k rears. The front axle has 3 springs and sits rather low. I want to add a spacer to the front springs but don't know if I should go with a 3 inch or 4. I want more ground clearance and I'd like it to sit tall but I don't want it to look like it's leaning backwards. Which size should I go with?

Link to comment
Share on other sites

I would try and get it sitting level then maybe add 1/2inch or an inch. Don't think that much will give you any trouble. Depending on how low it is now and how much you raise it you may need new U bolts.

Link to comment
Share on other sites

could you just pull the springs out and reset them in a press just measure length they need to be and rest them to that just press every few inches till its the right shape and Bobs your uncle no special spring spacers and U bolts just time

Paul

Link to comment
Share on other sites

I don't know if this helps……...

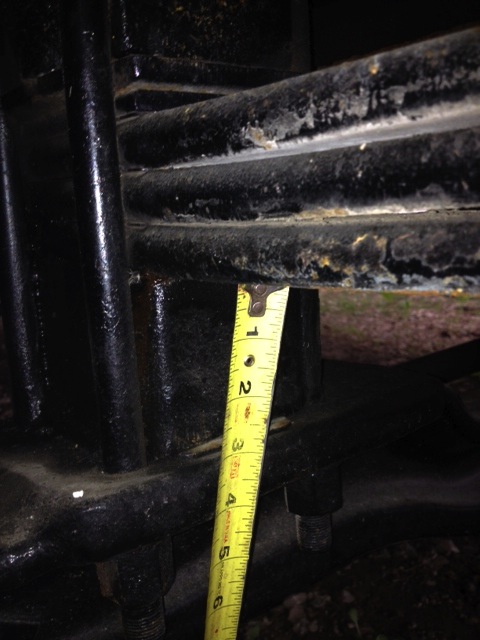

1988 R688 with 14,300 front axle - 3 Leaves …. 3 inch block

post-17364-0-17300700-1435020784_thumb.j

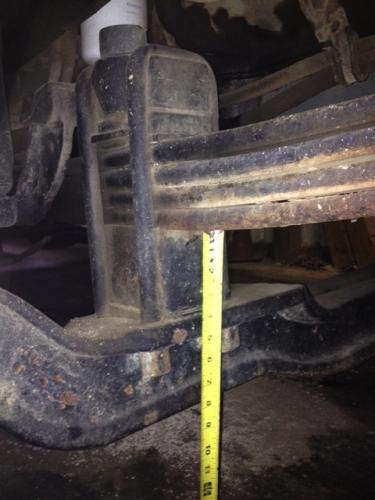

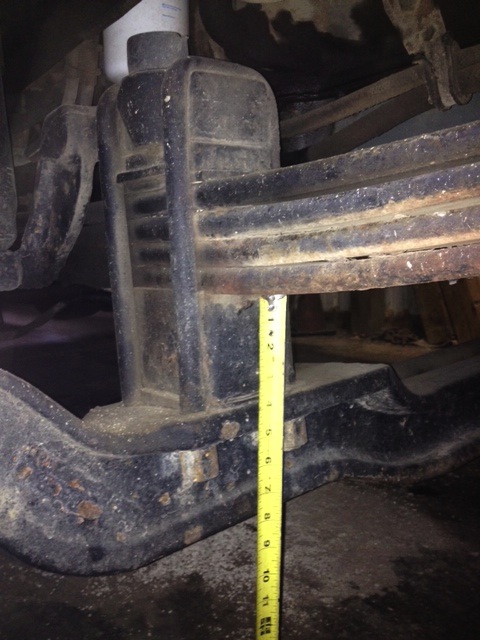

1986 RD688 with 18,000 front axle - 4 leaves……4 inch block

post-17364-0-21024700-1435020805_thumb.j

I'm 98 percent sure thats how both trucks cam from the factory. In my opinion, they both sit perfect.

Keith

Keith

Link to comment
Share on other sites

If it was me, i would put the truck on a level surface. I would then use a level or an angle finder to measure the pitch of the frame rail. Take a measurement from a spot on the frame somewhere over the steer axle to the floor. Then jack the front of the truck so it has the desired pitch, and take another measurement from that same point you used earlier. Then subtract the two, and that should give you a pretty good idea of what block would be the best fit.

  • Like 1
Link to comment
Share on other sites

  • 2 weeks later...

I didn't know you could get 3 leaf taperleaf in an 18k rating in 88.

"Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin

"If your gonna be STUPID, you gotta be TOUGH"

"You cant always get what you want, but if you try sometimes you get what you need"
