Tim Modine Posted January 19, 2020 Share Posted January 19, 2020 2007 Mack CHN613 AC460 motor. Would anyone know of a place I could get a deal on an aftermarket or OEM replacement oil Pan. Bottom of pan is completely rusting out, very porous, to thin to weld and will only keep getting worse. Are these pans from dealer really about $2000.00?. Dealer won't give out part number so if anyone has access to that would be appreciated. Thank you, Quote Link to comment Share on other sites More sharing options...
fjh Posted January 19, 2020 Share Posted January 19, 2020 (edited) You could try PAI parts they have a good selection of pans for most engines! That said! We compared prices 6 months back and they were similar to the our dealer pricing! MAK240GB5271M4 https://store.paiindustries.com/catalog/details?catalogId=6&catalogTid=10590&page=106&figure=69 Edited January 19, 2020 by fjh 1 Quote Link to comment Share on other sites More sharing options...
Mack Technician Posted January 19, 2020 Share Posted January 19, 2020 Last one we bought for a couple hundred from Manders Diesel. Used. + shipping. 1 Quote Link to comment Share on other sites More sharing options...
Rob Posted January 19, 2020 Share Posted January 19, 2020 I cut the sump off a CH613 and welded a new one on last year. Ridiculous is what the pricing is for replacements. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
alex g Posted January 19, 2020 Share Posted January 19, 2020 I replaced mine picked up a good used on for $200. I guess there made to rot. Mine did same thing Quote Link to comment Share on other sites More sharing options...
Popular Post h67st Posted January 19, 2020 Popular Post Share Posted January 19, 2020 For $2,000, the thing should be stainless with 24k gold trim!! 1 1 1 Quote Link to comment Share on other sites More sharing options...
Tim Modine Posted January 20, 2020 Author Share Posted January 20, 2020 Fjh, MAK240GB5271M4 would this be the part number for the oil pan I'm looking for? Thanks for all the advice gents! Quote Link to comment Share on other sites More sharing options...
Rob Posted January 20, 2020 Share Posted January 20, 2020 From these folks $2K sounds cheap: https://www.mtdieselpower.com/i-30517660-panoil.html 1 Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
Rob Posted January 20, 2020 Share Posted January 20, 2020 25 minutes ago, Tim Modine said: Fjh, MAK240GB5271M4 would this be the part number for the oil pan I'm looking for? Thanks for all the advice gents! Really need to know the capacity of the current oil pan. There are several available. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
terry Posted January 20, 2020 Share Posted January 20, 2020 34 minutes ago, Rob said: From these folks $2K sounds cheap: https://www.mtdieselpower.com/i-30517660-panoil.html That is friggin' unreal!! terry Quote Link to comment Share on other sites More sharing options...
Rob Posted January 20, 2020 Share Posted January 20, 2020 Raney's is a bit less: https://www.raneystruckparts.com/mack-heavy-duty-engine-oil-pan-mak240gb5271m4/ Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
Rob Posted January 20, 2020 Share Posted January 20, 2020 Prices like those made it worth the 2.5hrs I spent fashioning a new one to fit with my brake, then welding it onto the original stamping. After glass beading, then epoxy priming, followed with a 2K industrial topcoat I expect it will far outlast the original including the truck. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
Mack Technician Posted January 20, 2020 Share Posted January 20, 2020 or go gummy...…. Quote Link to comment Share on other sites More sharing options...
fjh Posted January 20, 2020 Share Posted January 20, 2020 (edited) 1 hour ago, Rob said: Really need to know the capacity of the current oil pan. There are several available. 38 litre pan Edited January 20, 2020 by fjh Quote Link to comment Share on other sites More sharing options...
fjh Posted January 20, 2020 Share Posted January 20, 2020 (edited) 2 hours ago, Tim Modine said: Fjh, MAK240GB5271M4 would this be the part number for the oil pan I'm looking for? Thanks for all the advice gents! Believe so! ! 38 litre pan! BRO if your pan has a dipstick on the side Be sure to ask If their new pan is equipped! if your ordering! Edited January 20, 2020 by fjh 1 Quote Link to comment Share on other sites More sharing options...

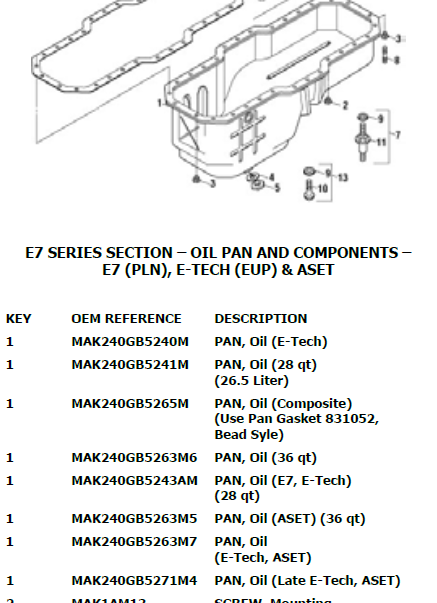

Rob Posted January 20, 2020 Share Posted January 20, 2020 PAI references: Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
Tim Modine Posted January 20, 2020 Author Share Posted January 20, 2020 Fjh my oem part # is 240GB5271M2. I think it’s 55 qts Quote Link to comment Share on other sites More sharing options...
Tim Modine Posted January 20, 2020 Author Share Posted January 20, 2020 BH oil pans in PA for my replacement oil pan using oem part # quoted me $1600 for a pan and all mounting hardware made out of 304 stainless. 1 Quote Link to comment Share on other sites More sharing options...
fjh Posted January 20, 2020 Share Posted January 20, 2020 (edited) Sounds like a deal to me! i have seen these before they are nice pans! Edited January 20, 2020 by fjh Quote Link to comment Share on other sites More sharing options...
Tim Modine Posted January 20, 2020 Author Share Posted January 20, 2020 3/16 flanges and 14 gauge 304 ss sides and bottom from bh oil pans. I asked them to send pics of a finished one before shipping to see quality Quote Link to comment Share on other sites More sharing options...
Rob Posted January 20, 2020 Share Posted January 20, 2020 7 minutes ago, Tim Modine said: 3/16 flanges and 14 gauge 304 ss sides and bottom from bh oil pans. I asked them to send pics of a finished one before shipping to see quality Never heard of them but I certainly would be interested in seeing the finished product. Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
Tim Modine Posted January 20, 2020 Author Share Posted January 20, 2020 36 minutes ago, Rob said: Never heard of them but I certainly would be interested in seeing the finished product. I’m going to order one. They have none in stock. Takes a week to build and ship. As son as I get pics from them or mine gets to me. I’ll post pics on how they ship em finished before I install. They also said any heating probes or sensor holes they will put holes in no charge. 1 Quote Link to comment Share on other sites More sharing options...
Tim Modine Posted January 21, 2020 Author Share Posted January 21, 2020 Pics from bh oil pans 1 1 Quote Link to comment Share on other sites More sharing options...
Rob Posted January 21, 2020 Share Posted January 21, 2020 Thanks for the response Tim. Pan looks good and a nice combination of both hand, and machine work. Hope and it should serve you well. 1 Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
fjh Posted January 21, 2020 Share Posted January 21, 2020 Yup I'd be all over that ! its as sweet as I remember! 1 Quote Link to comment Share on other sites More sharing options...
