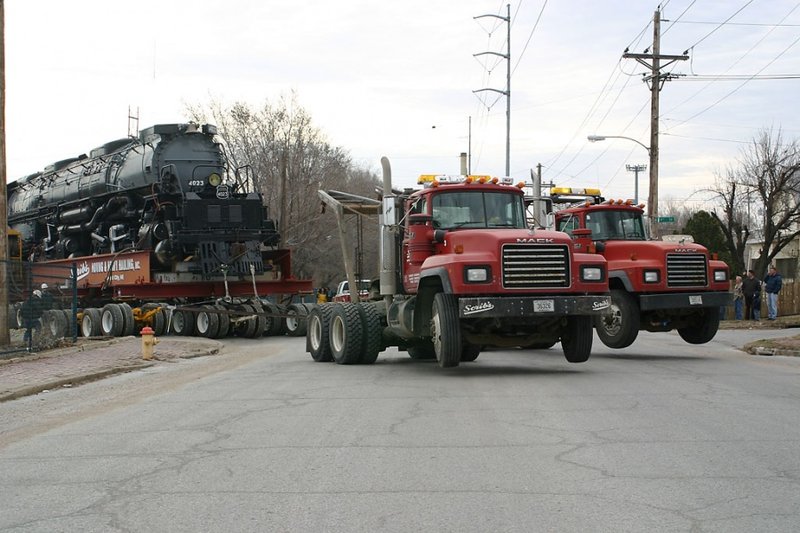

Lmackattack Posted February 9, 2008 Share Posted February 9, 2008 UP Big boy 4-8-8-4p.s look at the front axels Quote Link to comment Share on other sites More sharing options...
Rob Posted February 9, 2008 Share Posted February 9, 2008 UP Big boy 4-8-8-4p.s look at the front axelsGood shot Trent. I'm wondering if when it was discovered there was not have enough weight available with this setup, they staged the photo? of course reducing the elevation of the winch booms would lower the pulling angle.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
mackmixer Posted February 9, 2008 Share Posted February 9, 2008 I doesn't appear that they are pulling from the booms, looks like from the frames to me. Pretty impressive, though. Quote David Link to comment Share on other sites More sharing options...
Barry Posted February 9, 2008 Share Posted February 9, 2008 Awesome pic! I've seen our wreckers with the front axle 3 feet of the ground before! Quote Barry - Watt's Truck Center Parts Manager and BMT Webmaster...1-888-304-MACK Link to comment Share on other sites More sharing options...
terry Posted February 9, 2008 Share Posted February 9, 2008 Good shot Trent. I'm wondering if when it was discovered there was not have enough weight available with this setup, they staged the photo? of course reducing the elevation of the winch booms would lower the pulling angle.Rob I can promise you there was nothing staged about that picture, the company that i work for assisted the mover, we had a rubber tired loader pushing on the back of the locomotve. It was moved a few years back in Omaha. terry Quote Link to comment Share on other sites More sharing options...
Rob Posted February 9, 2008 Share Posted February 9, 2008 I can promise you there was nothing staged about that picture, the company that i work for assisted the mover, we had a rubber tired loader pushing on the back of the locomotve. It was moved a few years back in Omaha. terryNo doubt Terry. Just a good opportunity for a publicity shot. I do remember the photo from earlier.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
other dog Posted February 10, 2008 Share Posted February 10, 2008 I doesn't appear that they are pulling from the booms, looks like from the frames to me. Pretty impressive, though. looks like the cable is run from the boom,but there's also a strap or something down lower ,frame level-hard to tell exactly what it is. Quote Producer of poorly photo-chopped pictures since 1999. Link to comment Share on other sites More sharing options...
mackmixer Posted February 10, 2008 Share Posted February 10, 2008 looks like the cable is run from the boom,but there's also a strap or something down lower ,frame level-hard to tell exactly what it is.I do see the cable now. Possibly some tow truck driver can tell us what is going on. A shared loading for better pulling? Quote David Link to comment Share on other sites More sharing options...
rw613 Posted February 11, 2008 Share Posted February 11, 2008 UP Big boy 4-8-8-4p.s look at the front axelsHERE KITTY KITTY KITTY Quote Link to comment Share on other sites More sharing options...
bulldog man Posted February 12, 2008 Share Posted February 12, 2008 that is one awsome pic 2 R models stedy pulling even w/ the steer axles off the ground later yall Quote You Cant Fix Stupid. But You Can Numb It With A Sledgehammer. Link to comment Share on other sites More sharing options...
pcbfirewmtc Posted February 14, 2008 Share Posted February 14, 2008 Do you have any more photos of the train pull? What's the story behind the move. Quote Link to comment Share on other sites More sharing options...
Lmackattack Posted February 14, 2008 Author Share Posted February 14, 2008 http://www.uphs.org/4023move.html Quote Link to comment Share on other sites More sharing options...
Polarhound Posted February 15, 2008 Share Posted February 15, 2008 http://www.uphs.org/4023move.htmlGreat link.For anyone wondering if the newer trucks can hold up to this kind of load, check page 25 of the newest Bulldog Magazine. Quote Link to comment Share on other sites More sharing options...
ciw65 Posted March 1, 2008 Share Posted March 1, 2008 (edited) I do see the cable now. Possibly some tow truck driver can tell us what is going on. A shared loading for better pulling?Pretty much spot on. I worked for a company a few years back with a tow truck that also was used to move heavy gear( White Road Boss with Cummins K-19 @ 575 hp, 15 speed o/d roadranger, 3.9 rockwell diffs, 56k hendrickson, not sure on tow body make with a 60,000lb winch). Normally a stiff bar was used between the truck and the load to do the pulling and the winch and boom were used to vary the load on the drive axles. as the boom base is forward of the drive and the stay is pretty much over the centre of the drive, you can load the boom cable up to increase load on the drive to a point. Eventually you will lift the steer off the deck. There is an art to it. Usually the tow point on the truck for the stiff bar is below the centre line of the rear axles to help prevent steer axle lift and also by design this helps pull against the force of the cable. But as can be seen, not always this idea works. Edited March 1, 2008 by AusChris Quote Link to comment Share on other sites More sharing options...
