B model Mack gas engine parts


Recommended Posts

  • Like 1

"OPERTUNITY IS MISSED BY MOST PEOPLE BECAUSE IT IS DRESSED IN OVERALLS AND LOOKS LIKE WORK"  Thomas Edison

 “Life’s journey is not to arrive at the grave safely, in a well preserved body, but rather to skid in sideways, totally worn out, shouting ‘Holy shit, what a ride!’

P.T.CHESHIRE

Link to comment
Share on other sites

Doesn't Matt Pfahl (Pfahl Mack Restorations) have them?

Or you can call the fine folks at Watt's Mack.

126SB127C - Complete gasket set for EN and ENF 707A and 707B engines

553GB3266B - head gasket (individual) EN707 with 20 studs

3029-8213C - head gasket (individual) EN707 with 18 studs

Link to comment
Share on other sites

  • 2 weeks later...

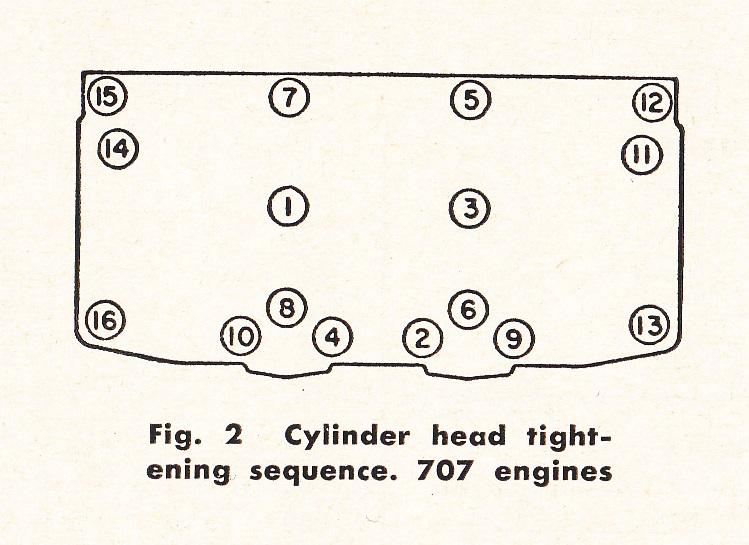

The final head torque for a Mack EN 707 is 150 ft lbs.  I can't seem to find torque value for the first or second pulls.  I would probably go 50 ft lbs on the first round and 100 on the second in sequence.  After a little run time, the head bolts should be rechecked.

Mack EN 707.jpg

Jim

It doesn't cost anything to pay attention.

Link to comment
Share on other sites

There may be an official pattern.  IDK?  I try to work from the center out on manifolds.  Refer to a torque chart depending on fastener size, type of material and threads per inch (TPI).  I probably under torque due to not wanting to break a cast iron manifold that may be difficult to replace.  As usual, check them again after a few heat cycles.

  • Like 1

Jim

It doesn't cost anything to pay attention.

Link to comment
Share on other sites
