cant find air box gaskets for 77 r model

diggin dirt
Go to solution Solved by j hancock,

Recommended Posts

this might be the wrong forum but... my parts man might be lazy but he cant find the gaskets for my dual air cleaner r model. i think they measure 15 in. OD and 13 in. ID with 12 holes for 5/16 bolts. there are 2 gaskets that appear to interchange. i would love to walk in the parts house with a part # and show that guy. any help would be much appreciated.

Link to comment
Share on other sites

Ok, everyone should be sitting for this………….this is what happened with me

As always j hancock has the # right. In my opinion anyway.

When I buy filter elements from Mack, they started not coming with the gasket. Not usually a big deal because they are usually in good shape.

My R688 needed the filter gasket ,so I had to order one from Mack.

The gasket 16MD23 has another # also, not sure if it is the volvo #, its 21A02 It is what you described diggin , 12 holes, aprox. 15 inches O/D

It cost $ 38.83.

The filter element 57MD31A cost $ 33.76

I can't figure this out, I guess its above my pay grade.

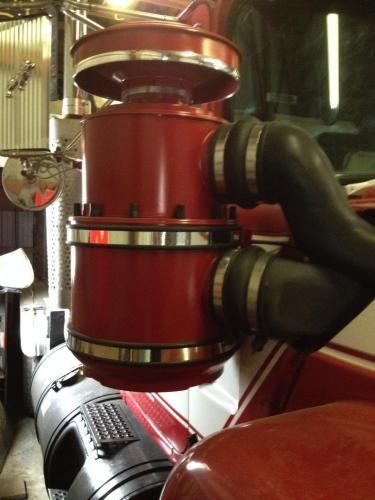

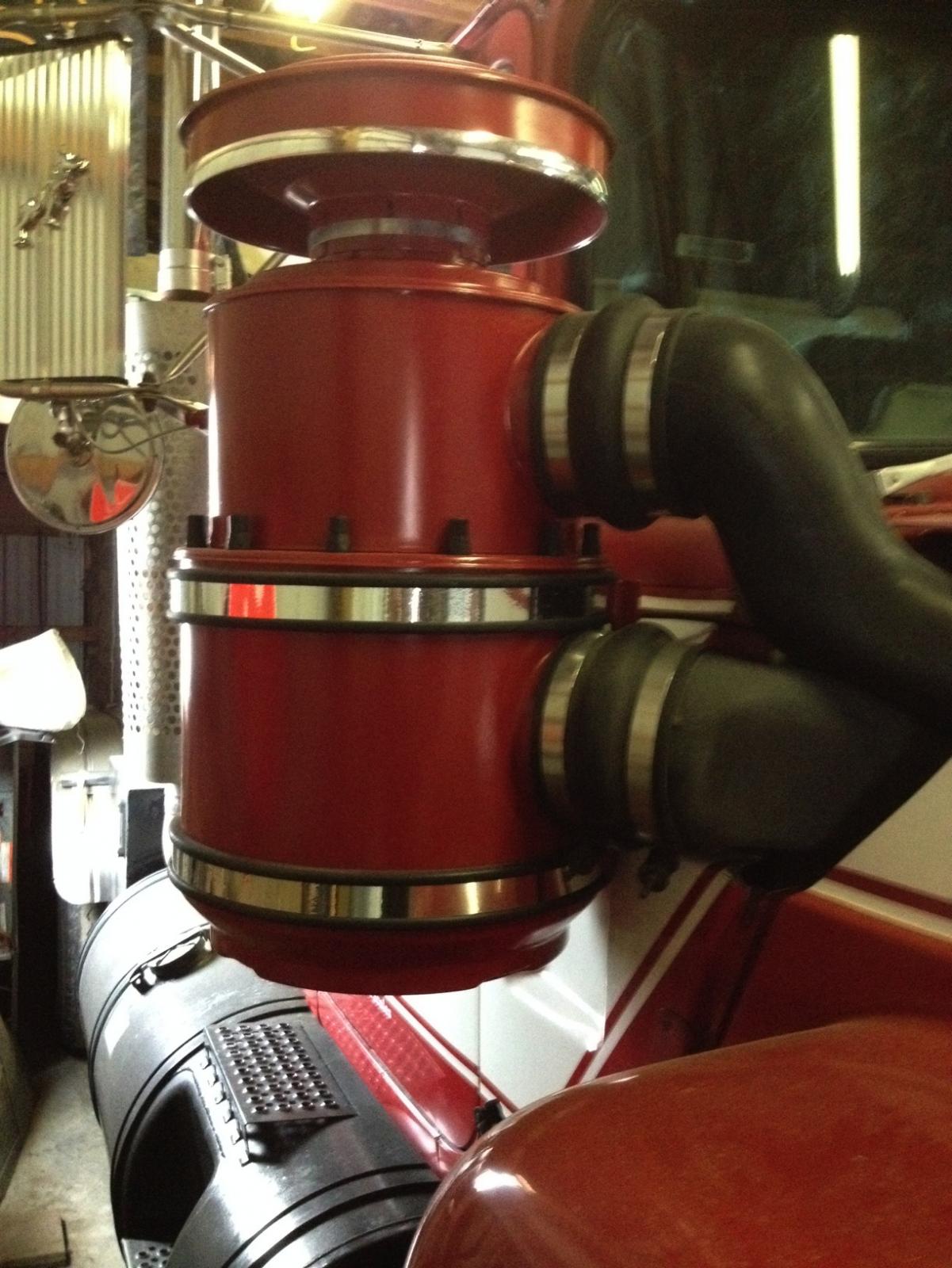

Here's a pic of my air cleaner diggn, hope it helps



  • Like 1


Link to comment
Share on other sites

  • 3 weeks later...

i'm sorry i'm so slow to respond to everybody but my puter took a dump for ahwile. i took the j hancock advice and ordered the baldwin g25-af and they are a perfect fit. my parts guy wont look at me in the face when i walk in the parts house. they only cost me 6 bucks each. i'm self employed and use my 77 r model most every day. i rebuilt my engine with help from you guys and it runs like a champ. thanks again!!!

  • Like 1
Link to comment
Share on other sites
