E7 timing


John3406
 Share

Recommended Posts

Any easy way to set the timing on the inj pump. Since i put a new cam in it the gear that drives the inj pump could be off a tooth or half tooth. I rolled the engine over and looked in on side of pump where timing sensor goes in and in one spot its got a cutout. With that cutout visible  the marks on flywheel say about 20 degrees. Im assuming thats btdc. It is on cyl number one btdc. Any ideas. I want to make sure its timed right. This is a mechanical motor but back half of pump is electronic.  Thanks

Link to comment
Share on other sites

1 hour ago, fjh said:

Assuming the the engine is timed at 20 then if the spade or screw driver like wedge is dead center in the window the engine will be timed to 20 the timing should be stamped on the valve cover Depending on Hp and model year 20 aint far off FOR A MECHANICAL engine! If its A vmac engine the Static  timeing should be at anywhere between 6 and 10 You need to clairify vmac or mechanical!

I already said the back half of pump is electronic.  Front half of pump is mechanical.  Im assuming thats what you call a vmac. Its a 96 e7-350. I looked on valve cover and cant find the timing. About the only thing you can see is e7-350 and valve setting. One thing i noticed whe setting the valves was the flywheel has marks starting at 45 then goes down to zero. Then no marks till you hit 1/6 valve setting.  I think with the slot centered in window im about 15 or 20 degrees btdc right now so i probably need to fine tune the gear. Thanks for the reply

Link to comment
Share on other sites

I think if it’s a VMAC eng timing is set to #6 with a 7100 Bosch I’ll have to look in the manual......  the cutout your seeing if for that timing sensor tool to see ...... hopefully Joey Mack chimes in here .... I’ve only done a couple where I had to set it up without marks being made and had the luxury of the timing tool being around from an old Mack dealer man

Link to comment
Share on other sites

The pump i have is a p8500 pump. Real similar to a p7100. The 8500 is timed to number 1 cyl. What i did was roll it around and put a timing pin out of a p7100 i had laying on the shelf . It slipped right in . Then i loosened up the gear and turned motor to 7.5 and tightened up the gear. Well see if it runs tomorrow.  I still need to put turbo and radiator in. One guy toldme set it 6 to 8 deg btdc. Hope he was right

Link to comment
Share on other sites

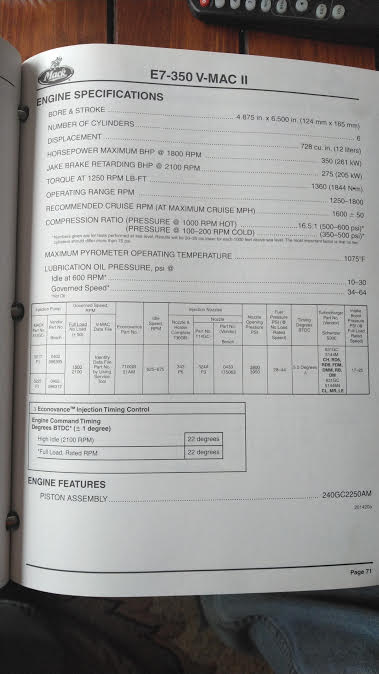

The 45-0 degree is there for pump timing. there were many settings for pumps based on year, HP, and  turbo. It's passed my bedtime, but tomorrow i can post pics from my E-7 book.. Just curious??? is there also a timing indicator on the front of the engine at about 12 O'Clock above the balancer? It will have 2 tabs pointing forward... Looks like "Fangs"... Jojo

  • Like 1
Link to comment
Share on other sites

2 hours ago, Joey Mack said:

The 45-0 degree is there for pump timing. there were many settings for pumps based on year, HP, and  turbo. It's passed my bedtime, but tomorrow i can post pics from my E-7 book.. Just curious??? is there also a timing indicator on the front of the engine at about 12 O'Clock above the balancer? It will have 2 tabs pointing forward... Looks like "Fangs"... Jojo

Not that i can see. I dont see how having timing marks on the front would work anyway considering the balancer has no key on the hub. Yeah i was surprised about that too when i had it off. The crank is slotted for key but the balancer hub is smooth. I have a e7 book but it just says to use the timing light tool

Link to comment
Share on other sites

I just have a 5-101 overhaul book. It says to use the light to time it which i dont have. I didnt take the pump off but i did have to take the gear off to get the cam out. I know deere used the p8500 on some engines and we never used a light to time them. I guess i dont see why the way i timed it wont work but im probably wrong. Wouldn't be the first time😉

Link to comment
Share on other sites

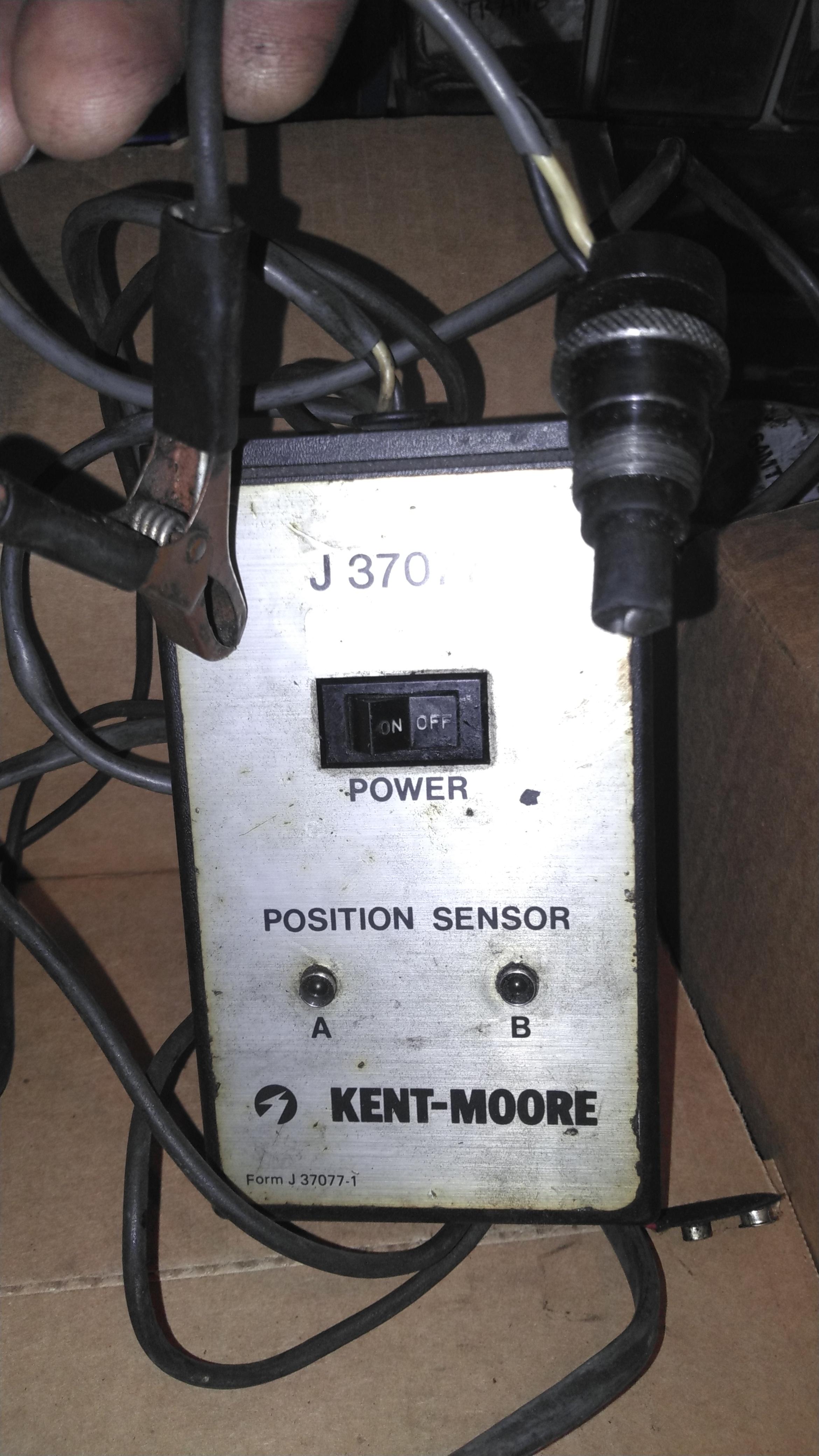

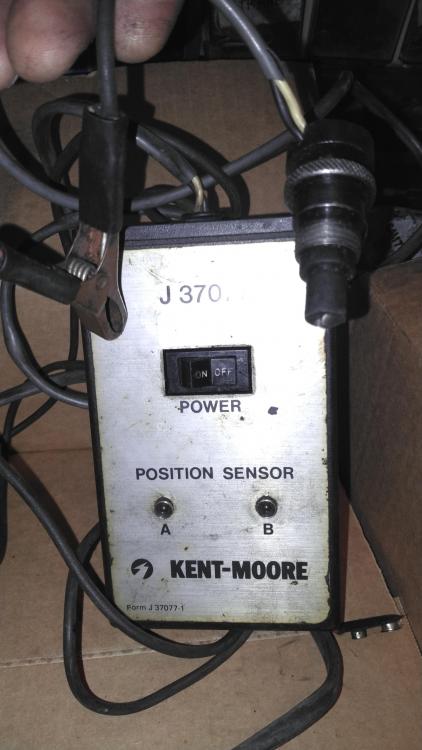

this is the tool.. #37077. I was told once that you dont need this tool, you can just look in the hole for the timing marks (teeth). I have never done that, so therefore I am not comfy with it. Mabey someone else can shed some light.  To me, inj. timing is criticle, so I leave out as much room for error as possible, and use this tool.. I've yet to burn up an engine or build a wimpy one,  just saying...Jojo


Link to comment
Share on other sites

I agree the timing is critical.  I just never used a light like that before.  I suppose i can try to find one. Im not sure how the vmac is different but on alot of engines when we start turning up the fuel to them we advanced the timing some too. That probably wouldn't work on a vmac. It almost reminds mo of the old cat 3406 peec . Half mechanical and half electronic.  I threw several of those in the trash and made them all mechanical.  Then they would run strong

Link to comment
Share on other sites

The light basically  times the pump for removal, bench timing, and installation.  so if the light indicates the pump is timed and you bolt it to the engine that is timed as well, in theory, they should be timed.  I know you know that, just saying.

Link to comment
Share on other sites

I have the timing light myself but there is another tool that is cheaper.I used it for a few years before getting the light.On a 5.9 cummins or 8.3 cummins that use the P7100 pump there is a forked adapter that is used.It is plastic and you can shear it if you move the pump when its in the hole checking the timing spade.The last one i bought which was maybe 15 years ago was about 70.00

glenn akers

Link to comment
Share on other sites

Sorry I didn't notice the vmac mechanical thing at the end of the first post My bad!

Anyway john deer and others use a version of this pump as has been mentioned and also mentioned is a plastic lineup tamb that scerws in to the the window  where the timing event marker sensor goes ! That in my mind would be adequate to  run this engine ! as it were when you first posted you were a tooth off in my opinion 24 static ! I have also had to do this job up a billygoat trail in the bush and had to eye ball this job with no timing light set up and have had good success  doing it!  as I explained in the first post! YA its nice to have all the tools how ever you got to do what you got to do some times! and these old engines are A LOT more forgiving than the new  Mack branded Volvo  engine!



Just sayin!

Link to comment
Share on other sites

20 hours ago, theakerstwo said:

I have the timing light myself but there is another tool that is cheaper.I used it for a few years before getting the light.On a 5.9 cummins or 8.3 cummins that use the P7100 pump there is a forked adapter that is used.It is plastic and you can shear it if you move the pump when its in the hole checking the timing spade.The last one i bought which was maybe 15 years ago was about 70.00

Thats the pin i used. I had one in a p7100 pump sitting on the shelf

Link to comment
Share on other sites

7 hours ago, fjh said:

Sorry I didn't notice the vmac mechanical thing at the end of the first post My bad!

Anyway john deer and others use a version of this pump as has been mentioned and also mentioned is a plastic lineup tamb that scerws in to the the window  where the timing event marker sensor goes ! That in my mind would be adequate to  run this engine ! as it were when you first posted you were a tooth off in my opinion 24 static ! I have also had to do this job up a billygoat trail in the bush and had to eye ball this job with no timing light set up and have had good success  doing it!  as I explained in the first post! YA its nice to have all the tools how ever you got to do what you got to do some times! and these old engines are A LOT more forgiving than the new  Mack branded Volvo  engine!



Just sayin!

Yes it was definitely off because when i pressed the gear on the cam with no key. I think it was about 20 deg. So then i got it to 7 or 7.5. I couldn't read the valve cover tag so hopefully 7 or 7.5 is good enough. If not ill know when i fire it

Link to comment
Share on other sites

Hope I'm understanding this wrong BUT!If you had no key on the cam and your were out 24 degrees you may still have an issue !   Cam timing and pump timing are two different animals! you can bend a few things if it ain't right!one tooth out on the cam to crank can create havoc! May run but not for long! Besides the proper way to put the cam gear on is to put it in the oven heat to 475 put the cam in the freezer  and the gear will just drop on!

Just sayin!

Edited by fjh
  • Like 1
Link to comment
Share on other sites

59 minutes ago, fjh said:

Hope I'm understanding this wrong BUT!If you had no key on the cam and your were out 24 degrees you may still have an issue !   Cam timing and pump timing are two different animals! you can bend a few things if it ain't right!one tooth out on the cam to crank can create havoc! May run but not for long! Besides the proper way to put the cam gear on is to put it in the oven heat to 475 put the cam in the freezer  and the gear will just drop on!

Just sayin!

The cam to crank gear is keyed. The gear on the cam that drives the injection pump is not keyed. So since i put a new cam in it i had to remove injection pump gear so the cam would slide out. Then without a key on grive gear it could be off a half tooth or full tooth. No way to tell. That is why i had to retime injection pump

Link to comment
Share on other sites

Ahh that makes sense now ! Mack supplied the dealers with a big dollar jig to reset the hub when these first came out  ! How ever as usual there was a work around with the engine close to or on the static time  Install the pump on the engine with the hub just snug or just loose with the spade in the timing window! Install the gear on the hub with the bolts in roughly  the center of the slots snug ,then torque the pump center nut! and then recheck and set your timing as described before. pretty easy and can be done in the truck but  much easier with the rad out but still doable if you want perfection! 7.5 is close so it should  run ok ! And if your content with it fine !

Just sayin

  • Like 1
Link to comment
Share on other sites

That's what I thought too. That's why I used 5 degrees as an example... Now I wish I had done a few dozen more of these in the past...  He's getting good help here... jojo
