VaPatentman Posted August 8, 2018 Share Posted August 8, 2018 Does anyone know where I can get the small chrome hood strips that install adjacent to the Mack logo? I have searched high and low, auctions, flea markets, online and Carlisle. Any suggestions would be greatly appreciated. I need them for both side (4 small pieces total) 1938-1944-ED 1939-1942-DE Quote Link to comment Share on other sites More sharing options...
j hancock Posted August 9, 2018 Share Posted August 9, 2018 Yes, hens teeth. I have been searching to make a set for a long time. Ending up making an 8 piece set out of brass so everything would match and will probably have to do the same on the milk truck. Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
VaPatentman Posted August 9, 2018 Author Share Posted August 9, 2018 Jim, I agree they are like hen’s teeth. I will probably go the same route and fabricate my own. I feel pretty lucky that they were the only trim items missing from my truck. Over the past year I have seen members posting pics of restoration candidates completely void of trim and the grilles. Locating these items will be a daunting task for these guys I wish them success in their efforts. Quote Link to comment Share on other sites More sharing options...
mowerman Posted August 9, 2018 Share Posted August 9, 2018 I’ll bet norm Taunton galt California has them...good luck...bob 1 Quote Link to comment Share on other sites More sharing options...
mowerman Posted August 9, 2018 Share Posted August 9, 2018 Don’t have his number with me somebody here it might have it...bob Quote Link to comment Share on other sites More sharing options...
mowerman Posted August 10, 2018 Share Posted August 10, 2018 209 745 2716 tell him bob from reno sent you good luck...bob 1 Quote Link to comment Share on other sites More sharing options...
VaPatentman Posted August 10, 2018 Author Share Posted August 10, 2018 Thanks, Bob from Reno, I will give him a shout. Quote Link to comment Share on other sites More sharing options...

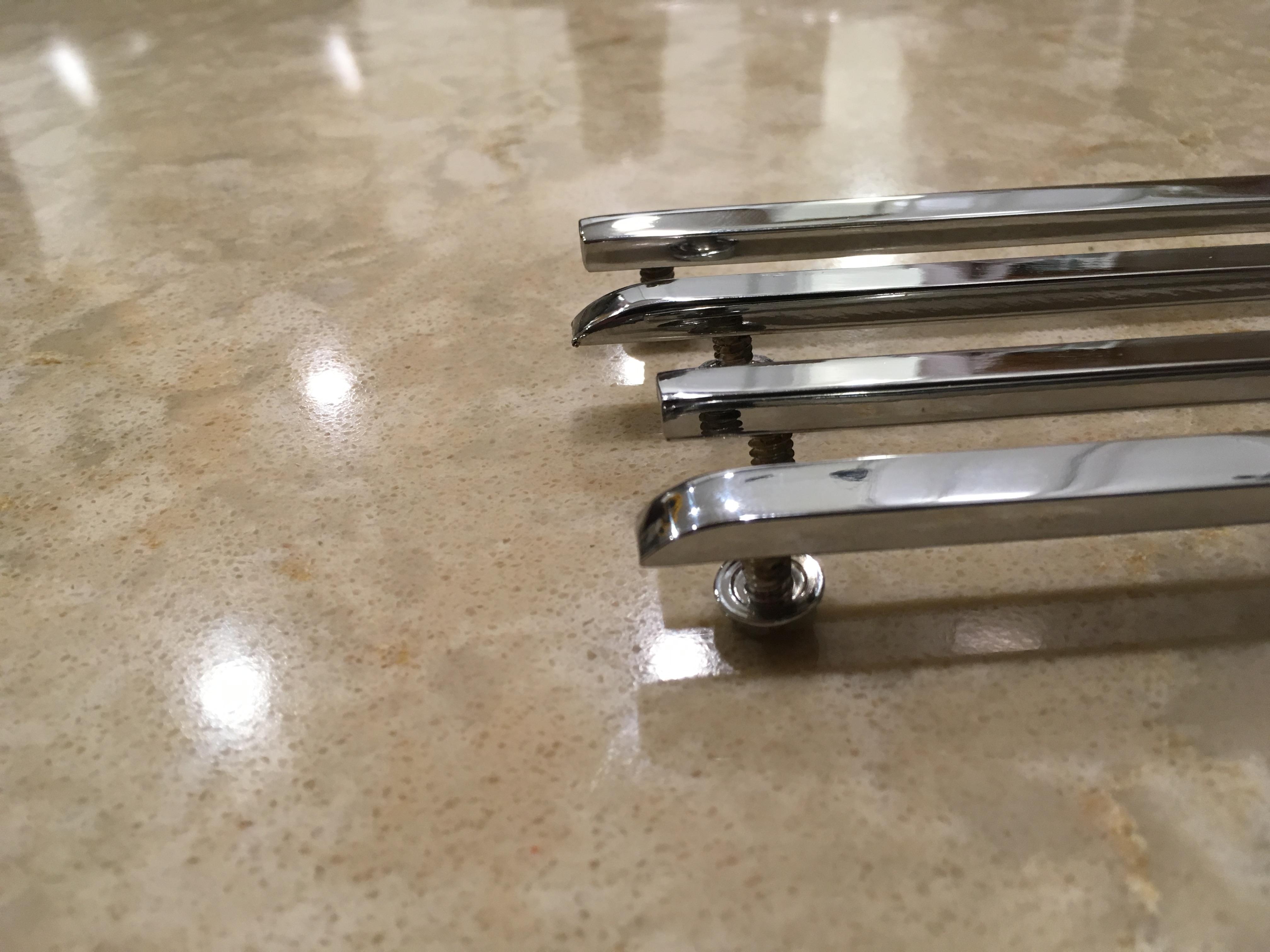

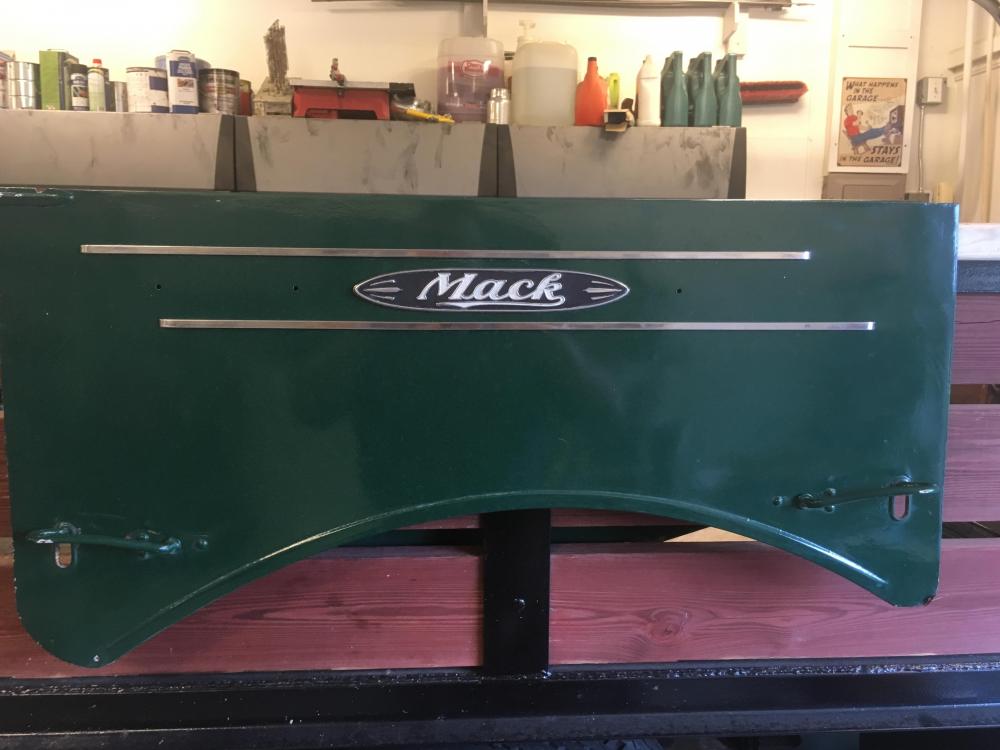

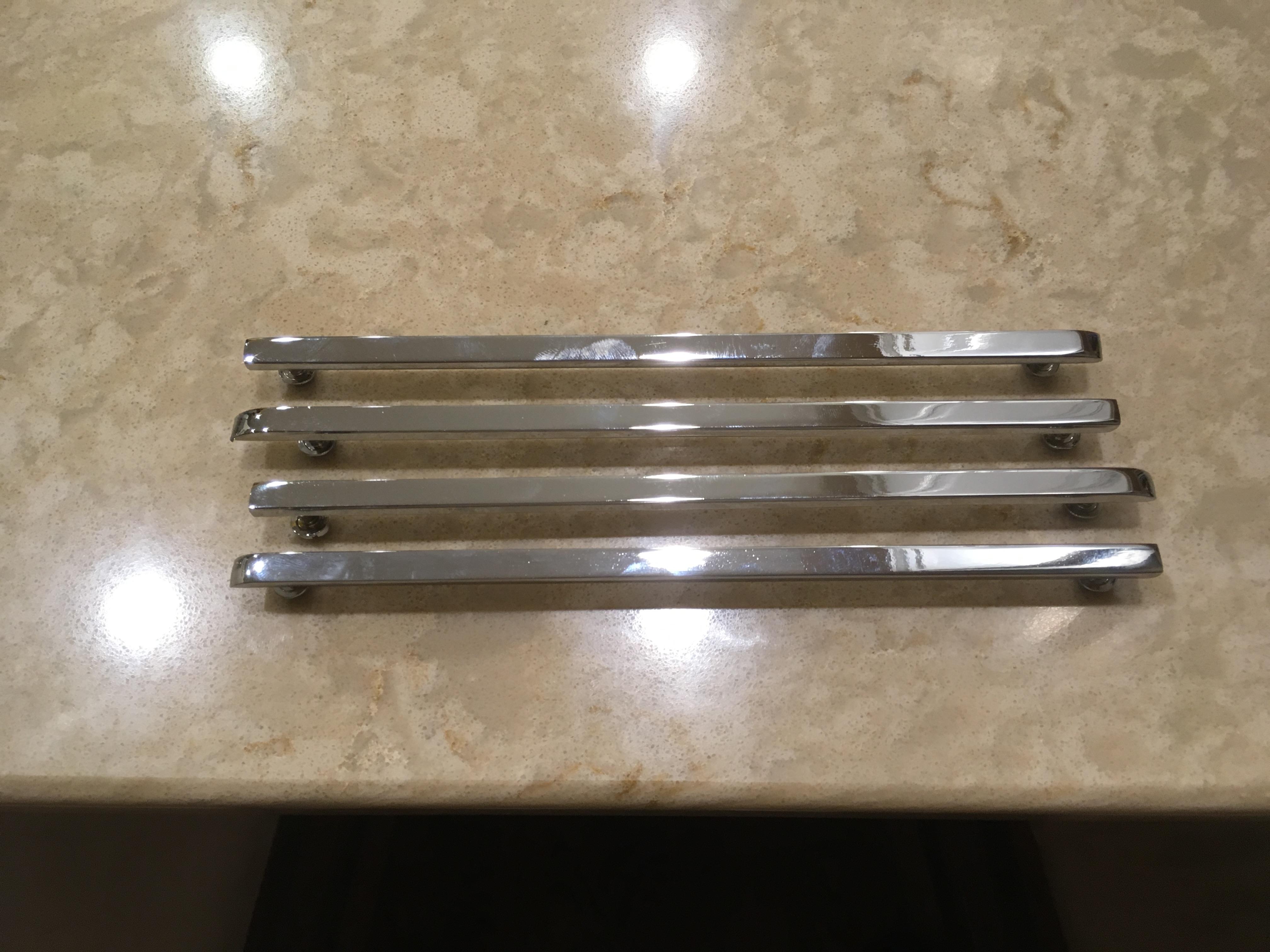

Popular Post VaPatentman Posted August 18, 2018 Author Popular Post Share Posted August 18, 2018 Ended up making my own hood strips. Just picked them up from Hanlon Plating Company here in Richmond, VA. I am so pleased with the quality of their work and the reasonable pricing I will be chrome plating additional items soon. I will post additional photos after I install them. 4 Quote Link to comment Share on other sites More sharing options...
mowerman Posted August 18, 2018 Share Posted August 18, 2018 Wow beautiful work glad you got it figured out...bobSent from my iPhone using Tapatalk 1 Quote Link to comment Share on other sites More sharing options...
h67st Posted August 18, 2018 Share Posted August 18, 2018 Looks great! How did you make those? Quote Link to comment Share on other sites More sharing options...

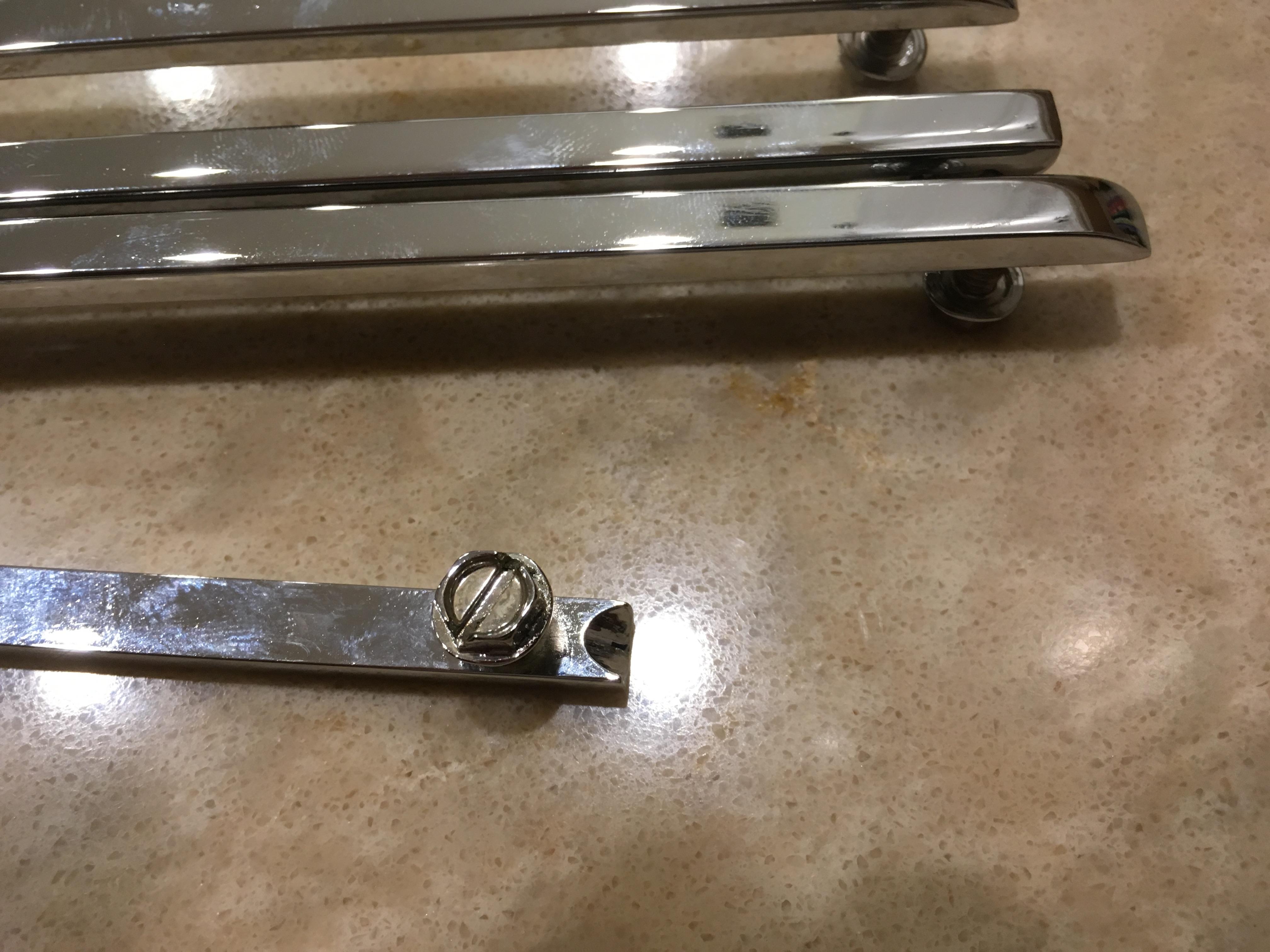

VaPatentman Posted August 18, 2018 Author Share Posted August 18, 2018 1 hour ago, h67st said: Looks great! How did you make those? Patience, grinding wheel, files, 1200-2000-3000-grit wet and dry. They are made from 3/16" x 5/16" Grade W1 Steel Ground Flat Stock available from Fastenal in 3-ft lengths for $8.15 (shipping was more than material). I made a mock-up of the hole pattern from the hood so I could lay it on the workbench. I did discover the holes in my hood leaves are not consistent, I don’t know if this was a Mack issue from 1942 or if someone else re-drilled the holes. Drilled shallow holes on each end and used a thread forming screw to allow for connection points for the chrome process. Had them chrome plated locally here in Richmond @ Hanlon Plating Company. In a conversation with Tom Hanlon he said they do a fair amount of plating for antique trucks and tractors . GOOD LUCK and let me know how it goes. 1 Quote Link to comment Share on other sites More sharing options...

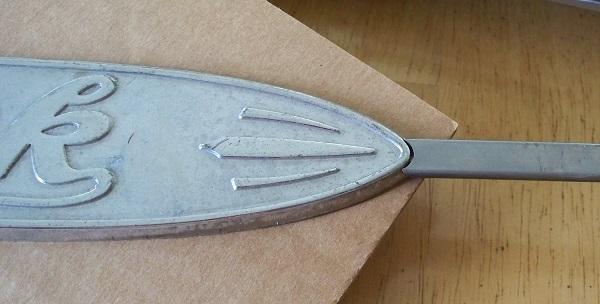

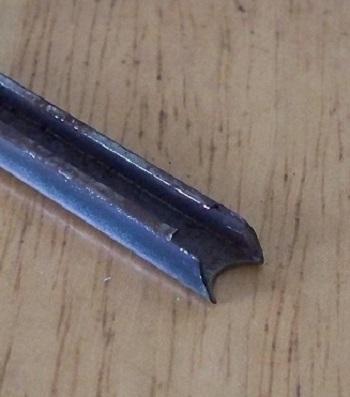

j hancock Posted August 18, 2018 Share Posted August 18, 2018 Peaches and cream! I think I shared these pictures before but it is an OEM strip against the Mack badge. When I made a set, a friend had some brass stock that is just a smidge wider than original. I am hoping he has some more brass in stock when it is time to make some more. 1 Quote JimIt doesn't cost anything to pay attention. Link to comment Share on other sites More sharing options...
VaPatentman Posted August 18, 2018 Author Share Posted August 18, 2018 I didn't have any originals to work with. The groove I cut in the back side of the strips allow them to mate up to the badge much like your picture shows. Quote Link to comment Share on other sites More sharing options...
mowerman Posted August 18, 2018 Share Posted August 18, 2018 Best part about that is most of us that aren’t familiar with anything that old are not going to notice the difference... yet it still looks real good and complete...bobSent from my iPhone using Tapatalk 1 Quote Link to comment Share on other sites More sharing options...
Hobert62 Posted August 19, 2018 Share Posted August 19, 2018 The thing that impresses me is you where looking for them. Then 8 days later you had them made and chromed already. I wish I was that productive. 2 Quote Link to comment Share on other sites More sharing options...
VaPatentman Posted August 19, 2018 Author Share Posted August 19, 2018 11 hours ago, Hobert62 said: The thing that impresses me is you where looking for them. Then 8 days later you had them made and chromed already. I wish I was that productive. I had actually ordered and cut the stock to length months ago but wanted originals. Just decided to finish them the day after my post. The whole process for each piece, grinding the ends and sanding/polishing only took about 25-30 mins each and I took them to the platter the same day. You revealed my lack of patience, especially for these after looking high and low 1 Quote Link to comment Share on other sites More sharing options...
