hicrop10 Posted December 8, 2012 Share Posted December 8, 2012 Are the mounts for a B87 the same as a B61 and so forth.Next are they still able to be had new.Does anyone have a picture or drawing of what the mounts look like.My B87 on the right side had some repairs done to the cab and mounts.Would like to put back to what it was.Will post a picture of what it looks like on Sunday. Quote Link to comment Share on other sites More sharing options...
tkobes43 Posted December 8, 2012 Share Posted December 8, 2012 Id assume they're the same. Its the same cab as a B61 but I'm not 100% sure. Im sure someone else will chime in with the correct answer shortly. Tom Quote "Nothing Breaks Wind Like A Bulldog" Link to comment Share on other sites More sharing options...
Mike Posted December 8, 2012 Share Posted December 8, 2012 Not sure also but the round discs are available from WATTS and are about 4 inches in diameter and has a 3/4 bolt size hole in the center. Can you measure your application and show us by photo, what you have?mike Quote Link to comment Share on other sites More sharing options...
Jamied625 Posted December 8, 2012 Share Posted December 8, 2012 my b 81 uses the same mounts as a b 61 there is a upper and lower rubber mount i would bet they are the same on your truck Quote Link to comment Share on other sites More sharing options...
maxidyne237 Posted December 9, 2012 Share Posted December 9, 2012 81 and 61 same mounts. same mounts for transmission too. Can still be had through your local Mack dealer Quote Link to comment Share on other sites More sharing options...
Maddog13407 Posted December 9, 2012 Share Posted December 9, 2012 yup, uppers and lowers can still be had from your local Mack dealer. about $100 a set last time i bought some. Quote Link to comment Share on other sites More sharing options...
hicrop10 Posted December 9, 2012 Author Share Posted December 9, 2012 Thanks Guys for the info,will check out on Monday.Can anyone post a picture of the left side front mount.Mine has been worked on over the years.Would like to put back to orignal.Thanks MIke D Quote Link to comment Share on other sites More sharing options...
leversole Posted December 9, 2012 Share Posted December 9, 2012 Replaced mine last year...must not have taken pictures! It was a pretty straightforward job...I used a 2X4 and hydraulic jack to lift the cab slightly (after loosening ALL cab mounts) at each corner...The front top are accessed thru the inside of the cab... Quote Link to comment Share on other sites More sharing options...

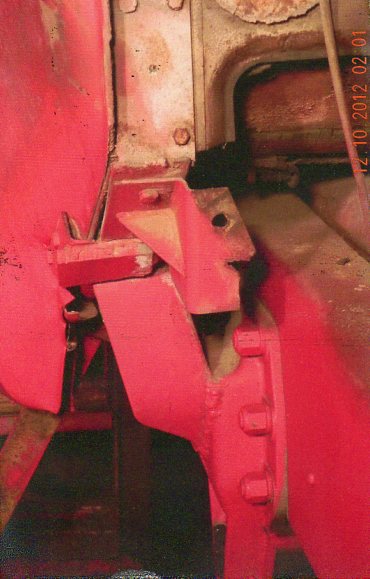

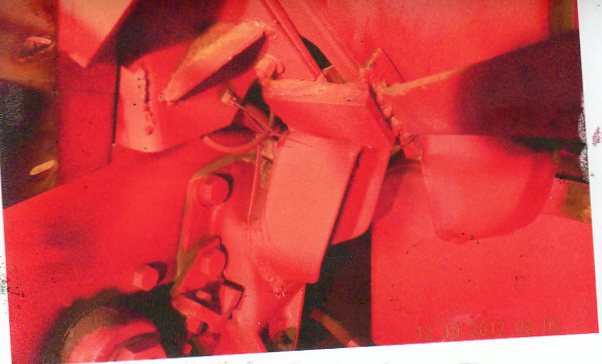

hicrop10 Posted December 10, 2012 Author Share Posted December 10, 2012 Here are the two pictures of my cab mounts on my B87 Quote Link to comment Share on other sites More sharing options...
hicrop10 Posted December 10, 2012 Author Share Posted December 10, 2012 I was told today by the last old timer that is left,that they did this due to the cab floor rusting out and the cab wouldn't stop leaning forward.I am going to take a look at how bad the floor is.Are floor panel still to be had or do you make your own. Quote Link to comment Share on other sites More sharing options...
