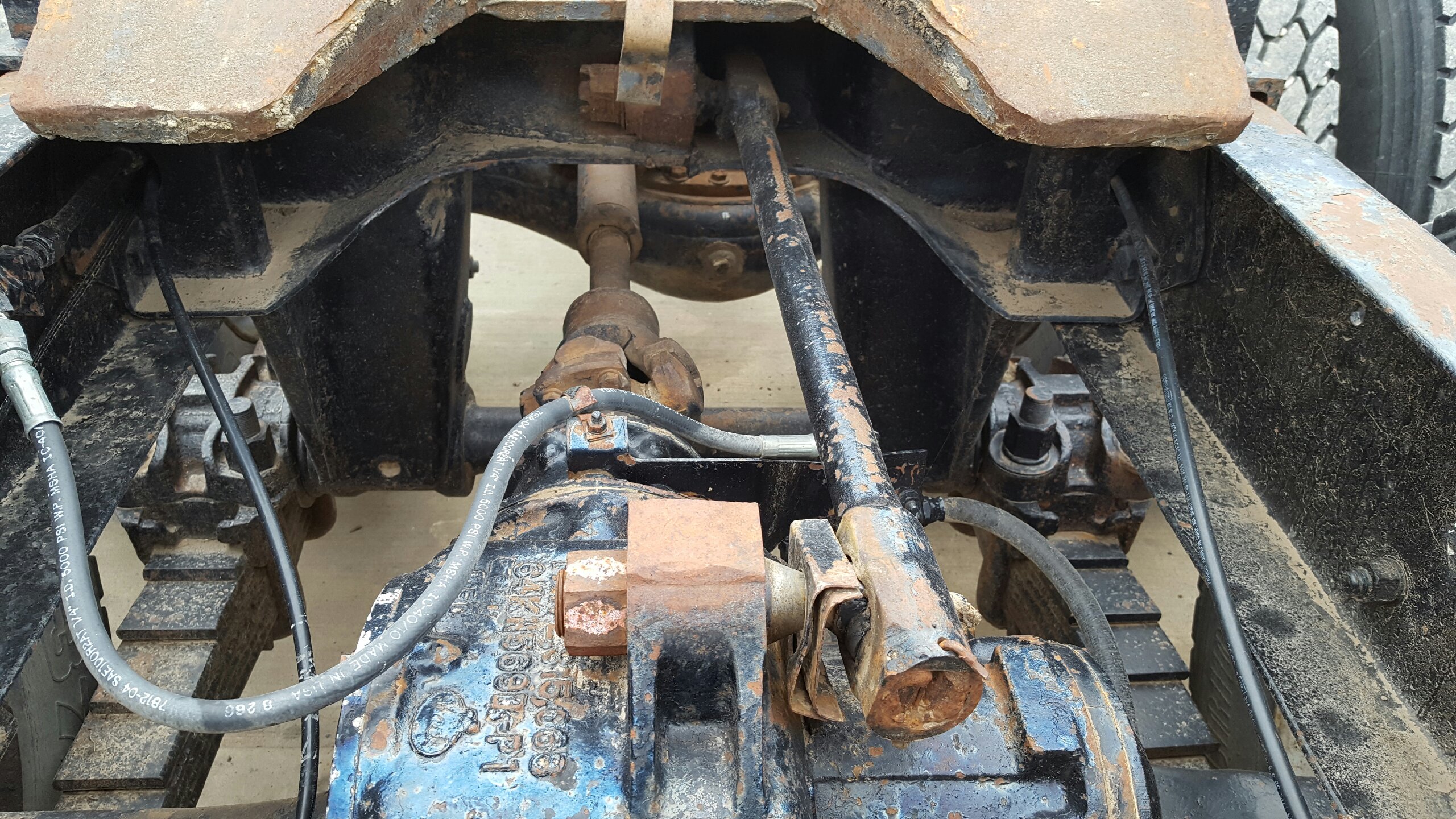

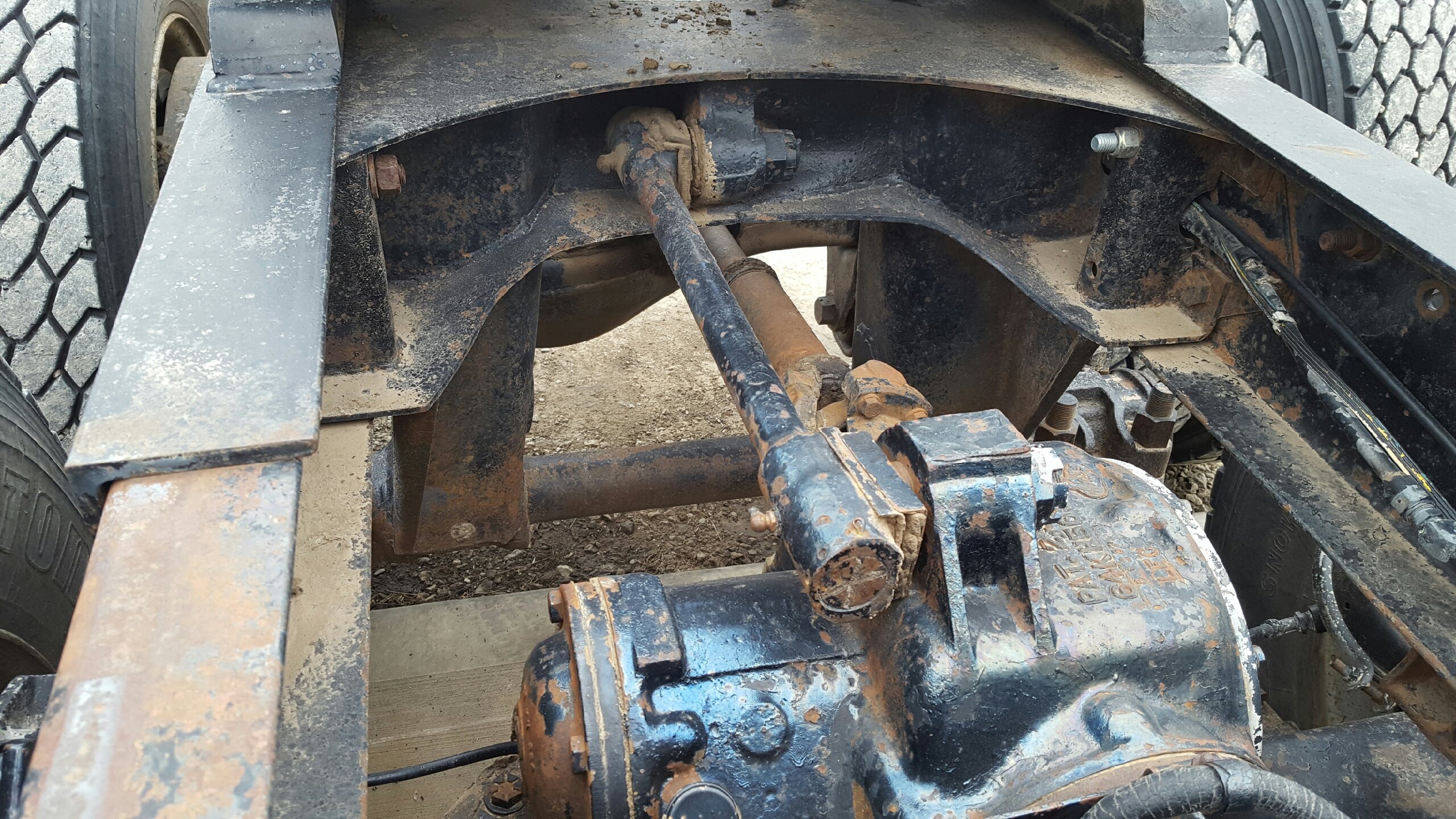

thomastractorsvc Posted October 30, 2016 Share Posted October 30, 2016 What are options to replace the old style rods or can you still get them? I haven't called Mack yet about them just putting together a list of stuff that the truck needs. Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
alex g Posted October 30, 2016 Share Posted October 30, 2016 You can still get torque rods from mack but there a newer style. Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted October 31, 2016 Author Share Posted October 31, 2016 Good I didn't know what I would have for options. I checked on the trunion bushings as I am going to rebuild the spring packs and I figured since I was going to have all that stuff loose I want to change them Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
Popular Post fifth wheel Posted October 31, 2016 Popular Post Share Posted October 31, 2016 The ends are serviceable, many times you can rotate the ball stud and tighten the end plug. FW 3 Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted October 31, 2016 Author Share Posted October 31, 2016 A couple have the plugs welded up and the are loose so figure they are probably need to be replaced Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
theakerstwo Posted October 31, 2016 Share Posted October 31, 2016 http://www.stengelbros.net/Torque-Rods_c_424.html I have got them here from weldon supply and they are two parts that use a tube that you slide the ends up in and weld to the length you need. 1 Quote glenn akers Link to comment Share on other sites More sharing options...
kscarbel2 Posted October 31, 2016 Share Posted October 31, 2016 They look like 1RY312 series torque rods. When you contacted Watts Mack at 1-888-304-6225 with your model and serial number about new studs, seats, springs and 95RU32 rubber boots, what did they say? Using your model and serial number, Watts can reference your truck's 3QK rear suspension arrangement and see the torque rod's component break down. Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted November 3, 2016 Author Share Posted November 3, 2016 The truck pulls up in the Mack system but everything but the trunion bushings is NLA. Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
kscarbel2 Posted November 3, 2016 Share Posted November 3, 2016 37 minutes ago, thomastractorsvc said: The truck pulls up in the Mack system but everything but the trunion bushings is NLA. And the serviceable 1RY torque rods don't supercede to a non-serviceable torque rod, per the current Volvo Group Mack brand parts system. Euclid..............https://www.meritorpartsonline.com/webapp/wcs/stores/servlet/CategoryDisplay?urlRequestType=Base&catalogId=10051&categoryId=56021&pageView=detailed&urlLangId=-1&beginIndex=0&langId=-1&top_category=10001&parent_category_rn=10397&storeId=10154 Something like the TR20005, TR20009 or TR21014? ..................http://www.atrobushing.com/category/truck-torque-rod/ Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted November 3, 2016 Author Share Posted November 3, 2016 12 hours ago, kscarbel2 said: And the serviceable 1RY torque rods don't supercede to a non-serviceable torque rod, per the current Volvo Group Mack brand parts system. Euclid..............https://www.meritorpartsonline.com/webapp/wcs/stores/servlet/CategoryDisplay?urlRequestType=Base&catalogId=10051&categoryId=56021&pageView=detailed&urlLangId=-1&beginIndex=0&langId=-1&top_category=10001&parent_category_rn=10397&storeId=10154 Something like the TR20005, TR20009 or TR21014? ..................http://www.atrobushing.com/category/truck-torque-rod/ NLA The front Torque Rod is 17QF323P5 /1RY312P5 24 1/8th center to center The rear Torque Rod is 17QF323P6 / 1RY312P6 28 3/8 center to center Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
thomastractorsvc Posted November 3, 2016 Author Share Posted November 3, 2016 On 10/30/2016 at 8:35 PM, theakerstwo said: http://www.stengelbros.net/Torque-Rods_c_424.html I have got them here from weldon supply and they are two parts that use a tube that you slide the ends up in and weld to the length you need. Are the axle mounts tapered like new ones or are they straight? I tried Stengel and they asked me that question. I know on the other trucks that I have done the torque rod ends were tapered not sure how they would work if the ones I have are not tapered. Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
kscarbel2 Posted November 3, 2016 Share Posted November 3, 2016 7 hours ago, thomastractorsvc said: Are the axle mounts tapered like new ones or are they straight? I tried Stengel and they asked me that question. I know on the other trucks that I have done the torque rod ends were tapered not sure how they would work if the ones I have are not tapered. They are tapered studs. I would think, from that link, once you confirm the stud size having removed them, they can help you. 1 Quote Link to comment Share on other sites More sharing options...
theakerstwo Posted November 4, 2016 Share Posted November 4, 2016 What he said Quote glenn akers Link to comment Share on other sites More sharing options...
thomastractorsvc Posted November 4, 2016 Author Share Posted November 4, 2016 I did find on PAI site a rebuild kit for the ball socket. If the plugs on mine weren't welded I would probably try that route first as I am sure the PAI kit would be less than a complete torque rod kit. Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
Vladislav Posted November 5, 2016 Share Posted November 5, 2016 If you cut the welds off you will too probably fix them with no parts needed. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment Share on other sites More sharing options...
kscarbel2 Posted February 26, 2017 Share Posted February 26, 2017 New parts look-up site for torque rods http://www.torque-rod.com/ 1 Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted February 27, 2017 Author Share Posted February 27, 2017 Thanks looks like a good site Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
