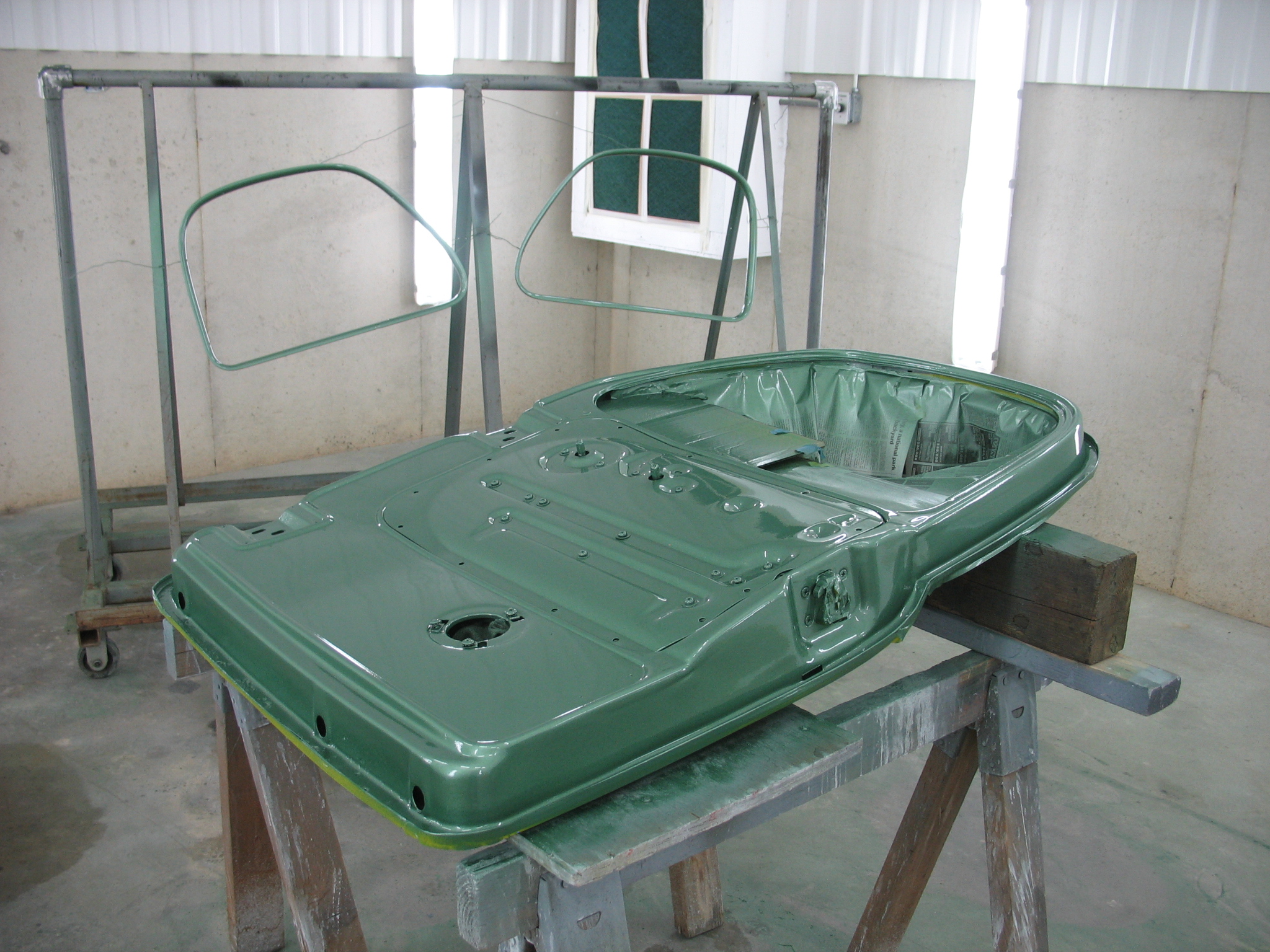

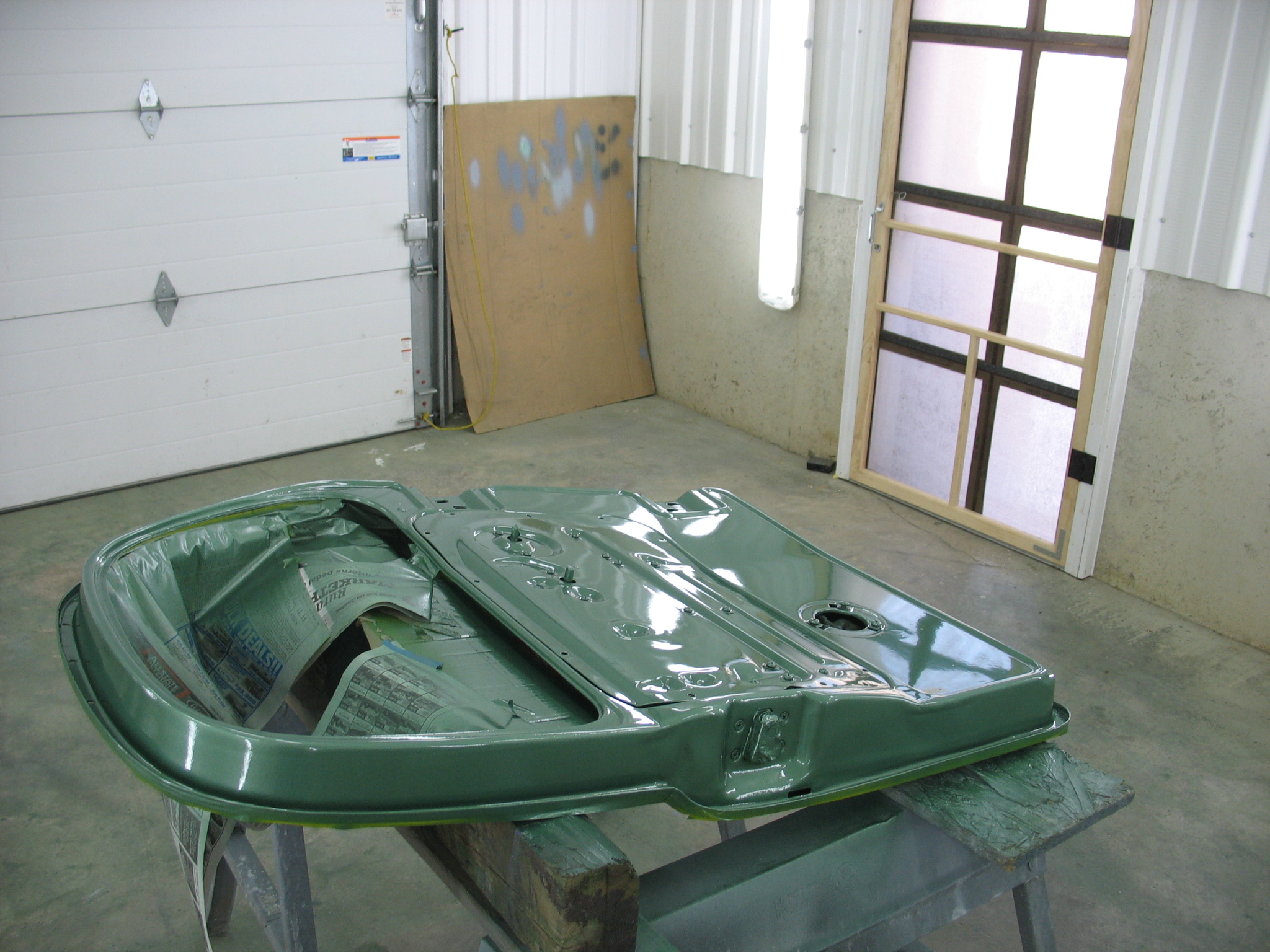

Painted inside of doors


Recommended Posts

  • 2 weeks later...
  • 1 year later...

Nice paint job and great work on the door. I am rebuilding two doors on a 64 B61 and I would appreciate information on window channel suppliers.  My driver side door hinges are in poor shape and I could use advice on repairing those.  I found who Watt’s is and their B model roll up window channel.  http://www.wattstruckcenter.com/store/index.php?route=product/category&path=60_75

Better slow than not moving at all.👍

Thanks

Edited by HugeHugh
Link to comment
Share on other sites

I got everything from Watts . The roll up channel that the glass mounts in was different from the original and had to be modified .  My driver door hinges were poor also . Rebuilding them looked to be a big job . There was a post on them sometime ago but you would have to have to more machinist tools and skills than I have . I found a set at Macungie  .  They were new but tan in color and the seller did not know what they fit . They went in the door pillar ok but the bottom hinge holes for the door were off . I cut the strap in half turned it over welded it and everything fit. I used Ditzler MAE 45735 LT GREEN MET paint . Best of luck with your doors

Link to comment
Share on other sites

The basic hinges are the some from right to left. My left hinges were worn out so I took an extra set of right hinges and welded the door mounting holes shut and re drilled them off the pattern from the left, also I cut the little tab off and welded it to the other side. The right hinges are most often good.

Link to comment
Share on other sites

Mike you are right as I see it.  I had the right door hung and adjusted then the left was was hung with the top hinge bolted to the door.  Instead of removing the door I just took the lower hinge out cut the strap or arm and welded it.  For me this was faster than welding, drilling, and taping new holes.
