T-Mack1 Posted Friday at 01:57 PM Share Posted Friday at 01:57 PM Not sure if this should be here, or under electrical or in the wiki section. Attached are two fire truck wiring diagrams I got from the Mack Historical Museum the other week at one of their Volunteer Saturdays. Both have dual distributors and dual starter buttons. One appears to have the second Ammeter on the dash, the other diagram has it at the pump panel. One is harder to read. 8MR5416_B85, B95, B125_ENF707_Firetruck_Dual-Ign_Dual-Ameter.pdf 8MR59006_B85,95,125F_Fire-Truck_Pumper-Ameter(1960).pdf 2 Quote Link to comment https://www.bigmacktrucks.com/topic/76010-wiring-diagrams-fm-mack-museum-fire-truck-dual-distributors/ Share on other sites More sharing options...
mowerman Posted Friday at 02:05 PM Share Posted Friday at 02:05 PM lol I’m already confused.. good luck Quote Link to comment https://www.bigmacktrucks.com/topic/76010-wiring-diagrams-fm-mack-museum-fire-truck-dual-distributors/#findComment-583762 Share on other sites More sharing options...
BOBWhite Posted Friday at 02:31 PM Share Posted Friday at 02:31 PM How interesting, it looks to me like those are two 6 volt batteries that are connected In parallel to provide 12 volts to the starter but everything else is 6 volt. Never seen that! Our International truck has a similar setup with two 12 volts to make 24 for the starter, that parallel solenoid has gotten knocked out a couple of times. Quote Link to comment https://www.bigmacktrucks.com/topic/76010-wiring-diagrams-fm-mack-museum-fire-truck-dual-distributors/#findComment-583763 Share on other sites More sharing options...

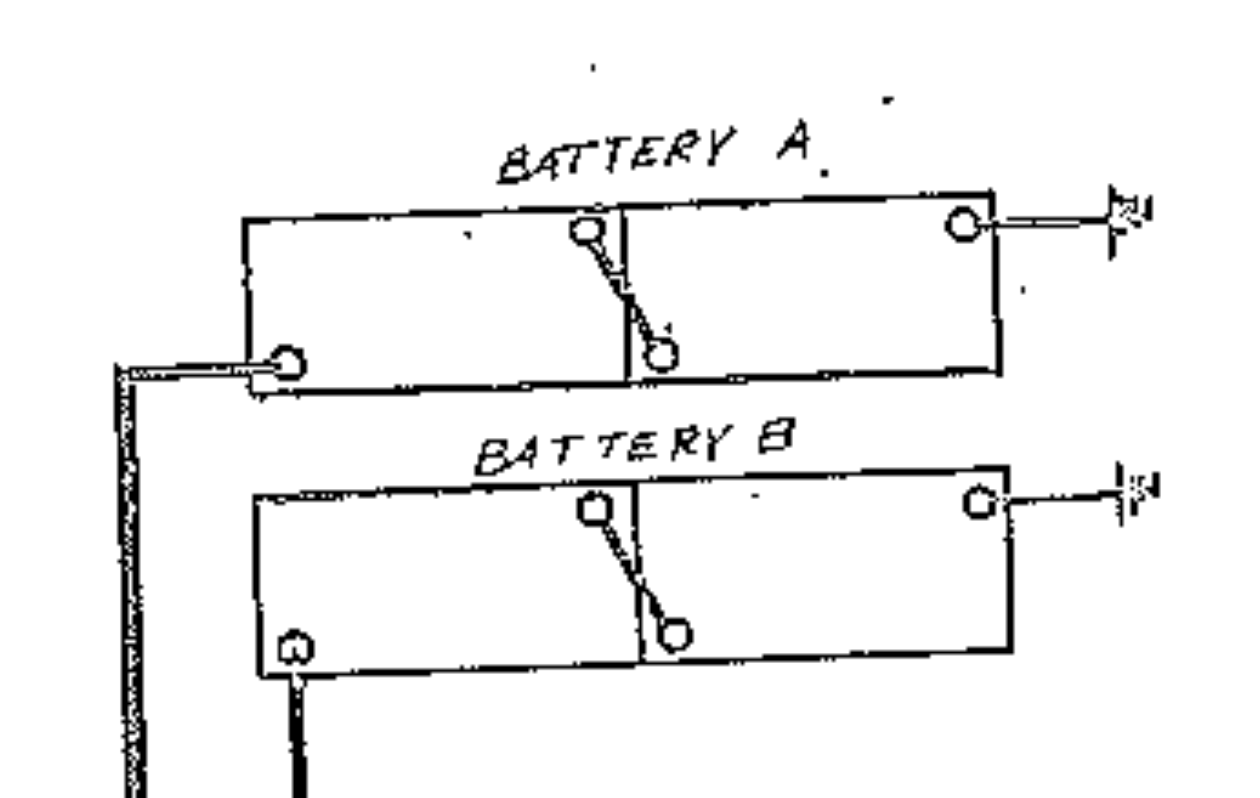

Geoff Weeks Posted Friday at 02:57 PM Share Posted Friday at 02:57 PM 24 minutes ago, BOBWhite said: How interesting, it looks to me like those are two 6 volt batteries that are connected In parallel to provide 12 volts to the starter but everything else is 6 volt. Never seen that! Our International truck has a similar setup with two 12 volts to make 24 for the starter, that parallel solenoid has gotten knocked out a couple of times. Not the way I read it. 4 six volts to make up 12volts so two sets in series the sets in parallel. Truck is 12 volt. 2 Quote Link to comment https://www.bigmacktrucks.com/topic/76010-wiring-diagrams-fm-mack-museum-fire-truck-dual-distributors/#findComment-583766 Share on other sites More sharing options...
BOBWhite Posted Friday at 04:25 PM Share Posted Friday at 04:25 PM I see the jumper wires now, who knows what I was thinking! And everything would be 12 volt since both battery banks are grounded. The two solenoids are for key on and start. I've never been very good with these diagrams, at least there are no Diode or Resister alien symbols. Quote Link to comment https://www.bigmacktrucks.com/topic/76010-wiring-diagrams-fm-mack-museum-fire-truck-dual-distributors/#findComment-583771 Share on other sites More sharing options...
Vladislav Posted Friday at 05:47 PM Share Posted Friday at 05:47 PM 23 minutes ago, BOBWhite said: I see the jumper wires now, who knows what I was thinking! And everything would be 12 volt since both battery banks are grounded. The two solenoids are for key on and start. I've never been very good with these diagrams, at least there are no Diode or Resister alien symbols. Two groups of batteries in parallel. Each one conteins two batts in series. If they're 6V two bring twelve V. Almost as Geoff said. Quote Никогда не бывает слишком много грузовиков! leversole 11.2012 Link to comment https://www.bigmacktrucks.com/topic/76010-wiring-diagrams-fm-mack-museum-fire-truck-dual-distributors/#findComment-583778 Share on other sites More sharing options...
