RobM626

Air governor

Recommended Posts

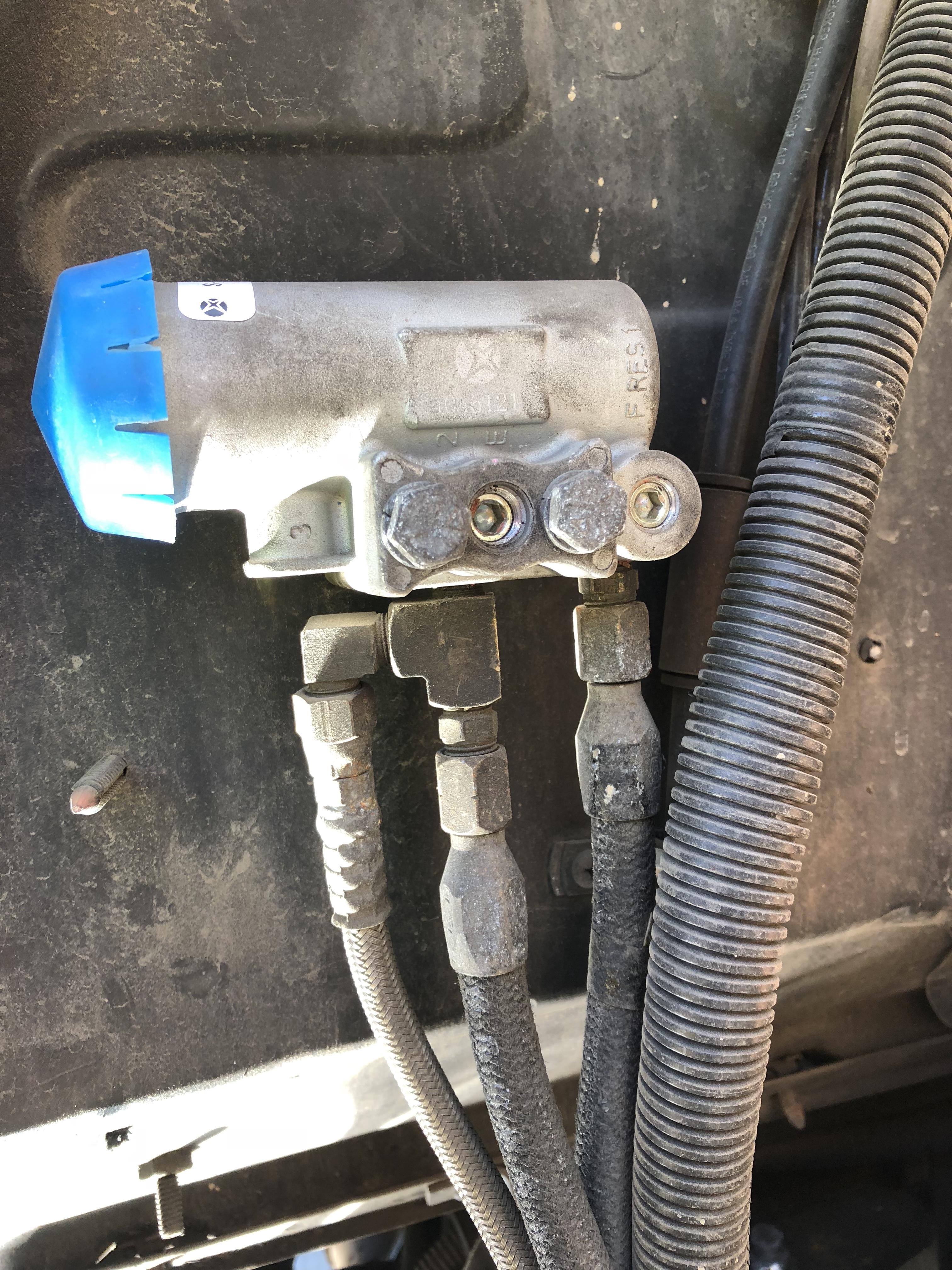

Hey guys . Does this look right to you? Aren’t the lines supposed to be in 3 different ports?


Share this post


Link to post
Share on other sites

one supply, one to unloader.  The extra tee line goes to?

Share this post


Link to post
Share on other sites
11 minutes ago, Freightrain said:

one supply, one to unloader.  The extra tee line goes to?

It looks like they put the compressor and another line together on one port. I think this is part of my new problems

i cant tell which line is for reservoir and which line is for dryer

Share this post


Link to post
Share on other sites
11 minutes ago, Freightrain said:

one supply, one to unloader.  The extra tee line goes to?

Air drier. The the exhaust port to the left in picture always stays open/ not plugged

Share this post


Link to post
Share on other sites
6 minutes ago, Mackpro said:

Air drier. The the exhaust port to the left in picture always stays open/ not plugged

So those tee’d lines are supposed to share a port?

Share this post


Link to post
Share on other sites
1 hour ago, RobM626 said:

So those tee’d lines are supposed to share a port?

Yes, one goes to compressor and other to drier. The other line by itself, goes to the first/wet air tank

  • Like 1

Share this post


Link to post
Share on other sites

I'm guessing it uses that unloader signal to dump the drier also?

Share this post


Link to post
Share on other sites
4 hours ago, Freightrain said:

I'm guessing it uses that unloader signal to dump the drier also?

yes
