I am re-plumbing the air system on my 1963 F-model and came across this component:

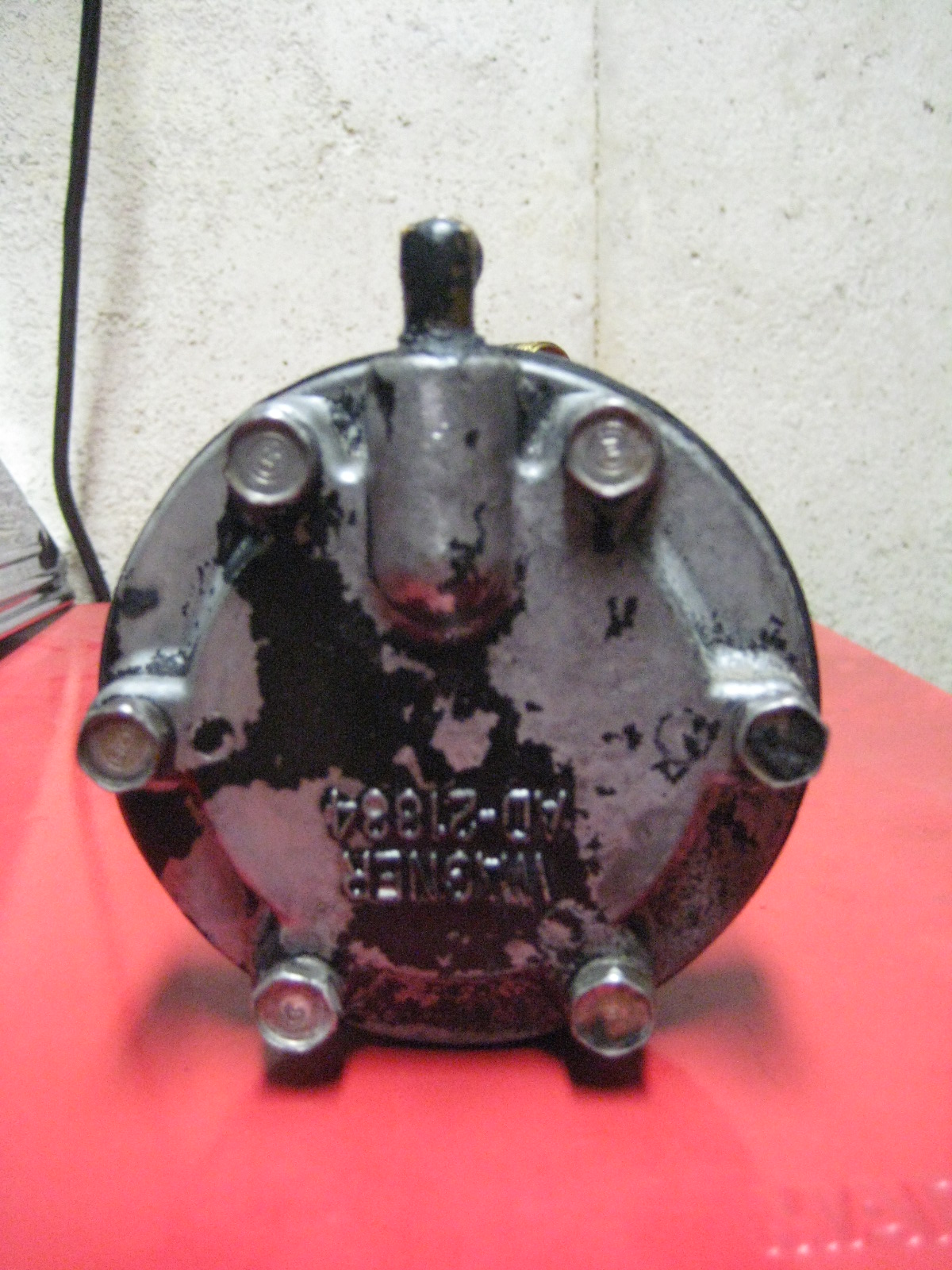

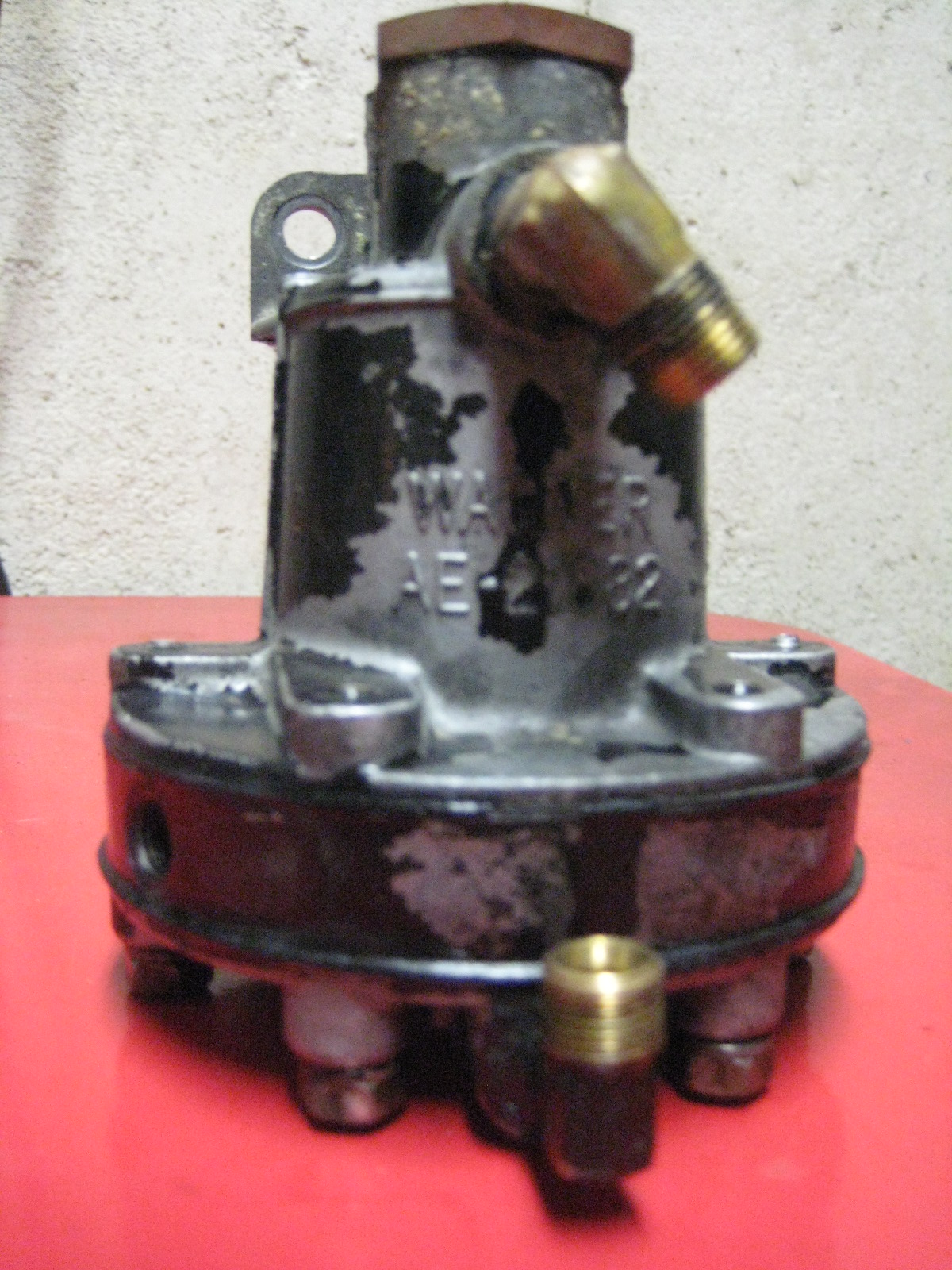

My best guess would be some sort of air dryer or moisture removal, activated by brake application. I have not had any luck researching the part number; apparently it is an obsolete item. Part number on the top is "WAGNER AE-21882" on the bottom is "WAGNER AD-21884". The location gives no clue, either. It is plumbed between the reservoir and the drive axle service brake chambers, Teed in to the outlet of the quick release valve. Any help solving this mystery would be helpful. Thanks guys.

Gregg

Link to comment
Share on other sites

I think its a moisture separator. I remember Gearheadgirl posing a similar picture of a mystery component from her B model. Turns out its a moisture separator which was used in the days before air dryers. It should have three ports, an input, output and a moisture drain that might be a hose barb. Hers was located on the rear near the axle(s). If you decide to plumb an air dryer into the system, you can do away with this device (if description is correct).

-Thad

What America needs is less bull and more Bulldog!

Link to comment
Share on other sites

I think its a moisture separator. I remember Gearheadgirl posing a similar picture of a mystery component from her B model. Turns out its a moisture separator which was used in the days before air dryers. It should have three ports, an input, output and a moisture drain that might be a hose barb. Hers was located on the rear near the axle(s). If you decide to plumb an air dryer into the system, you can do away with this device (if description is correct).

That is what I thought, and purge is activated by brake application. Since I have installed an AD-9 air dryer I will put this Wagner unit in the box marked "posterity".
