  1. The trans thats in it started as an RT-11509, then Peter put an RTO-12513 back half on it to get a .87 OD. First gear is 12.50, reverse is 13.07. The FRO I'm looking at has a lower first and reverse, 12.69 and 13.75, and a higher OD of .74. Its a wide ratio ten built for electronic high torque engines, the drop between gears is big enough that they dont work great with most older mechanical engine, but it should be ok behind the Maxi. Biggest reason I'm looking at it is that it should bolt straight up to the bell, though I'll need to have the shaft redone because its shorter than the 13. The kicker is that its only $300.00 and the budget is tight.
  2. Good to know, that will make life a lot easier. Usually when I misremember something it bites me in the ass, good to know its in my favor for once, lol. Thanks
  3. I've never pulled one apart so I dont know first hand, but I remember conversations on different forums where it was said that the Mack sixes, E6 and older, used a 1.75 shaft instead of the normal 2.00 shaft, so to install a Roadranger would require the Mack/Eaton bell with the side mounts and a change from a 2.00 shaft to a 1.75 shaft. I took a look on the Roadranger website today, there is a 1.75 shaft kit available for the FRO series so I'm covered if I buy the FRO-15210C and end up needing it. The FRO has a lower first than the 13 and a higher OD (.74 instead of .87) so it ought to make that little 237 happy on the interstate with the 4.10 rear.

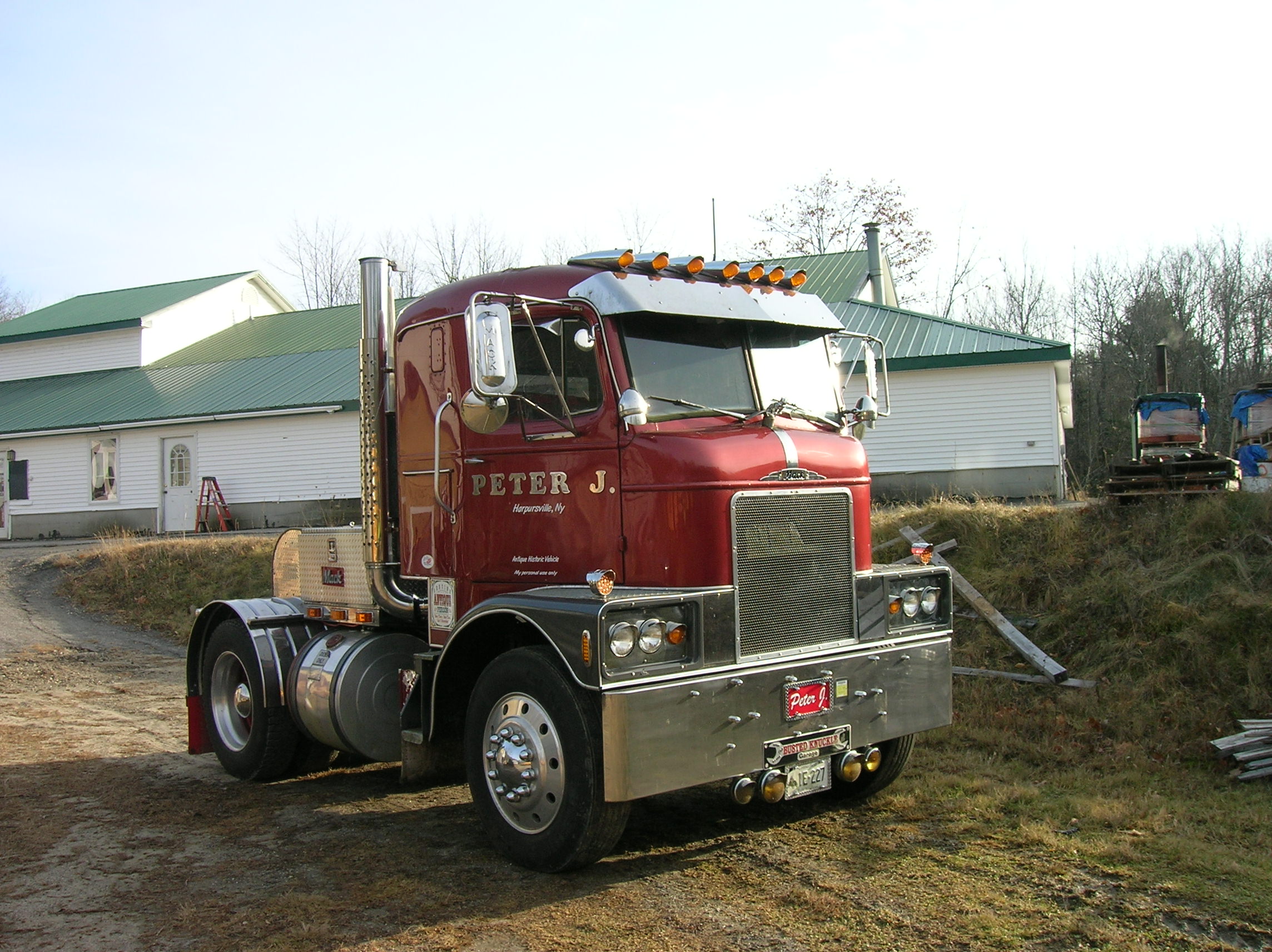

  4. Just curious, before I call any parts houses, to see if anyone knows if the E7s used the small input shaft like the E6s did or if they used the bigger shaft like Cat and Cummins ?. I know the FRO10s were avaliable behind the E7s because I drove a '97 CH with an E7 400 and an FRO-14210C. I've got a line on a cheap FRO-15210C, with the wide ratio spread I'm thinking it will work better behind the 237 Maxi thats in Peter J's H model instead of the RTO13 speed thats in there now. The 13 has some issues, I'd just as soon find a good used 5 or 6 speed to put behind it but its already rigged for a road ranger so it will be cheaper to stay that route. If I cant put a small input shaft on the FRO then I'll probably look around for an older RTO15 or just patch up the 13 speed. Thanks
  5. If your dead set on changing transmissions then I'd look around the bone yards and older rebuilders for an RTOO12513. The brochure page I attached shows the ratios for the RT9513, the RTO9513, and the RTOO9513. the 125 series has the same ratios, they just have a higher torque rating. The OD ratio is only .02 lower than what you have, top speed would barely change.
  6. Here are the basic 12V71 truck model dimensions
  7. This advert is a head scratcher for me...I dont believe I've ever seen that grill in any other Mack....no idea what year the advert is...
  8. The '75 Cruiseliner advert and the announcement in Bulldog with the cover
  9. Nice thread...a slightly different view of the Tip Turbine set up...
  10. Larry, Doesnt look like it pulls much air to spin it over. Have you checked the pressure drop during cranking since you put the new gauge in ?
  11. Gordon drove this B model at that time, Juiced up 400 big cam with a 13 and 3:70s, she would run and Gordon went most everywhere flat footed...
  12. Thats Gordon Chase's old H model that he built for his wife to drive back in the '80s. He stretched the cab and put it on an mid '70s Astro chassis. Cummins powered with a 13 speed, it had a second, smaller radiator with an electric fan behind the cab. She embarrassed a lot of "big trucks" with that little H model. I always wondered what happened to it, nice to see its still alive.
  13. They arent bad for over the road but not great for heavy hauling.When you wind the engine to the top with a heavy load you have to clutch to unload the torque or it wont make the split.Kind of defeats the purpose.If I have an air shift trans,I want to just lift my right foot and have it split.Good tranny for over the road outfit with a lot of driving school drivers.Just my two cents.John.
  14. Ive seen them on quite a few different models,some that seemed identicle except for the scoop.I was always under the impression that it was just a heavy duty option, not a standard production piece.John.
  15. Beautiful RL. If you ever decide to part with her ,drop me a line.Always wanted to build one just like that.Ive got a soft spot for them.John.
  16. Hey everyone, Saw a few names I know so I thought I would register.Ive spent alot of time on the ATHS forum but Ive never done more than look at the pictures here.I like all old trucks not just one brand.Ive always enjoyed this site.John.
×
×
