Turbo/engine Boost / Exhast Leak Test Tool


fjh

Recommended Posts

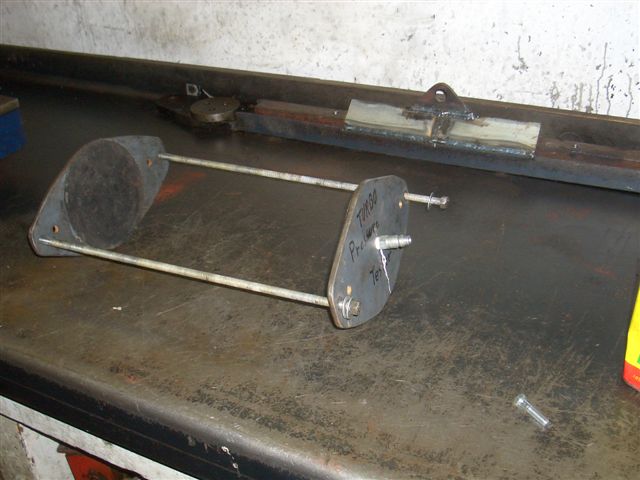

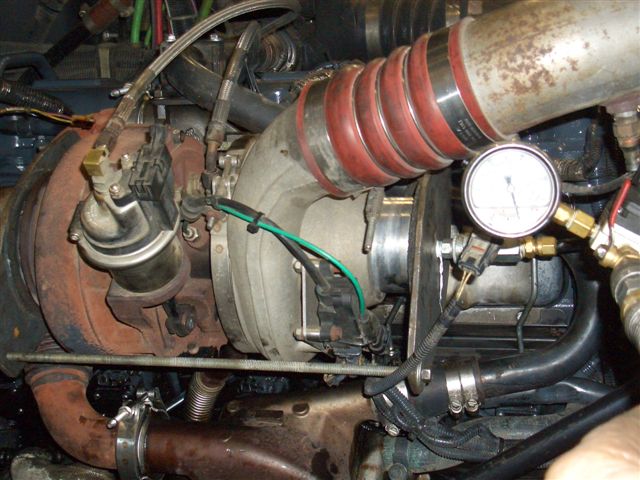

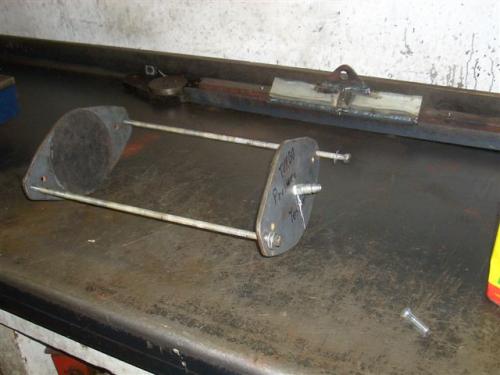

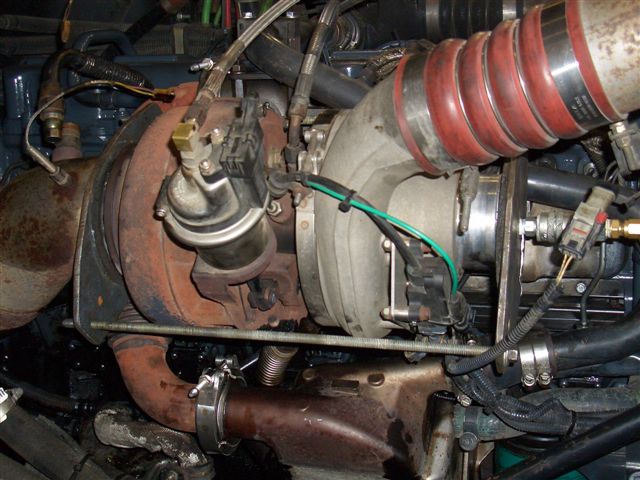

Here are some snaps of the turbo test tool we made for checking asset and other engines for exhast /boost leaks and blow by problems via failing turbos.

just thought Id post em .

would like to see what others are useing for these tests.





Link to comment
Share on other sites

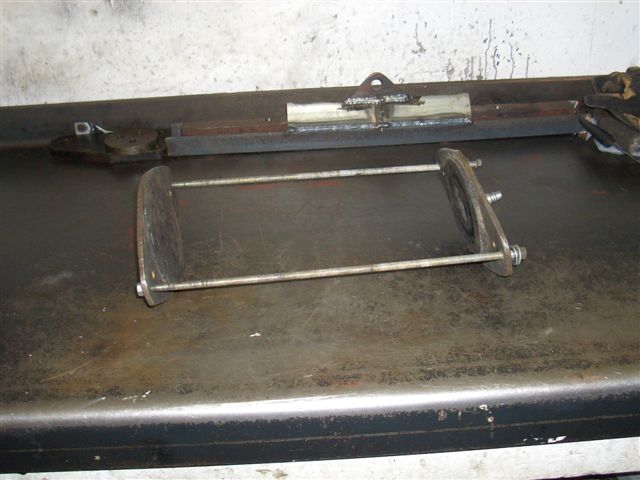

Two more pics of the tool on the bench!Its a bit of a hastle to hook up but it will check every nook and crevice for leaks even tests the boost bypass valve on the asset engine.To check for blow by issues you need to remove the turbo drain tube .also on the asset engine you must remove and plug off the turbo bypass valve if your not checking it!
