thomastractorsvc Posted May 6, 2013 Share Posted May 6, 2013 Just doing some TLC today and I think I am missing parts on the clutch linkage as it has a spring and a bungy cord hooked to it and the throttle cable for fast idle is zip tied to the rod and the spring is hooked to a oil line.One of the previous owners must of had some good rigging skills as it was not obvously noticable and I drove over 140 miles without issue and by looking at some of the other fixes who ever it was could fix just about anything with bungy cordsI ordered my service manuals today so they should be here by the end of the week Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
Superdog Posted May 6, 2013 Share Posted May 6, 2013 gotta love an old R model.Try fixing a new Pinnacle with a bungee,duct tape and zip tie and have it get you home. 1 Quote Link to comment Share on other sites More sharing options...
thomastractorsvc Posted May 7, 2013 Author Share Posted May 7, 2013 no one has got a R and can help a brother out???? Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
bigmack73 Posted May 8, 2013 Share Posted May 8, 2013 Hey thomas what exactly do u need i got a r model in. Da yard Quote Link to comment Share on other sites More sharing options...
64C85 Posted May 8, 2013 Share Posted May 8, 2013 If you send me your VIN # I might be able to help you out. Quote Link to comment Share on other sites More sharing options...

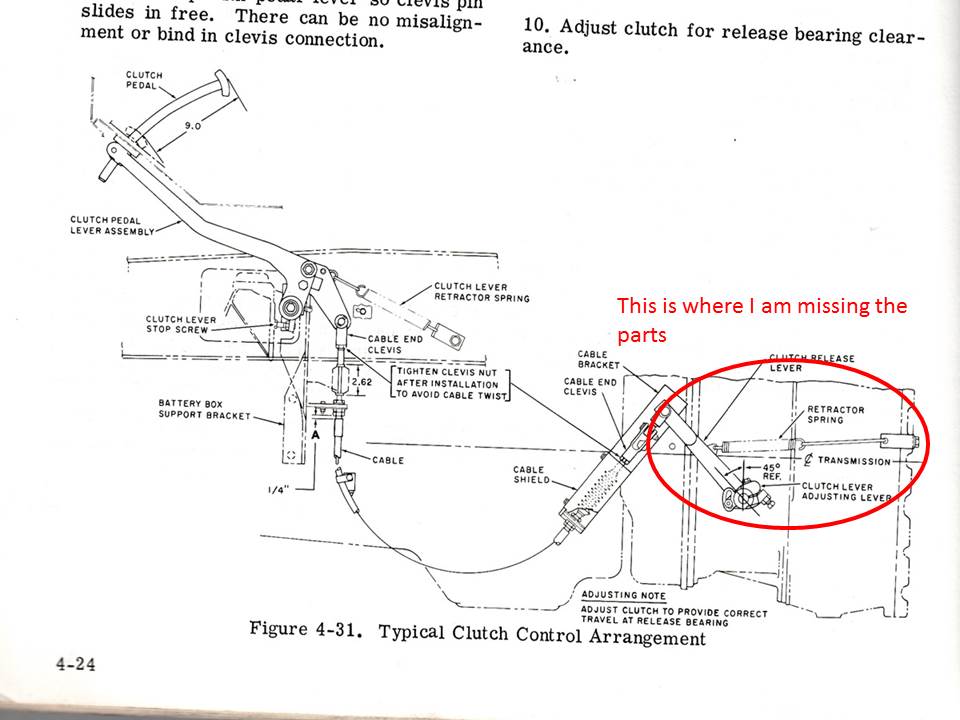

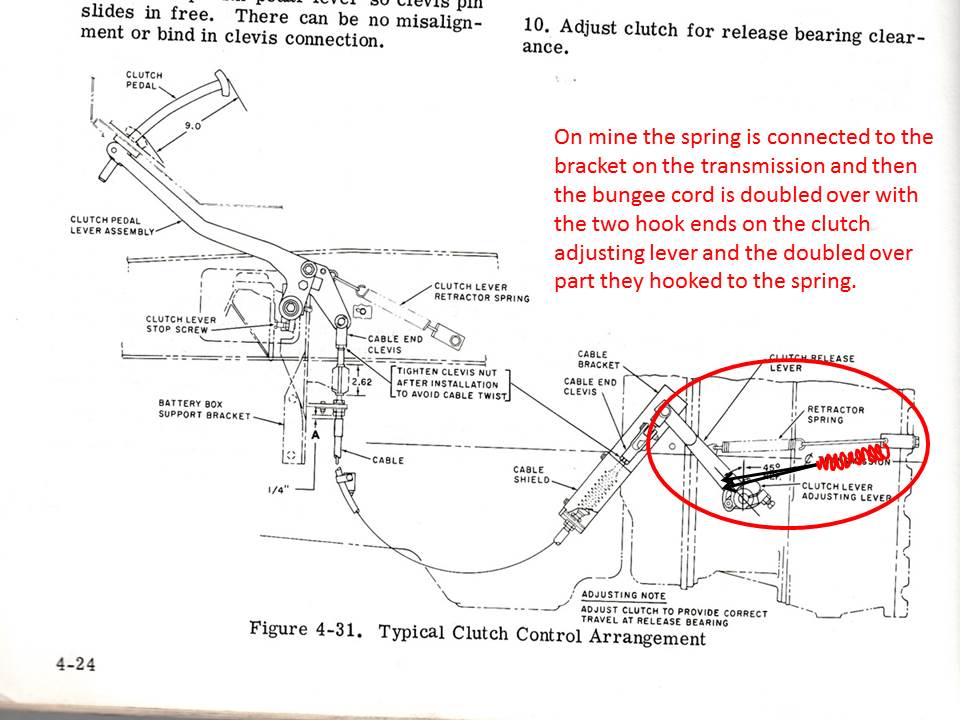

thomastractorsvc Posted May 8, 2013 Author Share Posted May 8, 2013 Jmine is a little different set up than that one, my clutch cable goes through the upper fire wall down to clutch release leverThis is what mine looks like, I think there is enough to see what part I am missingI scanned a bunch of online auction site pictures and came up with the peice for the throttle control and made one, the spring hooked to a little bracket on the compressor, when I started looking I found it, the hole that hold the spring was broken so I took it off and made one. Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
thomastractorsvc Posted May 8, 2013 Author Share Posted May 8, 2013 just got my manual date oct 79, here is the clutch set up1980_R_Model_Clutch.pdf Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
thomastractorsvc Posted May 10, 2013 Author Share Posted May 10, 2013 I got this from 64C85This is the parts schematic for the clutch controlR686ST_66669_Clutch_control (1).pdf Quote Robert"I reject your reality and substitute my own." Link to comment Share on other sites More sharing options...
