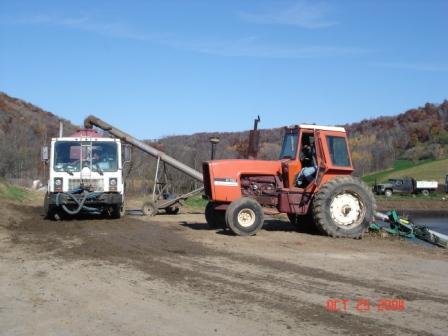

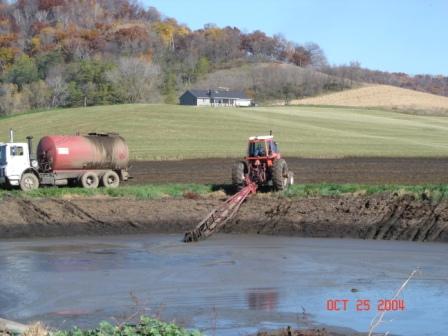

Maxville Truck Posted May 31, 2007 Share Posted May 31, 2007 1st picture is us loading manure, the second picture is us stirring manure (for those of you not familiar, a 50 foot aparatus with a big boat prop) churns a lot of sh$% but takes a lot of HP!!I have a dmm 6x6. It has a 237 5 speed trans. and tc150 transfer case. Here's my dilema, I pump cow manure and never have reliable HP (tractor), most of my farmers' tractors are underpowered, They overheat because of the severe duty i put them under, and the fact that most farmers only use a fraction of their horsepower, so their radiators and air filters are plugged, I show up with my agi/pump (which will bring a 200 hp tractor to it's knee's) and after 15 minutes of agitation or loading we are stalled because of an overheated tractor. I have rented in the past from a local Allis Chalmers salvage yard, but once again i'm using junk, and i'm broke down. so a reliable tractor is my current weak link.My Idea is to take my 6x6 (about a 77, with a weaping head gasket, which I will fix) shorten the wheel base as short as possible (for manueverability) Hook a drive shaft to the PTO output of the transfer case run a driveshaft to the back of the truck into 2 90 degree gearboxes, ( with an overall gear reduction of about 2 to 1) build a hitch comparable to a tractor, run a small hydraulic pump out the front (alrady has crank shaft adapter and bracket in place) for hydraulic needs, walla a mack Tractor "Macktor".I will run the the transmission in 5th so my driveline from the truck will run at engine speed. I need about 1000 rpm at my pto shaft but turning the oposite as what comes out of the transmission, with the 2 90 degree gearboxes I can make the direction change... I know that overheating the transmission and transfer case will probably be a problem, I can run coolers on both with circulating pumps.WHat I need from someone here is a source for the PTO Adapter for the back of the MACK TC 150 transfer case. ANy help or insite would be appreciated!! :SMOKIE-LFT: Quote Link to comment Share on other sites More sharing options...
Rob Posted May 31, 2007 Share Posted May 31, 2007 Rather than go through all the frictional losses and maintenance/upkeep on such an apparatus; My thoughts would be to acquire a 6V92 Detroit with right hand rotation, (ie reverse), (ie bus application, and very common) install a "Rockford Clutch" assy, (also ready available) and go that route with or without gear reduction for the proper rotational speed. This assy. could be mounted onto a portable trailer, or a frame extension to your truck to eliminate the need for two separate pieces of machinery.There are many more options out there, this one took me no thought.Rob Quote Plodding along with no job nor practical application for my existence, but still trying to fix what's broke. Link to comment Share on other sites More sharing options...
David Posted June 1, 2007 Share Posted June 1, 2007 Just run your pump off the front of the Mack engine. Quote Link to comment Share on other sites More sharing options...
fjh Posted June 24, 2007 Share Posted June 24, 2007 The other option you have is A 99 % pto off the lower counter shaft !Check the rear case may have stamped pto on it if so the hole is there!Remove the lower counter shaft cover and if it has a hole in it Your in business! Quote Link to comment Share on other sites More sharing options...

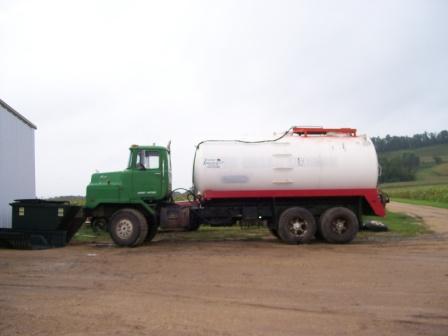

Maxville Truck Posted October 8, 2007 Author Share Posted October 8, 2007 Just an update opn my 6x6, I put a manure tank on it instead of turning it into a power unit. (After head gaskets, and a new clutch) works great though!! I got to water a local "tuff truck" track and mud pit with it... Speed channel was at the event... Quote Link to comment Share on other sites More sharing options...
