R.E.D

I remember my pops had a ch with the stiffest clutch ever.. ended up being wrong cable, I think it was too long.

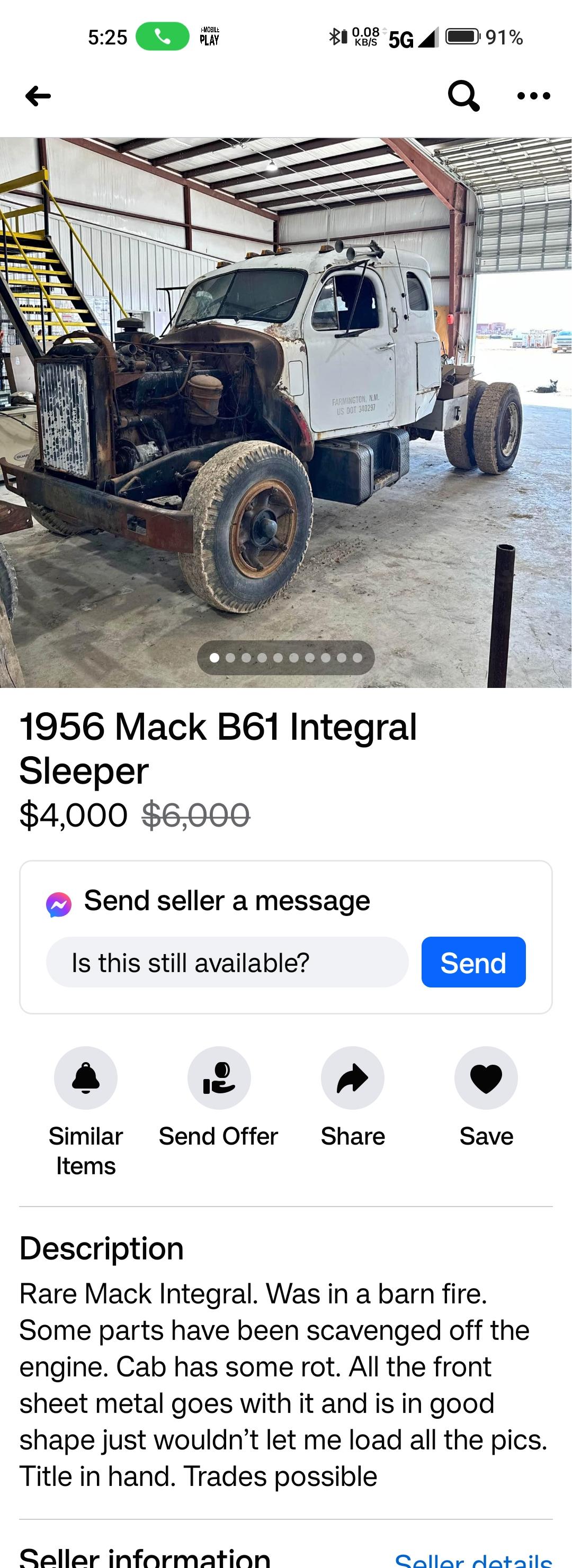

Not mine .local marketplace.

It's my buddy's truck ..I haven't spoken to him since last post.ill keep y'all informed

Do you happen to have the part number of the fitting with the clear window in it? In order to see if there's any air in the fuel?

He says it's felt 1100 rpm and under the most

I'm guessing at some point he's going to have to do that. Forgot to mention he also replaced the boost sensor.

So I'm posting this for my buddy. He has a slight engine Miss that's been driving him crazy. 98 E-Tech 460. Engine Miss comes and goes. In the past month he has replaced all eups, injectors, and both timing sensors. He also ran the overhead. Idle fuel pressure is around 50 to 60 PSI. Goes up to 70 Max revs. He's going to do the fuel pressure test under load. Is there a clear fitting that can be put in line in the fuel lines to determine fuel aeration? I know they have some for some Cummins engines, just wondering if anyone has the part number. No blink codes active, he did have some before but they were for the eups which have been replaced. Thank you for your help guys Red

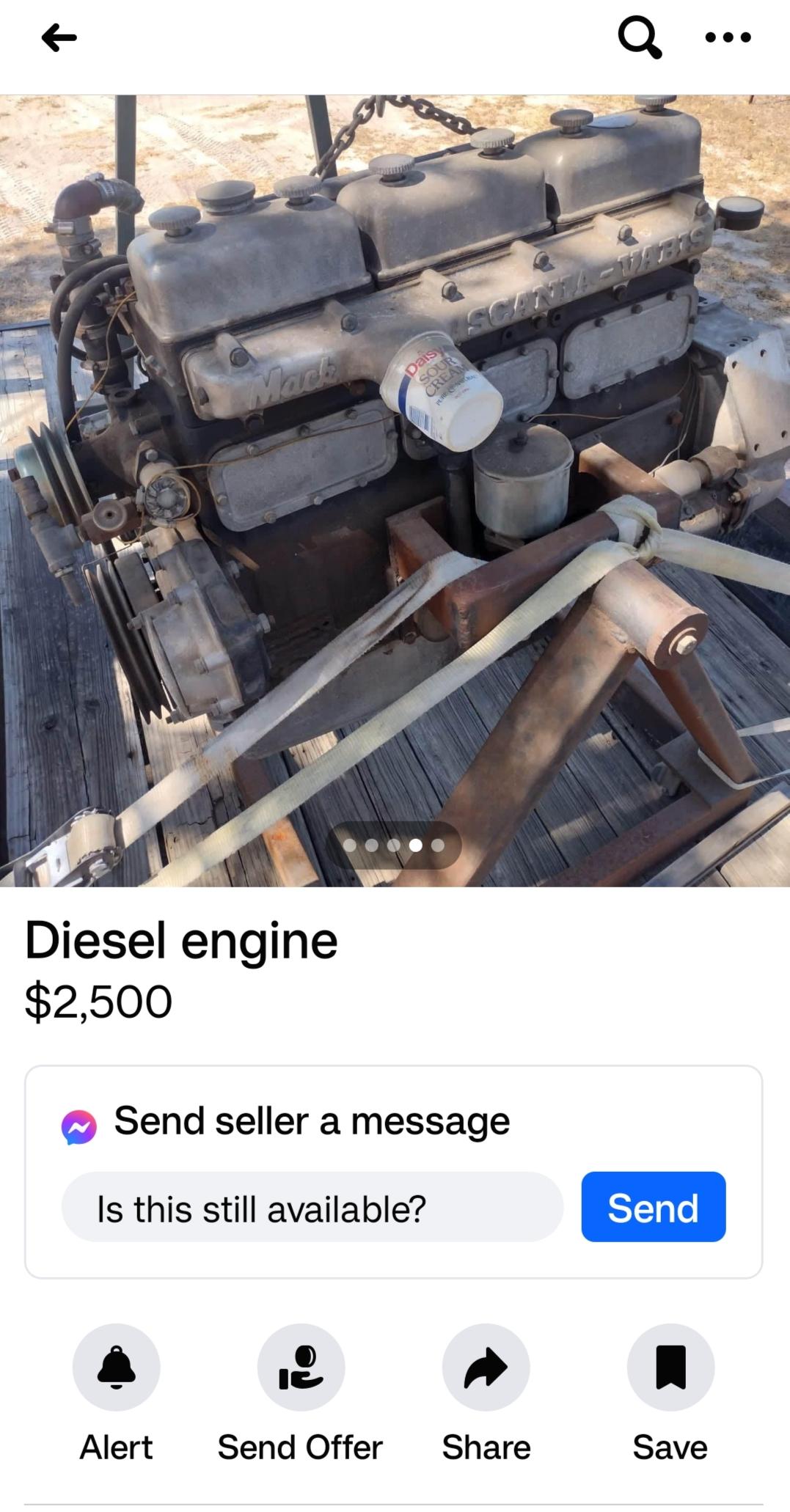

Facebook Marketplace, not mine.

In my opinion, you should replace the u bolts and torque them to proper specs. I think JoeH is right, a transverse torque arm is needed for this application. You can add one to the front diff, the torque arm bracket has a circular hole in order for the drive shaft to pass through it. Most front diffs aren't threaded for this ,therefore you would need to remove it and have a machine shop drill and tap for you.I had this done on my rd that has 38k Camelback suspension with rubber bushings and did not come with the transverse torque arm.Granted I did it to the back diff but it would be the same procedure.

They made cl733 (Cummins engine) at least up to 07 . There is a few for sale on truck paper right now.

What model mack? Best would be a cl,it has the legroom for a Detroit..they made them with Detroits (cl743) back in the 90s ,but like I've said before they are rarer than an honest politician .

Use some grease or Vaseline to make sure the crush washer sticks to the injector tip .Torque lines to appropriate torque specs , if you're replacing them it should be with the new single nut style.While your there , wouldn't be a bad idea to check overhead.Just my .02 ¢ . Red

The vmac 3 service manual is available for downloads from mack e media for free.Part number 8-211.

I believe 2180 which is the older model has a bit more overdrive.71 instead of .73 of the t318..so you would be loosing a tiny bit of top speed..also I think the older model trans ptos will not work on the t318 .. hopefully someone will chime in and verify this . Red

If everything mentioned above checks out , have someone move steering wheel left to right.. paying close attention to u bolts and springs.

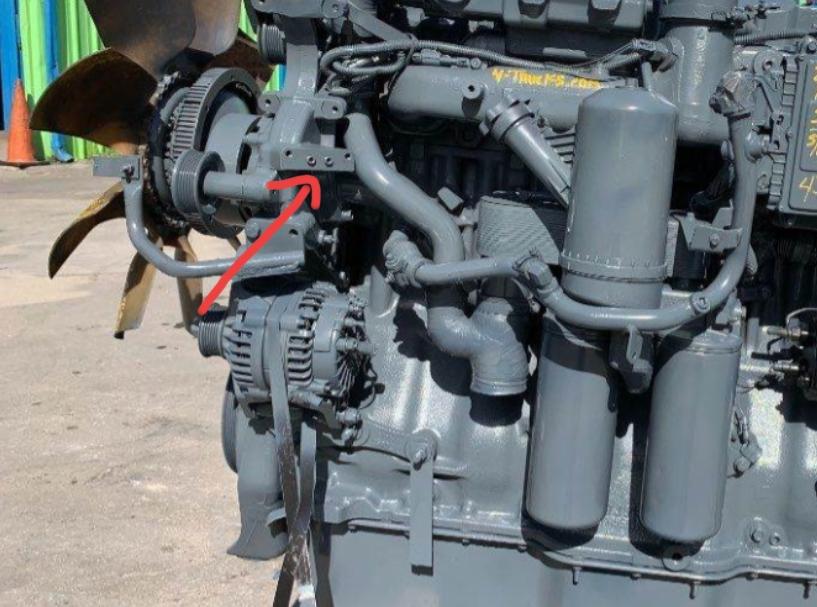

If you have these two plugs (see picture ) then it's probably a filter someone added ,as these two plugs are the mount for the factory filter(coolant conditioner)

Is coolant filter an add on type?.. reason I ask is because these engines rarely came with the factory filter because they were meant to use bulldog extended life coolant.

My 10 speed t310m had a similar issue, shift fork was very worn also in conjunction with worn synchro gear ...I took the rear cover off and welded the shift fork up and grinded it down to size..this quick fix got me through the busy summer..then rebuilt the whole transmission..like FJH mentioned,the rear part can be removed but will need a specialty bracket to hold the 3 shafts in place...if truck is new to you ,I would remove transmission completely and have it gone through....main boxes are kinda bulletproof, synchros are the Achilles heels. Just my .02 cents RED

Could've been that our drivers were banging the gears in ,since the super 10 were kinda slow to rpm drop in the next gear...

My pops had 2 chs with super 10, they were tandem dump trucks.shift forks would brake like clockwork every year.It was with different drivers too..we ended up just swapping them to 9 speeds.... problem solved

I had this issue...and it's the air dryer constantly blowing air out.. remember air compressor is feed clean boosted air from your intake manifold....my would purge and would not build boost...all the sudden it would purge and boost would shoot back up....I'm not saying your 4-5 code isn't also causing issues,but definitely take a look at you air dryer....this low boost condition causes really high egt and if you don't have a pyro ,you could cause damage to your engine. Just my .02 cents RED

Agreed..I usually back out the eup hold down bolts a couple turns.then pry on the corner of the eup to break the seat of the orings..if under pressure from the cam lobe , they eup will lift without much effort...then I rotate the engine to allow the spring to decompress..Joey you're correct..the plunger is made to precise tolerances.and should be removed from eup in a clean environment...when I took all my eups to get tested..the injection shop tech told me that the slightest spec of debris could cause the plunger to bind.

If you ever do this job again, it is best to rotate the engine so the cam lobe it's not pushing on the eup spring. If the eup would have been good, it could have gotten damaged from flying out of that hole... Same for procedure for installation.. and if by any chance you have ceramic eup rollers , don't drop them in and let them hit the cam.

I've gotten all of mine from eBay, I keep em in a several ring binders , which I can take to the yard and scroll through when my memory needs refreshing..the electronic copies of stuff I have ,I just print out the pages of what I will be working on that day.

Go to the mack e media site..on the search box input the part number of the repair manual that Joey showed on his picture (5-106).it's gonna take you to another screen where it tells you that it's 30$...click on the part number again , which is underlined..then it will take you to another screen which lets you view the file for free.Download it to your phone or PC in PDF format.This works for many manuals .Look on eBay for the manual and once you find the part number go to mack e media and see if it can be downloaded for free.Cant beat free when starting out !😂 Red
