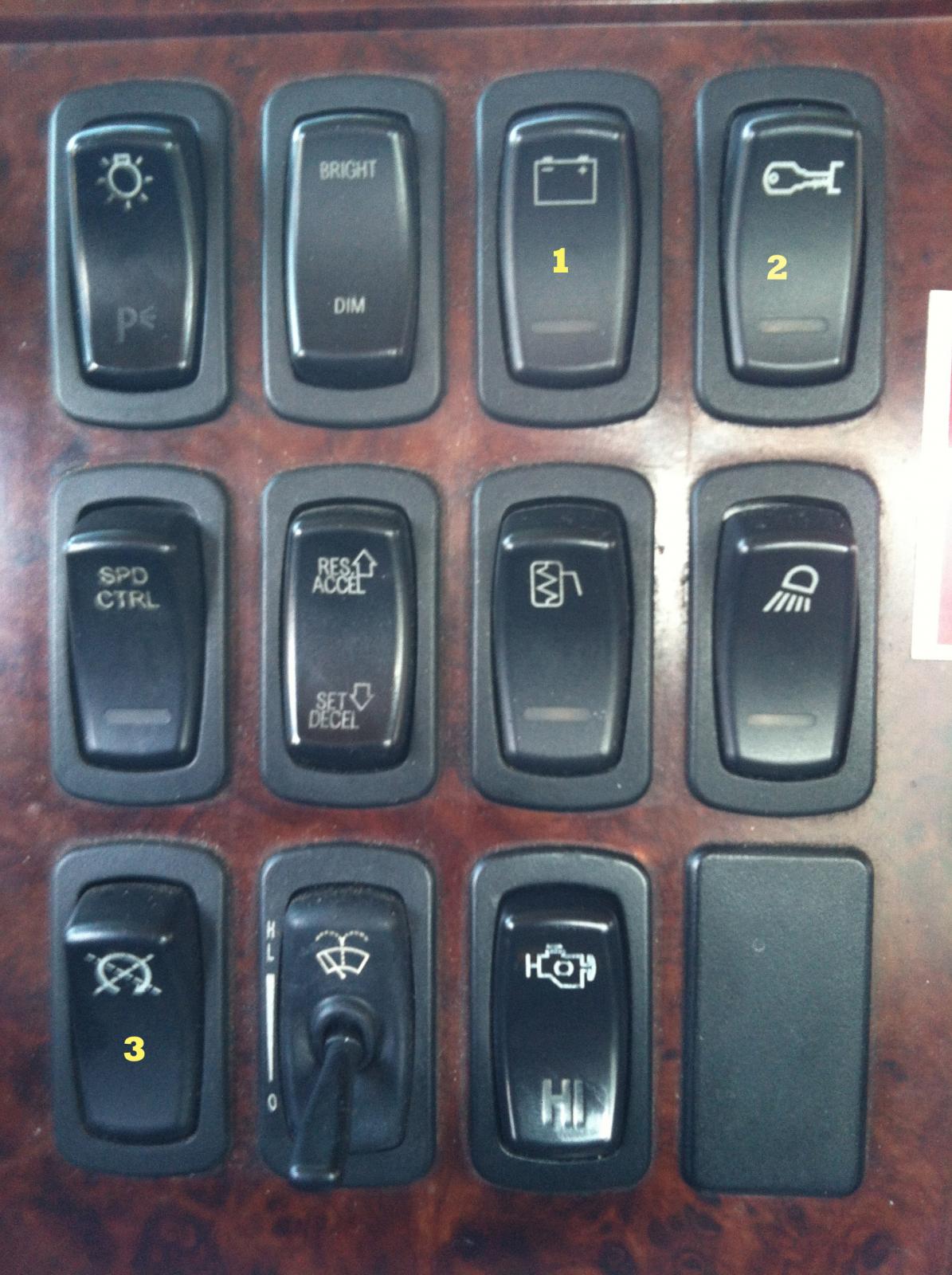

Truck1536 Posted December 14, 2012 Share Posted December 14, 2012 I'm curious as to what the numbered switches do. This is a dash from a 2005 Granite.Thanks for the help,John Quote JohnLocal 282 Retiredhttp://www.flickr.com/photos/99031064@N00/ Link to comment Share on other sites More sharing options...
hatcity Posted December 14, 2012 Share Posted December 14, 2012 #3 is shut down over ride.If the shut down lite comes on due to low water/coolant or something else, and you can't just pull over, holding that button will allow you a chance to find a place to pull over. 1 Quote Success is only a stones throw away.................................................................for a Palestinian Link to comment Share on other sites More sharing options...
Truck1536 Posted December 14, 2012 Author Share Posted December 14, 2012 Thanks much, Hatcity. 1 down, 2 to go. Quote JohnLocal 282 Retiredhttp://www.flickr.com/photos/99031064@N00/ Link to comment Share on other sites More sharing options...
Green Dash Posted December 15, 2012 Share Posted December 15, 2012 I believe those are spares, #1 is always live and #2 is only hot with the key in the on or acc position. 1 Quote Jim Link to comment Share on other sites More sharing options...
Truck1536 Posted December 16, 2012 Author Share Posted December 16, 2012 Thank you Green Dash. Quote JohnLocal 282 Retiredhttp://www.flickr.com/photos/99031064@N00/ Link to comment Share on other sites More sharing options...
My Other Ride Is A Mack Posted December 20, 2012 Share Posted December 20, 2012 #1 SWITCH IS A CONSTANT "HOT" STRAIGHT FROM THE BATTERY. FOR AN ACCESSORY. THIS SWITCH WILL WORK WITH OR WITHOUT THE IGNITION ON. # 2 SWITCH IS A ACC. FEED THAT IS ONLY "HOT WHEN THE IGNITION KEY IS TURN ON, IT WILL ALSO CUT POWER TO THE SWITCH WHEN THE TIME DELAY MODULE KICKS IT OUT. 1 Quote Link to comment Share on other sites More sharing options...
rsb502 Posted December 24, 2012 Share Posted December 24, 2012 there should be two wires stubbed out one for each accessory switch inside the electrical compartment on the right dash pop the panel of and look at the lower left corner, I used em in 3 Granites and they were right there with a tag on each wire. 1 Quote "Any Society that would give up a little LIBERTY to gain a little SECURITY will Deserve Neither and LOSE BOTH" -Benjamin Franklin"If your gonna be STUPID, you gotta be TOUGH" "You cant always get what you want, but if you try sometimes you get what you need" Link to comment Share on other sites More sharing options...
danny123 Posted August 17, 2020 Share Posted August 17, 2020 Does 2006 mack granite have a engine fan button or switch? Quote Link to comment Share on other sites More sharing options...
