air control module

[howdyshellexc]

i have a maxitorque 5 speed extended range im putting in back the transmission someone else took off but the didnt mark any of the airlines on the valves or control module as i what i done is i put everything how i thought maybe it would go basing it on the length of the hoses but either i got no reverse if i swap them or i have no forward on any gear i got i need to find out or need schematic of air control module on top of transmission and valves around it

[j hancock]

The bottom of the Mack Select Air shift knob ports are marked S (supply) E (exhaust) 1, 2, 3, 4.

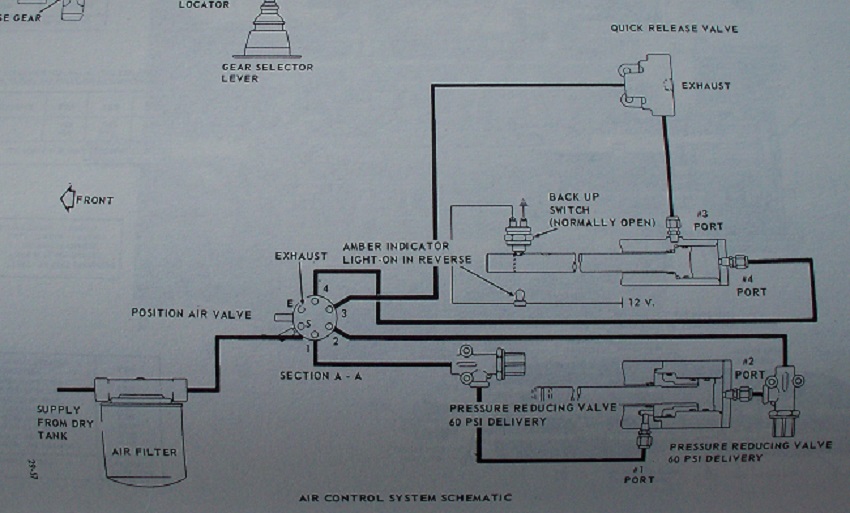

The diagram shows the ports with the number on the trans.
