wrenching4life Posted March 7, 2017 Share Posted March 7, 2017 Hey all, we have a 89 Superliner with the E9 and the throttle return for the Ambac Vee style injection pump seems like something is missing, the dealer is showing two return springs, we only have one, and the bracket that the spring mounted to seems to be bent. all in short it sometimes does not return all the way without some toe assistance, it is a cable throttle not air. does anyone have a "correct" picture of the throttle return setup? or can explain where the springs go and what they hook to? Thanks All! Quote Link to comment Share on other sites More sharing options...

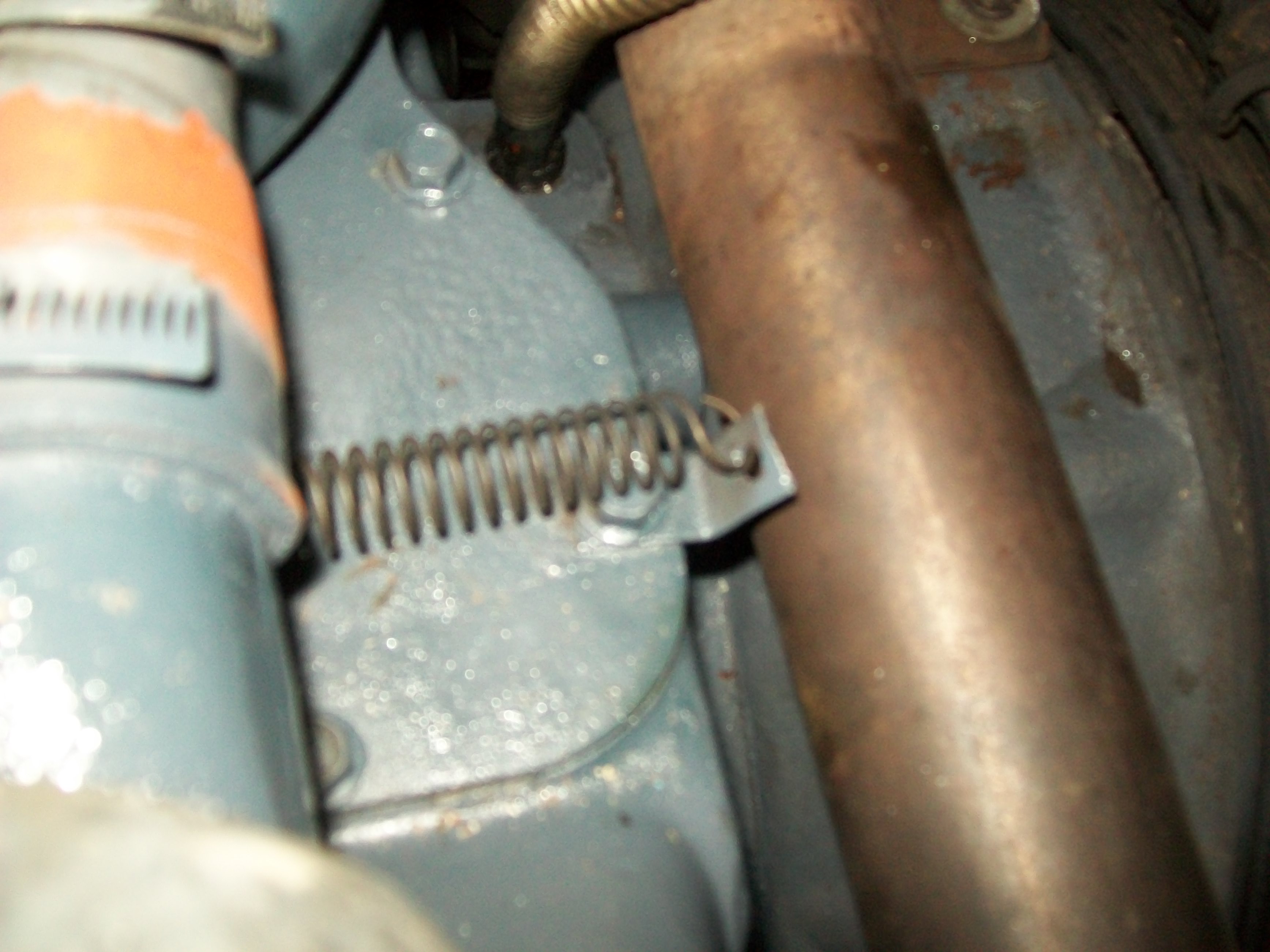

MACKTRUCKS4 Posted March 7, 2017 Share Posted March 7, 2017 Both of mine have two springs. One goes straight back to a tab next to the turbo and the other goes straight up to a tab welded onto the bracket that holds the power steering reservoir. 1 Quote Live every day like it's your last, because one of these days, it will be. Link to comment Share on other sites More sharing options...

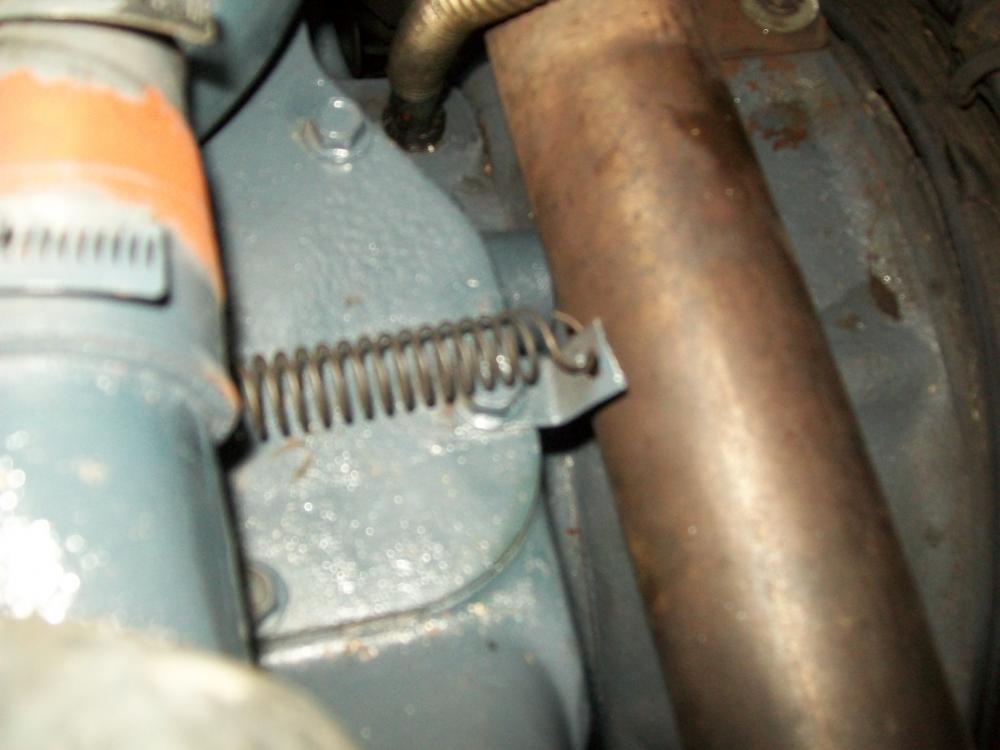

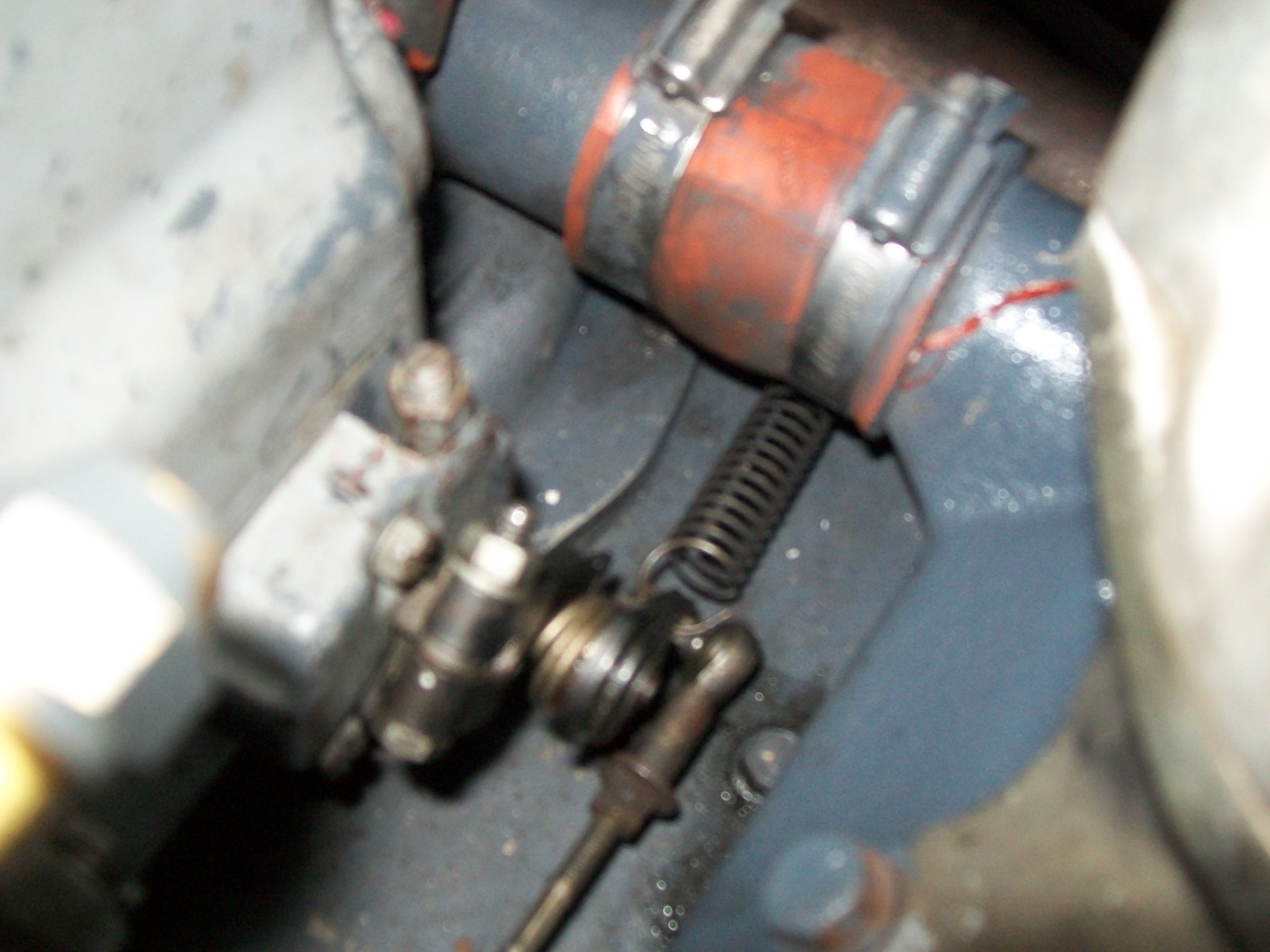

Popular Post MACKTRUCKS4 Posted March 7, 2017 Popular Post Share Posted March 7, 2017 The top tab broke off at one point as you can see only part of it remains, I just drilled a hole next to it and the other spring is below. 3 Quote Live every day like it's your last, because one of these days, it will be. Link to comment Share on other sites More sharing options...
wrenching4life Posted March 7, 2017 Author Share Posted March 7, 2017 (edited) Awesome! thank you very much for the pictures that clarifies a lot, I still have the tab intact for the vertical spring, the horizontal spring and its components are completely gone, the tab by the turbo is that on the valley cover? The tab for the vertical spring which way was it originally? straight out, bent at a 90*, bent down? Our tab looks like at one point it was straight up but now looks like its bent downward. Thanks all. Edited March 7, 2017 by wrenching4life picture Quote Link to comment Share on other sites More sharing options...
wrenching4life Posted March 7, 2017 Author Share Posted March 7, 2017 here is what mine looks like, is this correct? Quote Link to comment Share on other sites More sharing options...

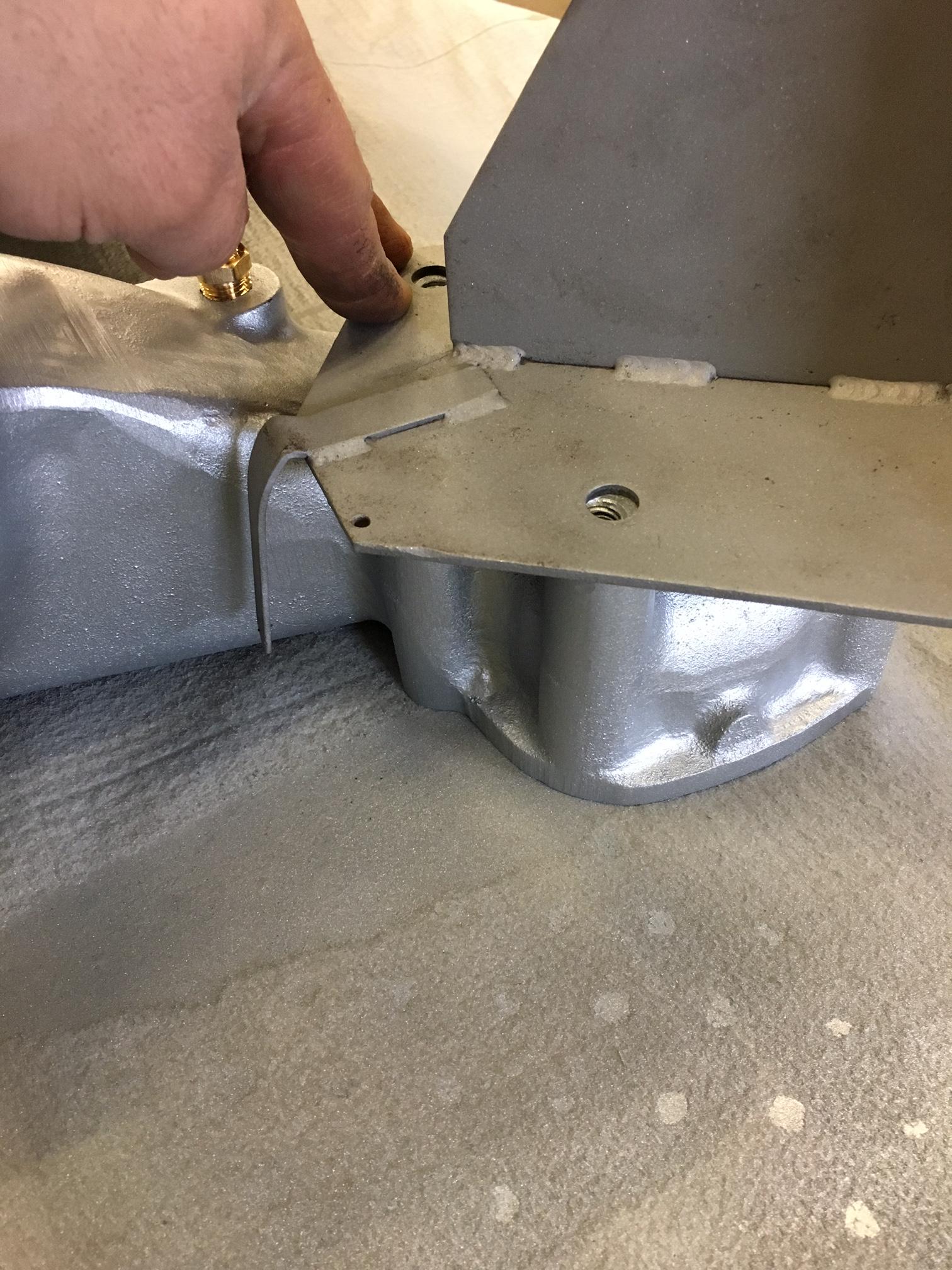

Back In Black Pulling Posted March 8, 2017 Share Posted March 8, 2017 Tab at turbo bolts on the valley bolts , just L shaped flat stock. other end can be hooked right in to hole in gov arm. Use to have a little one on the pedal where the cable attaches that would help to , depends how stiff you like your pedal. Quote Link to comment Share on other sites More sharing options...
MACKTRUCKS4 Posted March 8, 2017 Share Posted March 8, 2017 Yes, the horizontal tab is on the valley pan, Your picture is the one for the vertical spring but I'm not sure which direction it should face since mine are broke off. But I can't see it being straight out since it won't have much strength. If you would want a stiffer pedal, you could move it up to the upper hole. Quote Live every day like it's your last, because one of these days, it will be. Link to comment Share on other sites More sharing options...
wrenching4life Posted March 28, 2017 Author Share Posted March 28, 2017 Anyone have any more insight on the return spring tabs? It seems the vertical spring tab makes the most sense to aim straight down (correct me if I am wrong), does the spring that attaches to the valley bolt mount/attach real close to the bolt head? or is it a longer tab? Thanks All! Quote Link to comment Share on other sites More sharing options...
Back In Black Pulling Posted April 1, 2017 Share Posted April 1, 2017 1 Quote Link to comment Share on other sites More sharing options...
wrenching4life Posted April 9, 2017 Author Share Posted April 9, 2017 Awesome Thank you So much for all your help! That sure shows what I need! Quote Link to comment Share on other sites More sharing options...
