Foot treadle valve


hicrop10

Recommended Posts

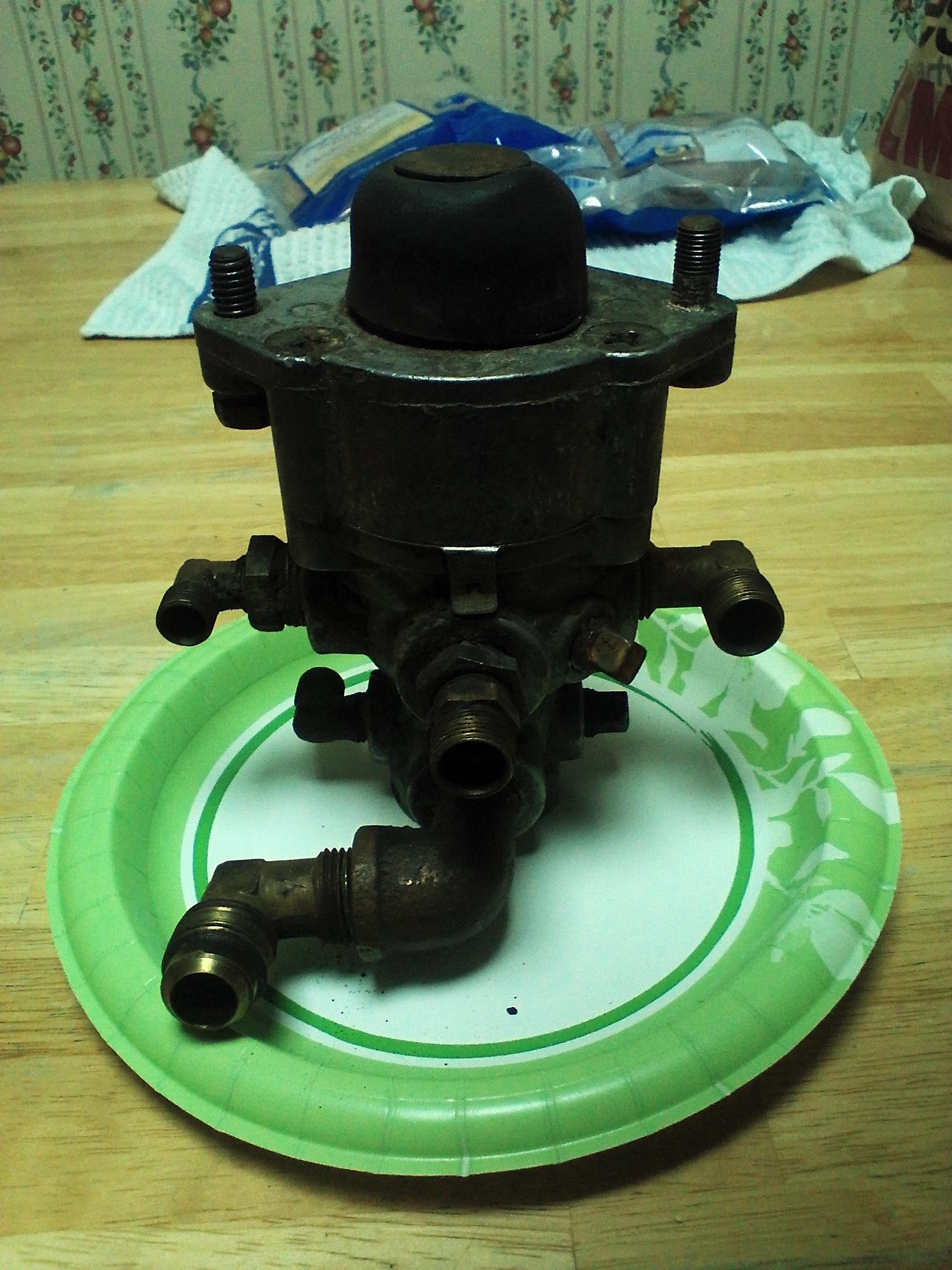

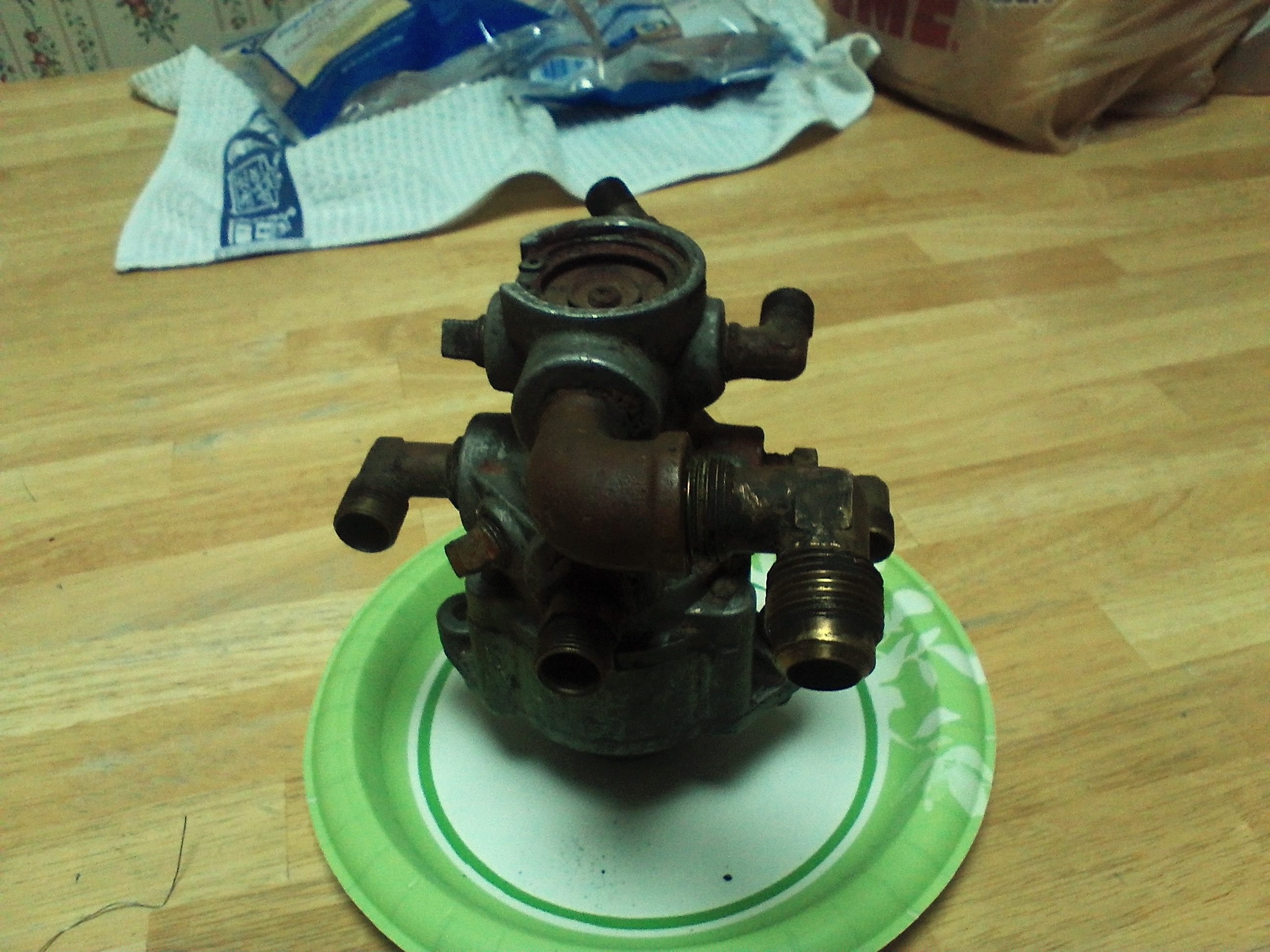

To make a long story short I need some help.Had a fellow that was down on his luck,help me on the disassemble of my air system on my B87 tractor.When he removed the treadle valve he didn't mark the hoses.Looking at the pi below I'm thinking the big opening is for the in coming line for the air?AL of the others are the exhaust ports?Thanks for any help.
