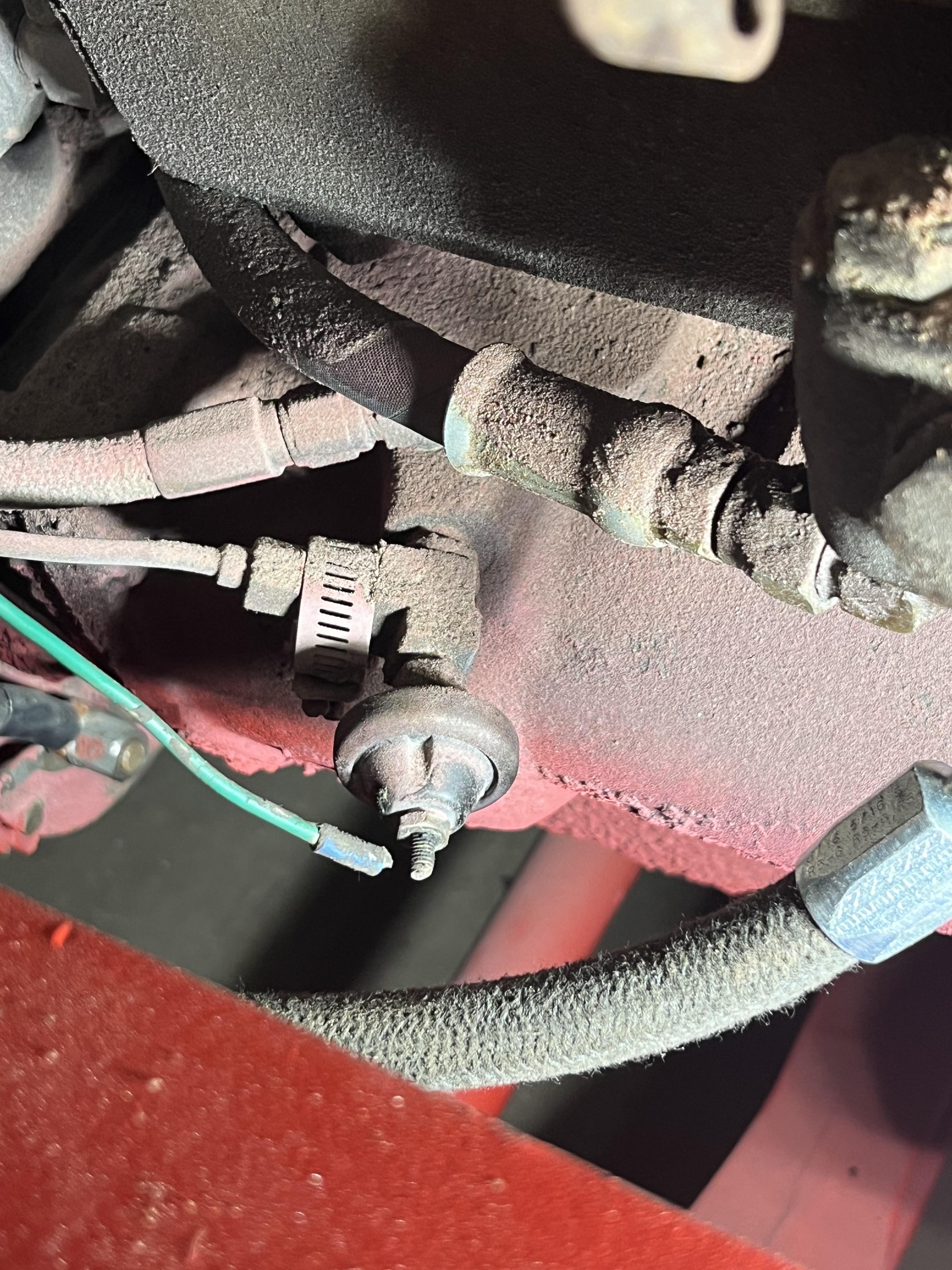

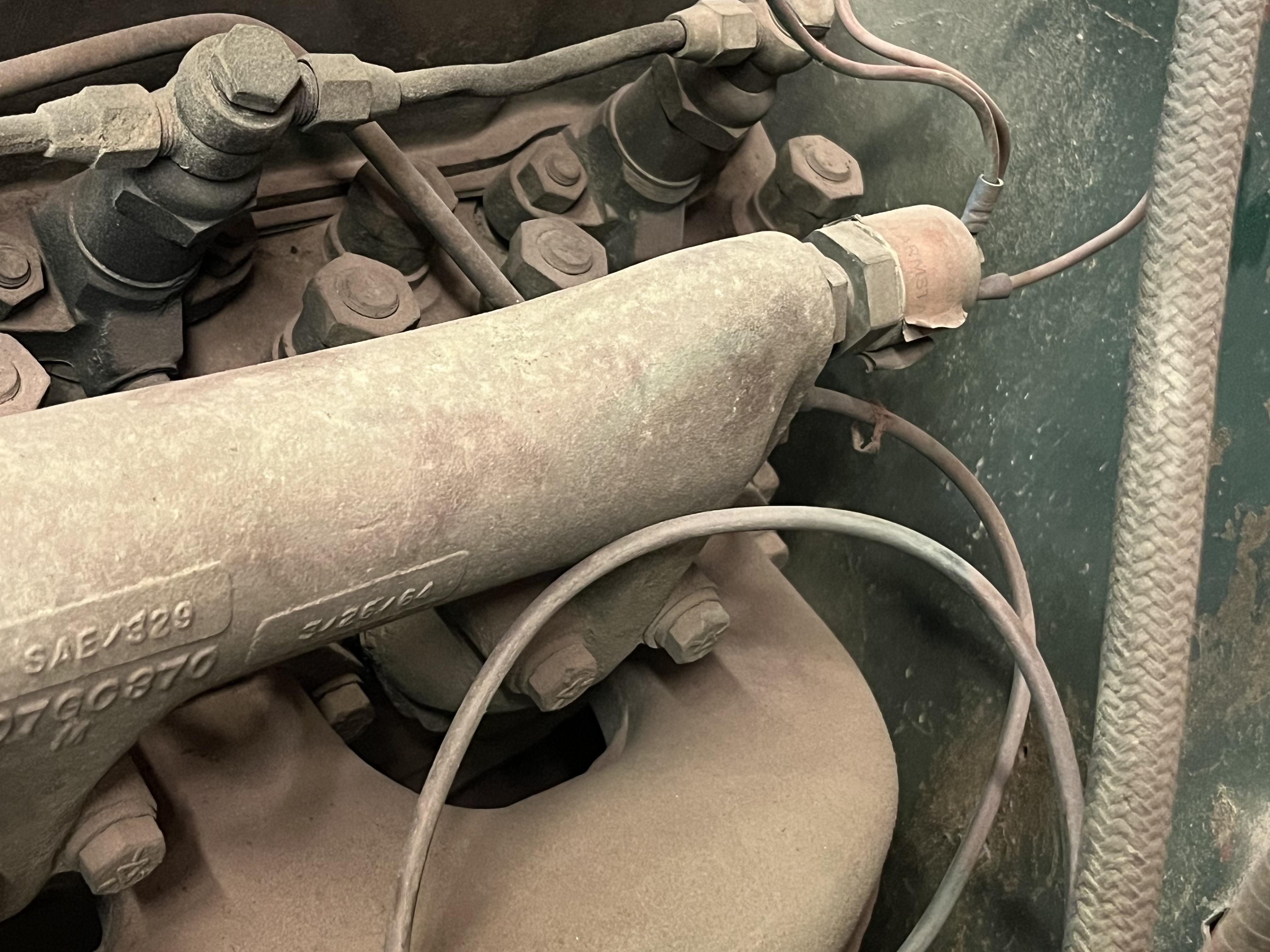

Coulton Posted February 12 Share Posted February 12 Anyone know how to wire or have diagram to wire vintage Kysor alarmstat. Have bell under dash and temp sensor at rear of water manifold and oil sensor below fuel pump on block. It’s on a Thermodyne 1955 B-61 Quote Link to comment Share on other sites More sharing options...
mechohaulic Posted February 12 Share Posted February 12 what exactly needs wiring ? pictures show wires connected?? should be a relay some where in the system. power to relay/ relay to bell or light / wire from water/ oil sensors to relay. simple system , have installed ---- (few). yrs back don't depend on this memory totally Quote Link to comment Share on other sites More sharing options...

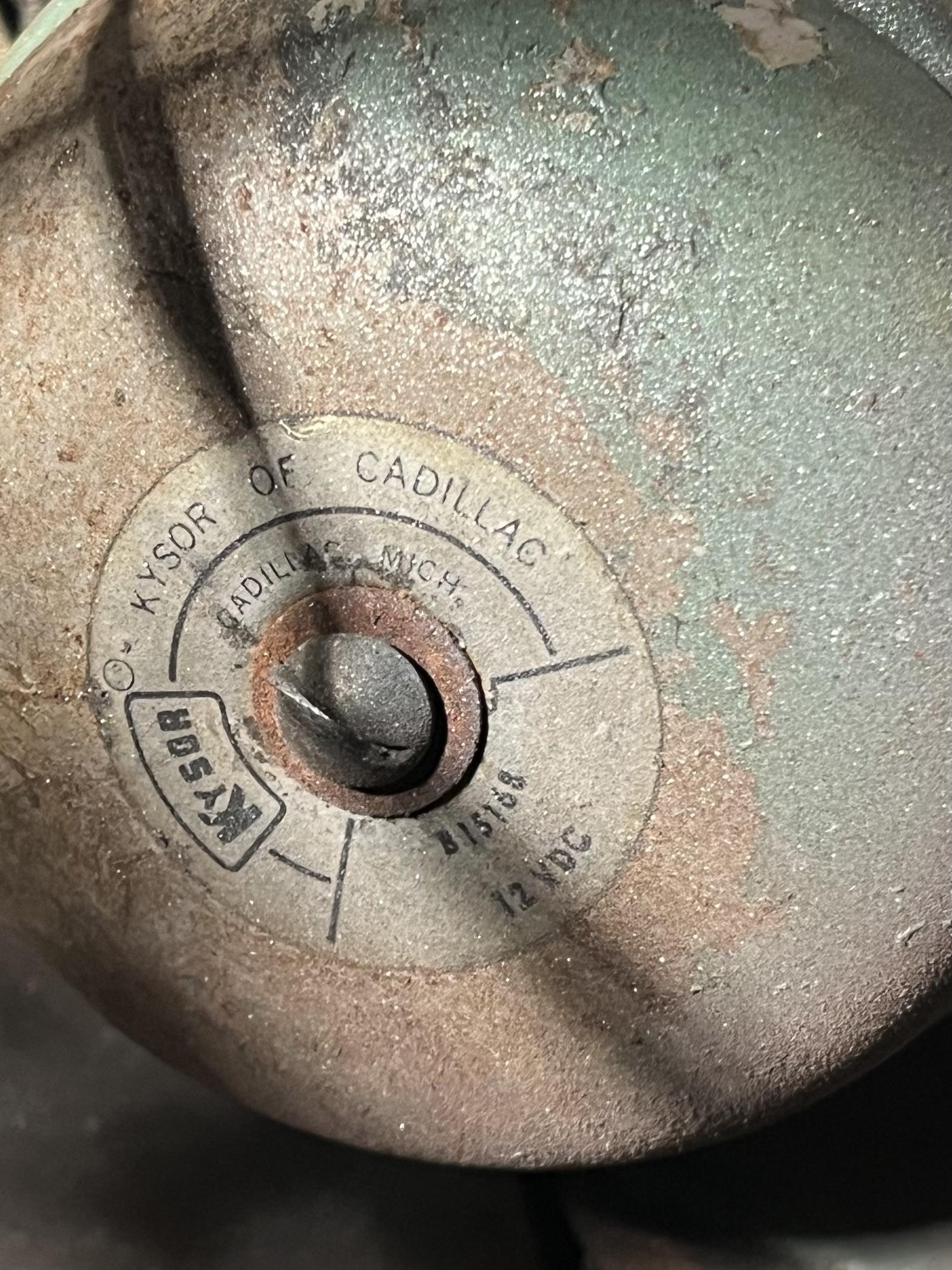

Coulton Posted February 12 Author Share Posted February 12 (edited) All the wiring is cut or not attached, the relay maybe missing , the bell has a couple 2-strand wires leading out of it but they’re not connected to anything. I’m only holding up a random wire on the oil temp sensor Edited February 12 by Coulton Quote Link to comment Share on other sites More sharing options...
sdthoren Posted February 13 Share Posted February 13 This is likely a newer version, but if you find a control module in a junkyard, may be able to adapt it. KYSOR ALARMS SERVICE AND INSTALLATION.pdf Quote Link to comment Share on other sites More sharing options...
