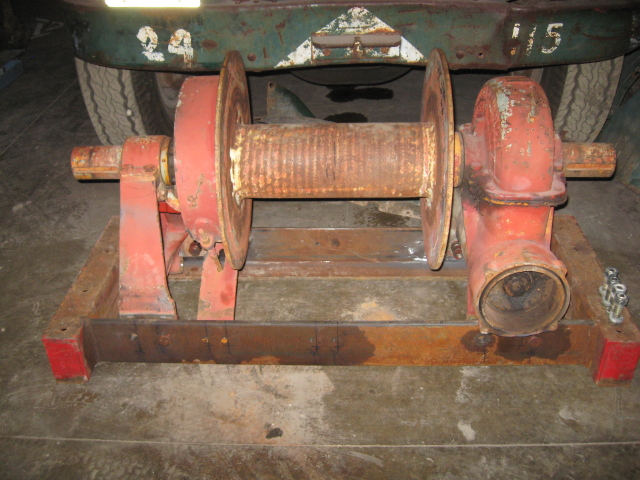

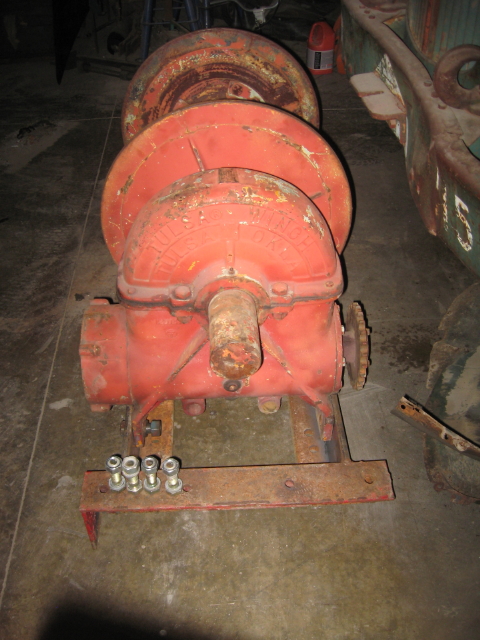

Winch Mounted In Cradle:


Recommended Posts

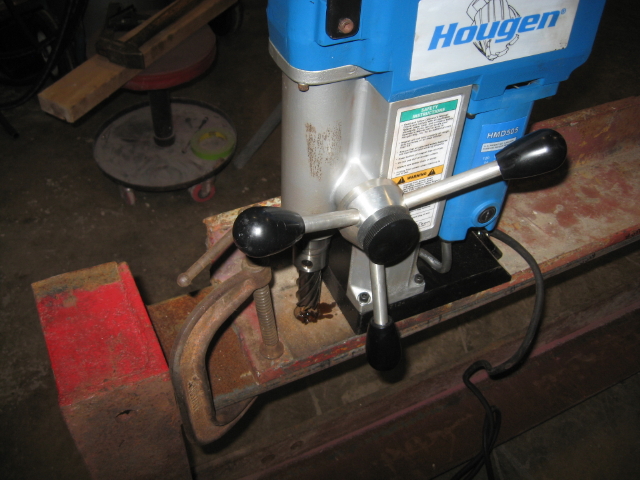

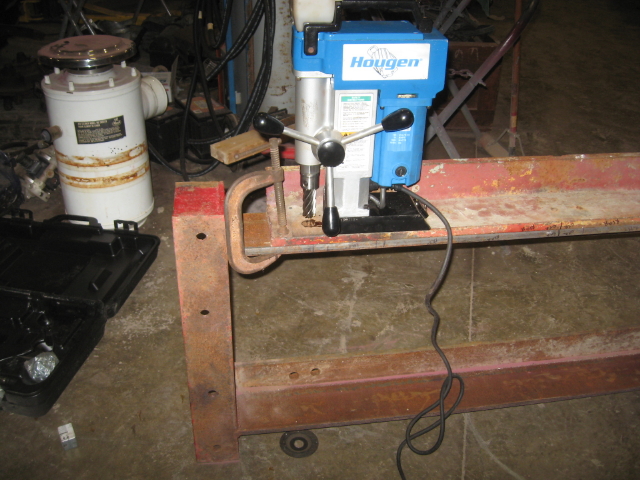

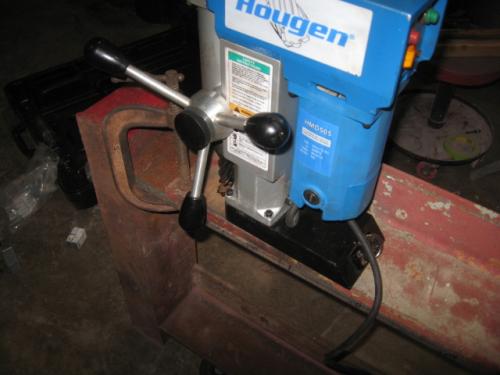

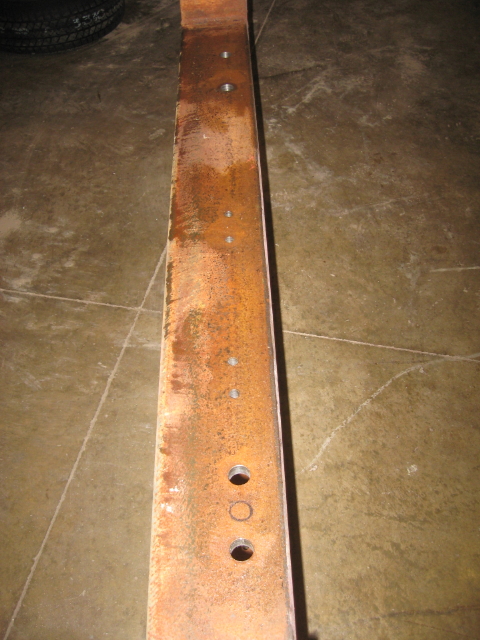

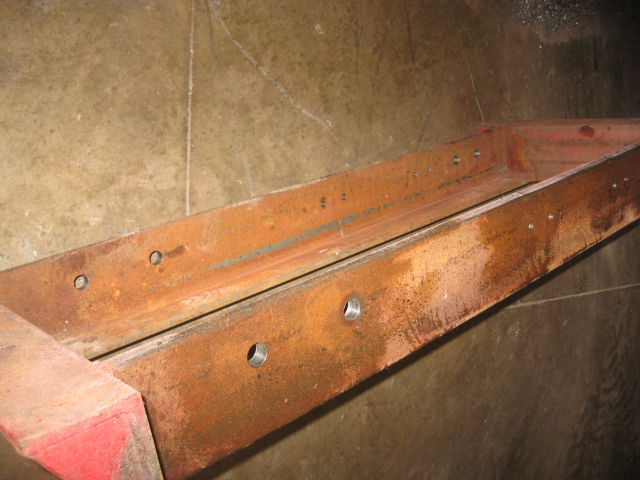

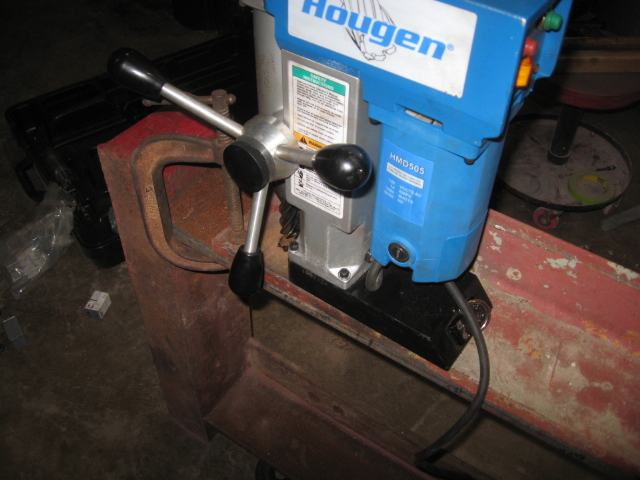

I made the weldment to support the winch last fall and moved to another project. After setting it outside, I forgot about it. Needed something small to do last evening, I grabbed the frame, old winch mounting rails, new drill, and annular cutters. It takes about 1.5 minutes to bore a 1" diameter hole through 3/4" stock, and about the same for 1/2 holes through the same material. The holes are very close in dimension with only about .005 out of round. I could probably adjust the gibs on the drill to close this up also.

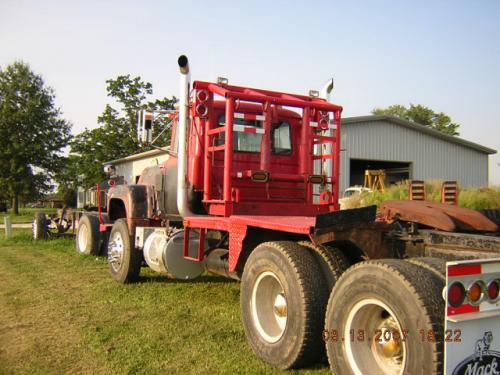

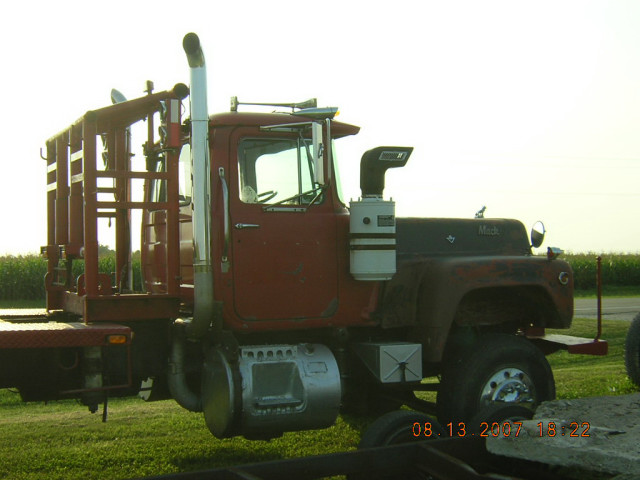

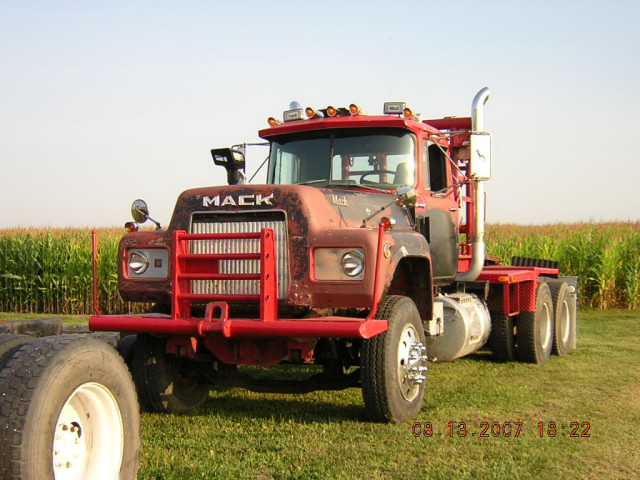

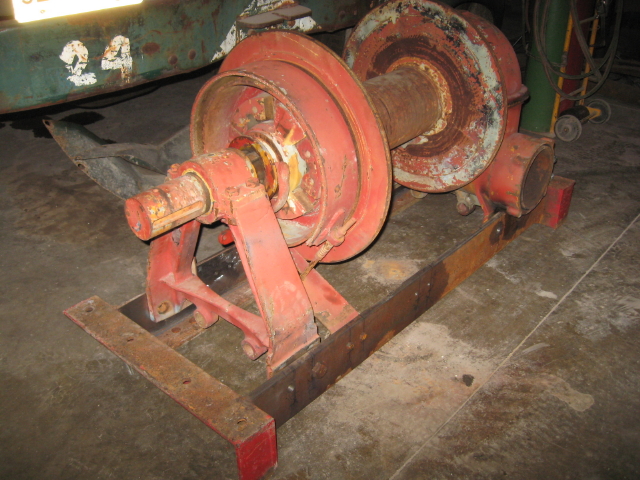

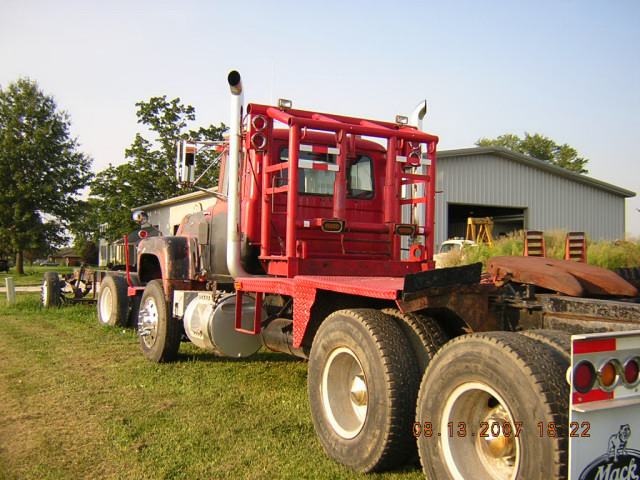

The new weldment fits to the frame of the truck and the headrack bolts to the horizontal flanges.

I like working with good tools.


post-78-083444400 1276776599_thumb.jpg

post-78-036810200 1276776602_thumb.jpg

post-78-010089300 1276776605_thumb.jpg

post-78-095827000 1276776607_thumb.jpg

post-78-048399100 1276776610_thumb.jpg

post-78-007723800 1276776613_thumb.jpg

post-78-088285900 1276776615_thumb.jpg

post-78-059687600 1276776618_thumb.jpg

post-78-074191000 1276776868_thumb.jpg

post-78-050612200 1276776870_thumb.jpg

post-78-081181500 1276776871_thumb.jpg

Dog.jpg.487f03da076af0150d2376dbd16843ed.jpgPlodding along with no job nor practical application for my existence, but still trying to fix what's broke.
