wyodog

Sorry @Bumsteer - Didn't see your question. I have had it up too 65, but she wants to be around 60-ish.

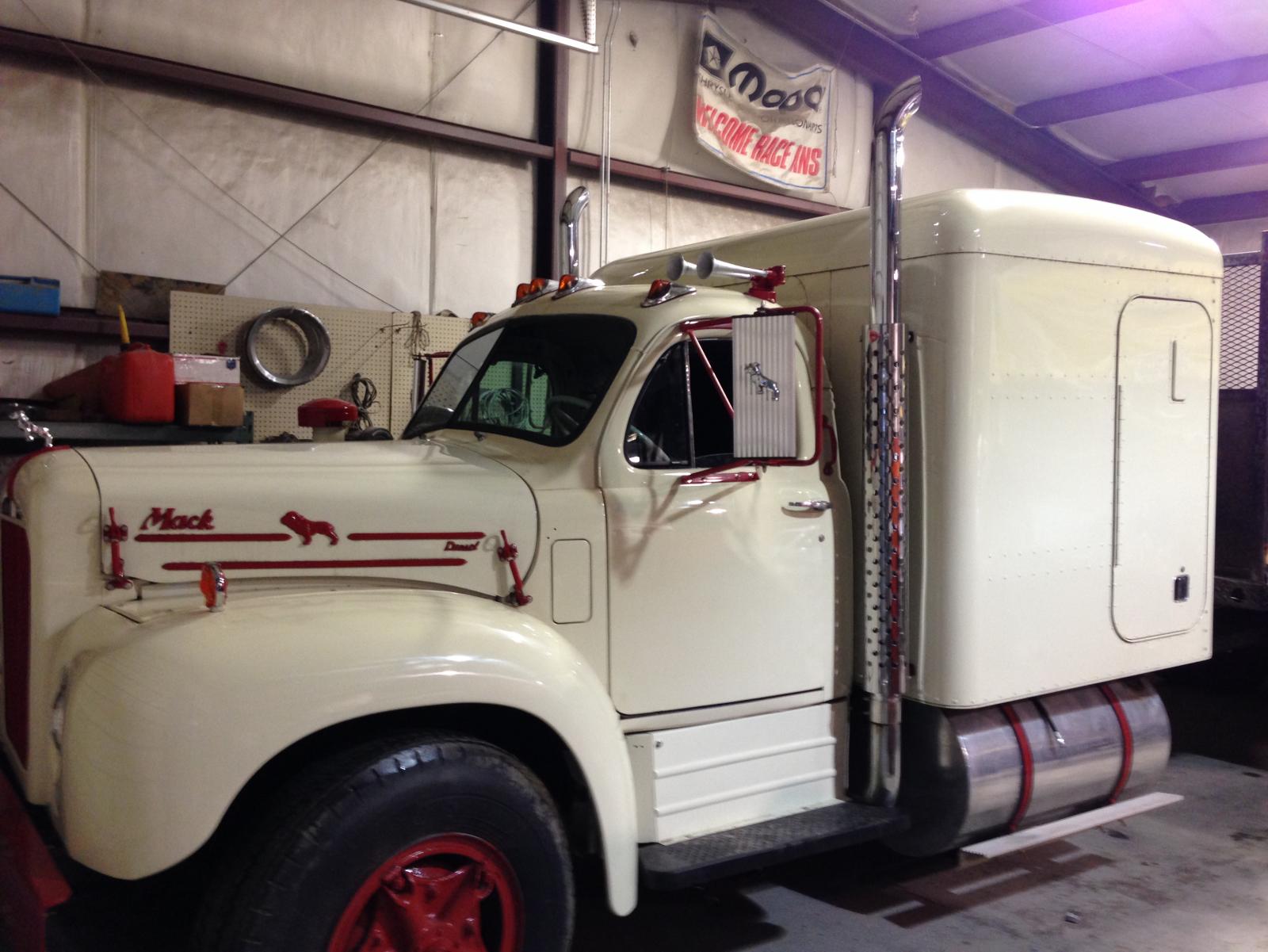

Restored this B model mack back in 2015. Driven a handful of times. Just had it serviced this last year. Does need rear tires (weather checked) Started as a B-53 Original END-672 Sleeper from Peterbilt extended the frame, and rear end from a 1972 GMC Kodiak Many little upgrades, all-new rear brakes Quadruplex with 2 speed rear end. Always starts right up. Please let me know if you have any questions. Good looking unique truck. I am asking 14K for it. But open to offers.

1998 DT466 complete, good used, not a core. Bought this frame cut all wired running motor with the intent of putting into my B. I've decided to go a different way. Engine is complete, wiring, turbo, radiator, everything. See link below to see the motor running before it was shipped to me. https://youtu.be/7MYACBMUA8k If you're in the Colorado / Wyoming Area I can look to help deliver.

So let me be a bit more clear on the sleeving that was done. The steering input shaft into the box, the shaft itself had a pretty good groove on the sealing service. So where the bearing/seal was a grove was worn into the shaft, so I was able to just pull out the top section of the box and remove the input shaft. I had my machine shop lathe down the grove and we made a sleeve to ture up where the sealing surface was. So i don't disagree that the assemble / disassembly is part of the problem. To remove the top section, you have to remove the top poppet adjustment screw. Once I reassembled everything I have never been able to get the poppet screws/adjustments correct. I have been fighting this problem for years and have tried many combinations of valve adjustments, etc.

Hey Tom -- Good catch on the B55. This is my mistake, and I keep making the typo everywhere. The Truck is a Mak B-53. The reason I keep doing the typo of B-55 is that was the truck number from the concrete company. B-55 is just stuck in my head cause all the paperwork, the original numbering on the truck was B-55. Sorry for the confusion there. I now see I made the same typo in my profile as well.... --Josh

Yep, it's a power box, with a belt driven pump.

Thanks, I will try and get out tomorrow and see if I can do that. The weather here is supposed to hold nice so can get some pics and run it without the link. With taking the drag link off. You looking to see if it is providing any power assistance? Putting adding opposite pressure? Doing nothing? All of the above?

I was just looking through my albums to see, and I don't think I do. I will need to take some. Only ones I could find are the pics I took of the steering box end cap to get the model info from. Will need to take some pics...

Correct. inside the frame rail. The Truck is a B55 and was originally ordered as a cement truck. There are some guesses as to where this steering box came from, as I said might be off of an R, or the guy who I bought the truck from thinks it came that way. Anyone who has seen it, and knows B models always tells me that it isn't original.

Correct, the box that is in, we tried pulling out. But it looks like the previous owners (A cement company here in Northern CO) might have put in a steering box that was out of an R model. When trying to drop it from the frame, it hits the engine block. We would have to lift and shift the engine out to pull the box. We tried doing this a while back ago, and when we realized what it was really going to take we just bolted everything back in place.

Hello! I haven't posted anything in a very long time. A few reasons for that but the short story is I have been struggling with my truck in a few ways, and she is not getting driven. As you know, when things sit, they start to deteriorate, and my truck is no exception. One of the biggest reasons I have not been driving my truck is the steering. I have problems with the poppets, and I am either way to stupid to figure out to adjust them correctly, or there is more going on with my steering box then I know. In short, I can't turn left, unless Popeye is driving. She fights me the entire turn and more often than not on tight turns off the road I go. The box on this truck is an older Sheppard box which I can't find any parts for anymore. Even after working with the nice people at Sheppard left me with few options. For me to even go down the road of rebuilding this box, means pulling the engine. The truck has the original END673. If I am going to go through the hassle of doing all of this, My thought would be to get a school bus with a DT466 and an Alison and just do a full swap along with re-doing the steering to something more modern and serviceable. When I restored the truck originally the steering box we knew had some issues. We pulled the worm gear out and have to sleeve it, and re-do the top seals. I remember before we tore the truck down, the steering while super leaky, had no issues steering. But pulling that worm gear/top section. It just never was right after that (doesn't leak anymore though...). A lot of money, and effort into something cause I can figure out poppets right... Now I know a full swap isn't required, but hard to want to put that END673 back in her. Even if I could pick up a 237 maxidyne with a turbo, would be a good move. But this all leads me to the truck has sat for the last two years, and in the last 4, I have maybe put 15 miles on her. I am at the crossroads of either needing to get her running to where she is truly roadworthy, or I need to find her a new home... I got her fired this weekend, battery charged, and running so I could pull her into the new shelter. Built a 30x30 shelter to where I have at least gotten her out of the sun, hail, etc. At least when pulling her into the new parking spot, it was a right-hand turn... :-)

Been thinking about replacing the END673 out of my B53. There is nothing wrong with it now, just no real power to speak of... That said, this motor has been floating around criagslist for awhile : http://denver.craigslist.org/pts/5418223745.html Looks like a E6? I e-mailed the guy asking for the block numbers. Didn't know what you guys thought. Also not sure if it is worth the $1500... Thoughts?

Hello! I am need of some wiper parts for my B model. What I need is the wiper mounts (wiper pivot assembly) that mount on the cab. So far all I have found are the modern ones, need a right and left on for my B. I have a good motor, and linkage, just need the pivot assemblies. Thanks! Here is a picture of the modern versions, but give you a idea of what I am looking for.

B615rich - thanks! Just curious, what tipped you off that it is a B55?

thomastractorsvc - Thanks. Basically you said it. Local shows, camping and general hauling. I am looking to get a pop-up camper I can put on the bed from time to time. Building this truck was just to do something a bit different, and still try to make it very functional. I still need to wrap up the interior of the cab and sleeper, almost there, just finishing odds and ends.

Took the truck on it's first shake down ride. Truck did great. I need more practice at shifting... The throttle was sticking a bit and not letting me drop the revs low enough to get in gear. Lubed up the linkage to fix the problem, but made for a couple grinding shifts... I was able to land a load! Hauled a dump truck for my daughter...

Looking really good. I am glad you were able to give it a good home.

http://cosprings.craigslist.org/hvo/4940240751.html No connection, would love to add it to my collection, but not in the cards right now.

Weather was great this weekend, was finially able to get my new to me tool boxes installed, along with getting some odds and ends done. Next weekend I am taking her on a real shake down drive. I have been fighting some issues with steering and think I got all the kinks worked out. So need to actually take it around the block and down the road...

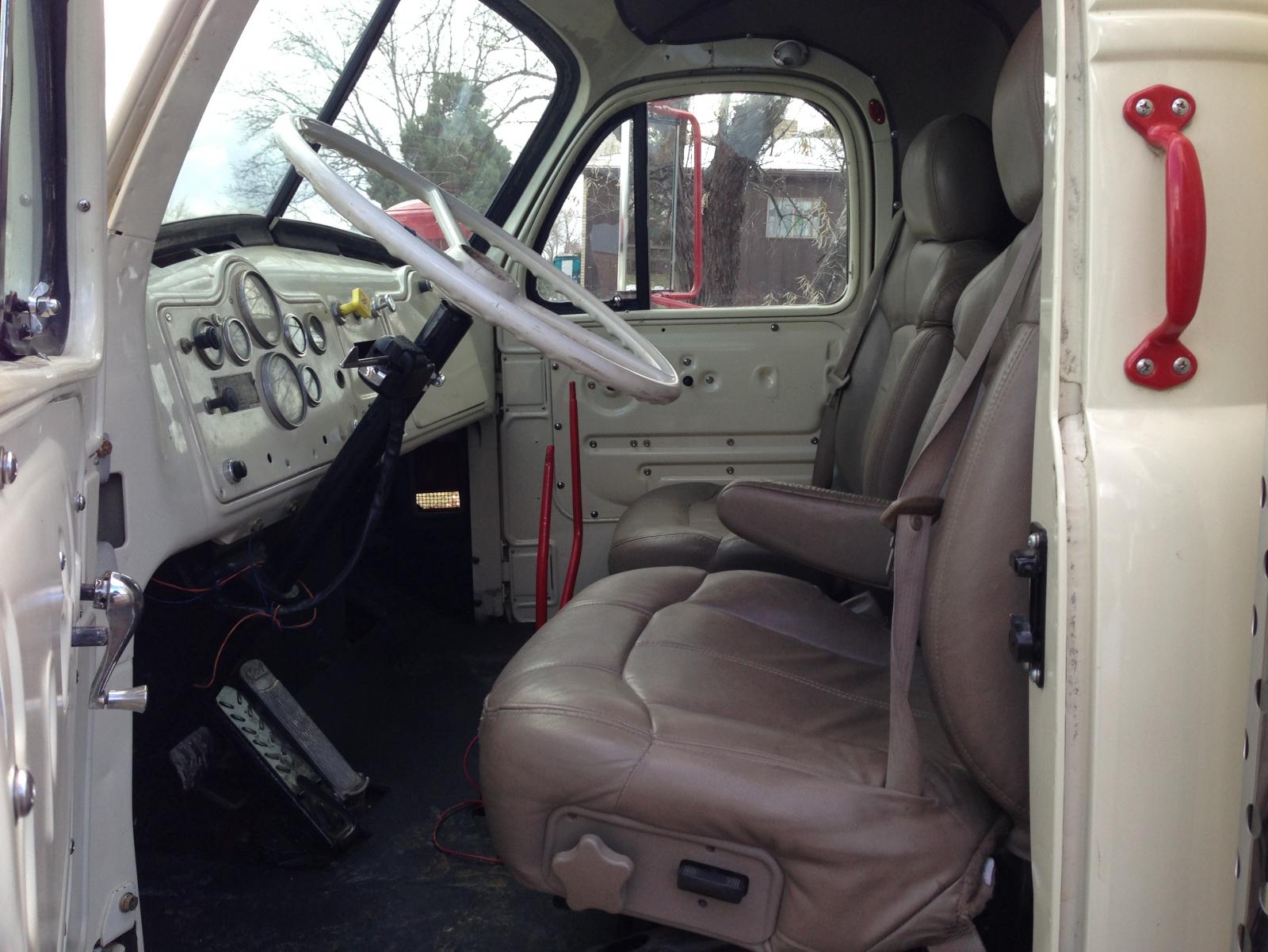

felicello122 - Thanks! These seats came out of a mid 90's GMC Yukon. They worked great cause they have the seat belt built into them. They are a powered seat but I am not going to wire them. For them to fit they need to be all the way back pressed up against the cab. But they fit pretty well. Freightrain - I ended up ordering the headliner through Watts. Wasn't excited about the price, and after over-sized shipping cost. It's a cardboard based headliner. When I tried to installed it, I was messing it up. I have the sleeper on my truck, so the headliner needed to be trimed. Found a local guy who did a good job for a good price and fixed my goof up and got the rest installed. Wish I could take credit for the headliner but interior is just not my thing. While it did come out nice, and I am happy with it. If I have to replace it down the road, I will find someone local who can make one.

Hey Guys -- So I am approaching the end of my truck build, and the truck has not been driven very much over the last 5 years as I have built her back up. I have now gotten to the point of having her around the block a couple of times just to shake things down and a couple of things have come up that I wanted to get some input on. This is my first Mack and so just wanted to throw these questions out to be better safe then broken down... 1. The injector jump, right at where the injector lines connect to the pump, very black oil is starting to come out. The engine oil is definitely not as black as what is leaking out, engine oil is actually very clean. I have made sure things are tight and they are. It is only leaking from one of the injector outputs .Is this cause for concern, I sure it is, guess just how big of concern? 2. Fuel primer. The manual pump leaks fuel pretty good. Anyone have any suggestion on where to get the rebuilt parts? Or are these manual pumps pretty generic and I can replace it with something else? 3. As much as I would love to say I will be driving this truck a ton, I won't. So it will be sitting off and on. I thought it would then be good to add a water separator on the fuel lines. Just thought I would ask to see if we feel this is necessary or a good idea all around? Thank you all in advanced. There is great knowledge in this community! --Josh

Awesome! I am glad that deal worked out for you. I wasn't able to make a deal on the other one. But glad you got your hands on that one. I was going to call back. Talking to the guy he said he had another superliner in the back with a blown clutch. Might be worth looking at.

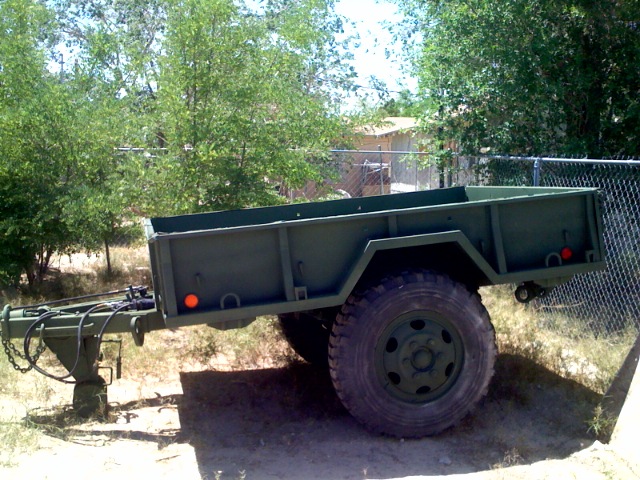

Always thought a deuce and a half trailer bed would look kinda neat. The old deuce and a halfs used to have a cab style like the B models...

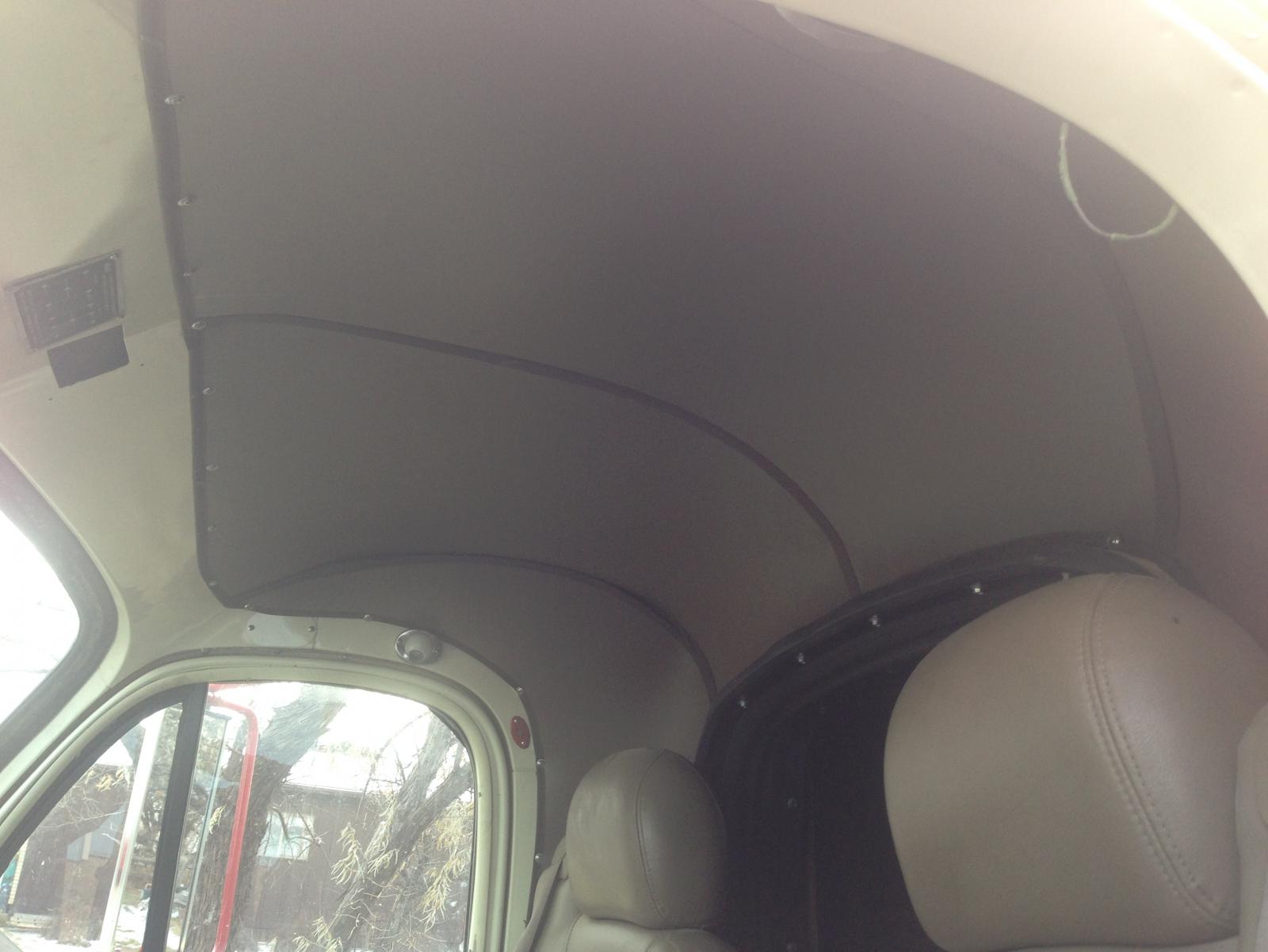

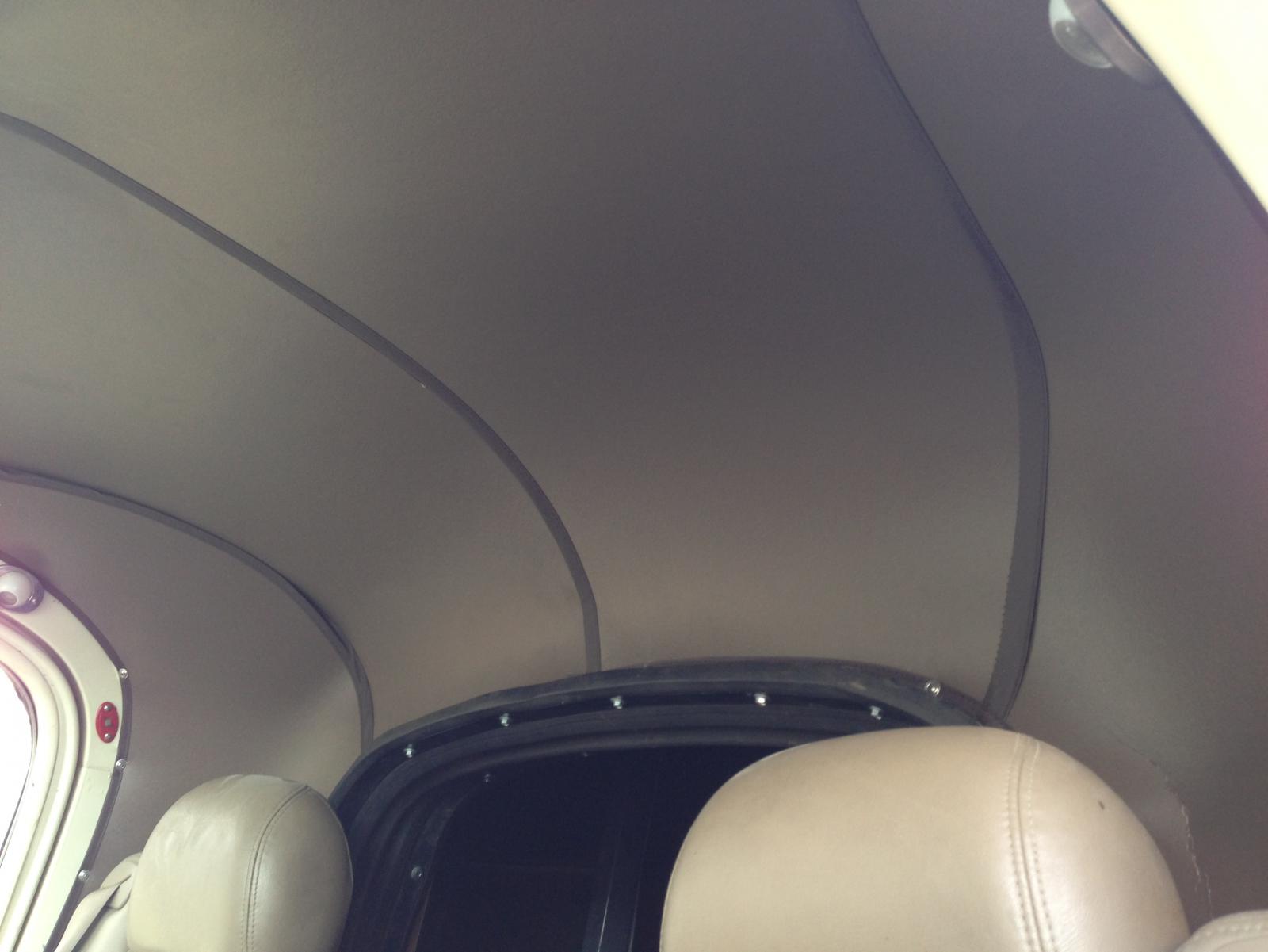

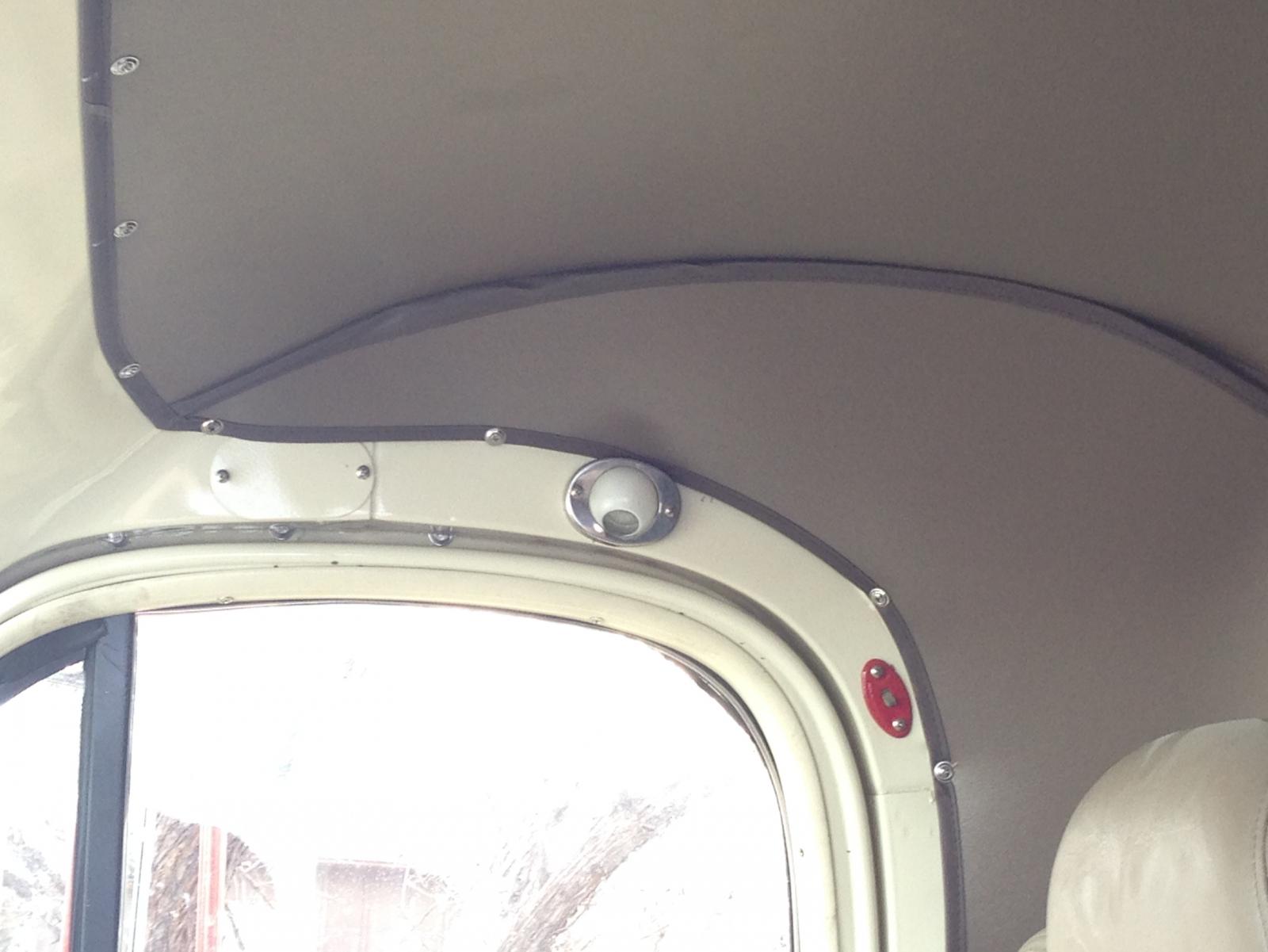

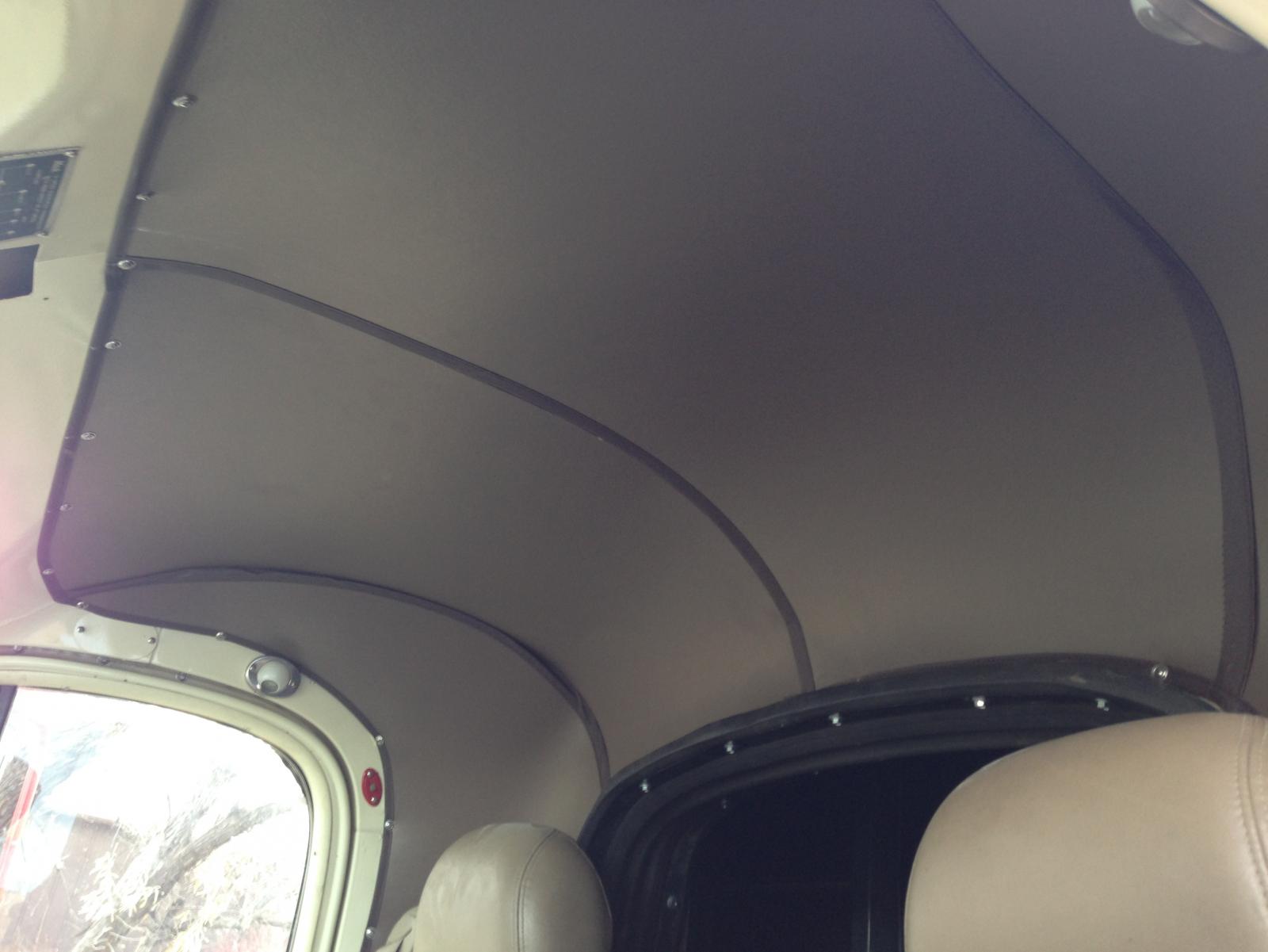

Hello everyone. Sorry for the delay in responding. This last weekend I got the headliner installed and thought I would share a couple of pics. Got the lights, switches installed... Looking good if I do say so myself.. :-)

Will do - Called the guy, going to meet up with him in person Monday.
