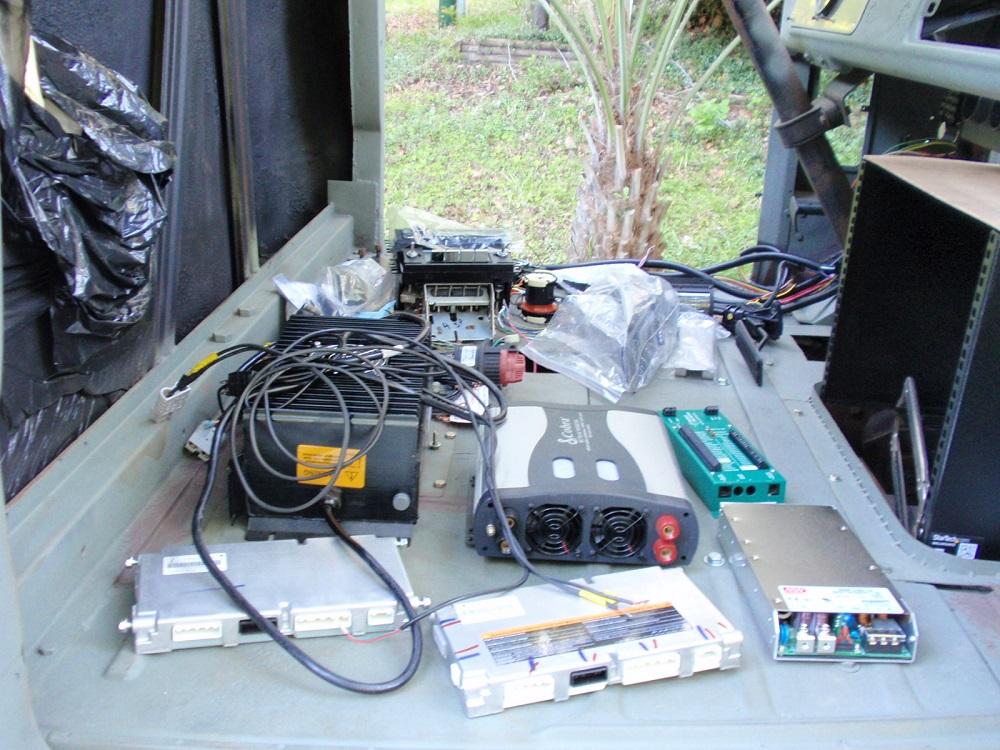

Some of the parts and electrical components

  • DC-DC Converter - 200V to 12V
  • DC-AC Inverter - 12V to 120 AC
  • Battery Charger - 120-240V AC to 200V DC
  • 2 Battery BMS (battery management system) to equalize the charge on 192 cells
  • Radio & A/C heater
  • "Hairball" - controls the "Zilla" motor controller (max of 2000 amps, restricted to 1000 amps)
  • Throttle pedal
  • Brake pedal
  • Cabling - lots of cables
