I found my air leak


Wiley

Recommended Posts

There is no air line off of that . Its an exhaust for the wiper motor. If it gets plugged at all the wipers won't work. Because its leaking air , It sounds like it is ok .  Your problem is somewhere else.

The first thing I would try is taking the air lines off the other side and put some air tool oil in them . Sometimes that's enough to get them going . Otherwise you may need a rebuild kit. I don't know much about that , but its been talked about on here . The air tool oil or penetrating oil has always worked for me .

Keith

Link to comment
Share on other sites

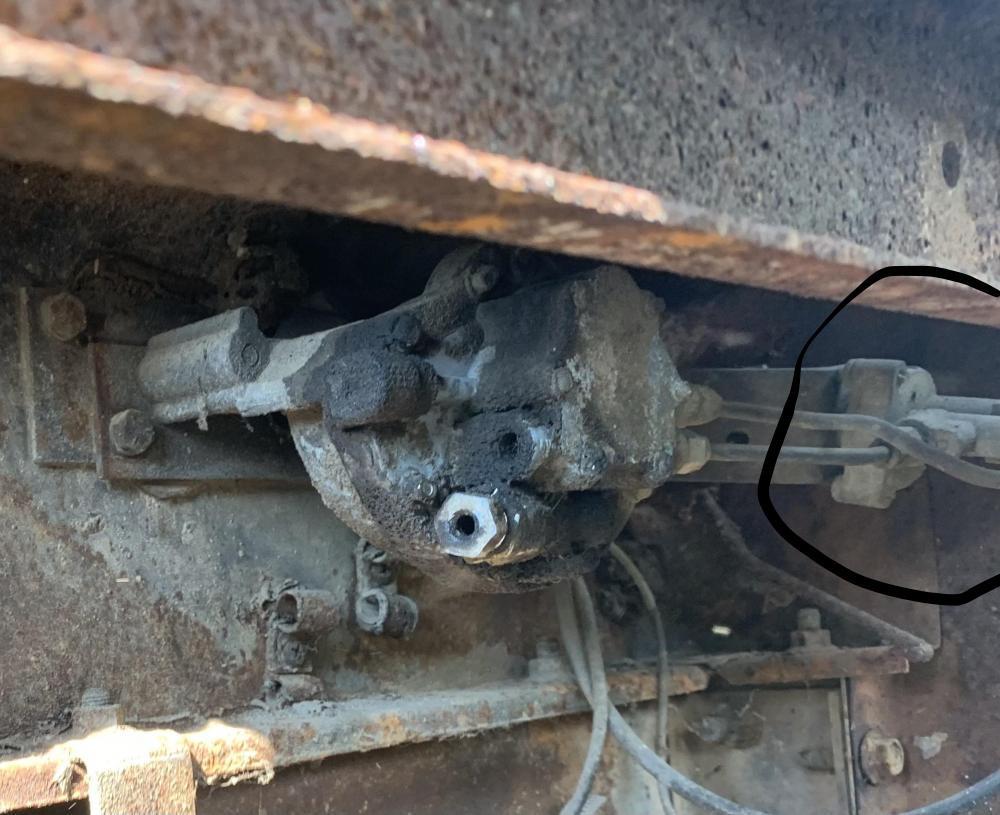

When you shut the wipers off ,you put them into park position . If they are coming on sporadicly, I would lean toward the control valve .

Its on the right side of the pic .

I think ? its part # would be 7623-7547070 but not sure . Hopefully Watts can help you or a local to you Mack dealer







43BA622B-CA0C-46EE-87A9-2F1A0611C27D.thumb.jpeg.b3447573713008f95cce66abaafbcac7.thumb.jpeg.f0966c59b83174e61f4e4f9c28599721.jpeg

Edited by 85snowdog
spelling

Keith

Link to comment
Share on other sites

Before you buy anything or tear everything apart , take the supply line off the control valve and put some air tool oil in it . Then turn wipers on and off a lot , keep putting them in park , if truck has been sitting  for a while , might be enough to solve your problem .

In case you didn't know , park position is important . If your wiper control is pull out and turn to the right to increase speed , the park is... push in all the way till wipers go back to the bottom . If you turn the wiper control to the right to turn it on and increase speed , turn to the left all the way till wipers go back to the bottom . When they are in park, no air should go to the motor and therefore no air leaking out the exhaust .

Just my thought anyway





  • Like 1
  • Like 1

Keith

Link to comment
Share on other sites

12 hours ago, 85snowdog said:

Before you buy anything or tear everything apart , take the supply line off the control valve and put some air tool oil in it . Then turn wipers on and off a lot , keep putting them in park , if truck has been sitting  for a while , might be enough to solve your problem .

In case you didn't know , park position is important . If your wiper control is pull out and turn to the right to increase speed , the park is... push in all the way till wipers go back to the bottom . If you turn the wiper control to the right to turn it on and increase speed , turn to the left all the way till wipers go back to the bottom . When they are in park, no air should go to the motor and therefore no air leaking out the exhaust .

Just my thought anyway





Thank you very much sir. I will do this.
