Hi all,

I was hoping someone might be able to help me with a bit of info on post '78 valueliners.

I'm currently working on a scale model of one but there are few Macks over here let alone Westerns to look at for reference.

I've worked out that the radiator sits down between the frame rails on a crossmember which straddles the spring hangers but I don't know where the bottom hose goes in. I'm assuming it must be somewhere down at the bottom left and that it comes out at the back.

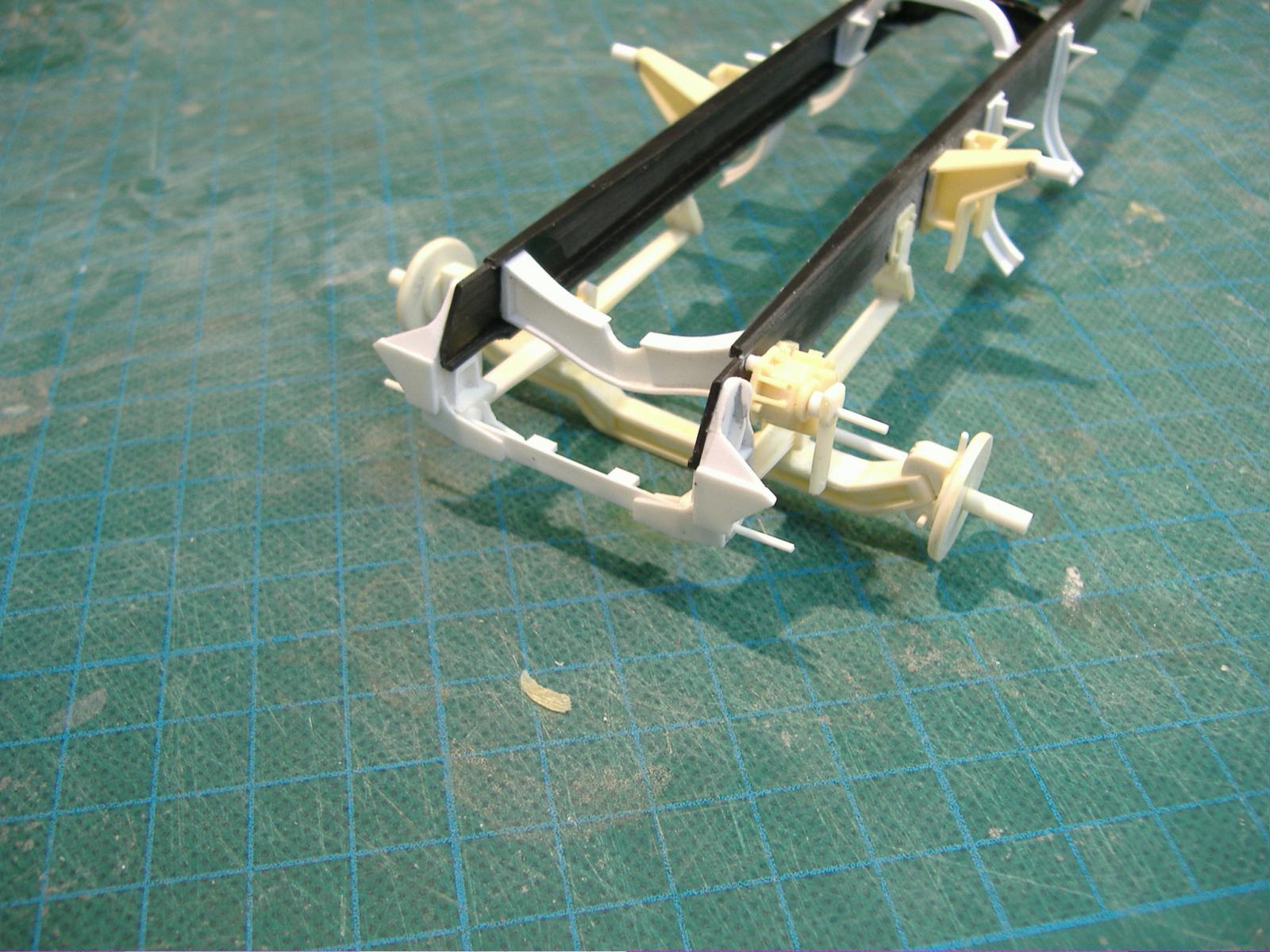

I'm attaching a pic of the frame so far. You can see the angle bracket crossmember which the radiator sits on right at the front.

Any help would be appreciated.post-10557-0-41582800-1328707821_thumb.j
