  1. You all have good suggestions. I have a guy that is welding something in but as you all think, and same with me, dont think what he is doing is near enough. I tried to get it threw his head that I could have upwards of 28 ton of material in the body and the added factor of the lift axle being right where the crack is going up and down constantly. I have adjusted my psi to 45 now. I just dont have the money right now to do a complete rail changeout. Mack dealer said it would probably be around $11,000. I know there are guys out there that can fix this problem, but finding them here in NJ seems to be like finding a needle in a haystack. There are a few guys that seem to talk a good game, but I dont think they have had experience with doing this. The welder doing some work now wants to weld in a 3/4" thick elongated diamond shape on the inner rail. He said that is how they do it when they stretch frames. But just doing that I told him is not enough. I was wondering if that was done, then adding a piece of C channel the next size bigger on the outside of frame on both sides to be bolted on and tied into the crossmemebers, if that would do the trick. I dont have the welder or the expertise to do this, and just cannot seem to find anyone that I trust to repair this once and for all. Maybe even purchase a crossmember from Mack and add that right in the middle of where the lift axle bracket bolts on. I mean I know there are guys out there that stretch big truck frames. Has to be someone around that can fix this correctly
  2. Hey Guys, Well about the cross members. There is 1 cross member about 16 inches in front of the crack. It is just behind where the mounting bracket is for the dump body ram. On the other side of the crack, going towards the back, there is a cross member about 2 1/2 feet behind crack. And no, the fish plate that someone else had put in there that is still there, is cut to fit in between those 2 cross members. In order to get a piece that extends past each of those two cross members, I guess that would mean I would have to take them out, cut them down the thickness of whatever plate I would use and weld them back together??? I did find out that I was wrong about the price on the rails. I was told by some dumb a** that they were $1500. They are $3500 for ones from Mack Dealer. I took a long look at the truck today. My only problem would be getting the dump body off. That is not in my capability at my house. This thing is driving me crazy. I just dont have the cash to go out and buy another truck. I either have to figure a way to get this fixed right or try and sell it off to get into another truck. Dont know what I should do. It sucks cause I have plenty of work for the truck, just dont know if it is going to give me a problem. The only good thing I have going is that when I have a load on, when the lift axle is down, it is actually supporting that cracked area as the bracket for it is almost dead center of the crack. My only problem is trying to keep the truck from bouncing around when I get to the dump site loaded where I cant have the lift axle down. I would like somehow to get this welded up so it is ok but if I have to replace the rails, I will have to seriously think whether the truck is worth it or not. Right now it is my livelihood, but replacing the rails is a good deal of money and a good deal of down time, which neither of them I can afford.
  3. Hey guys, Was not sure where to put this so hope it is ok. Wondering if any of you guys know if there is somekind of valve on a hydraulic piston that lifts the dump body on a dump truck somewhere that can control how fast or slow the dump body comes back down after i dump a load. Right now it takes forever to come back down. I just had everything rebuilt about 5 months ago. Just wondering cause I would like to speed it up if possible. Thanks, Jeff
  4. Your opinions are much appreciated. Obviously your right about the best thing to do is replace the frame rails. Just wondering how long you think it would take 2 mechanically inclined guys to replace them. I heard the rails are only $1500 so no big deal. But my problem would be the down time. I guess I would have to someway support everything mounted to the rails and figure out a way to take the weight off that side of the dump body. I have so much money into this truck, I really dont want to get rid of it. And, yes, the pictures you saw are that of the cracks before it was welded. I know that replacing the rails is the best way to go, but you dont think seriously beefing up the inner channel (fishplate) would work??? Just wondering. It really sucks where it is because everytime I engage that lift axle it is putting stress on that cracked area. I dont know what the previous owner did to crack both frames, he never would tell me after I found it. I am trying to go after him legally but probably wont get very far.
  5. You got that right. Everytime I pull out with a load, EVERY TIME, I think of that crack.
  6. Ok, got what you are saying now Sean. Yeah, that is alot of work. Have to see what we decide to do here. Thanks for the contact Mark. I will give them a call and see what they say.
  7. First, yes Sean, you were correct about my original post and I apologize for that. I should not have done that and just given all info. My fault, Sorry! Everyone seems to have good ideas. I do like your suggestion Sean, but not sure I exactly follow you. It does not seem like you are saying to replace the whole outer frame rail but dont know exactly what you mean by splice it 3 ft forward? Are you saying to actually cut the outer rail away, weld the inner rail and then put a new pc. in welded 3 ft. away from crack on either side to help relieve stress that is right under the lift axle bracket? If not, could you explain a little further. And if you are saying to replace the whole outer rail, do you have any experience with how long this might take to accomplish removing and installing new one. I consider myself pretty mechanically inclined and know just from looking at it that it seems to be an immense amount of work. Also, I am running about 75psi in the lift axle. When it is engaged you can fell it slightly raise the truck up but that is what I have been told by several guys to run it at. Also, the welder was going to put something on the outside, but decided against it. Two reasons. First because the lift axle bracket is right where the crack is. Second, he was unsure of the regulations and wanted to know if I got stopped by DOT and had something welded on the outside of the frame, if that would constitute failing the inspection. He said with other cracks in frame rails he has repaired, he never had to weld anything onto the outside, but in this case, it might be necessary to end this problem.

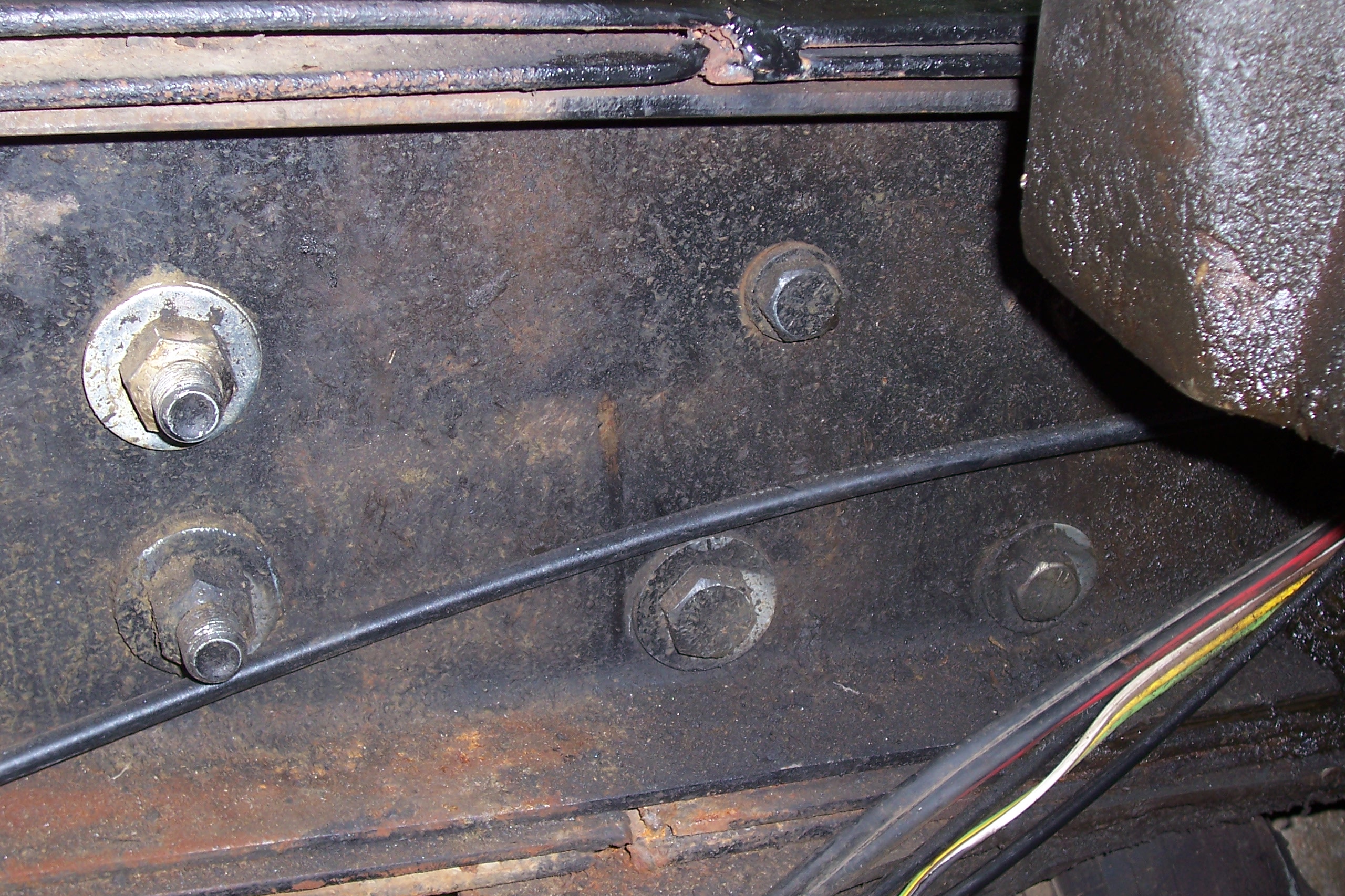

  8. Hey Guys, Need some advice and ideas. I'm very nervous about this. You probably heard me mention this in another posting a while back but could not find it. Anyway, I have a 97 Mack RD688S Tri Axle Dump Truck. Unfortunately when I bought it about 8 months ago, I did not look over the truck as good as I should of and got the shaft big time. It had a complete crack threw both sides of the double frame. How it happened I have no idea cause obviously the jerk I bought it from never mentioned it. There was a fish plate on the inside spanning about 2 feet in front and about 3 feet behind the crack. The crack is right where the lift axle bolts onto frame so it was hard to see especially when it was doctored up, but definitely not fixed. I had it repaired by a guy that I have confidence in as he has done these kind of repairs before. But because of where it was located he said he could not guaratee it with the lift axle constantly putting pressure and flexing the rails everytime it is engaged. He told me he V grooved the cracks, put in a root weld and then welded it up. He also said he let it cool down slowly. Not a welder so not sure, but that is what he did. So, I am up for any advice as to what I can do to try and fix this permanently short of replacing the frame rails cause I know that is a huge undertaking and the truck probably is not worth it. The problem is I know I cant keep having this welded because I heard of metal fatigue and then from what I have heard, I am screwed if it gets to that point. To my knowledge, not knowing what the owner did, although the guy I had do it said when he took the fish plate off the inside, he saw no welds, so I think his was the first weld on it. The fish plate on the inside is the same stuff the frame rails are, just the next smallest size to fit inside. It is bolted on in several places with the lift axle bolts and some others. I was wondering if that plate was seriously beefed up, if that would help things, maybe not letting that area flex as much when the lift axle is engaged. Any ideas??? Forgot to put in that my reason for asking for help is that it was repaired about 5 months ago by the guy. Last two loads I did yesterday I heard a slight vibration going around slight turns with lift axle down. No, it is not steerable but just going around slight turns on highways. When I was fueling up I looked in the area of where the cracks was welded and noticed that there was about a 4 inch crack there. So I caught it before it went real far, but the frame is already starting to sag on that side so I dont know what to do.
  9. Forgot to mention, put new yokes on rears when I changed the rears
  10. Yes, all the bearings and races were checked and seemed to be good. So here is where I am at now. The mechanic came over. He took about a 1/2 hour ride with me. He said he hears no noises that would indicate any major problems. What he did hear is very odd noises coming from the air dryer. I have had problems with it for a while but left it go because it was still purging off the air. What mine is doing is when it purges the air, instead of purging and shutting off, it purges and then goes another 10 to 15 seconds just mildly spitting off a little air and then shuts off and does it all over again. Well in that extra 10 to 15 seconds, it has been making some ungodly noises. And I have also been having some issues with my compressor. It has been leaking. And, the mechanic said it is also making noises and that is probably what I am hearing. But, I asked him, how does that explain the vibration noise that just started when I get to 65mph. He could not say as, of course, it did not do it when I took him for the ride. It just did that the last time I was on the road and I was loaded when it happened. He went over the truck and he found nothing loose. So, I replaced the air dryer yesterday but I am having him come over tomorrow to replace the compressor. Then, have to hope that cures the problem. I was wondering if it could be a drive shaft but I looked at all of them and the weights are all intact. And that should have nothing to do with them going out of whack with new rears and tranny, correct??? Could it have to do with 1 tire I have that is pretty much bald? Just trying to think of things it could be.
  11. ***UPDATE I was given false info by the counter guy at the shop. I found out that both rears had the 442 gears in them. So the original info. I gave in my last reply was false. The mechanic that looked at the rears said they both had same gears and another guy that gave me that info was wrong and he apologized.*** Well I replaced the inner rear and I have new noises going on so could use everyones input. If I dont end up in a straight jacket I will be surprised. We put the rear in on Sat. Ran truck Mon, Tues and today. Keep in mind, back rear put in about 3 weeks ago, then tranny about 2 weeks ago and then inner rear this weekend. Truck was not run alot during that time. On Monday I was hearing a noise. Hard for me to explain these noises but will try. 3 noises all together. One is a whine noise, not real loud but definitely noticeable. Second is like a cha, cha noise while I am running down the road, seems to go with the rpm of engine, but not positive with that. The third noise just started yesterday on the last load of day. It only happened when I got to around 65 mph. It was like a grrrr noise. and it would start out soft and get louder. As soon as I backed off the fuel pedal, it would go away. But most of the time when I got back up around 65 it would come back until I again would have to back down. So, anyone have any suggestions. I am about at my wits end with this thing and need to figure out what is going on before it puts me under. The one guy, a certified mechanic that works for a fleet truck company that does this work on the side, that put the tranny and back rear in said it could be the tranny or clutch. I dont see the clutch making this kind of noises and dont why he would say the tranny unless he thought the Reman I got is bad. I asked him about taking it to a shop, but he said noises can be next to impossible to diagnose. He said maybe it would be better to let this one ride itself out until something goes so I know what it is. I dont like that suggestion to much. I would like to figure this out before I have something go and possibly do much more damage than catching it early. So, hit me with what you think. I need to get this thing fixed. ***I thought I should also add this. The noises I am hearing now are NOT the same that I heard before. The guy where I got all this Reman. stuff said that the main top shaft bearings were not in good shape and both yokes were bad on the inner rear which was the last thing to be replaced. I did notice that the back rear, the one put in first after trying to eliminate the initial noises is leaking. It looks like the front seal where yoke is, is leaking and 3 bolts facing the back of rear were slightly loose. I tightened the bolts and we are replacing the seal today. But I dont see that it would be making all these noises. I was told that the problems with inner rear could have caused the seal to go bad on back rear. And inner rear was only engaged once since it was installed while sitting in driveway to make sure it engaged. It has never been engaged while moving. And I checked to make sure and both invoices for both rears have the stock 464 gears in the rears.***
  12. Well, I took the front rear to be looked at today. I just got a call back and looks like I have now found out what has caused this whole nightmare and $12,000 out of my pocket with all the crap I have replaced. I have dealt with the same place for all the parts. My truck came with 464 gears stock. That is what came out of back rear. But today, when I brought them my front rear, I got a call, "Jeff, did you know that the front rear has 442 gears in it." I said, HS!!! The guys said, "yeah, that is most definetly what has caused this mess." With driving around with the power divider engaged for 3 months, the gears were fighting against each other and slowly started destroying each other. So, someone, for some unknown reason before I got the truck, left the stock gears in the back rear and put 442 gears in the front rear. So, WHAT DO YA KNOW!!!
  13. I found out the front unit weighs 537lbs. I probably put about 4-5000 miles on it while it was engaged. The mechanic friend (diesel mechanic by trade) said there is excessive play in it and there are what he said above normal shavings on plug. All U joints seemed to be ok. The Rear rear and tranny have both been replaced with Reman. units. I dont know why the other mechanic that I had put these two in never questioned the front rear as the culprit. He pretty much went by what I was saying and took a stab at what it was. So, almost $10,000 later, still have same noise. When I decelerate, it is like a pulsating vibration noise. I know that both units were on there way out anyway, but probably could have gotten some more time out of them. Towards the end of the day when I last ran it, it got so bad I had to take it out of gear and use all brake to slow down as I thought it was going to rip the truck apart. It was pretty bad. It kind of started making the truck jump a little like a bucking kind of. I do not think that it is any of the drive shafts as the front one was put in new well before this noise started and the others seem fine along with U joints. Everyone I have talked to about this lately said that running it that long engaged, I probably screwed up bearings or something in that front rear. Instead of just getting a Reman. on this front rear, I am going to have this one rebuilt. That way, hopefully when they tear into it, they will find something that would be proof that it is the problem.
  14. Did not explain fully I guess. I want to pull myself with a 2 ton engine hoist. The place locally said the inner differential weighs 400lbs. but my mechanic friend seems to think it should weigh more than that.
  15. Hey guys, Well I finally found out what my vibration noise is. You guys should love this. I have been driving around with the inner rear engaged for over 2 months. Guess I must now pay the price for being stupid. The guy I bought truck from told me that the air switch on the dash is suppose to be in the forward position, towards the windshield for the disengaged position. Wrong! I never second guessed him. So I have been driving around with it in. So it was disengaged and the vibration got considerably worse, especially when I was decelerating in gear to slow truck down. But a mechanic friend told me to go slow, but engage the rear and see what happens. When I did, the noise went away. So, obviously, I have damaged something in that rear. But my main question is to save money, I want to pull it and re-install after rebuilt myself with a mechanic friend. So I am wondering if anyone knows how much that inner differential weighs. It is air activated. I believe it is 46,000lb. camel back rear.

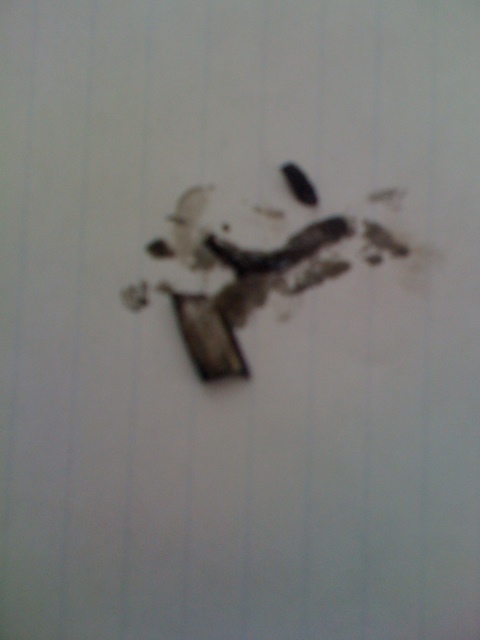

  16. Yep there on a piece of notebook paper and those are just a few of several I found.
  17. Hey guys, I need your opinions on what you think is the problem here but I think I already convinced myself what it is. The mechanic cant look at it till Friday. Last Thursday, in my 97 RD688S Tri Axle Dump Truck I was pulling out of the quarry with my last load of dirt for the day. As soon as I got to 3rd gear, I hear this real fast "Clunk" noise. I thought, maybe a fluke thing where I never got it all the way in gear or something. Got down the road about 1/2 mile, made a turn and started going back up threw the gears. Again, in 3rd it made the noise, then also in 5th. I decided to turn around and go dump my load back at quarry and take it home. It happened again about 4 times on my way home of about 10 miles unloaded in all different gears. My tranny was low on oil so filled it up and went for a ride. It happened 2 more times while out. Got home and had oil coming out of back of TRTXL1070B 12 speed tranny. But I was told by a mechanic that it is common for the rear tranny seals to go in these. But, because the tranny never once popped out of gear or the gear shift even jumped at all, I was second guessing whether it is the tranny that is the problem. Everytime I heard a clunk noise it never missed a beat in continuing to drive. So after thinking that it could be coming from another place and I just felt the vibration threw the drivetrain threw the gear shifter, I went to the one place I knew I have been having a leaking problem. That was my back rear. I noticed that the plate on the back that holds the torque arm was again loose and had about a 1/4 inch seperation, and was noticeably leaking worse, I decided to pull the bottom plug in it. When I drained it, I found metal shaving all over the plug and a good amount of small chunks of metal in the oil. So, from what you have heard, do you think it is the rear that is the problem here. I think it is. I know some of you will probably say, "DUH", metal chunks, ya think. LOL. But I am very tight on money and just want to make sure I repair what the problem is. Just dont want to put a rear in it and find out that I still have the problem and only to find it was the tranny. I have had a leaking problem with the rear for a while and have found metal shavings on the plug before, but this is the first time I have seen small metal chunks in the oil. Here is just a few of the chunks I found in the oil.
  18. Yes, everything was replaced on the spring. I purposely held back some info to see what you guys came up with. Now I am afraid of what might be going on. Before I purchased the truck, the frame was cracked about 2 foot behind the cab on drivers side. About right in the middle of where the lift axle bolts up to the frame. I never caught it before I bought it and the guy held back a few things about the truck that he should have told me about. The other things were mechanical things I took care of. But this was something that threw me for a loop when I found it. I had a guy weld the frame (and he told me about having to weld in small increments and let it cool down very slowly), there is a piece of metal same shape as the frame, only 1 size smaller that was put inside the frame on the inside as a fish plate that spans 1 foot in front of crack and about 2 foot behind. It has several bolts going threw it. And a piece of angle iron that was welded on top spanning about the same area as fish plate. Now, visibly, I dont see anything wrong with it. I dont see it cracking again, it does not seem to be sagging there. But maybe you know better than me. If I am looking at the front of the truck head on like in the picture, does it not look like the passenger side is lower than the drivers side. The crack is on the drivers side. I would think if that crack was giving way, and like I said, I see no signs of that, that the truck should be sagging the other way. I would think that the weight of the truck being loaded would put stress on the crack and push it down, which the crack is almost dead in the middle of truck. Whats your take on it??? Below is a picture of it BEFORE it was welded by my guy. This is how I found it. The top was welded and ground down, probably to hide it. But the inside frame was not welded. To tell you the truth when myself and the guy who welded it looked at it, and maybe you can tell from pic, it looks like someone blew threw it with a torch.

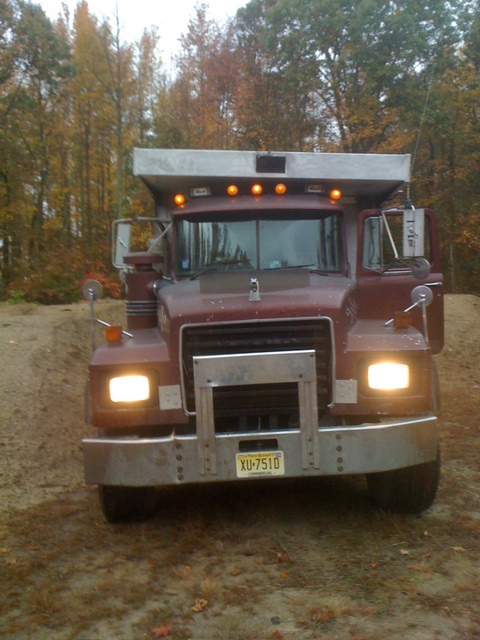

  19. Here is a picture just after I dumped.

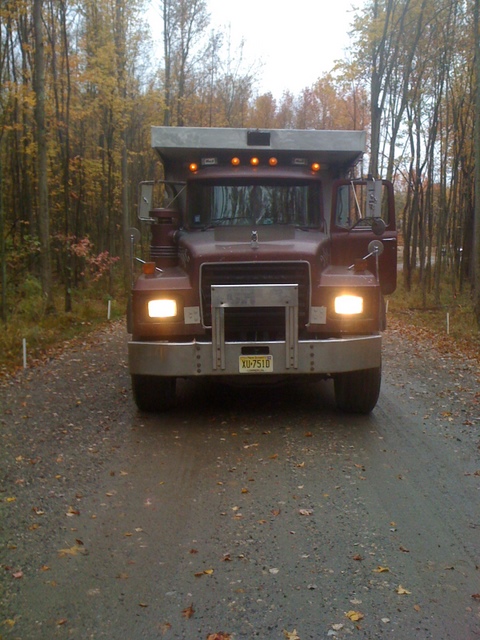

  20. Ok need more help. I replaced the front spring on passenger side. Although it helped the travel between bounce bumper and frame, I still obviously have a problem still. I just cannot figure this one out. The travel between the frame and bounce bumpers on the rears seem to be ok. Body seems to be ok in the down position on the frame. I cant figure out what is causing this problem. Starting to get nervous that something might be structurally wrong. Any suggestions? Cant say the ground was perfectly level in the picture, but pretty level and it was while I was loaded, probably 25 ton.
  21. Ok thats what I thought. Thanks for the info
  22. Hey Guys, Need some input on this. About 3 weeks ago I started noticing when I was coming to a stop and I was heavier than normal on brakes the truck would sometime start to jump up and down. Would have to let off the brakes to get it to calm back down. Then about a week ago I noticed that the front end was sagging on the passenger side. Then today I noticed when I got loaded (its a tri axle dump) that the front end was really sagging on the passenger side. I looked underneath. On drivers side the cushion (not sure what it is called) that is on the shock bracket ontop of leaf springs, the travel between frame and cushion was around 4 inches. On the passenger side it was practically touching the cushion. I did not see any visible cracks or breaks on the leafs, but wouldnt you say that the leaf spring has to be the culprit here?
  23. So how hard is it to replace the vibration dampner for the DIY. I have done 1 on a car engine in the past and i consider myself pretty mechanically inclined. Only problem I guess would be finding a puller and install tool for it. Local Mack dealer does not rent them. I called a few service places and they said the RD is the hardest one to replace and they were looking at around 7 hours time. There looks to be plenty of room in front for the tools to pull and replace and do you mess with the seal in front of crank at time.
  24. Ok so I guess my last question is, after all the new parts are installed, NOT including the vibration dampner, there is no way for me to somehow test it to see if the missing fan blade was the culprit. I am sure the vibration dampner is not cheap and I dont want to have to get one and replace unless necessary. But, I also dont want to start running the truck and have a repeat of the housing breaking and having to do this all over again. Any suggestions???
  25. Ok, that is what I thought. If you read my post up top, then you know the problem I am having. Was wondering if you knew approx. how much a harmonic balancer costs? It sounds as though I am going to need to replace that from what was about the other person having the same problem with their truck and it ended up being the problem.
×
×
