Rear Brakes

Keith S

From the album:

eMack Photos

· 47 images
  • 47 images
  • 27 image comments

Photo Information

  • Taken with OLYMPUS IMAGING CORP. u1010,S1010
  • Focal Length 6.6 mm
  • Exposure Time 1/250
  • f Aperture f/3.5
  • ISO Speed 80

Recommended Comments

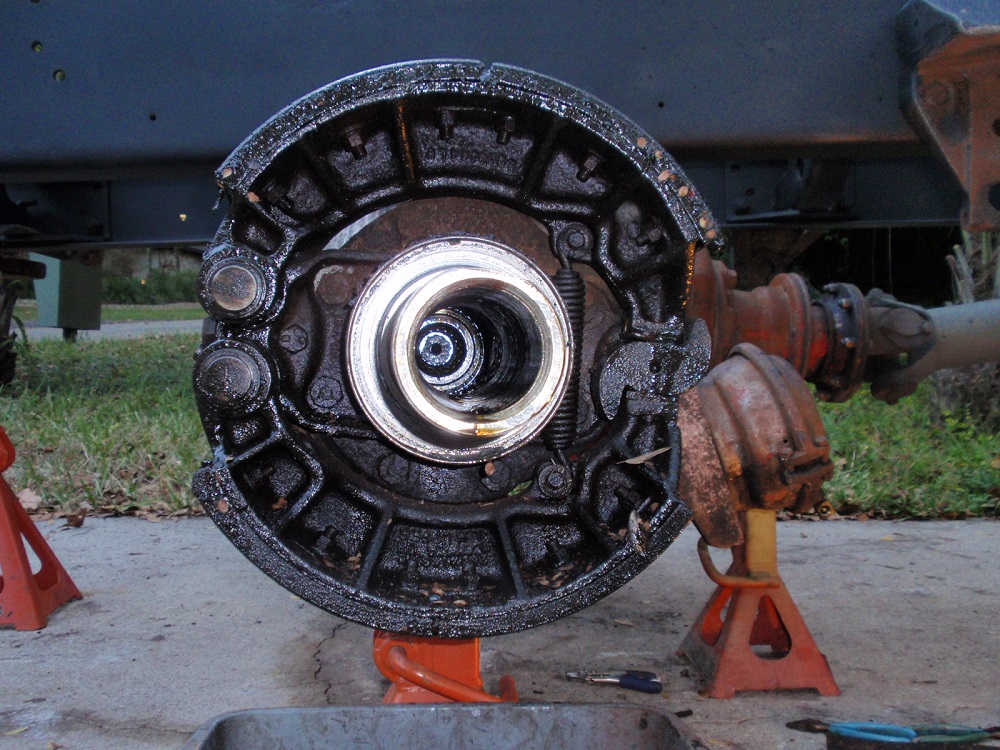

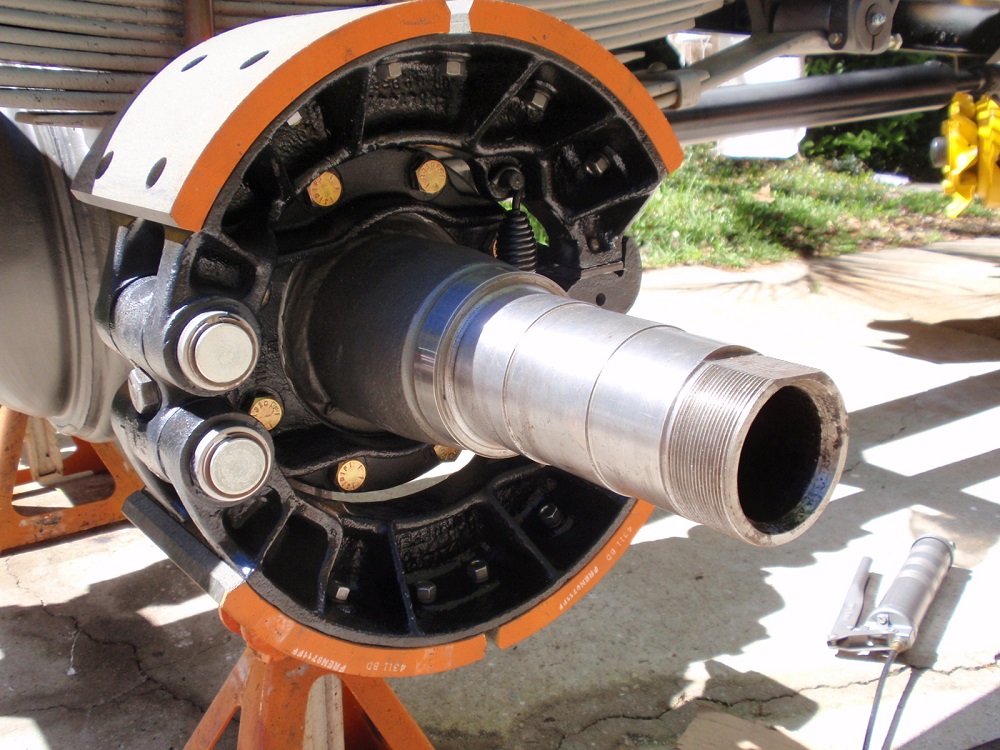

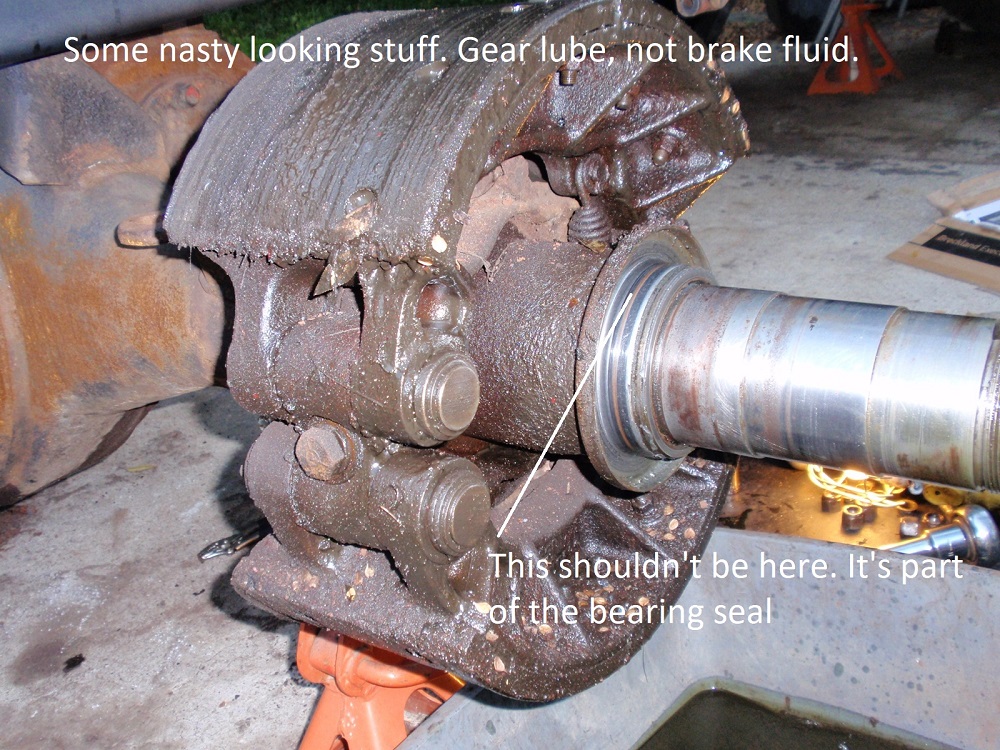

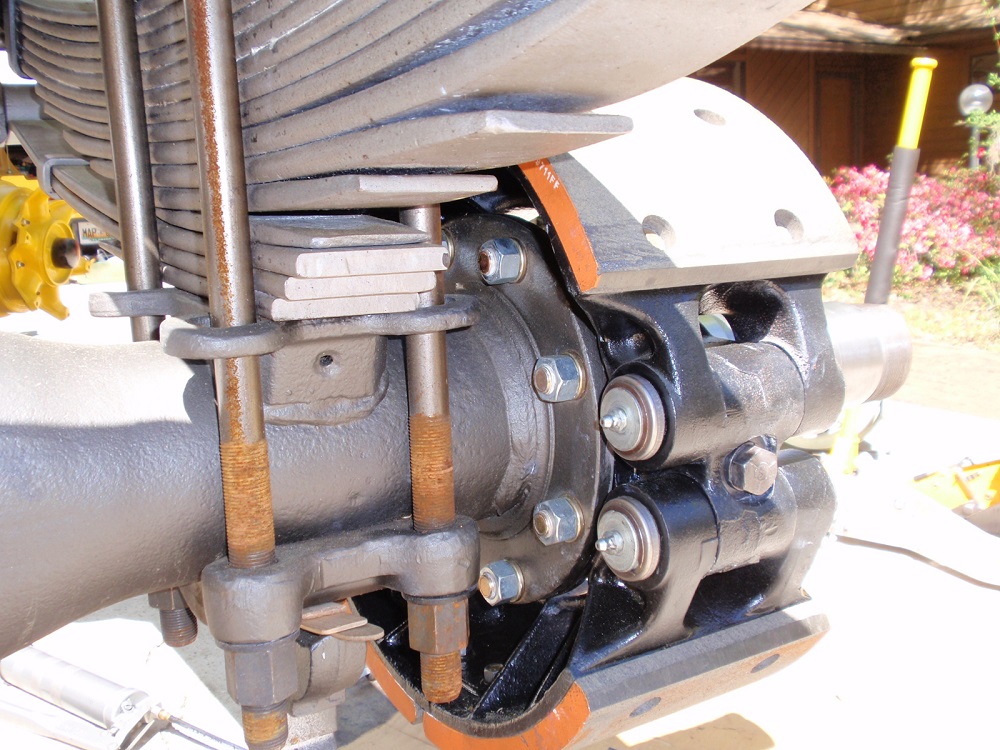

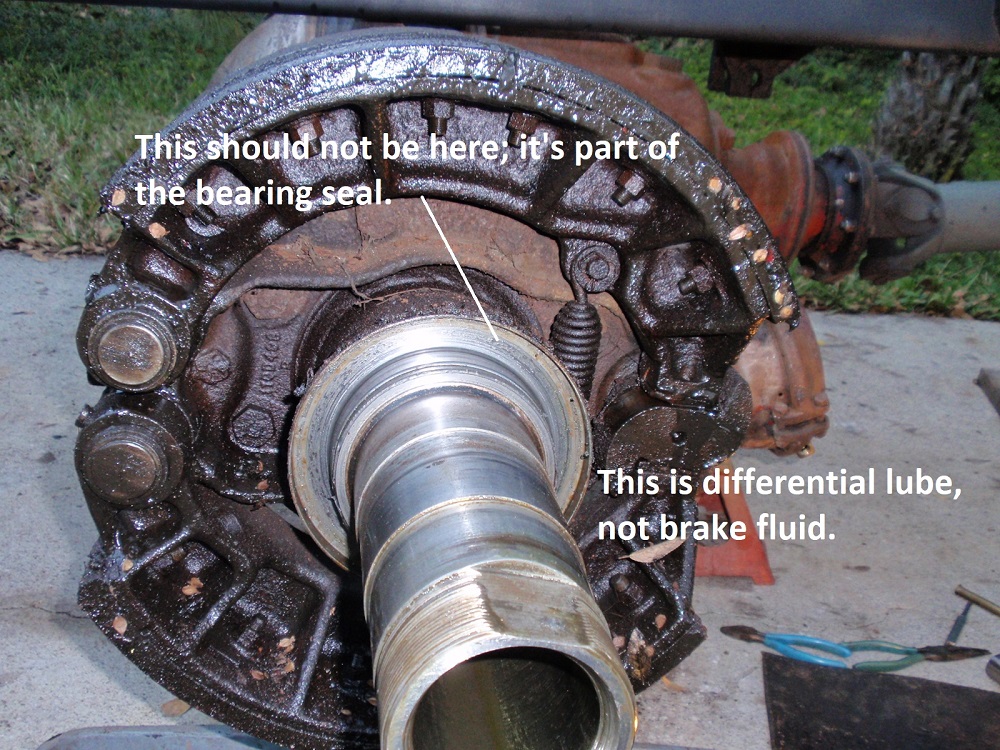

The linings are all the same and symmetric. The shoes are not. The casting's are imprinted with either "Upper Left / Lower Right", or "Upper Right / Lower Left". Before I took the other side apart I thought there were four different shoes and linings. They shoes only fit one way... well, when put together correctly. Here are some before's and after's.






Link to comment
